Morris Minor Custom

Mechanical




Back to Main Morris Page

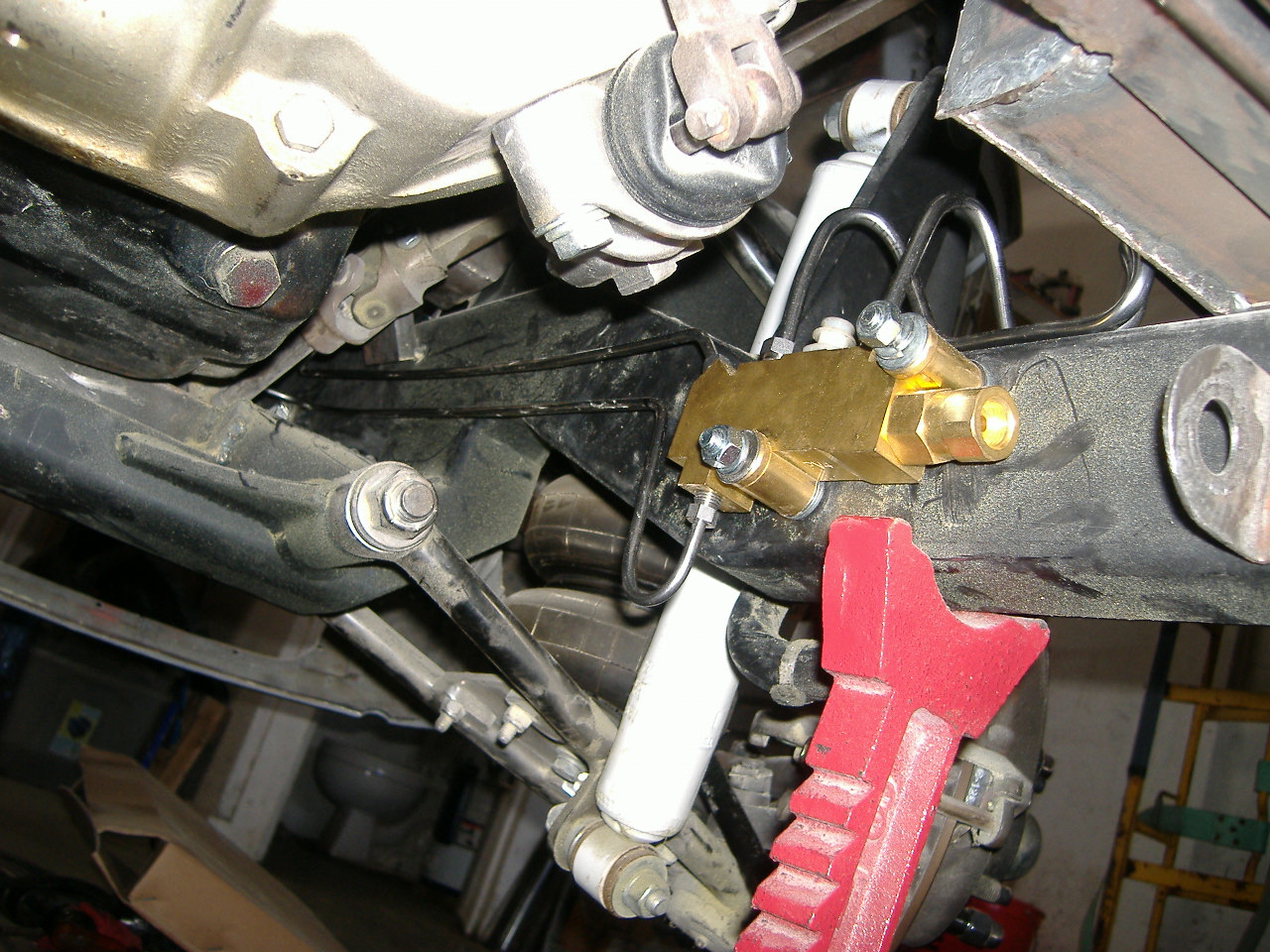

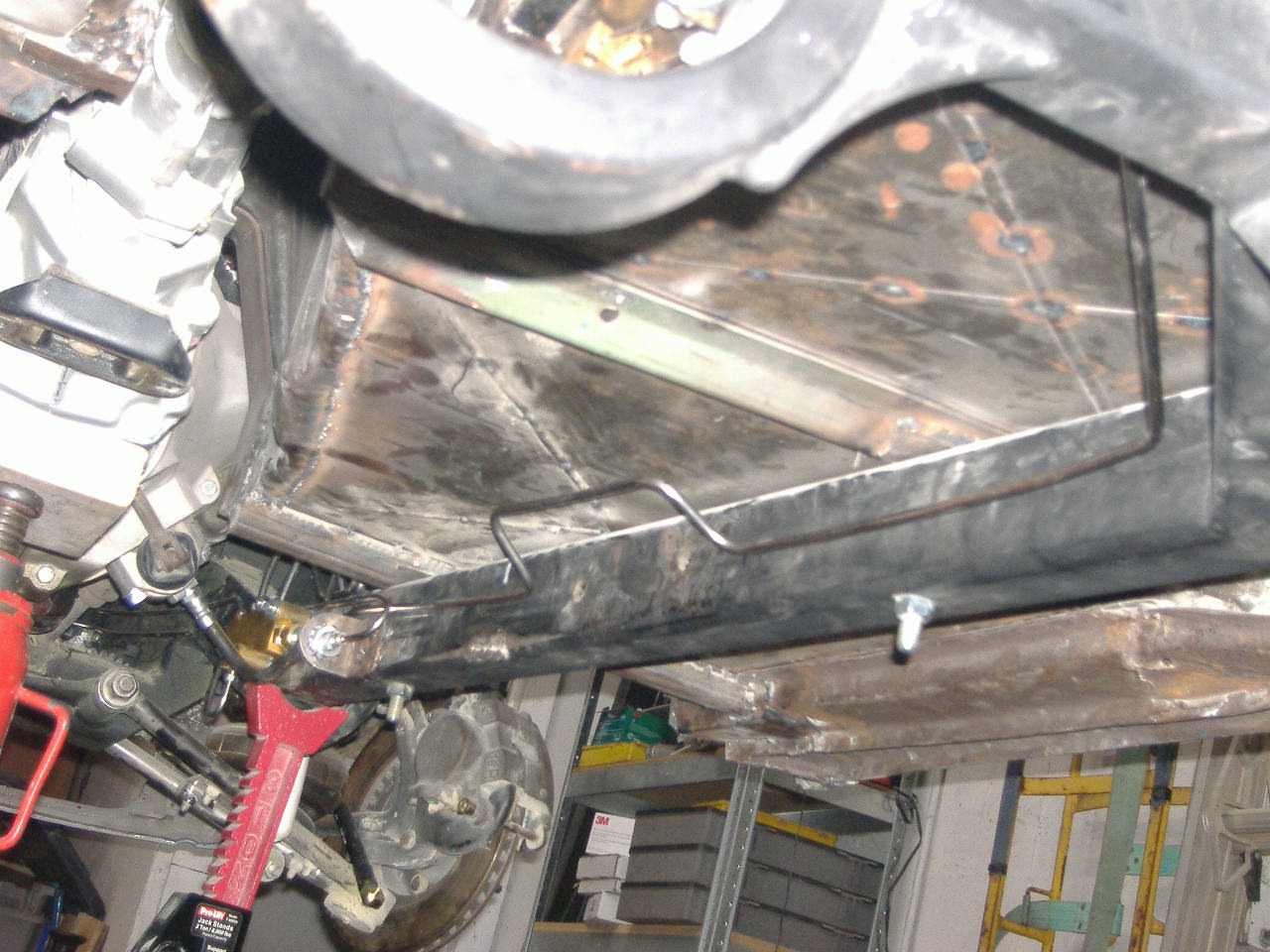

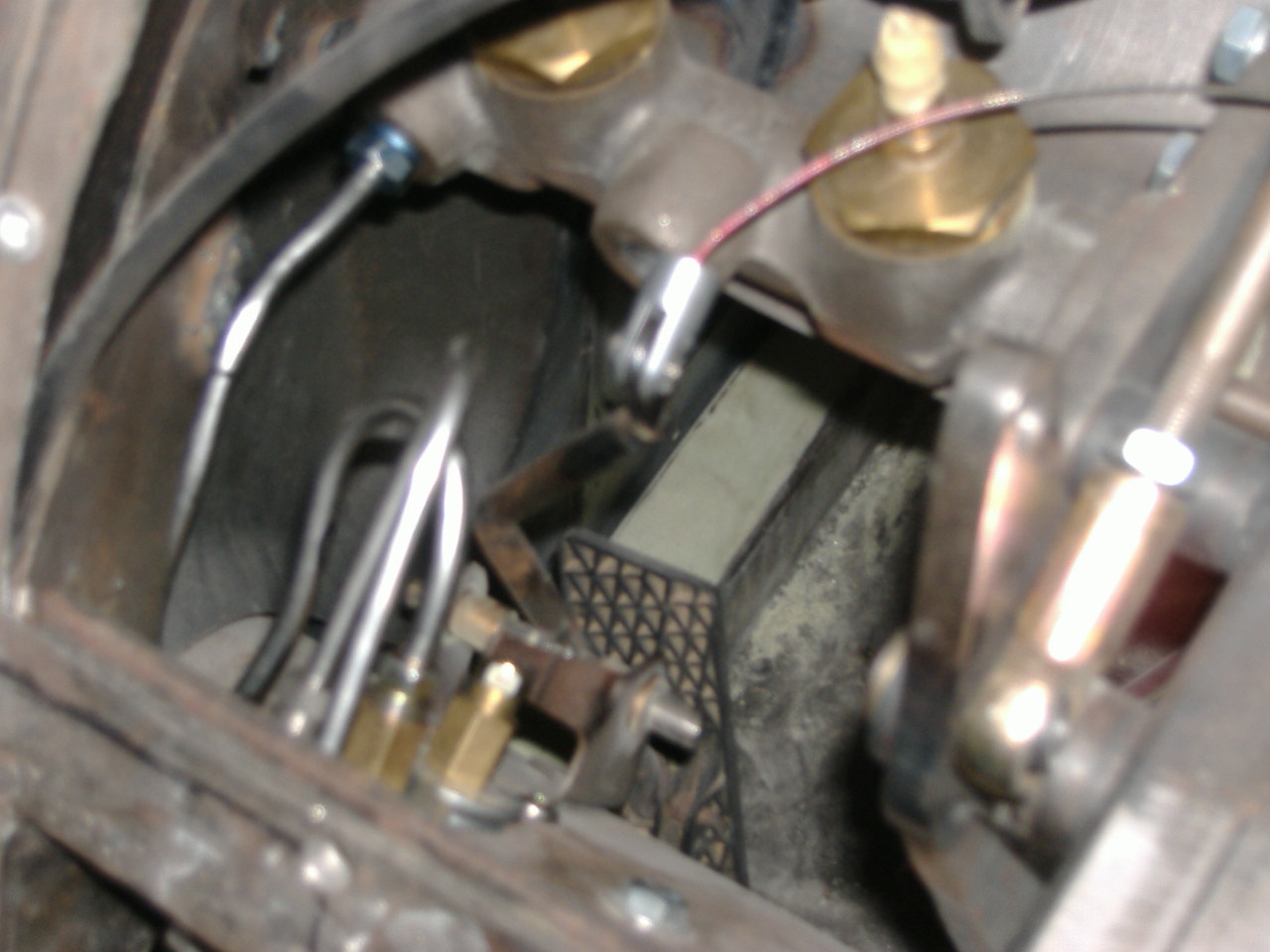

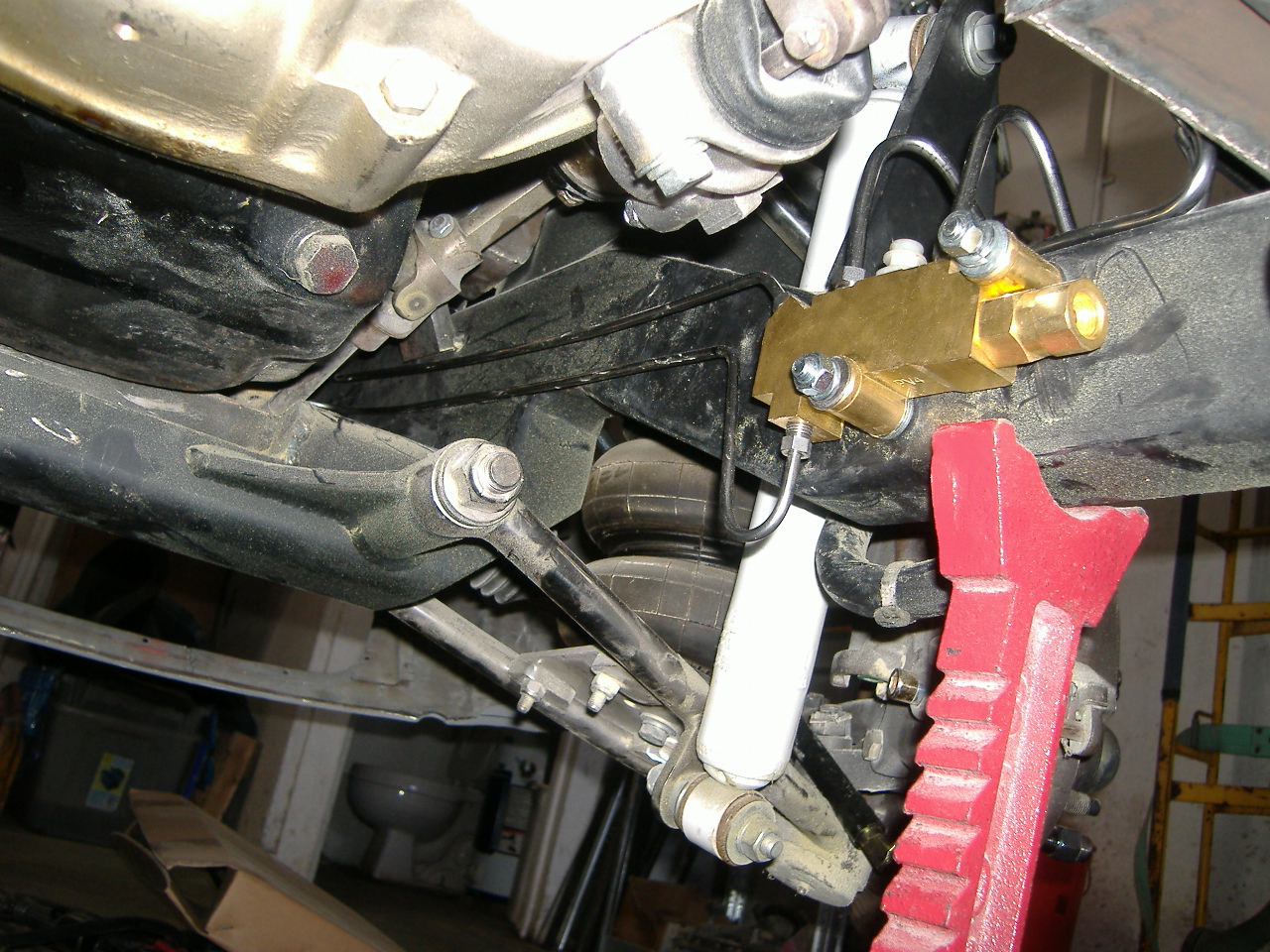

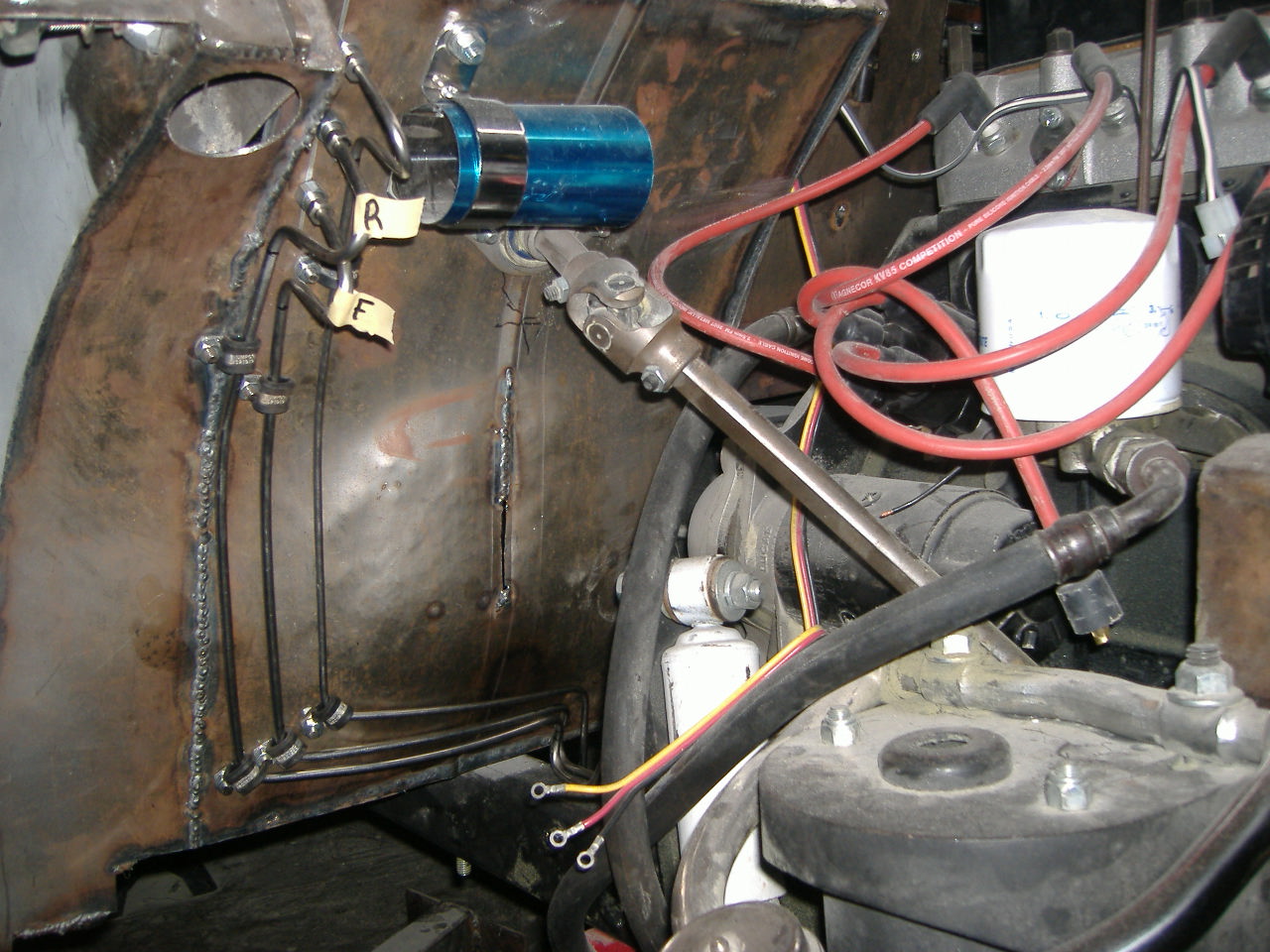

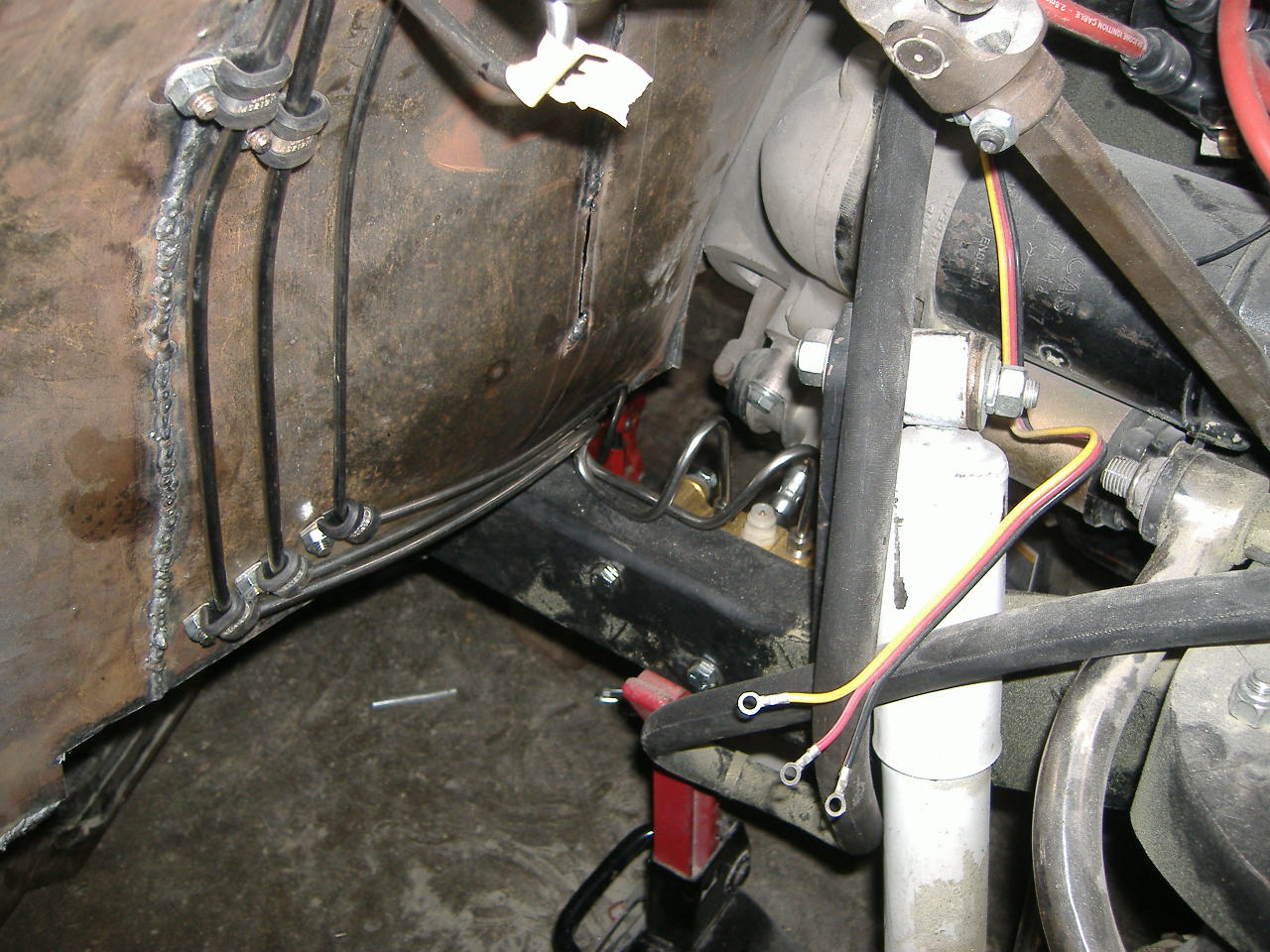

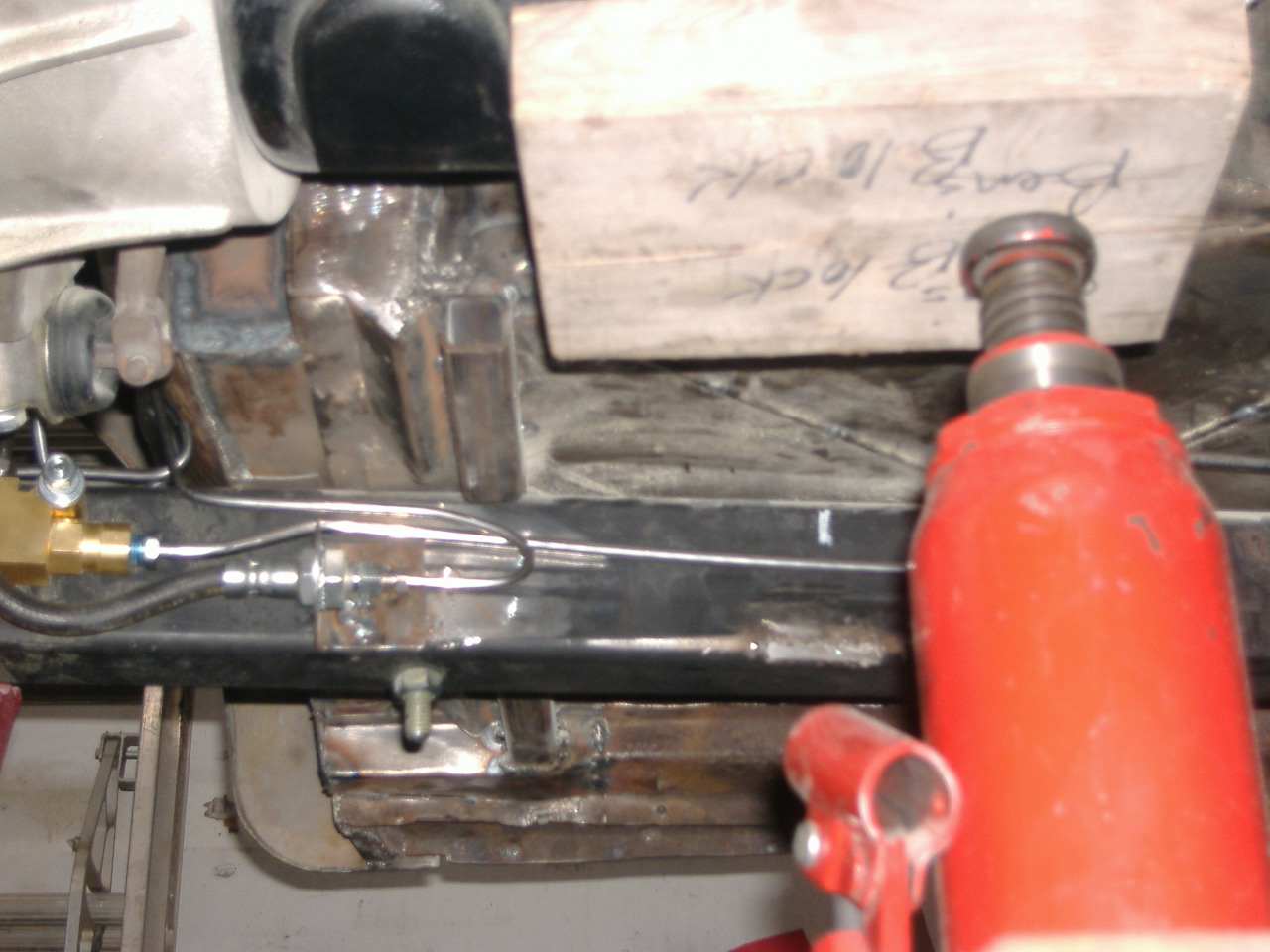

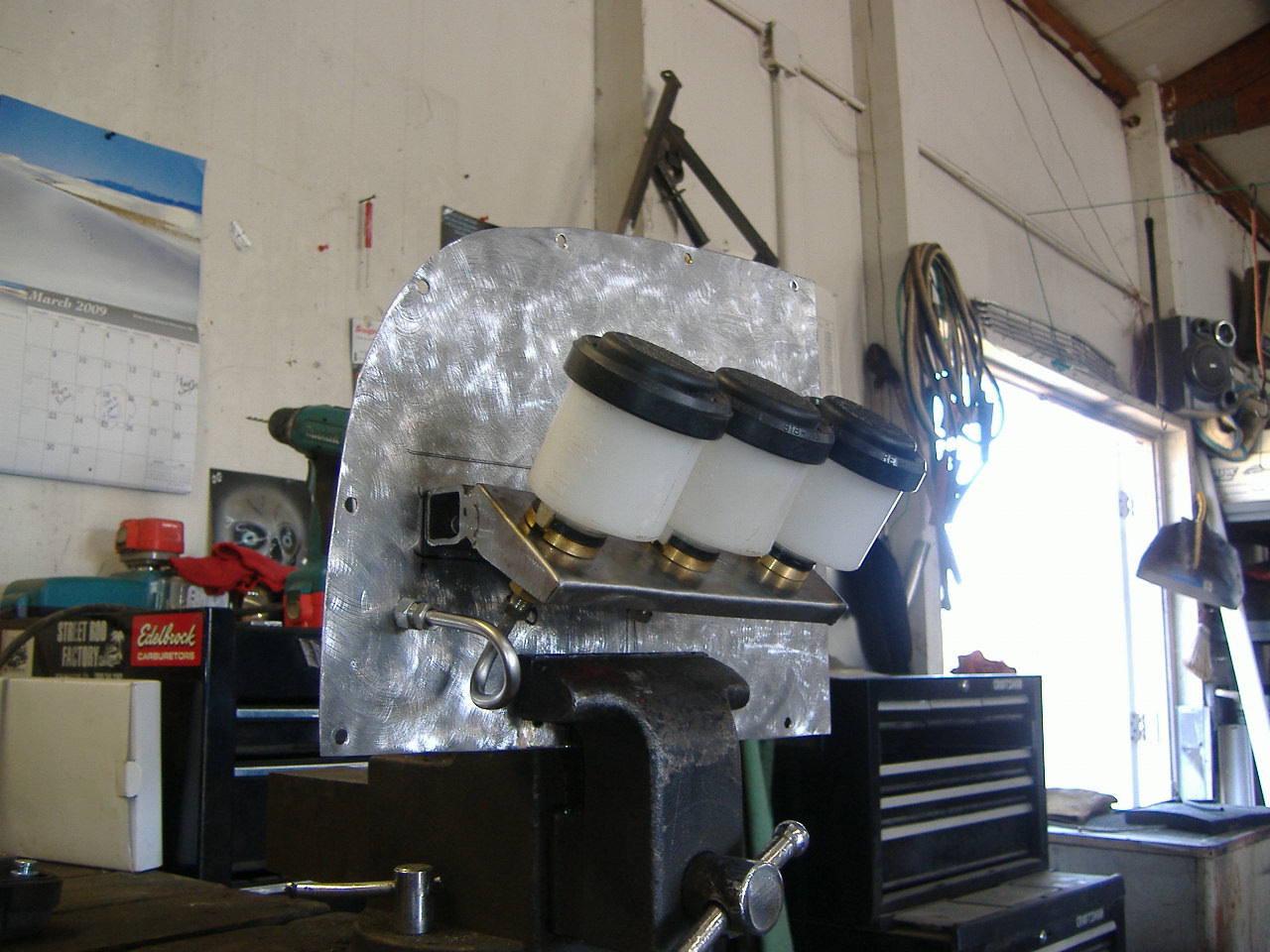

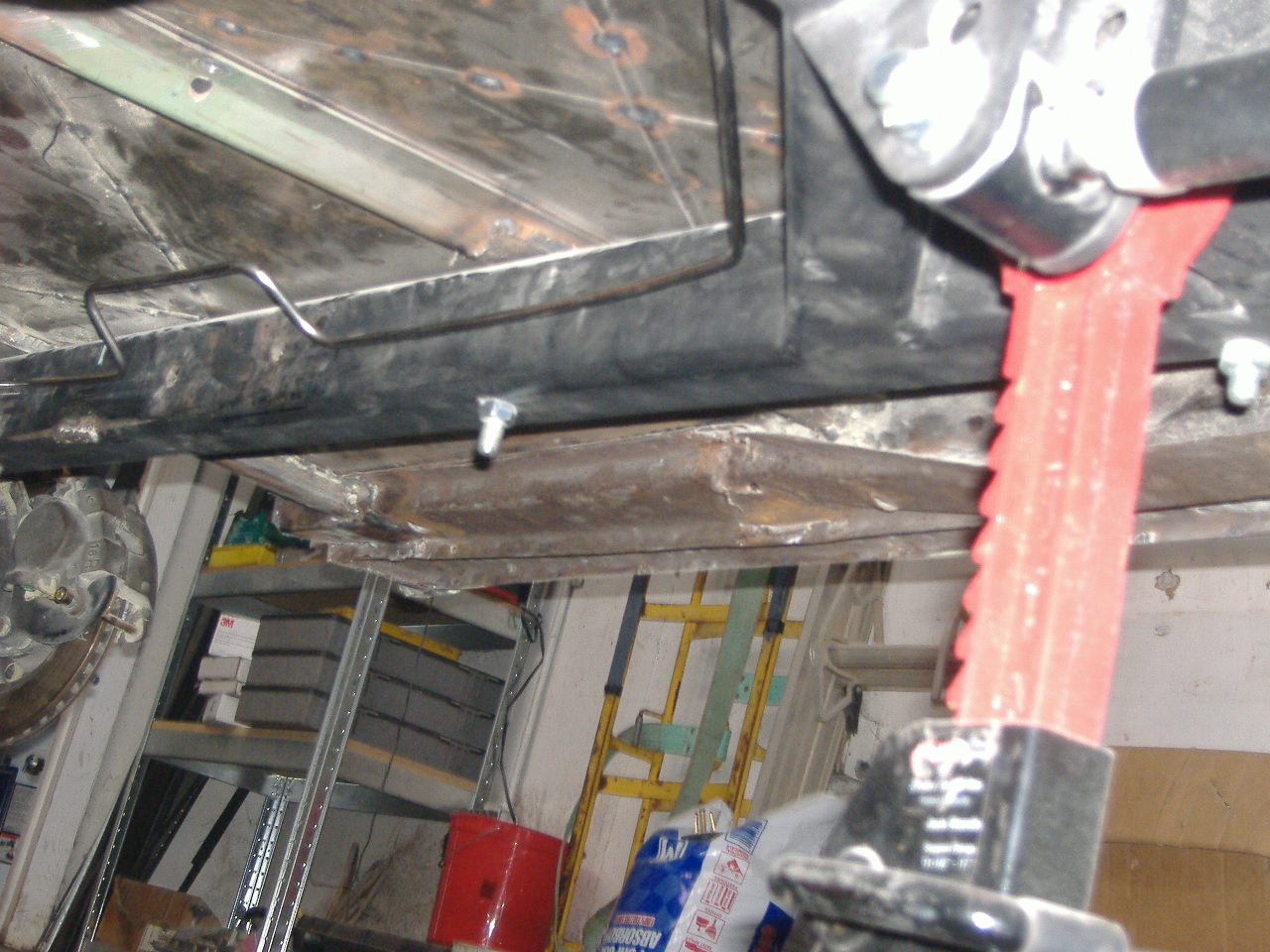

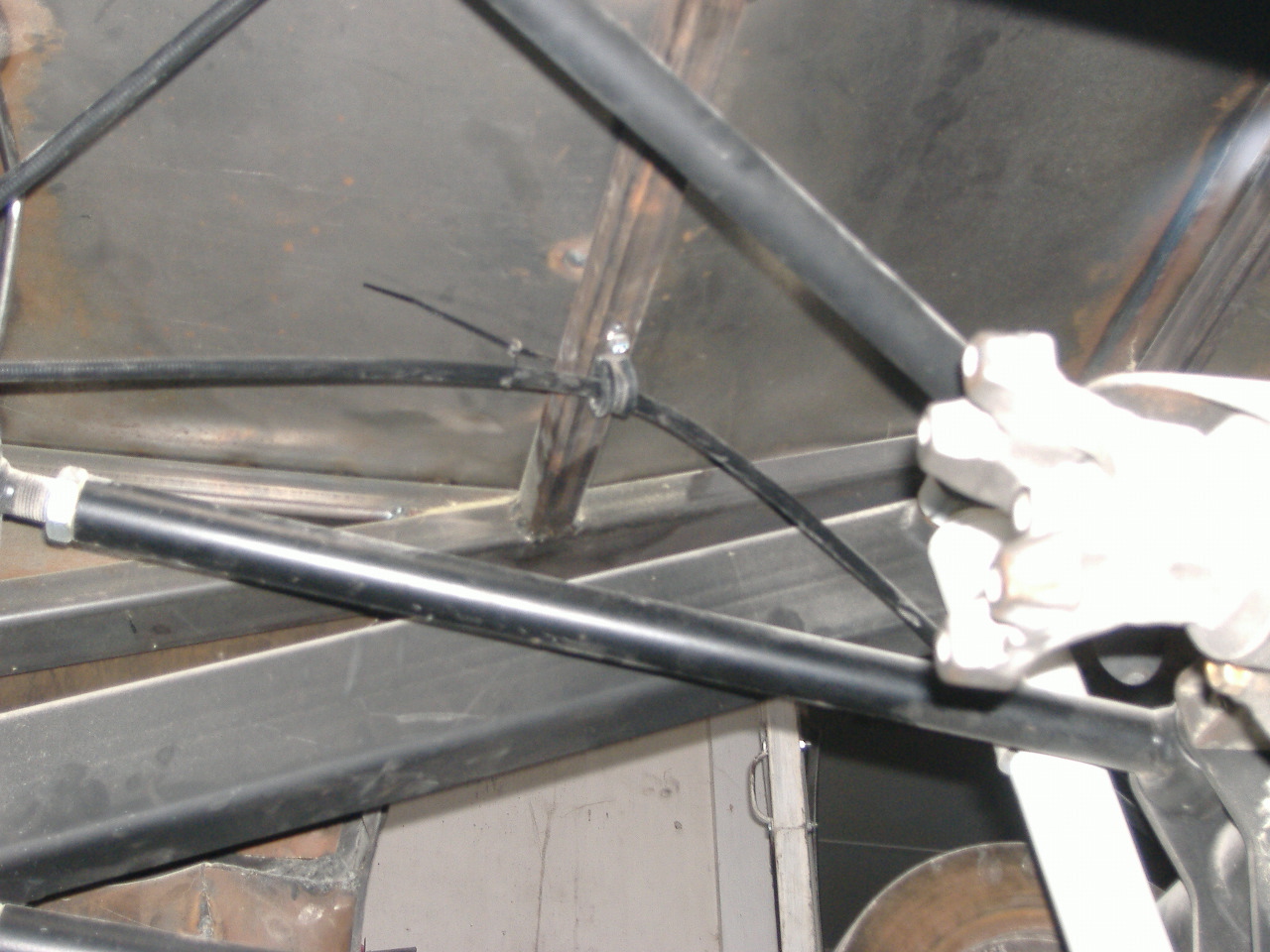

Brake/Clutch lines



A/C parts & lines

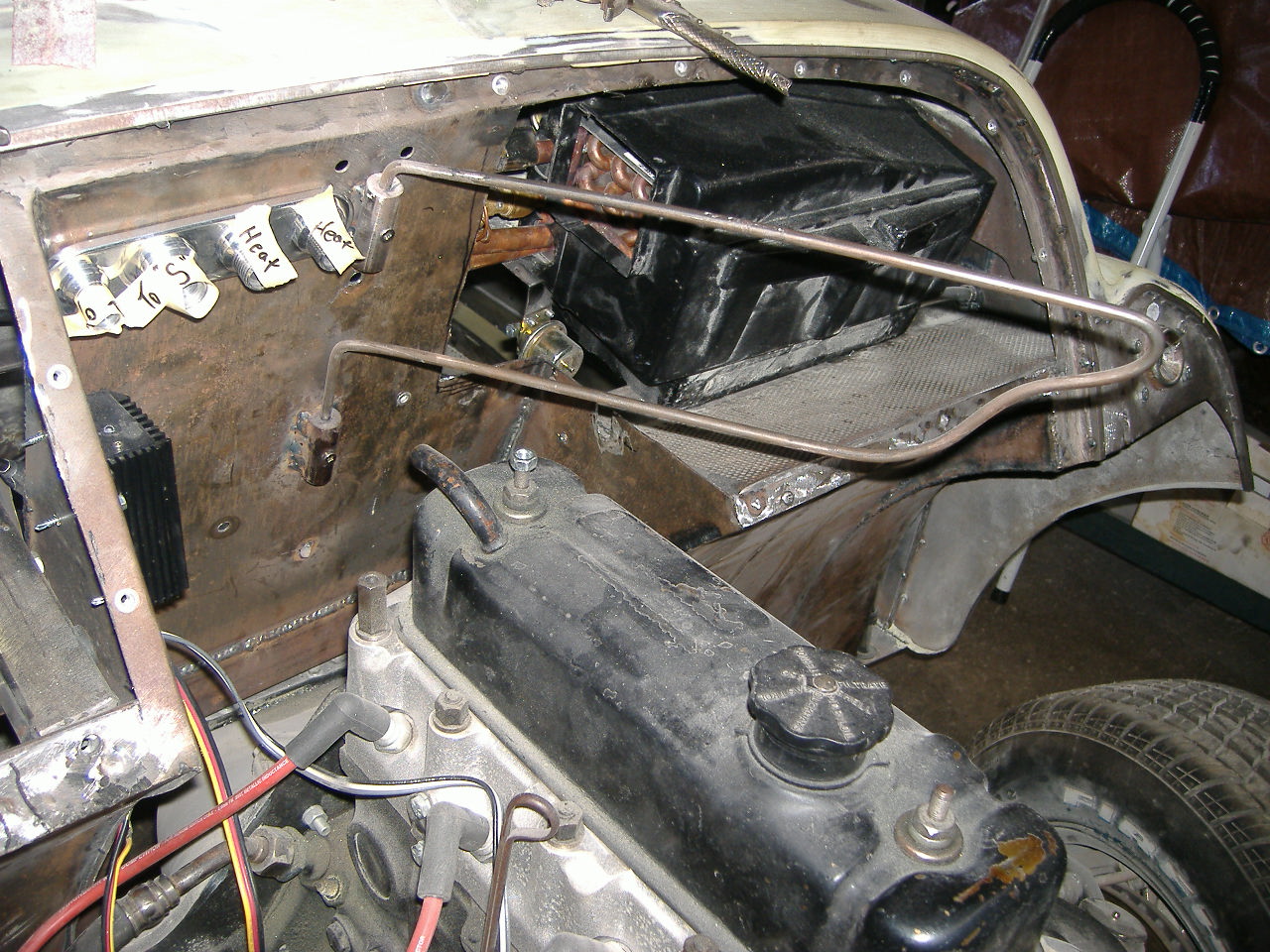

Bulkhead connectoions

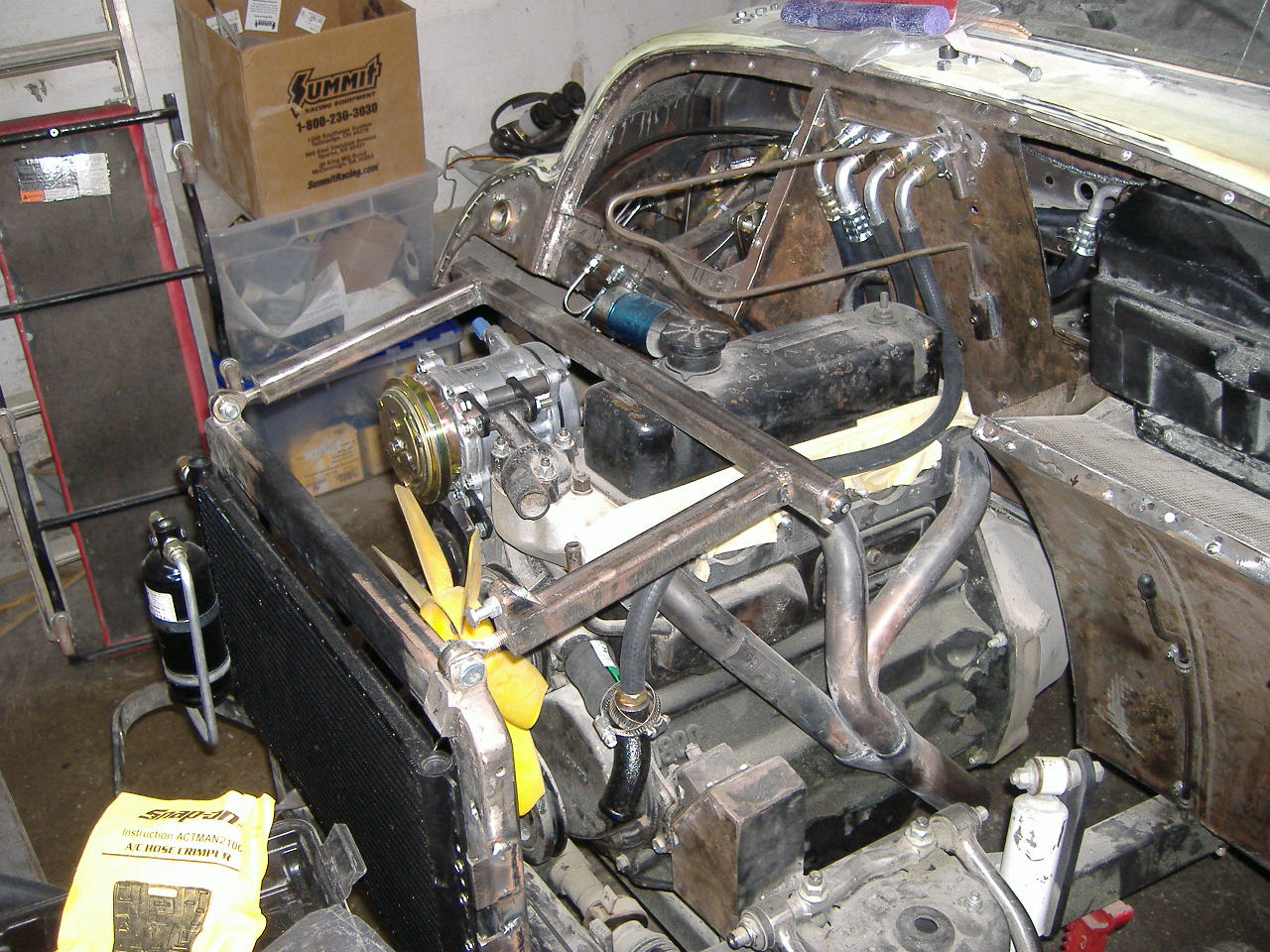

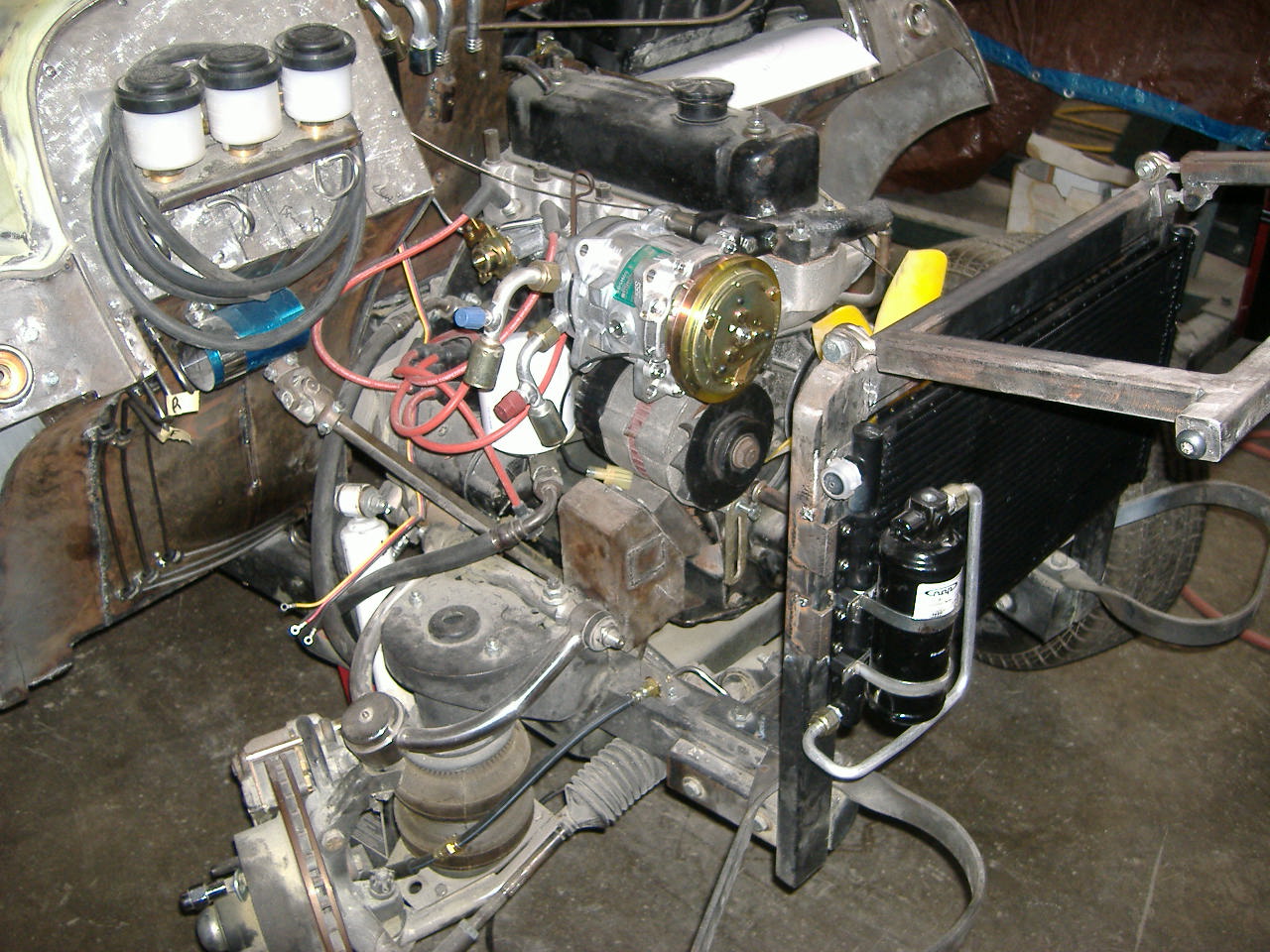

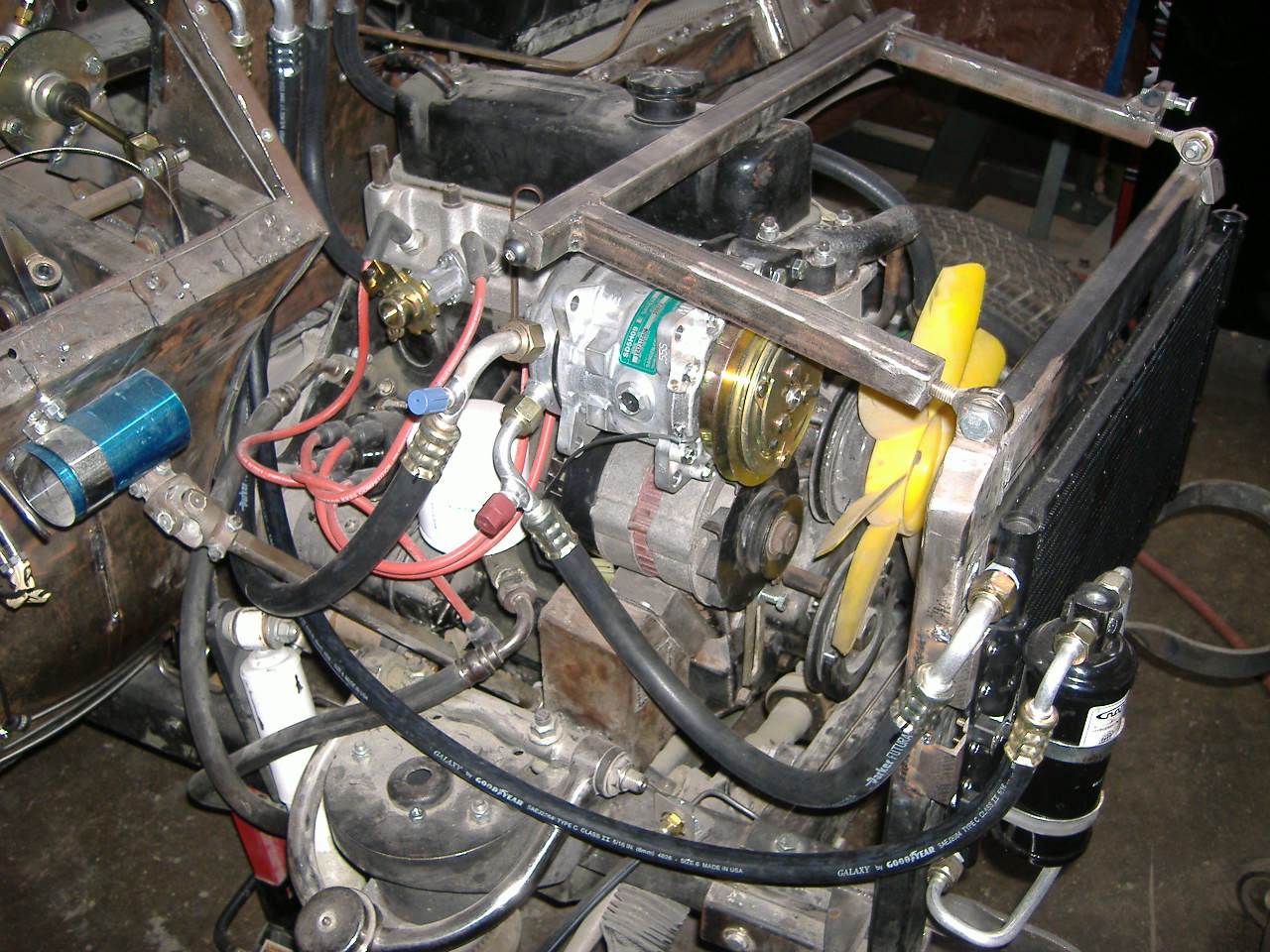

A/C compressor mounting

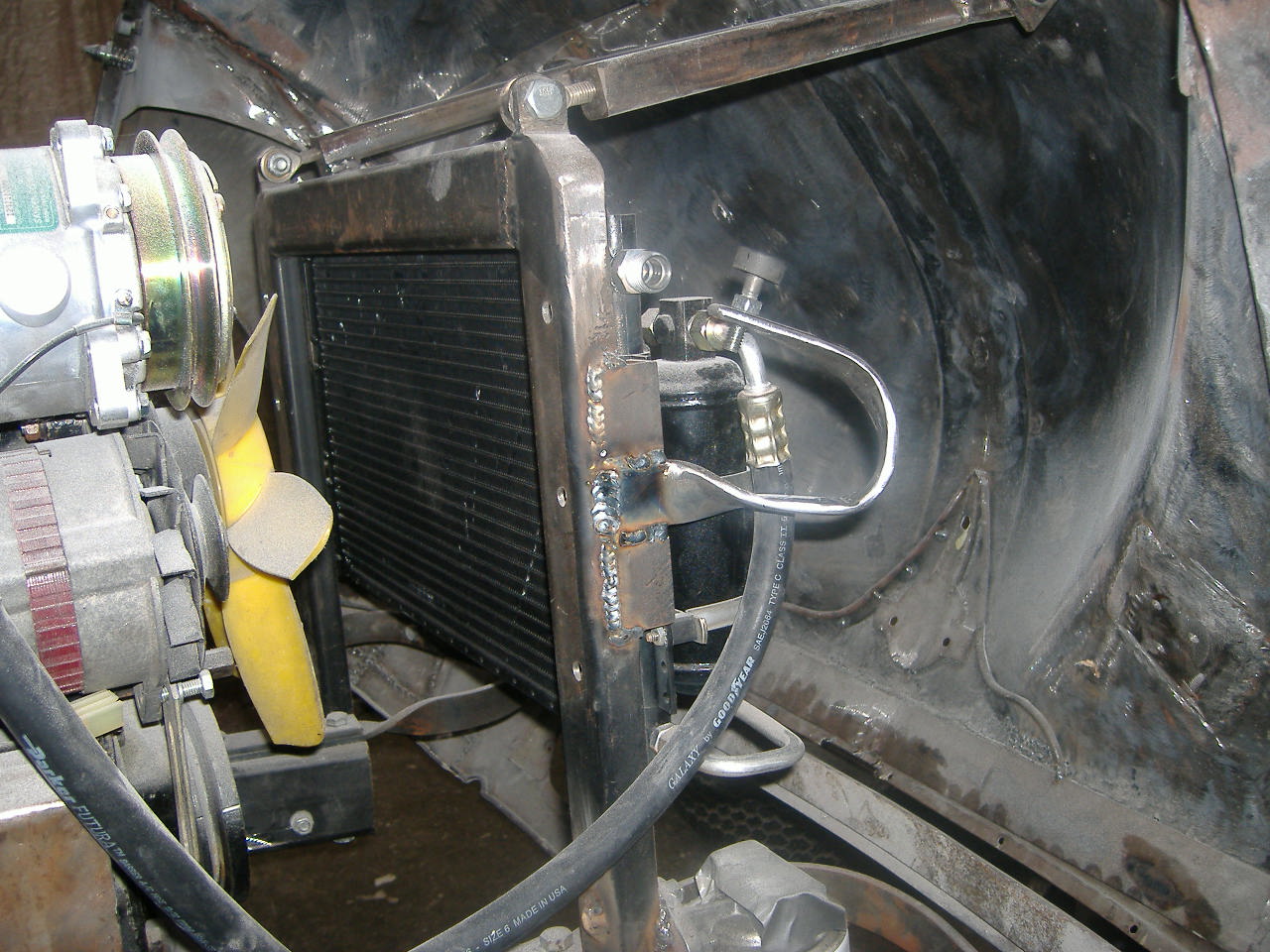

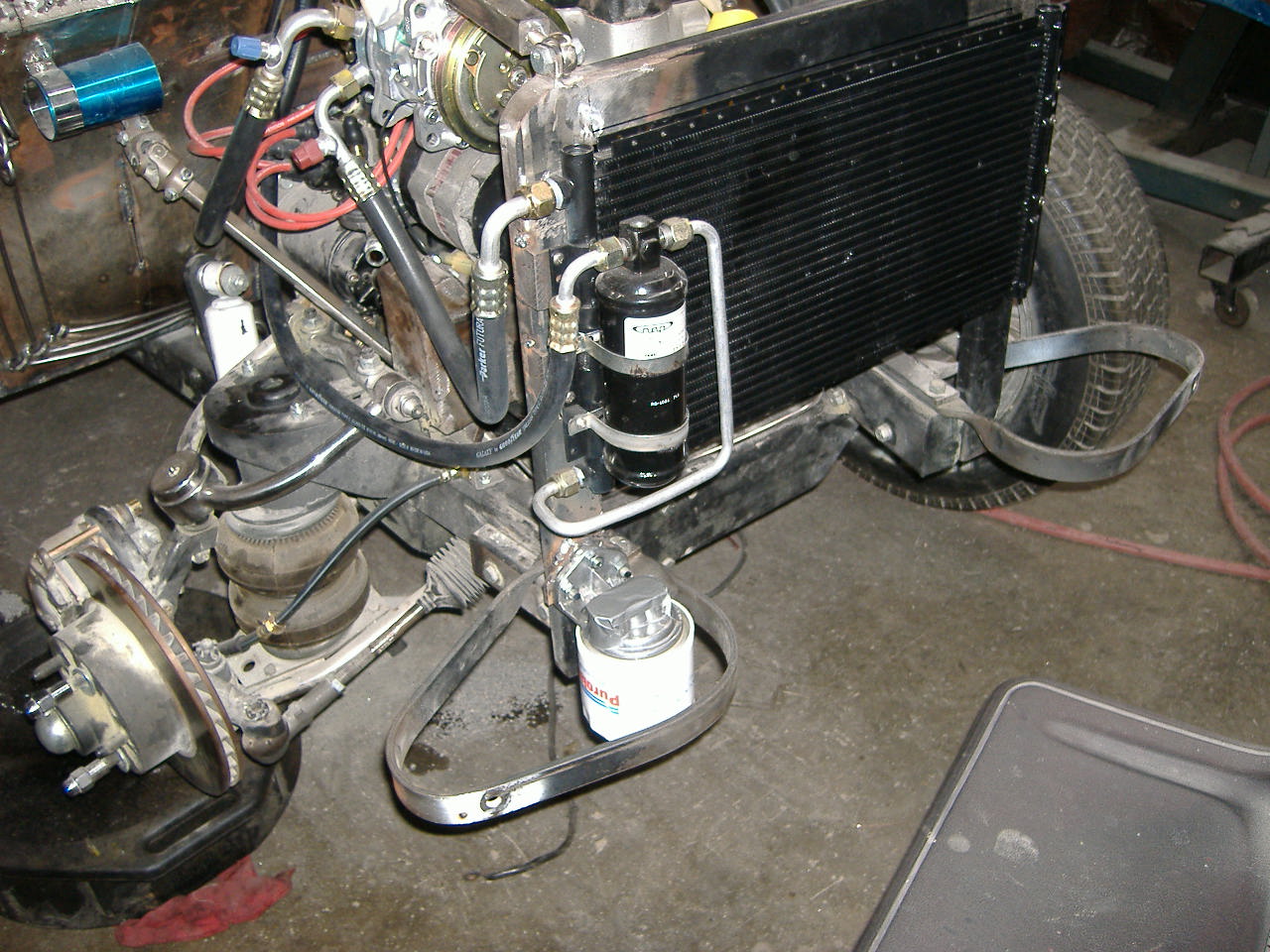

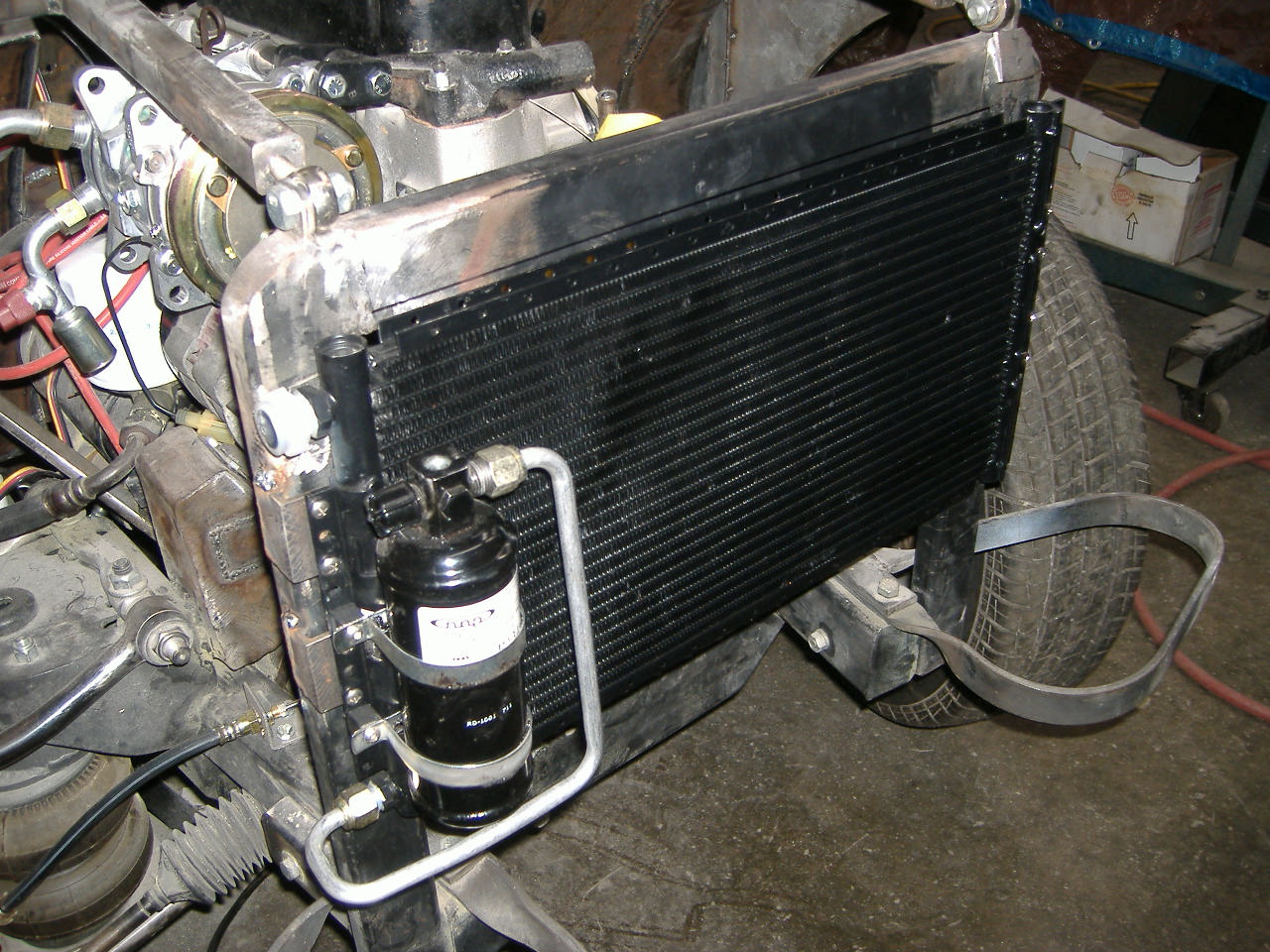

A/C condenser mounting

A/C and heater hoses

another shot of the hoses

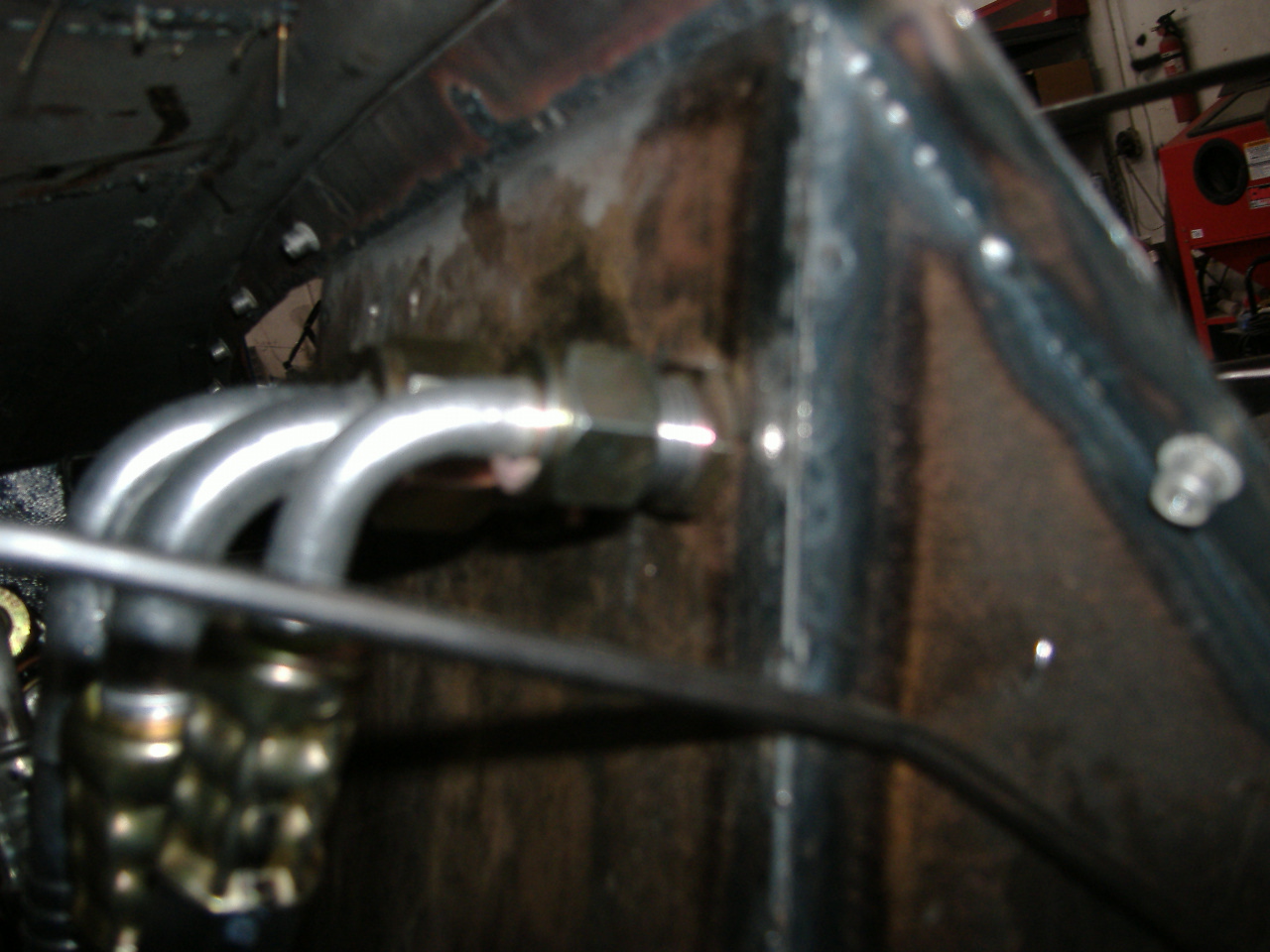

Inside view of bulkhead connector.

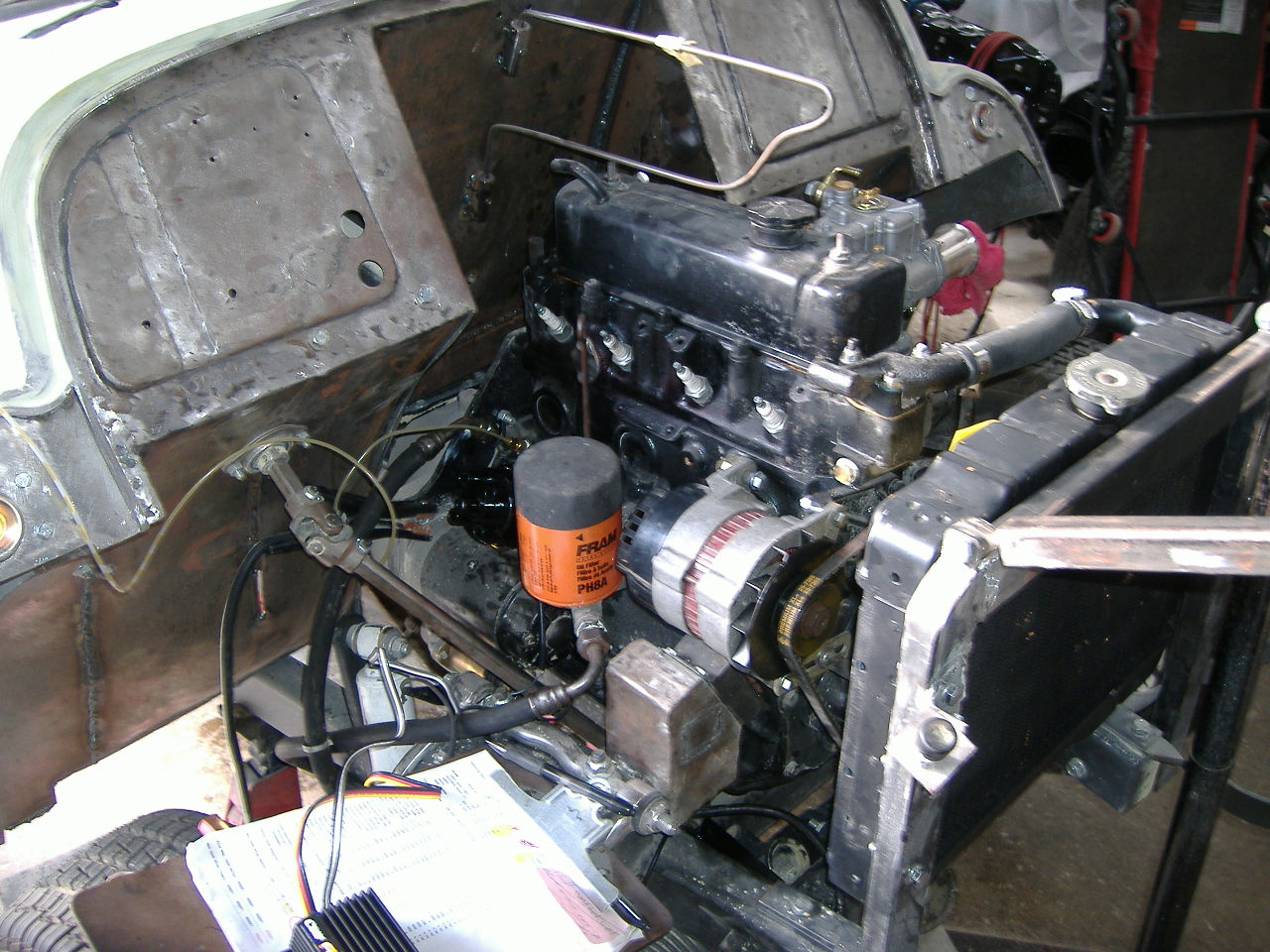

Oil Filter & oil cooler

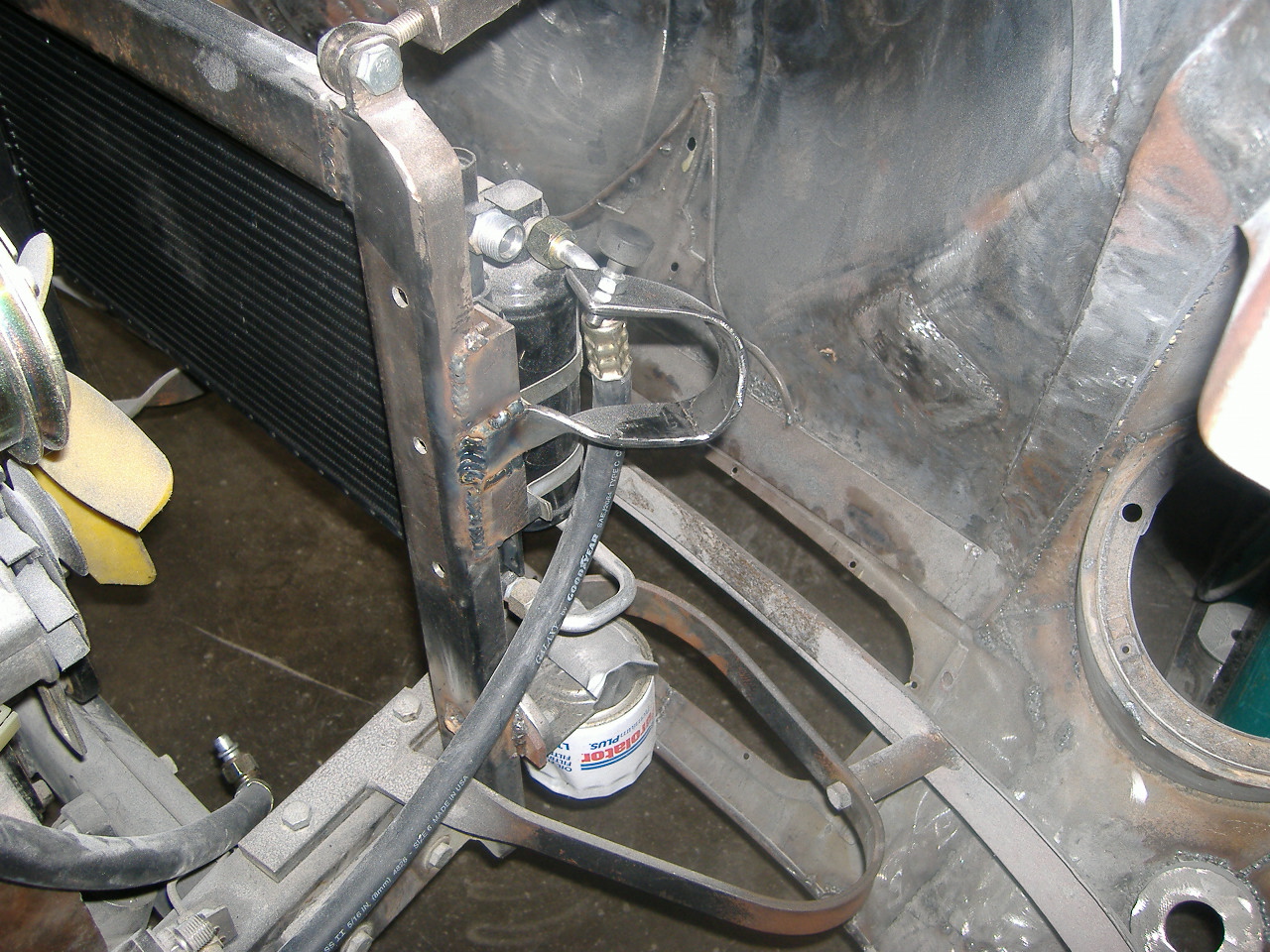

Remote oil filter mount.

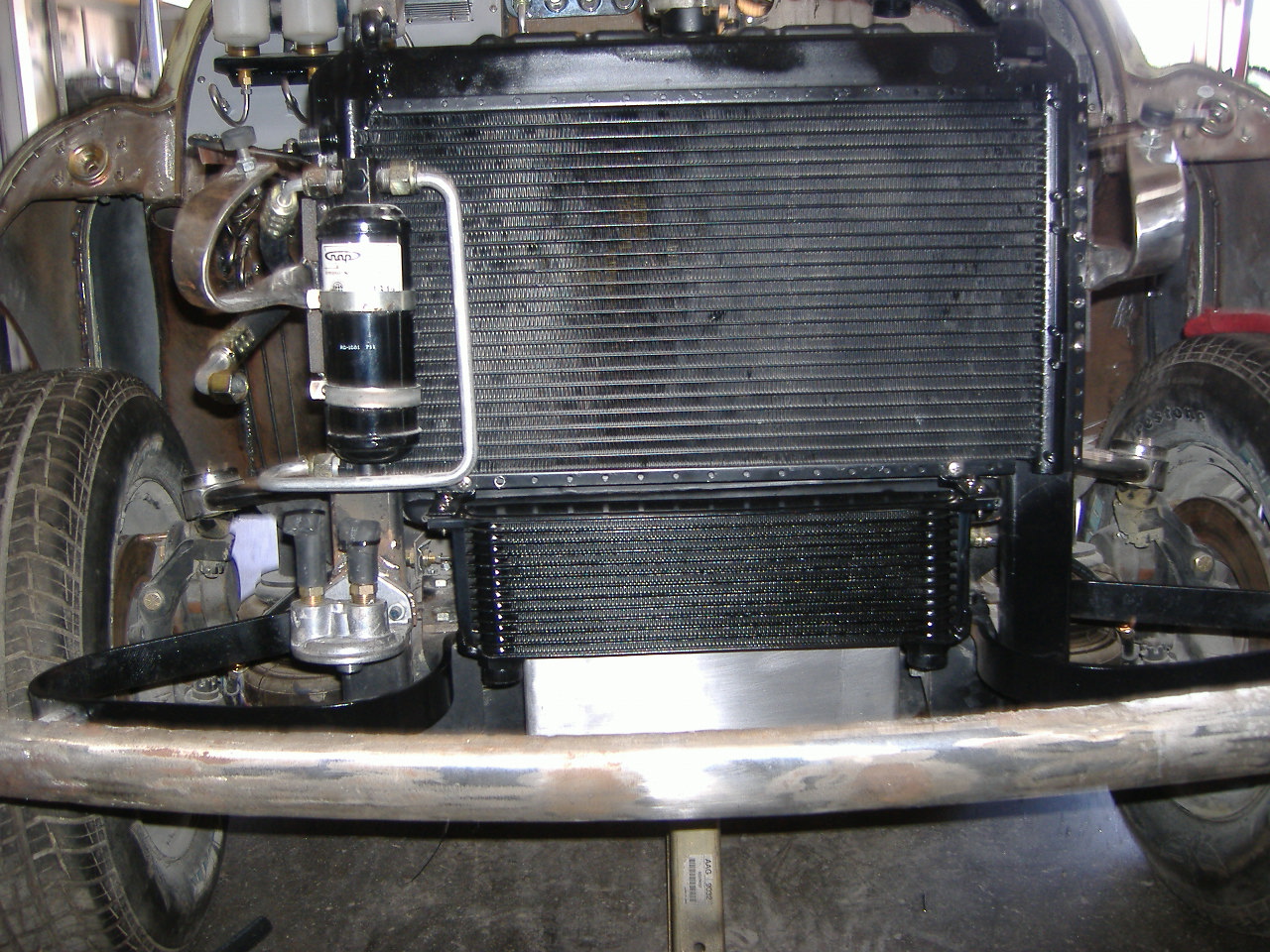

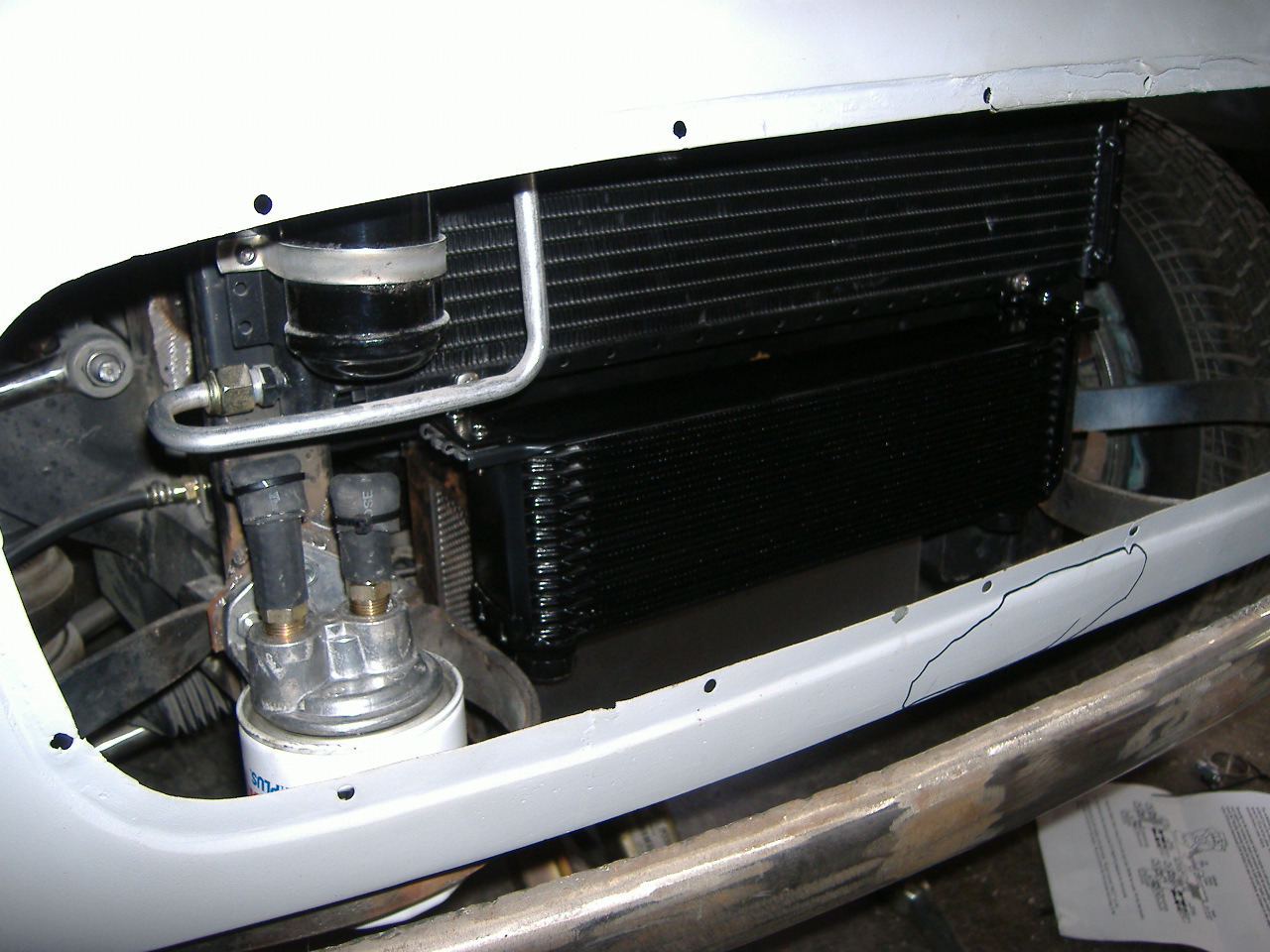

oil cooler mounted below the A/C compressor





Battery

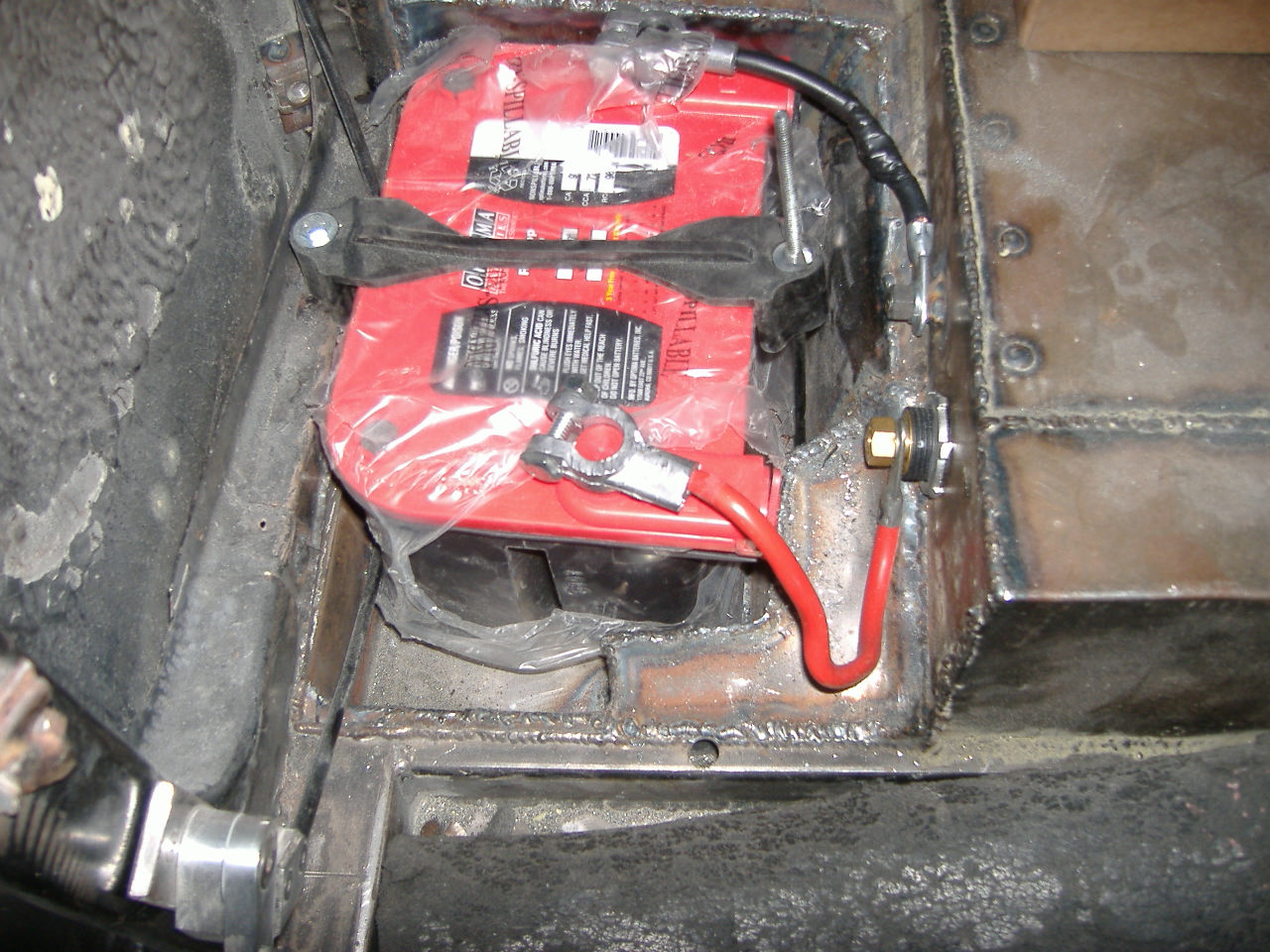

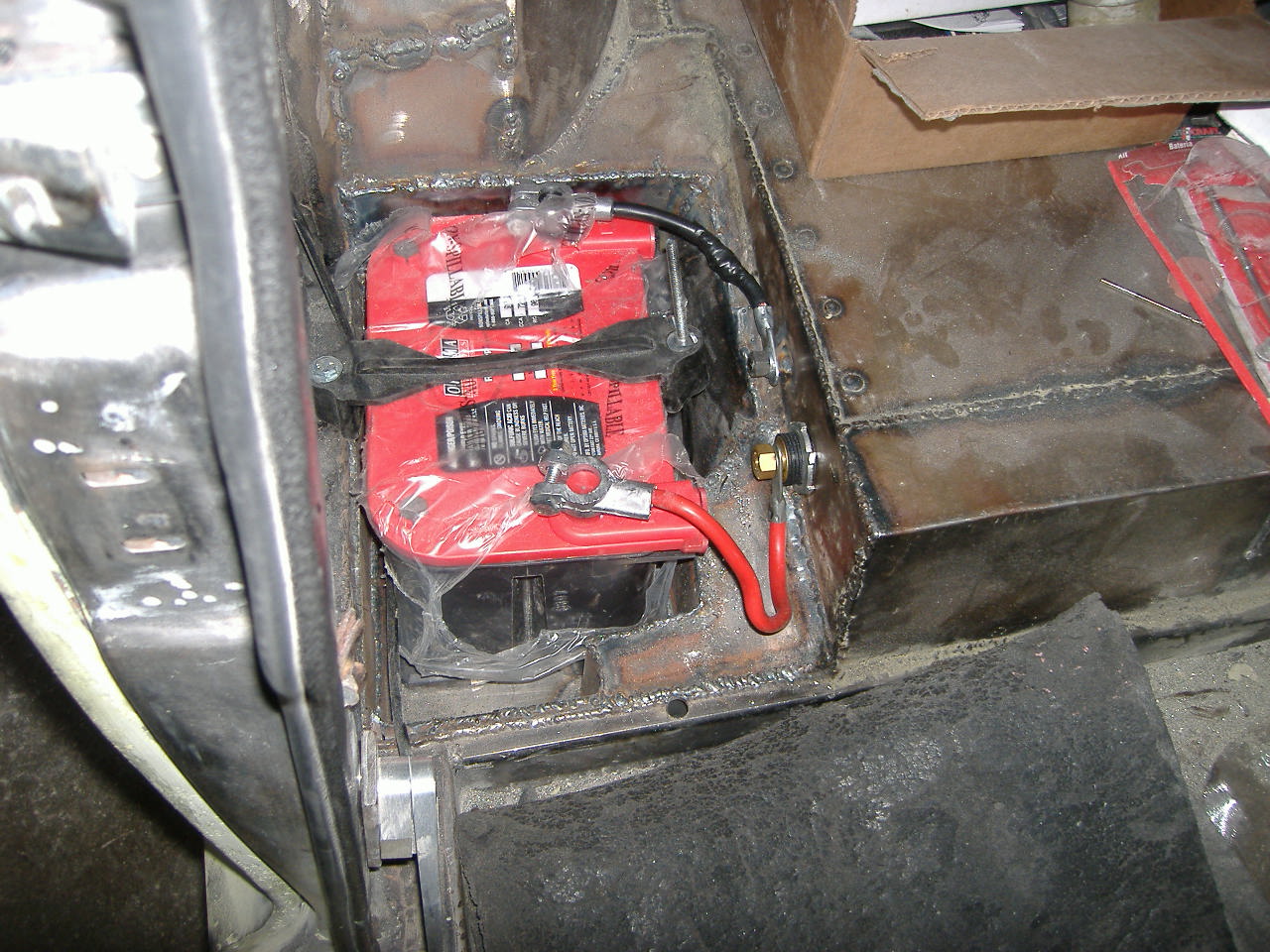

Battery tray behind seat.

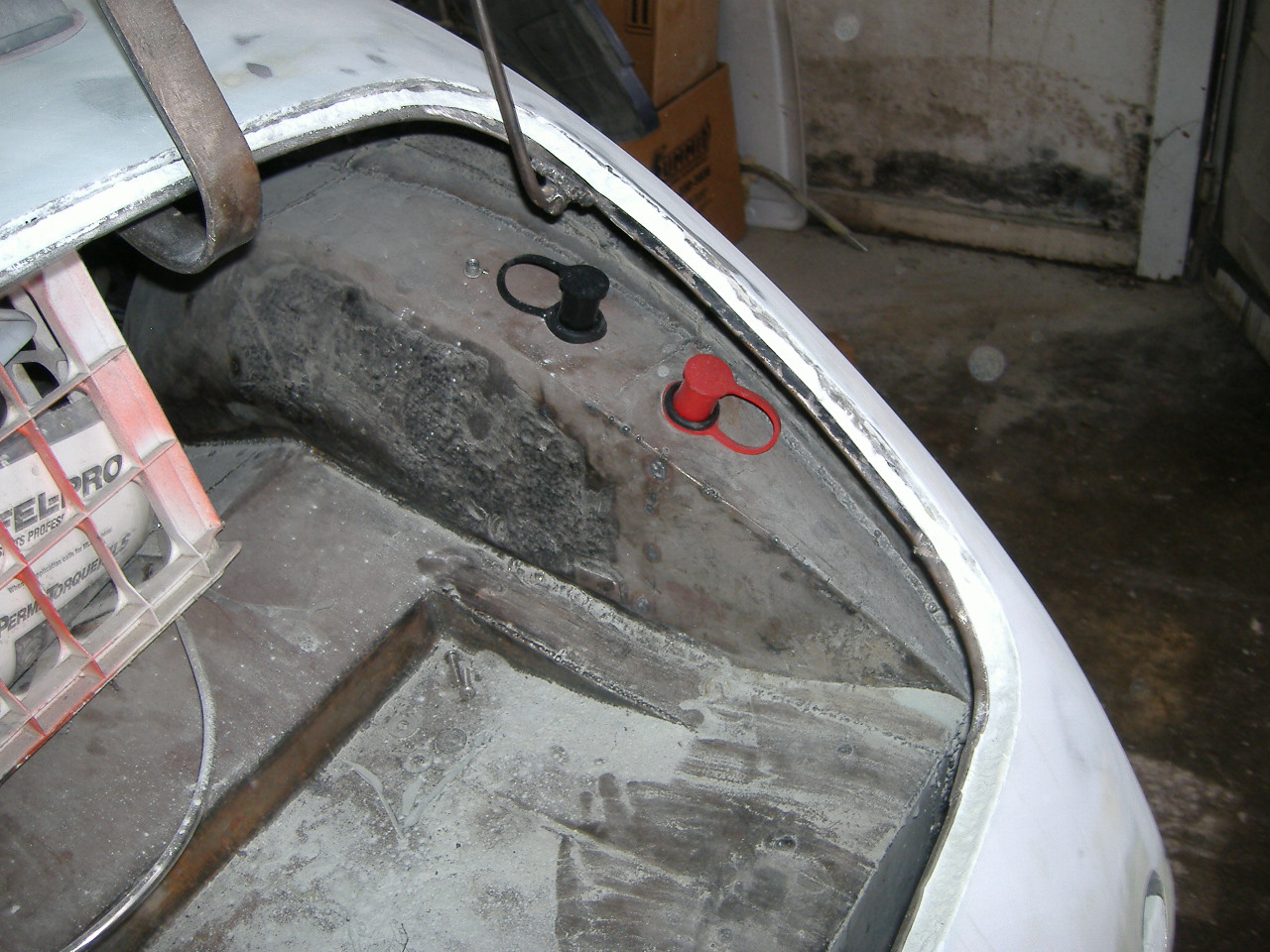

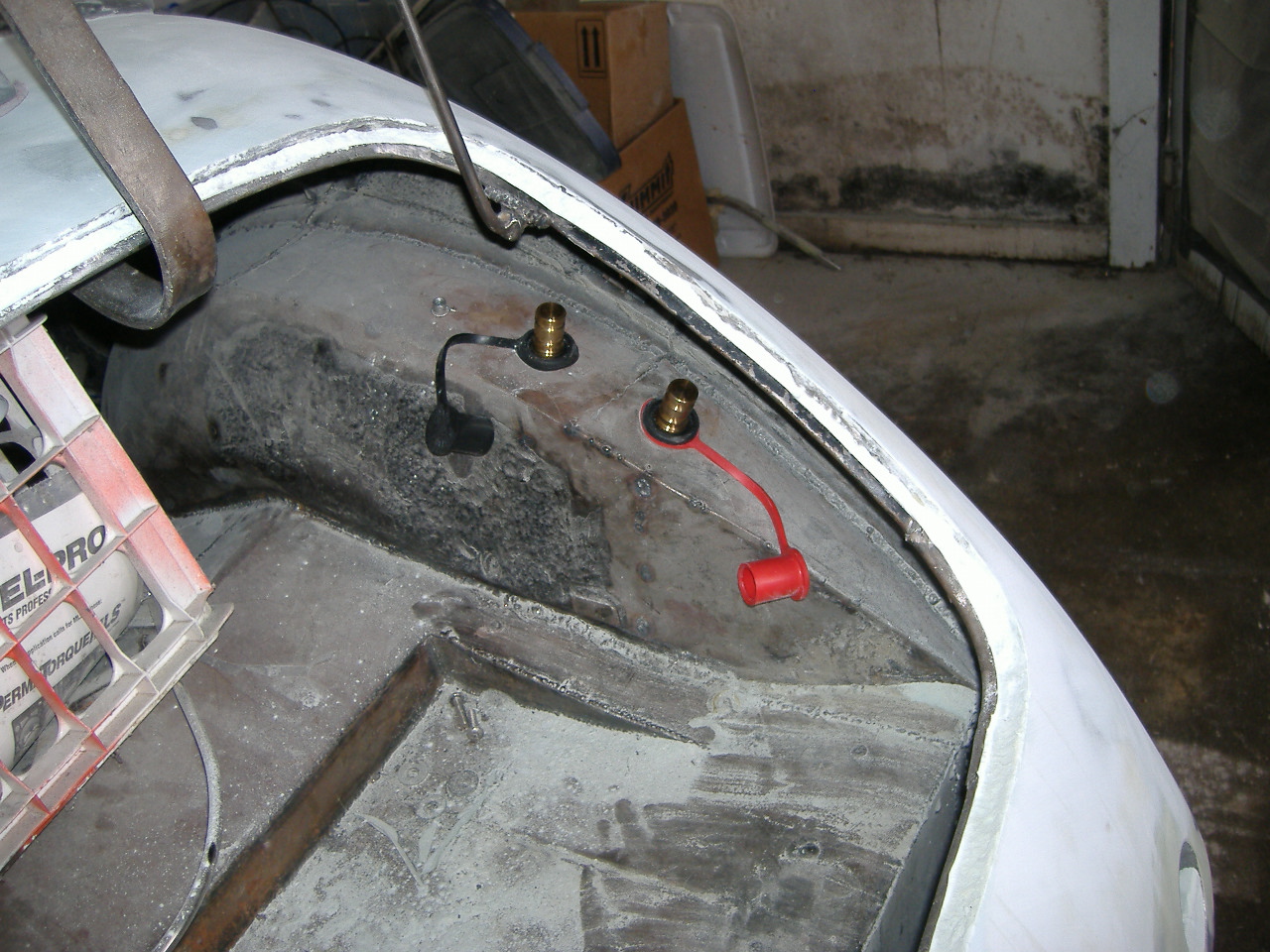

Jumper cable lugs mounted in the trunk.

with the battery behind the seat these will make jumps easier

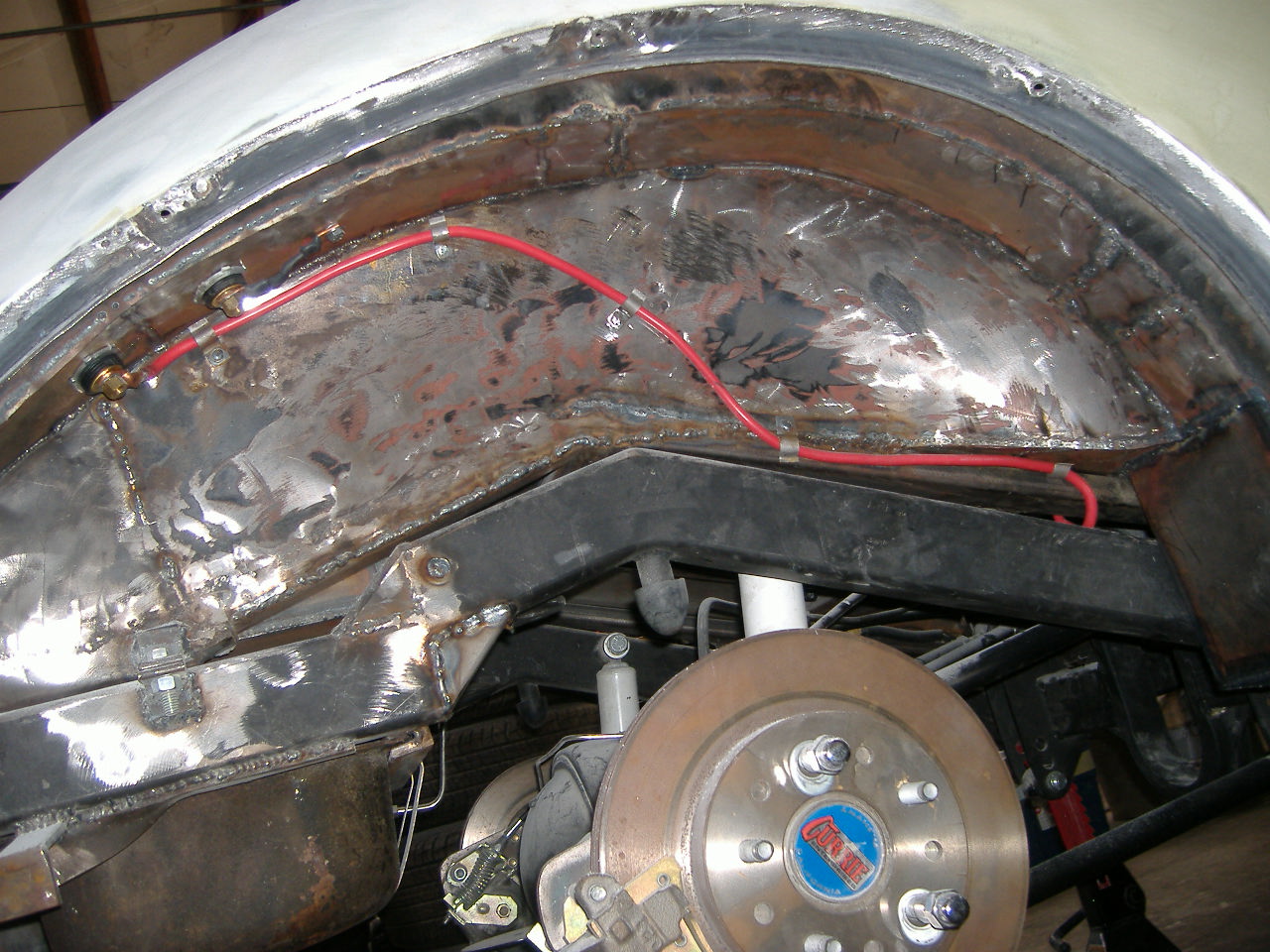

cable routed with clips along the inner fender



Power Window Switches

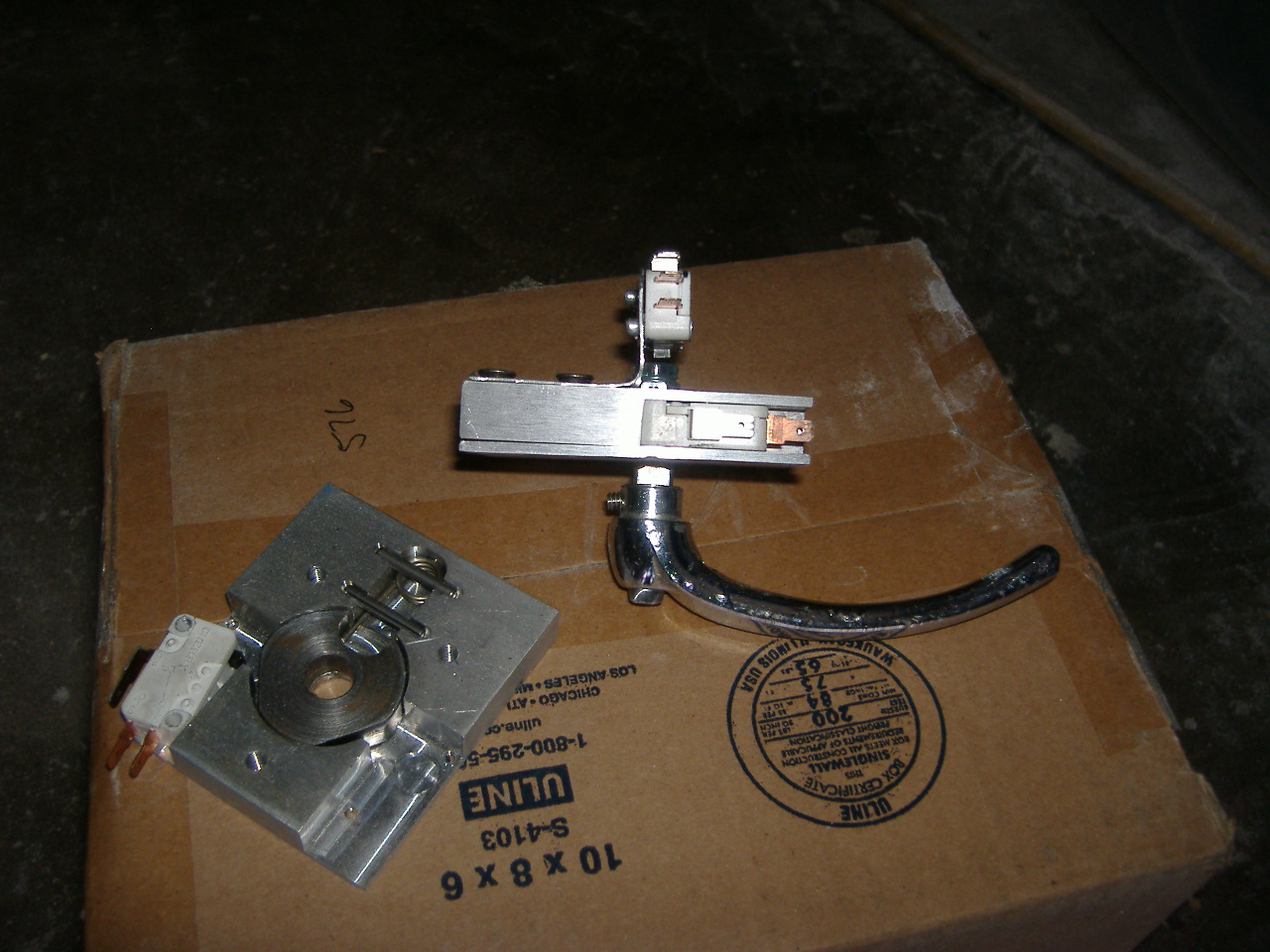

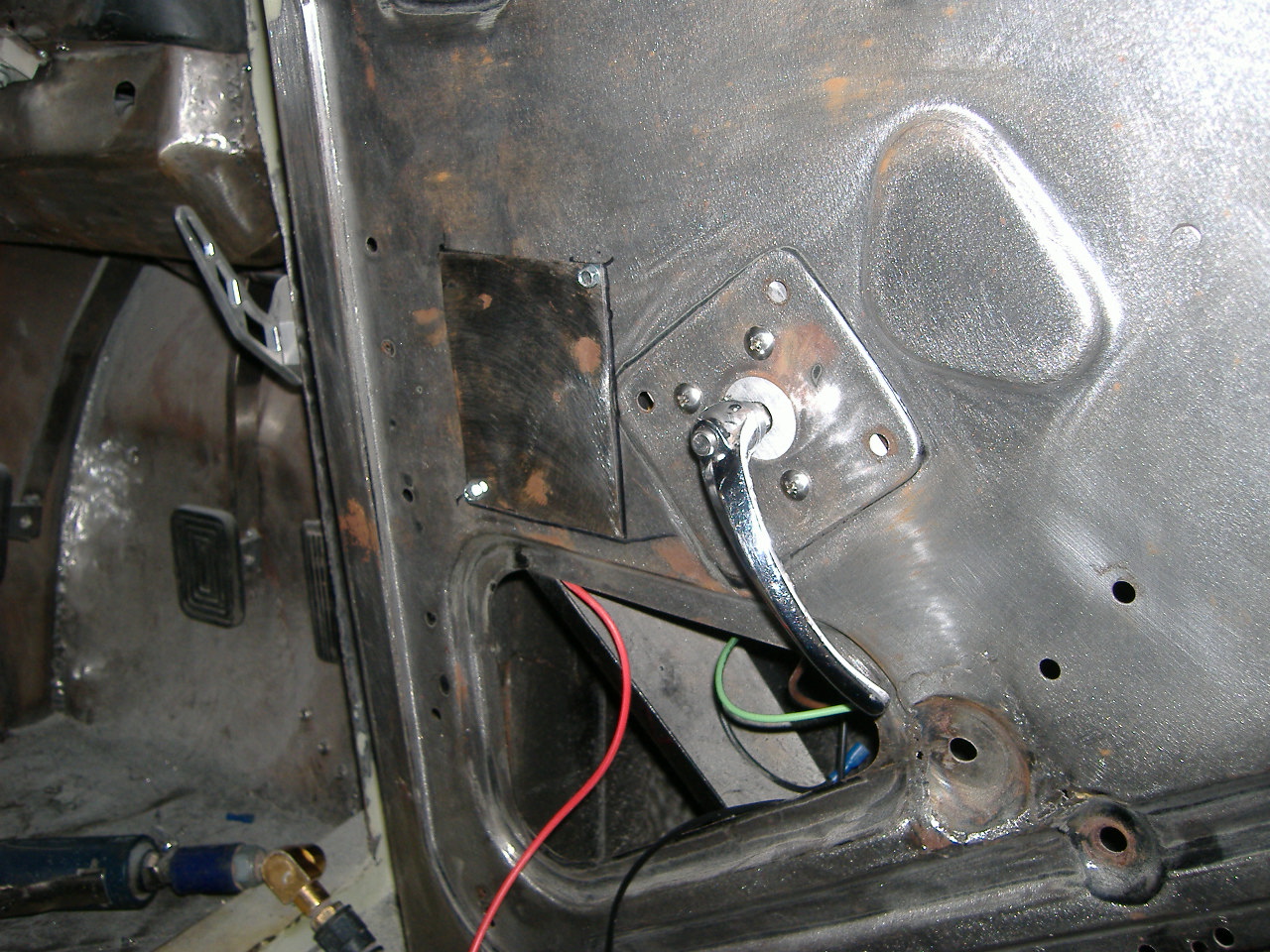

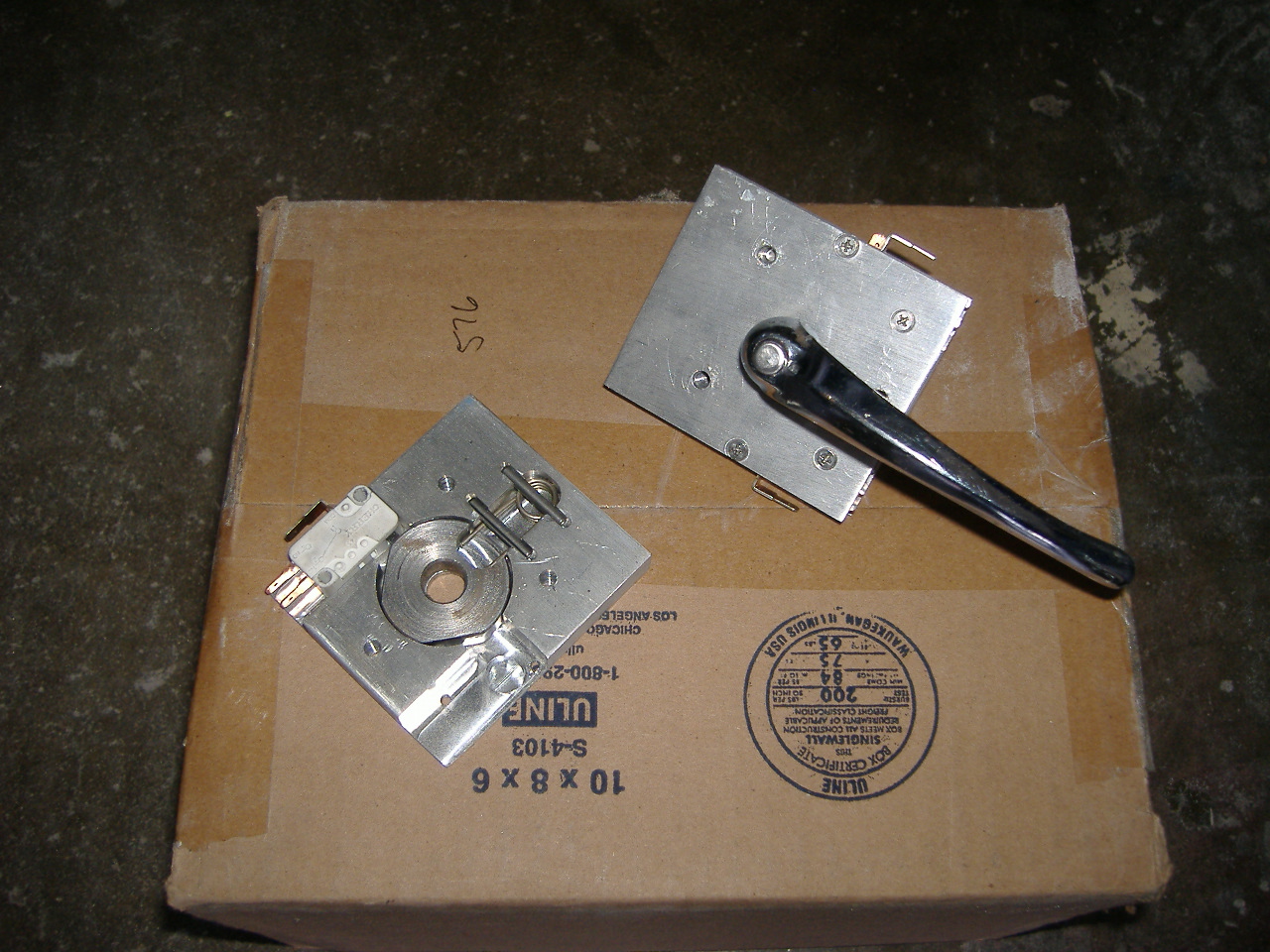

Power window switches -- they are activated by the stock door cranks.

The driver side handle has a button, that when pressed will operate the passenger side window

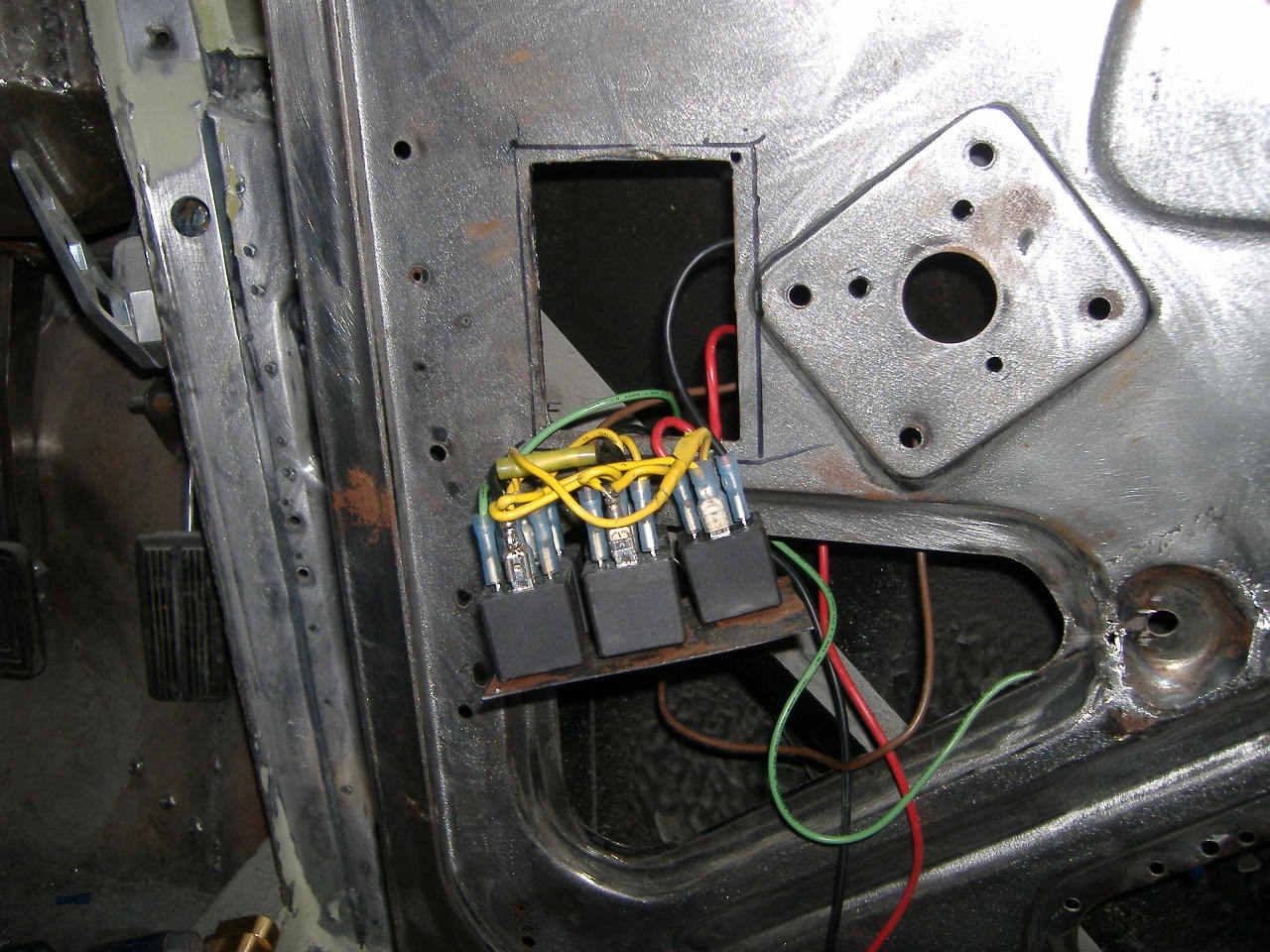

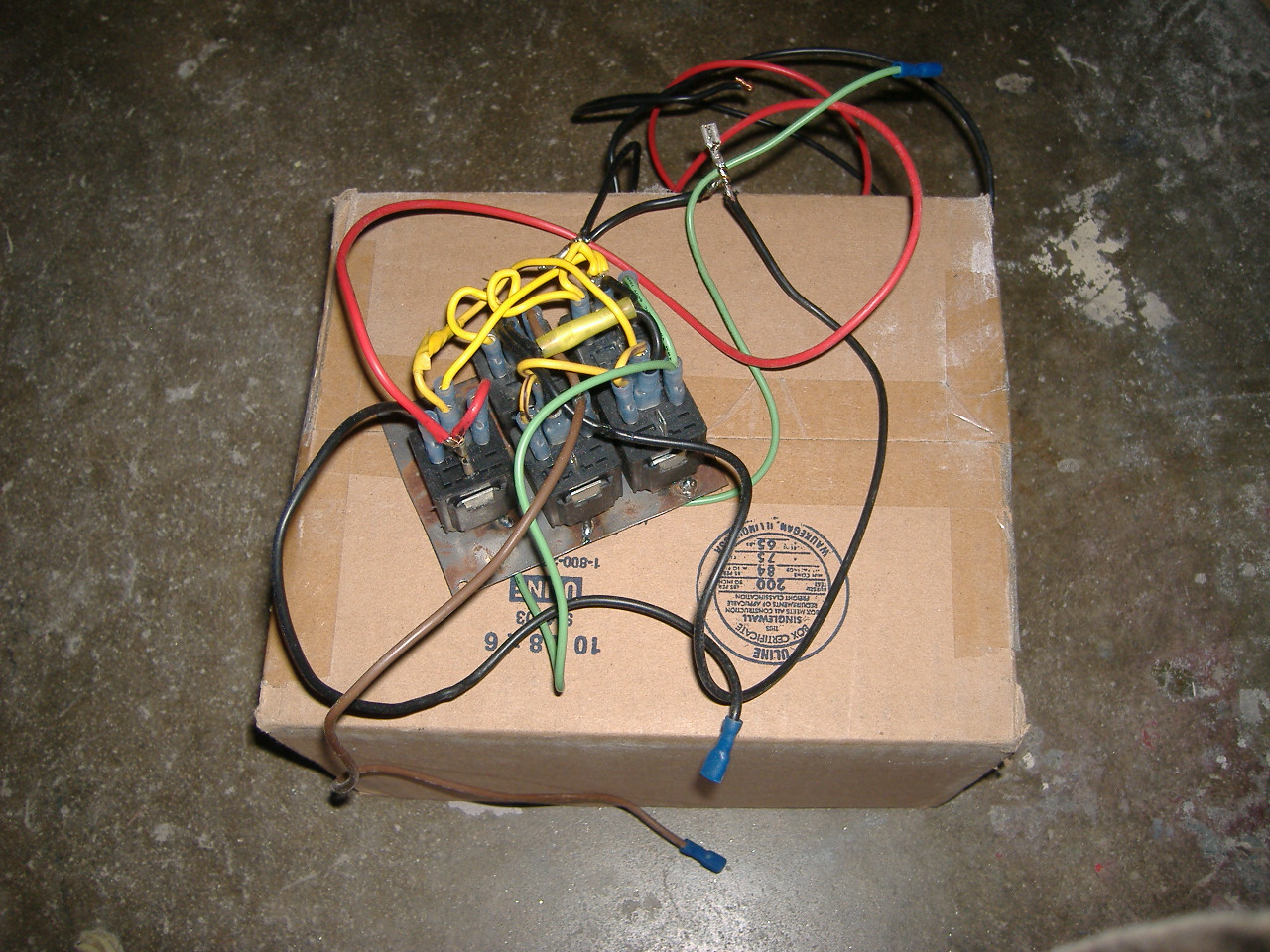

Relays to work the "magic"

the relays are mounted on a plate

the plates is located on the door near the crank.



Door Stops

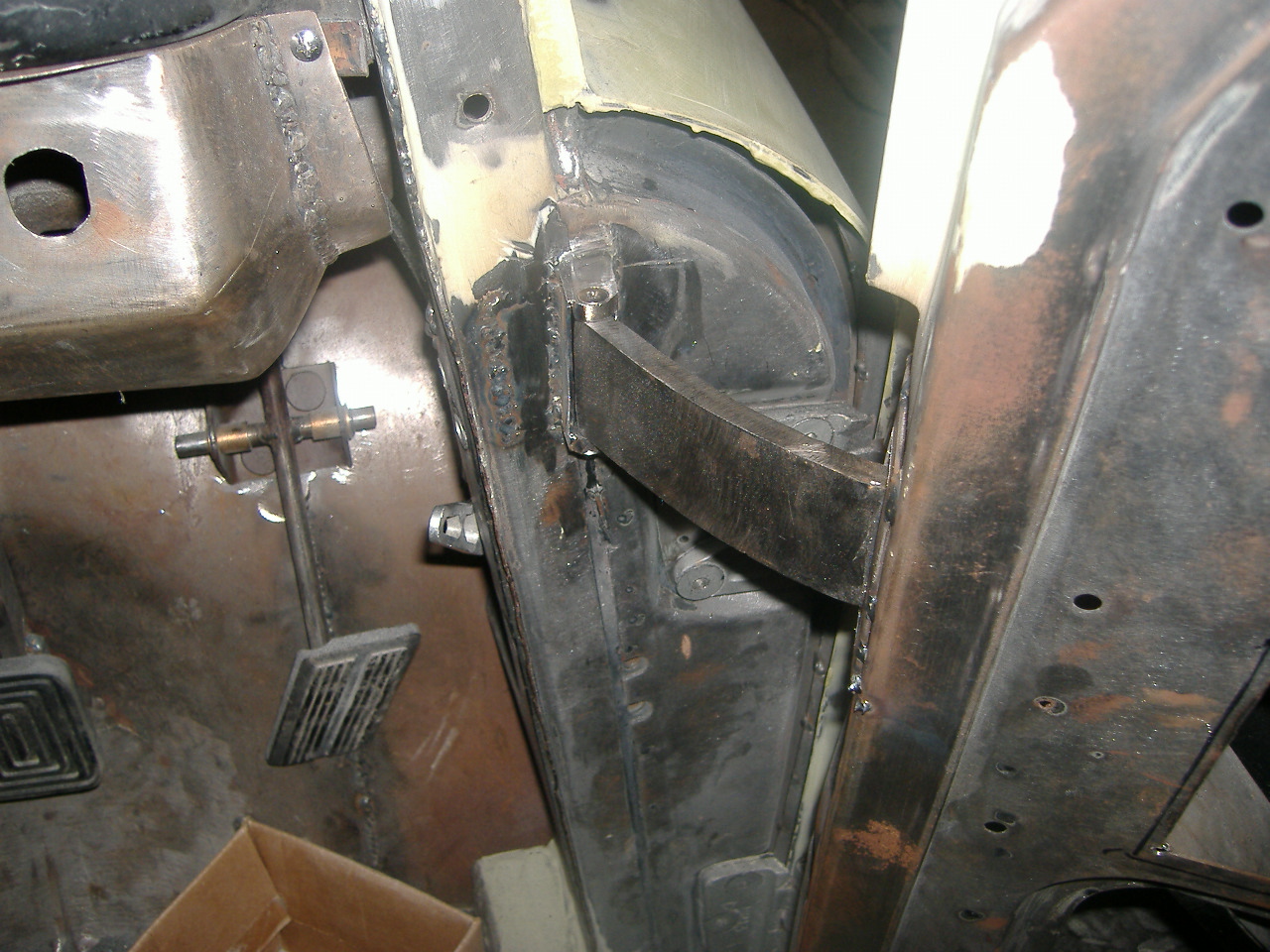

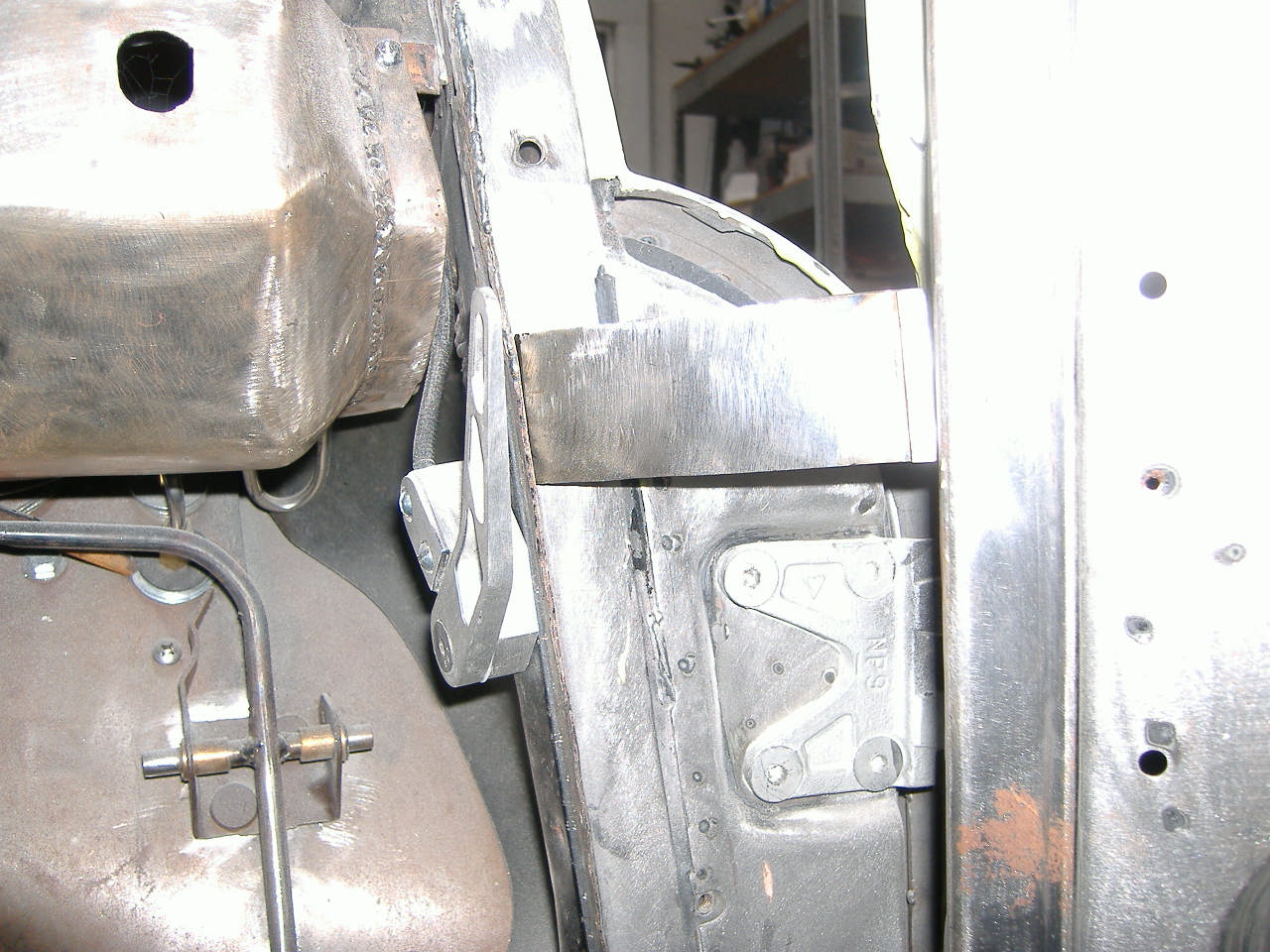

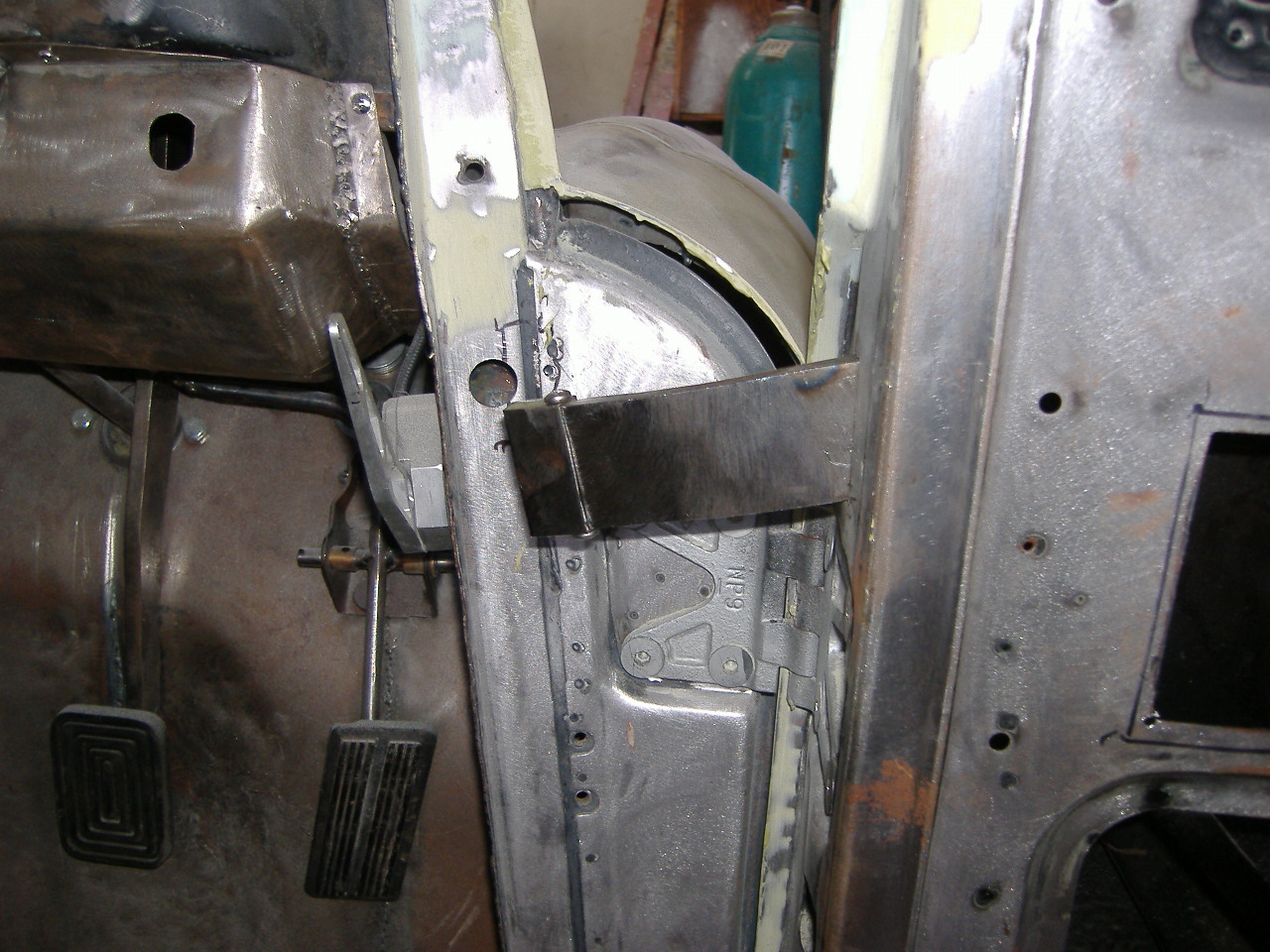

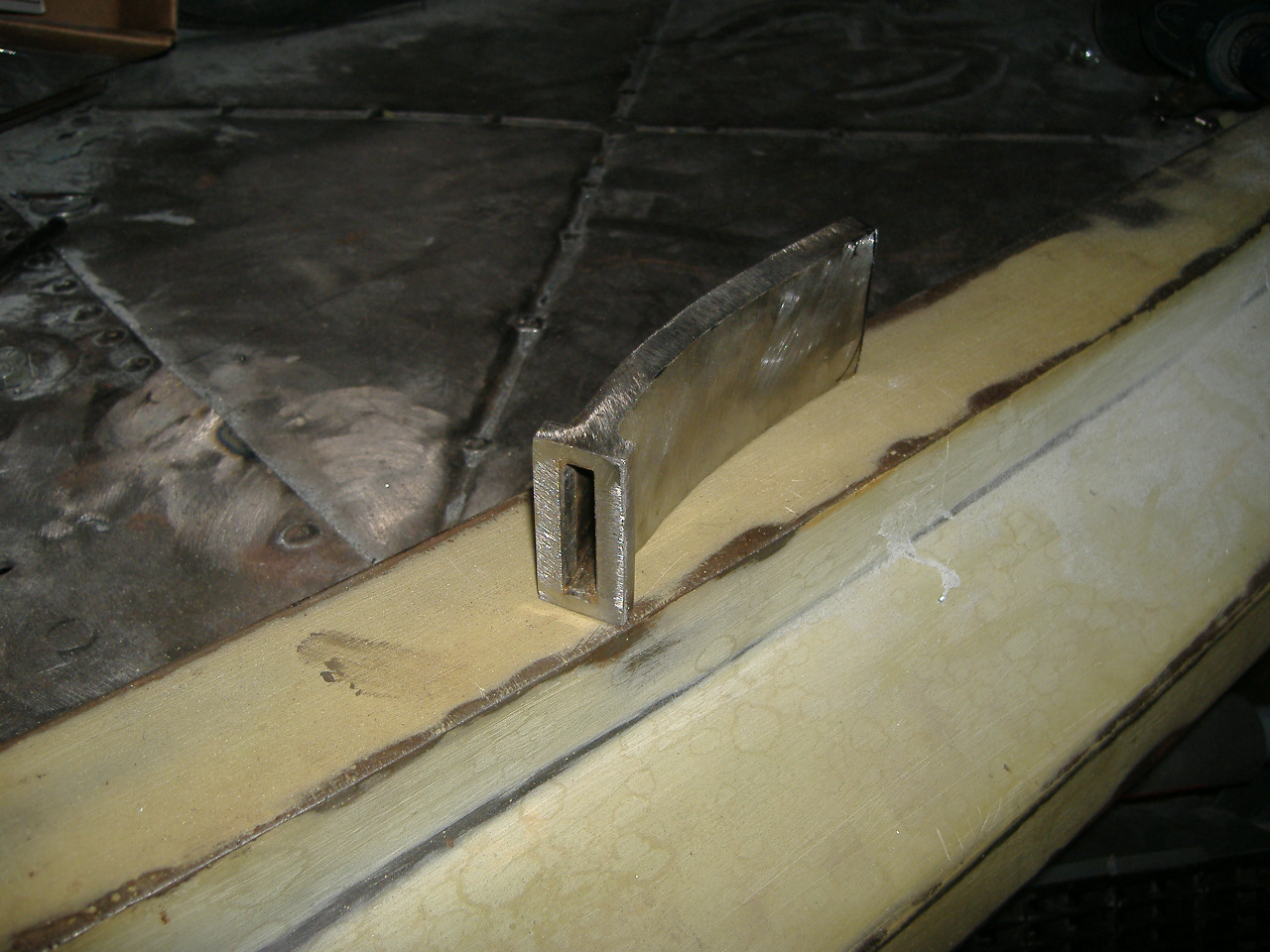

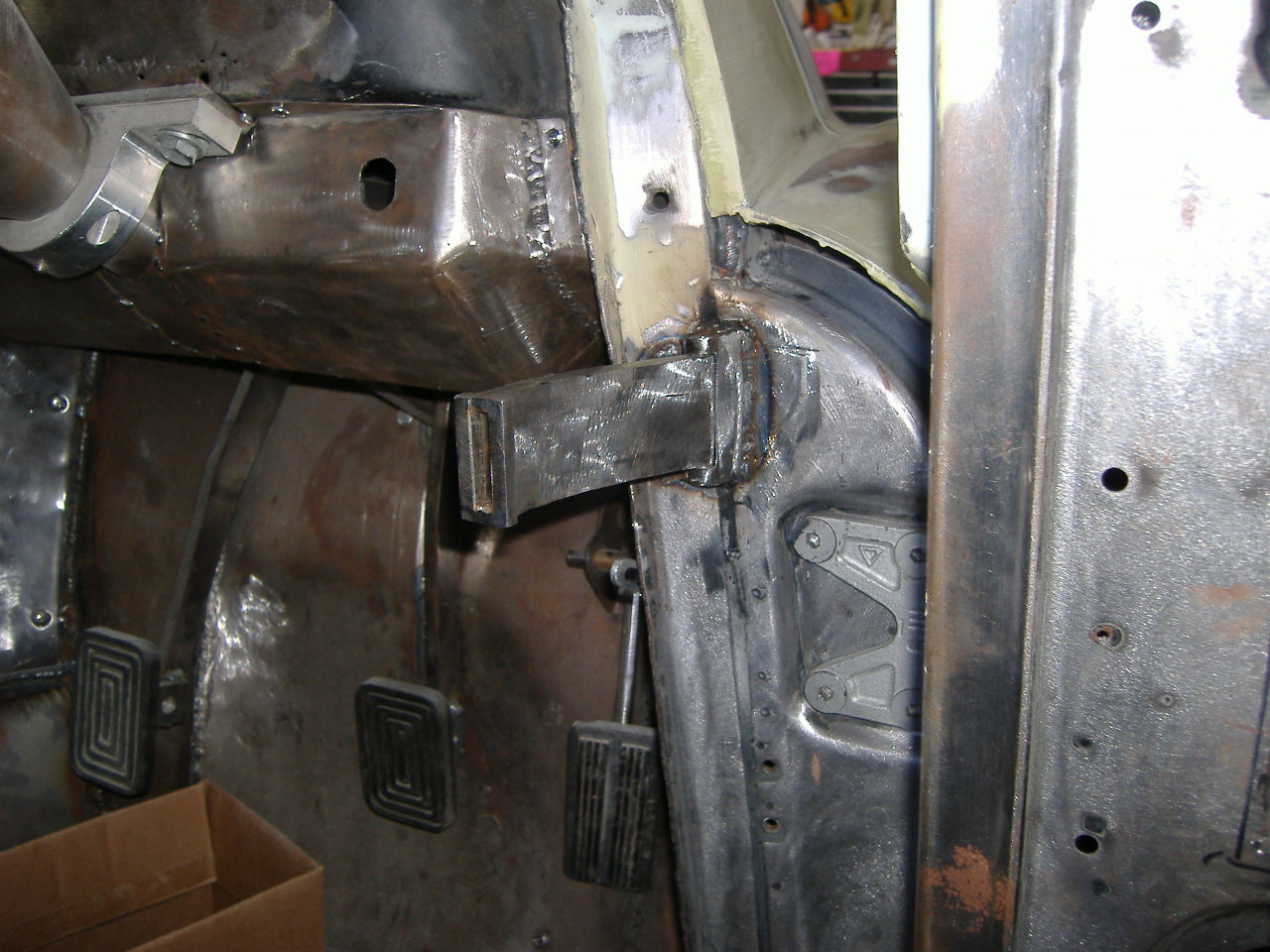

Door stop.

test fitting

This will also serve as a channel for the wiring.

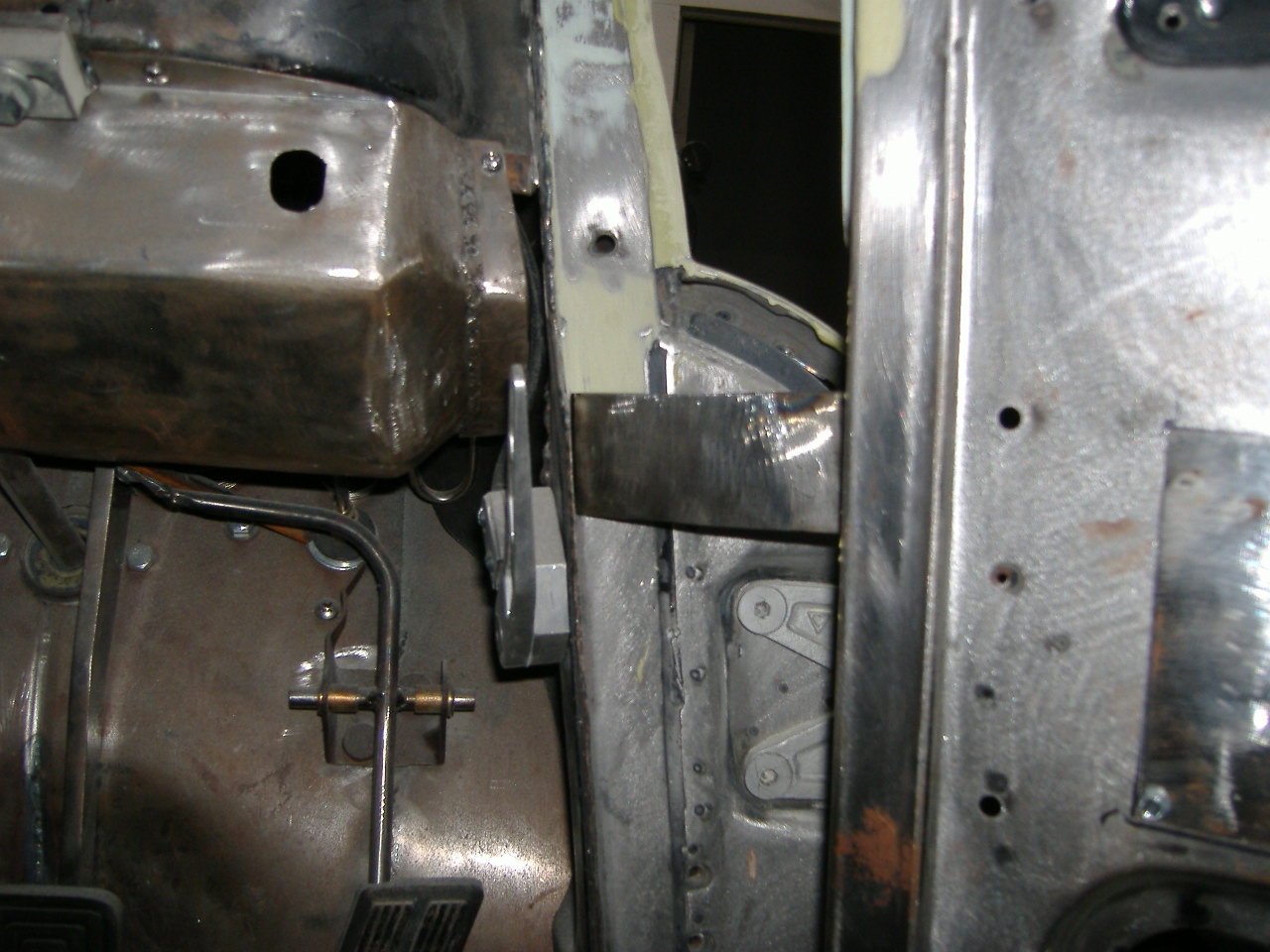

in place... and working

view from the outside with door open.



Hood Support

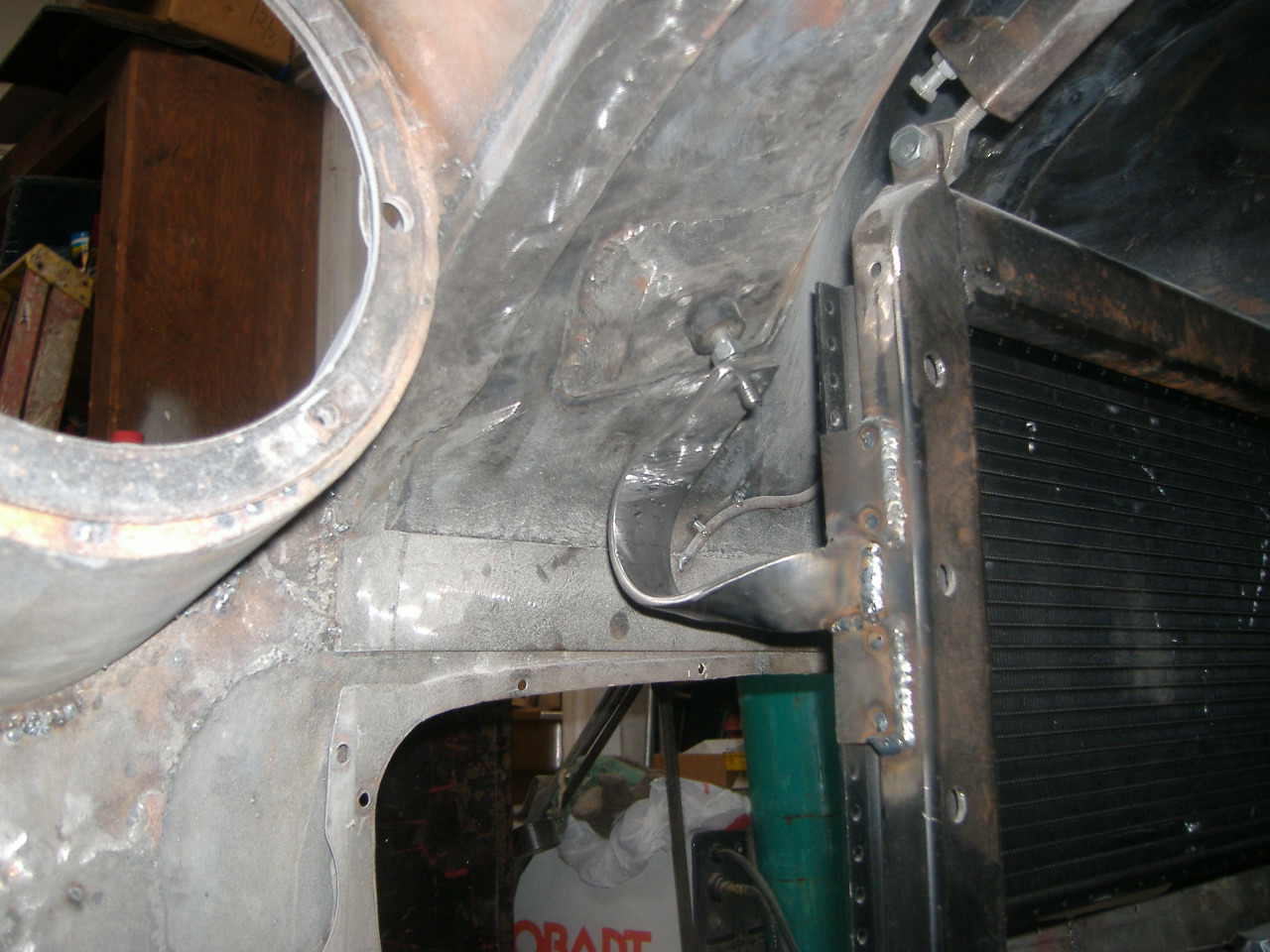

Support to hopld up the front of the hood

Right side

Left side

Doing it's job with the hood shut.

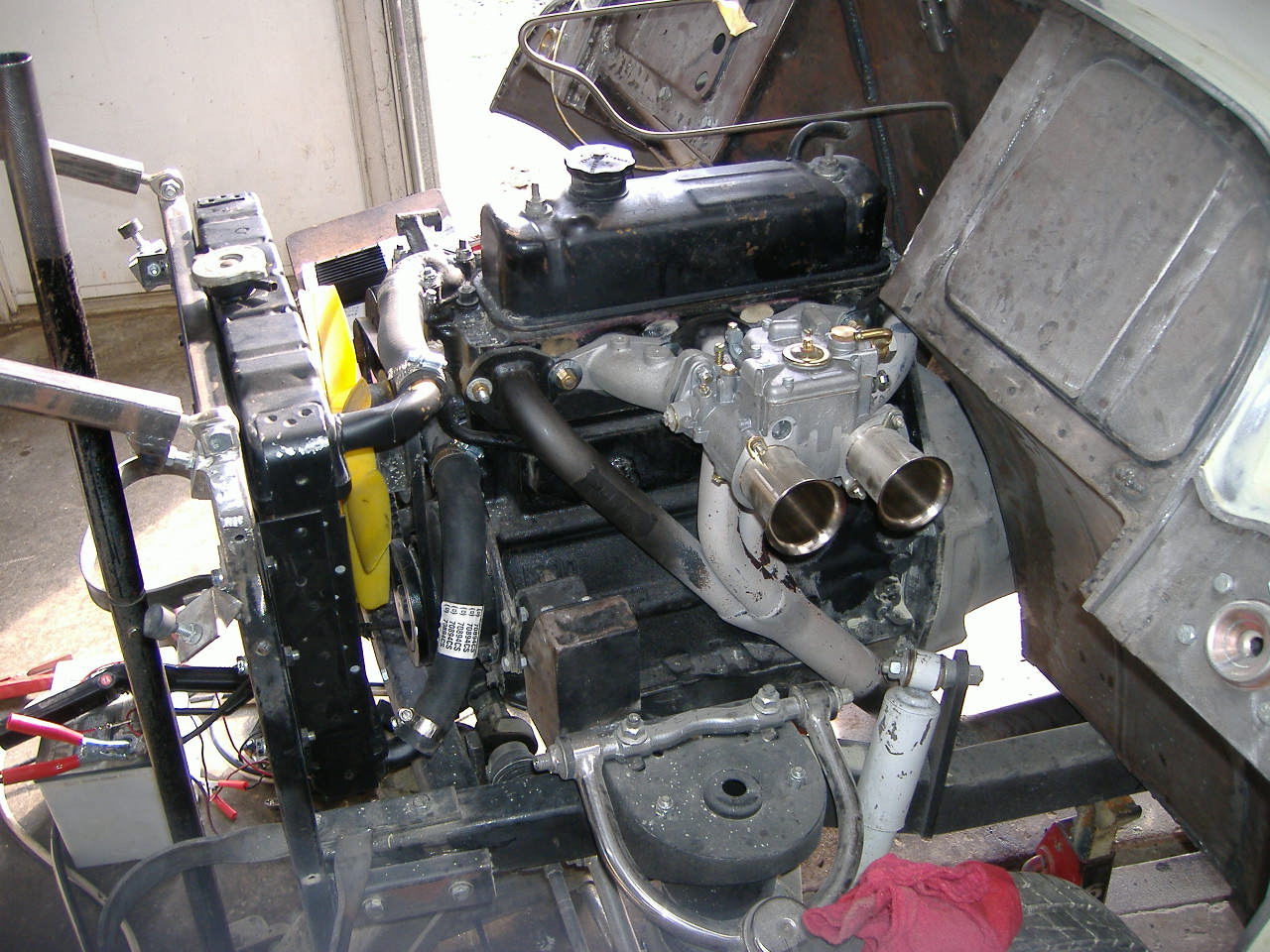

Engine bay assembly





Disassembly for paint

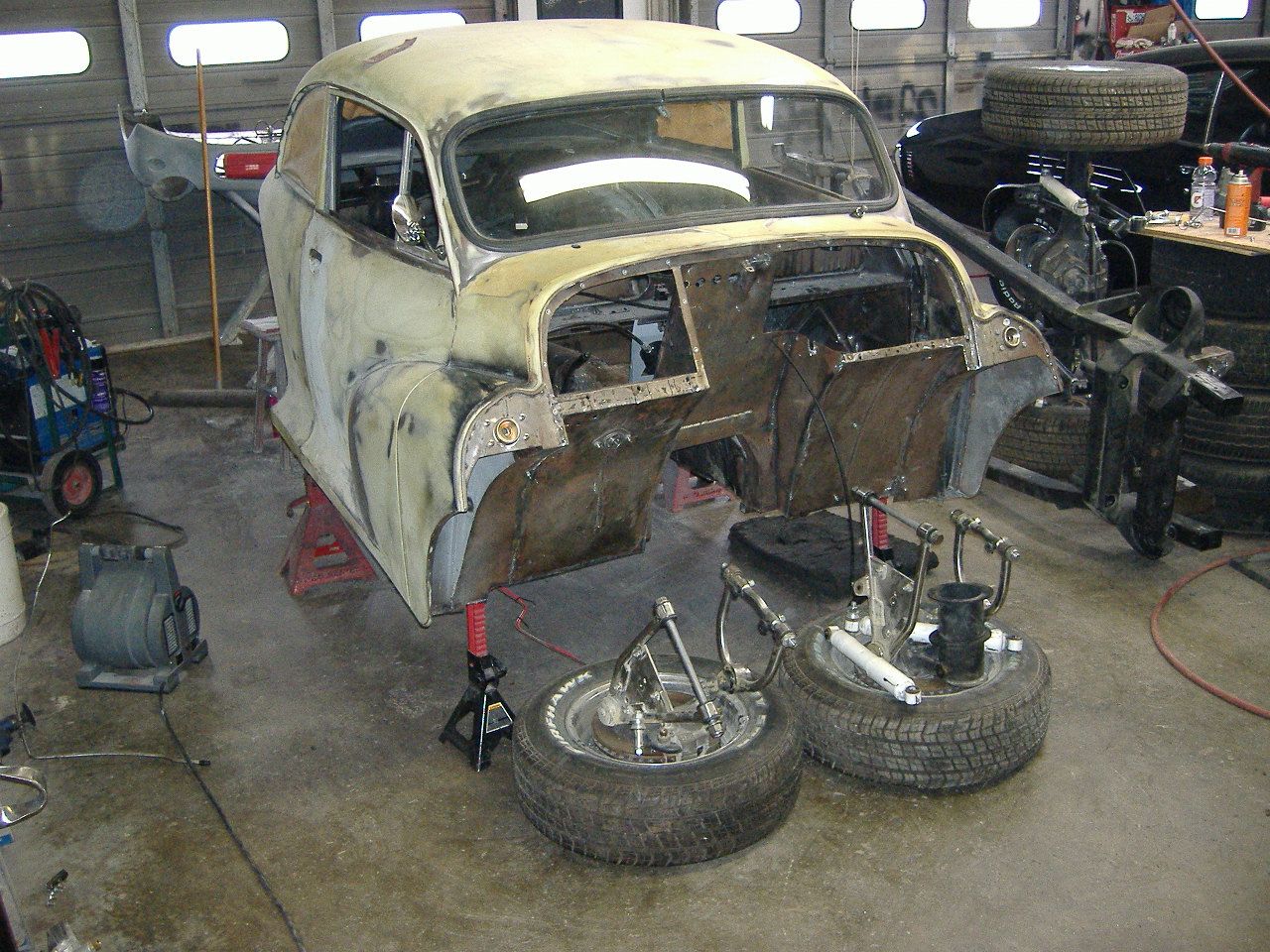

Front suspension coming off

bare front frame

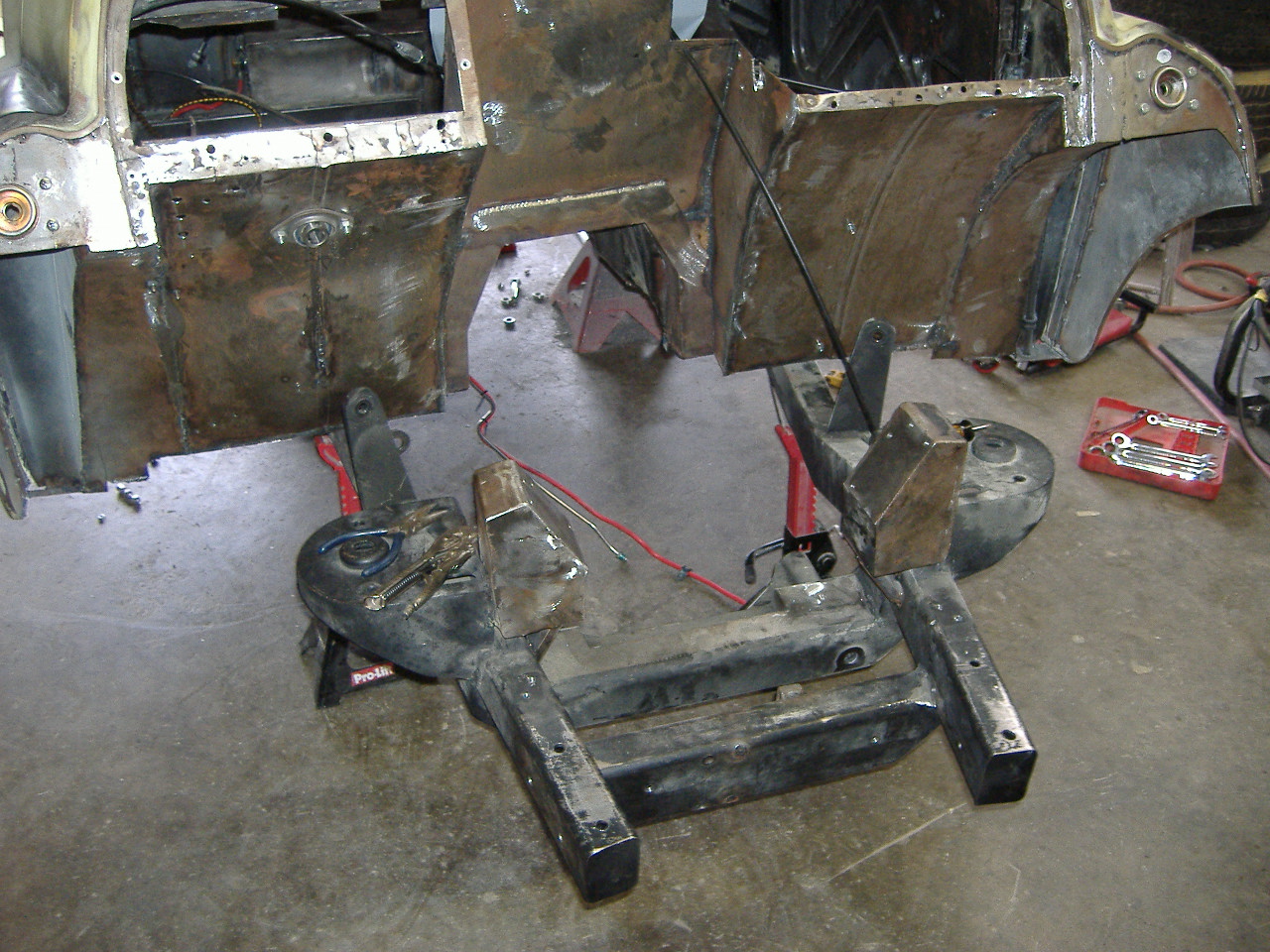

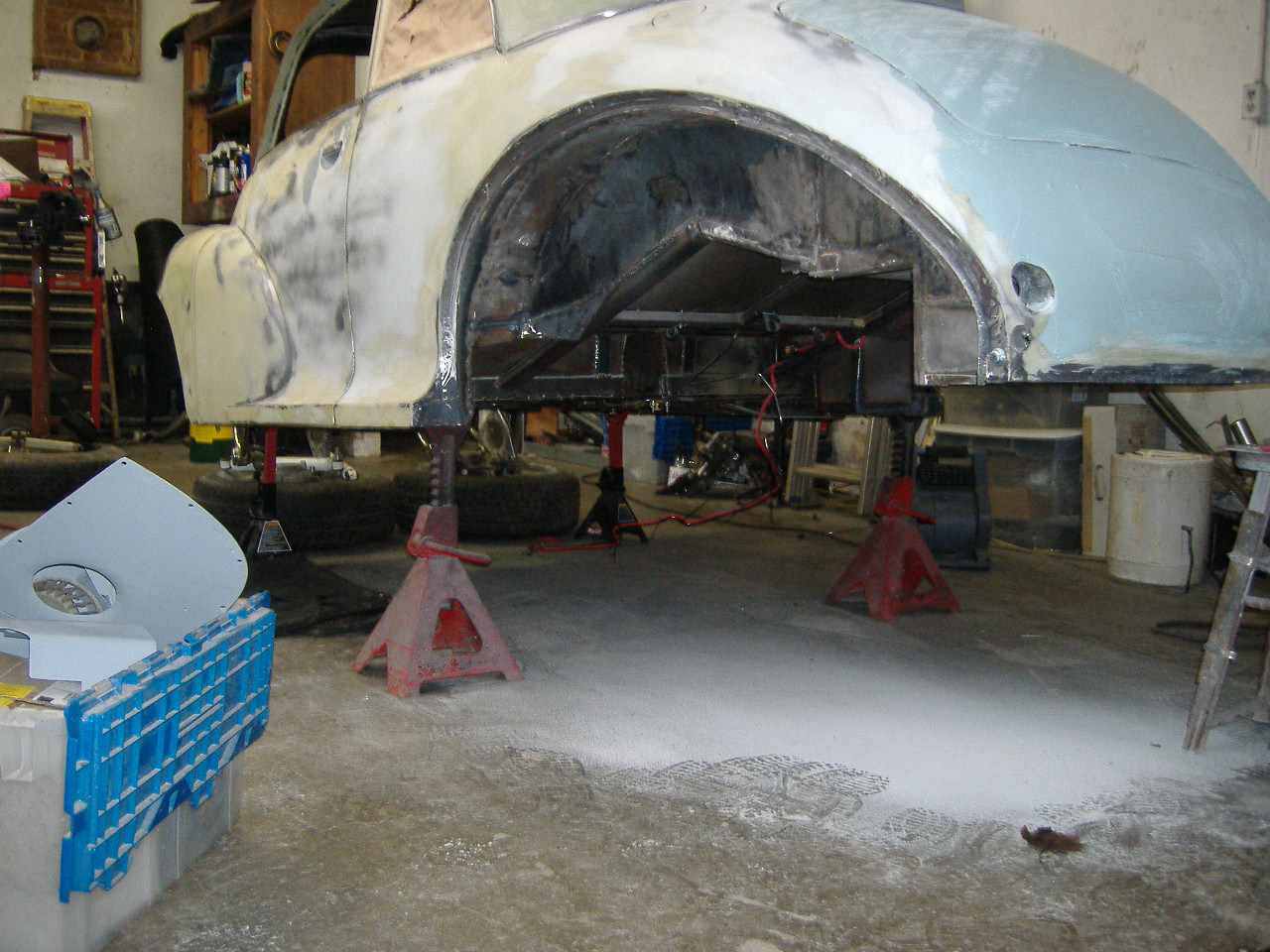

Frame removed

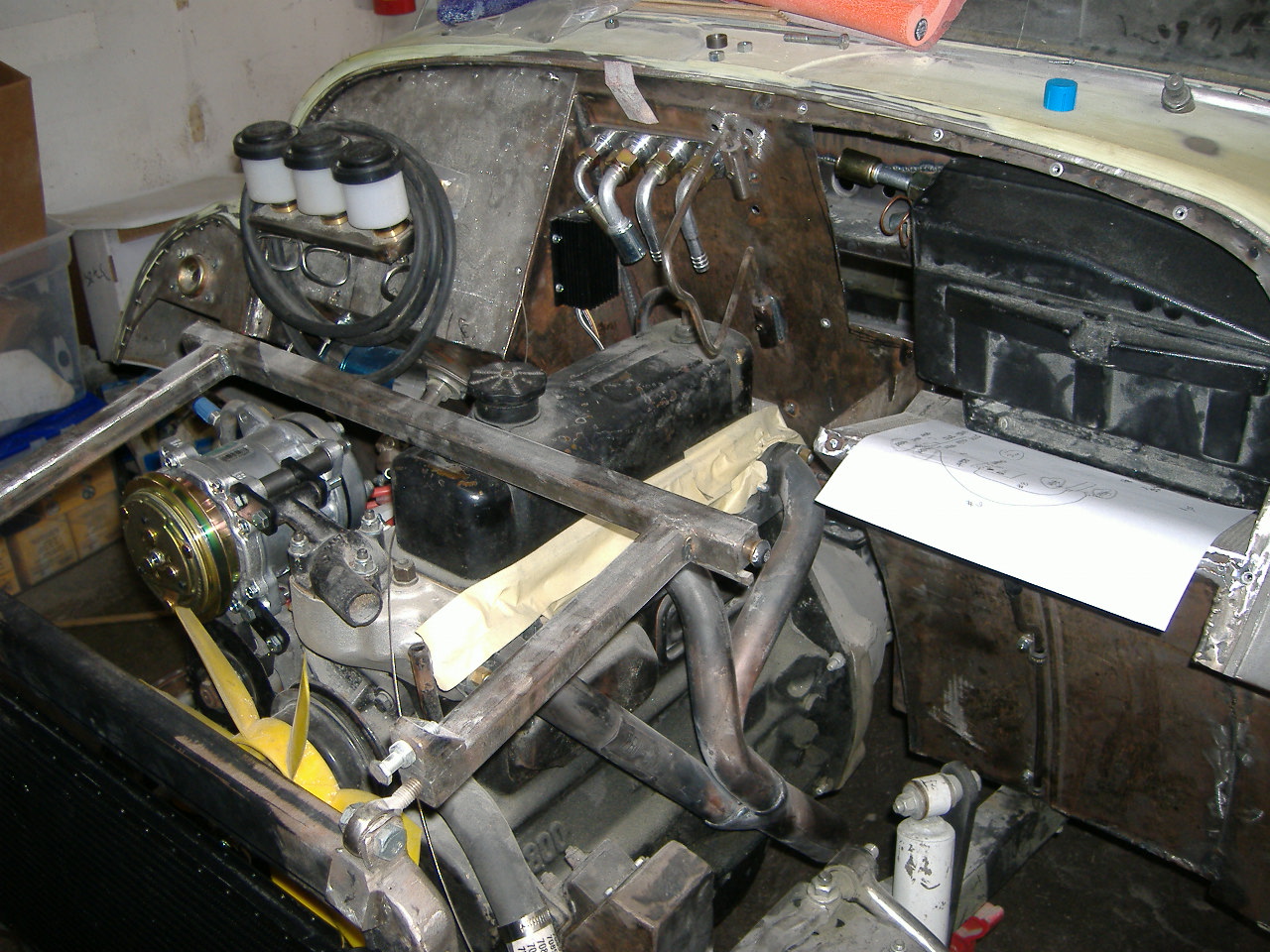

Bare firewall

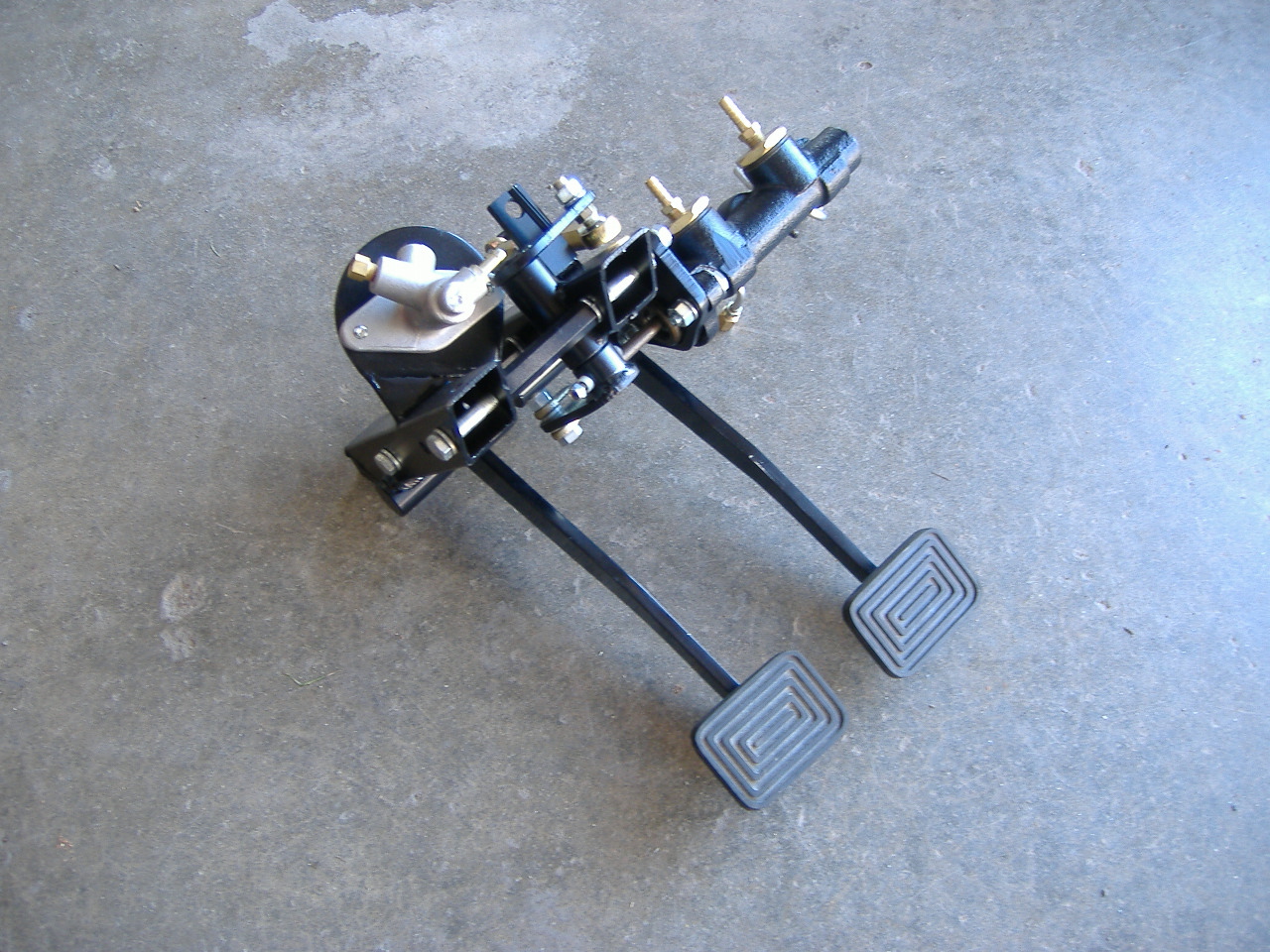

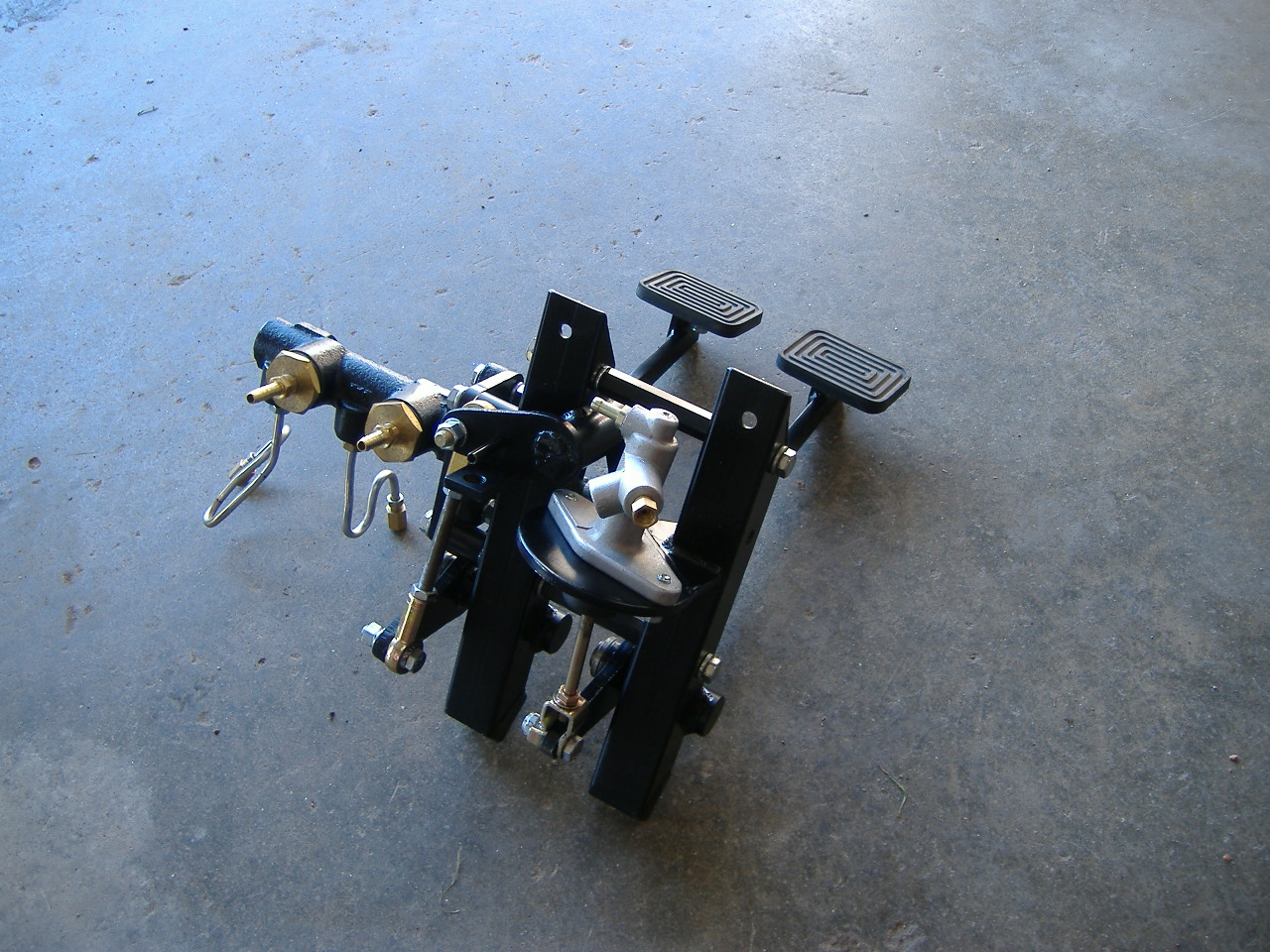

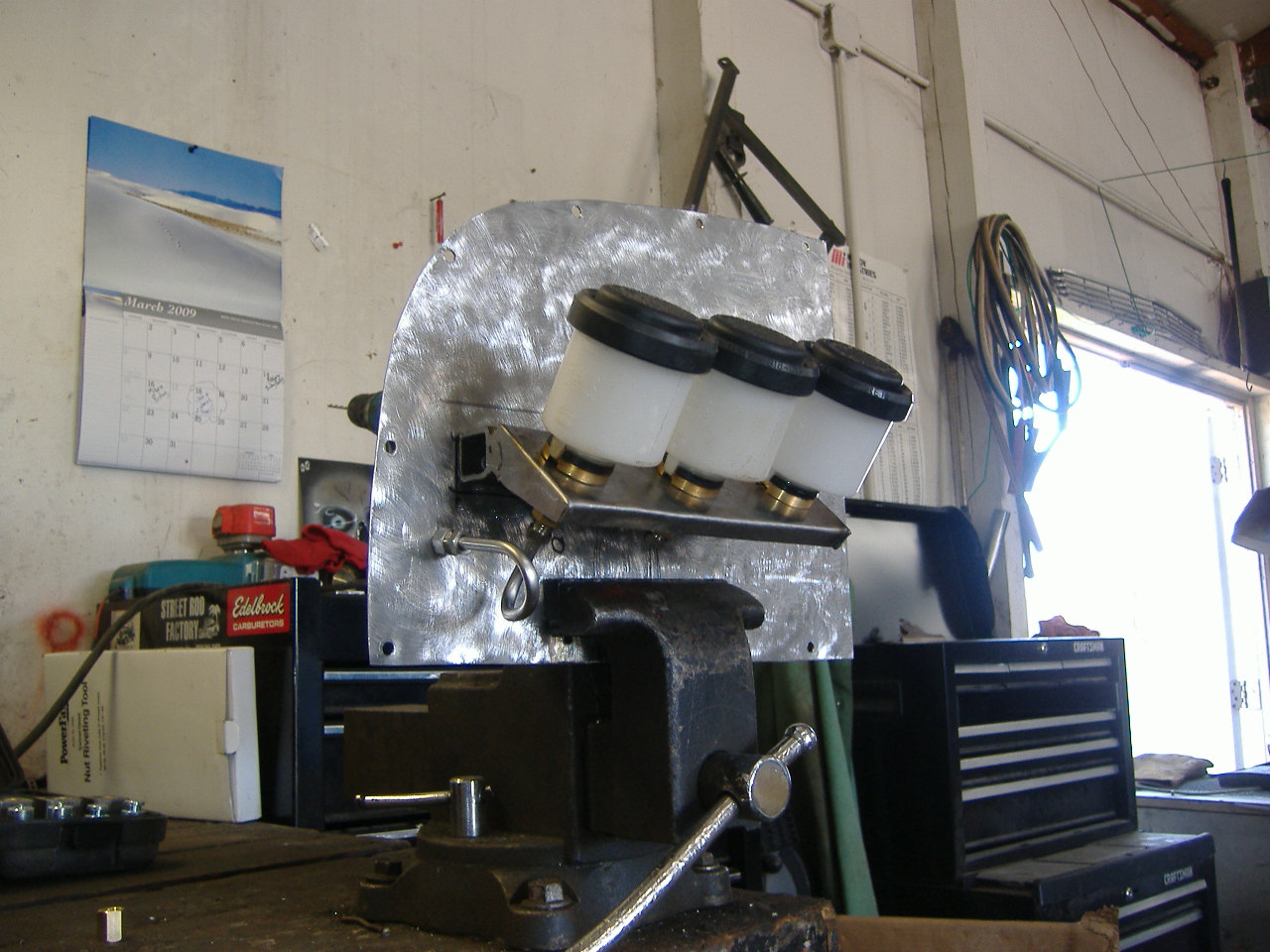

Painted brake/clutch assembly





Front air line modifications

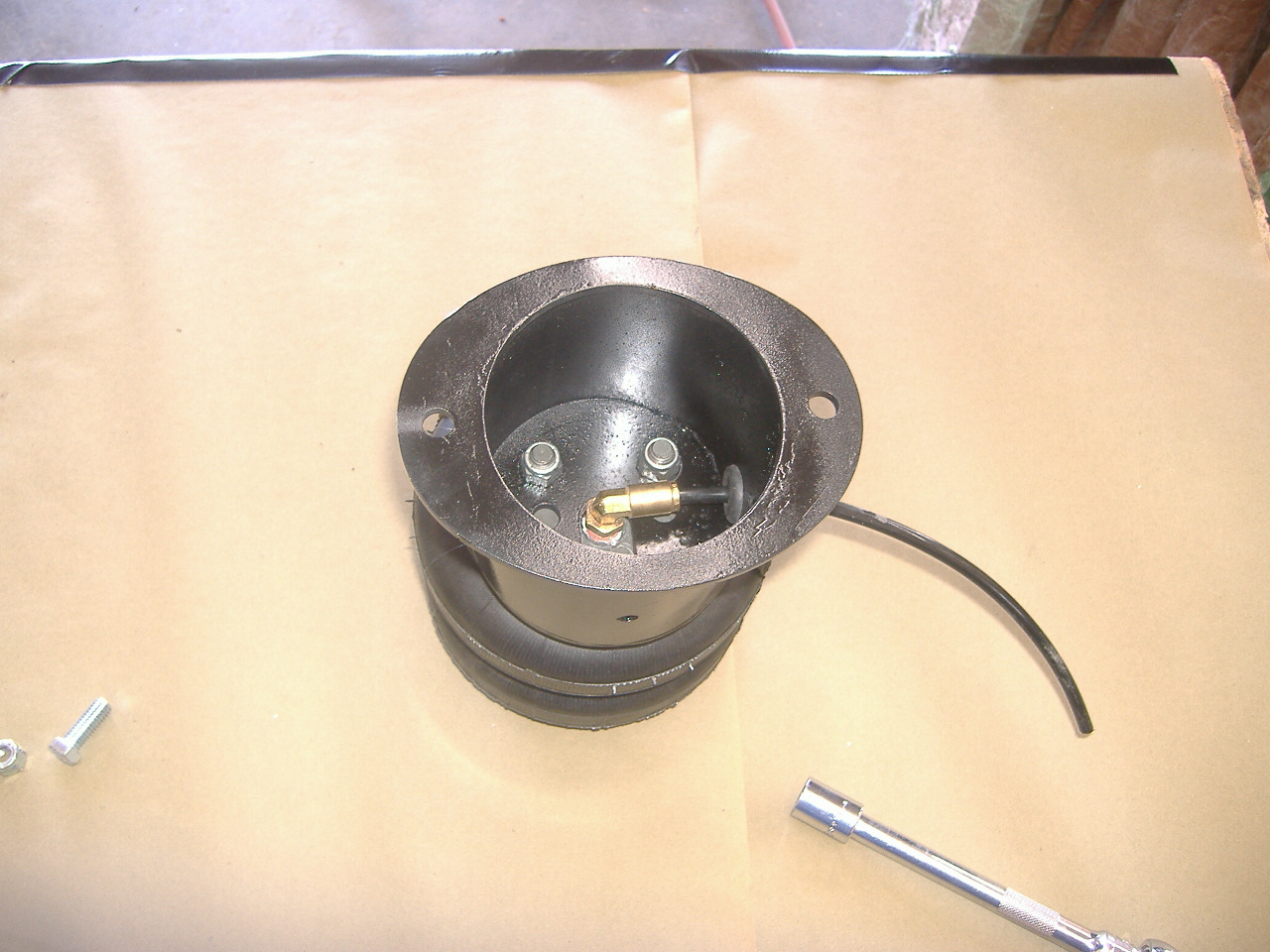

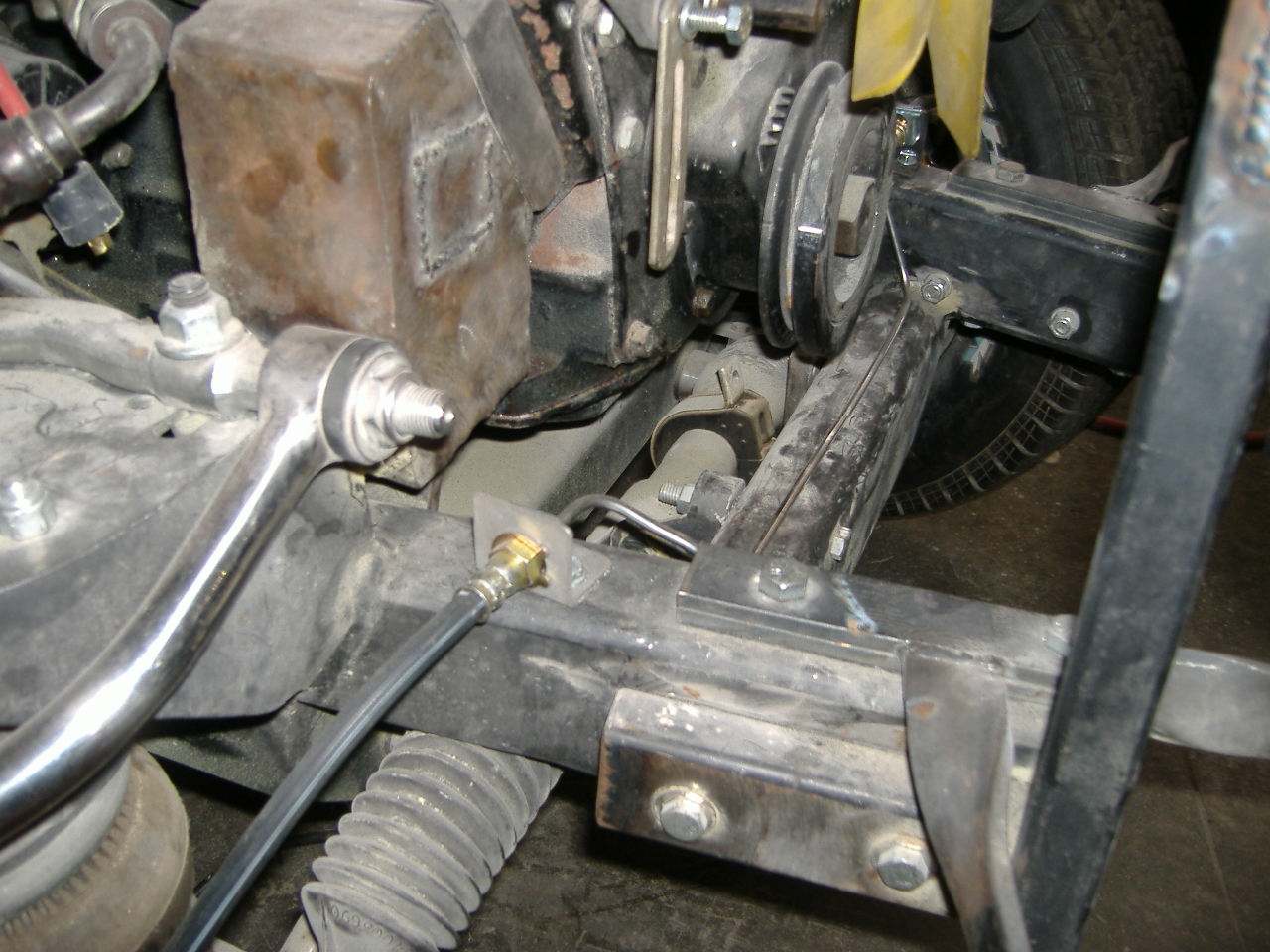

Relocating the air line.

Inside view.

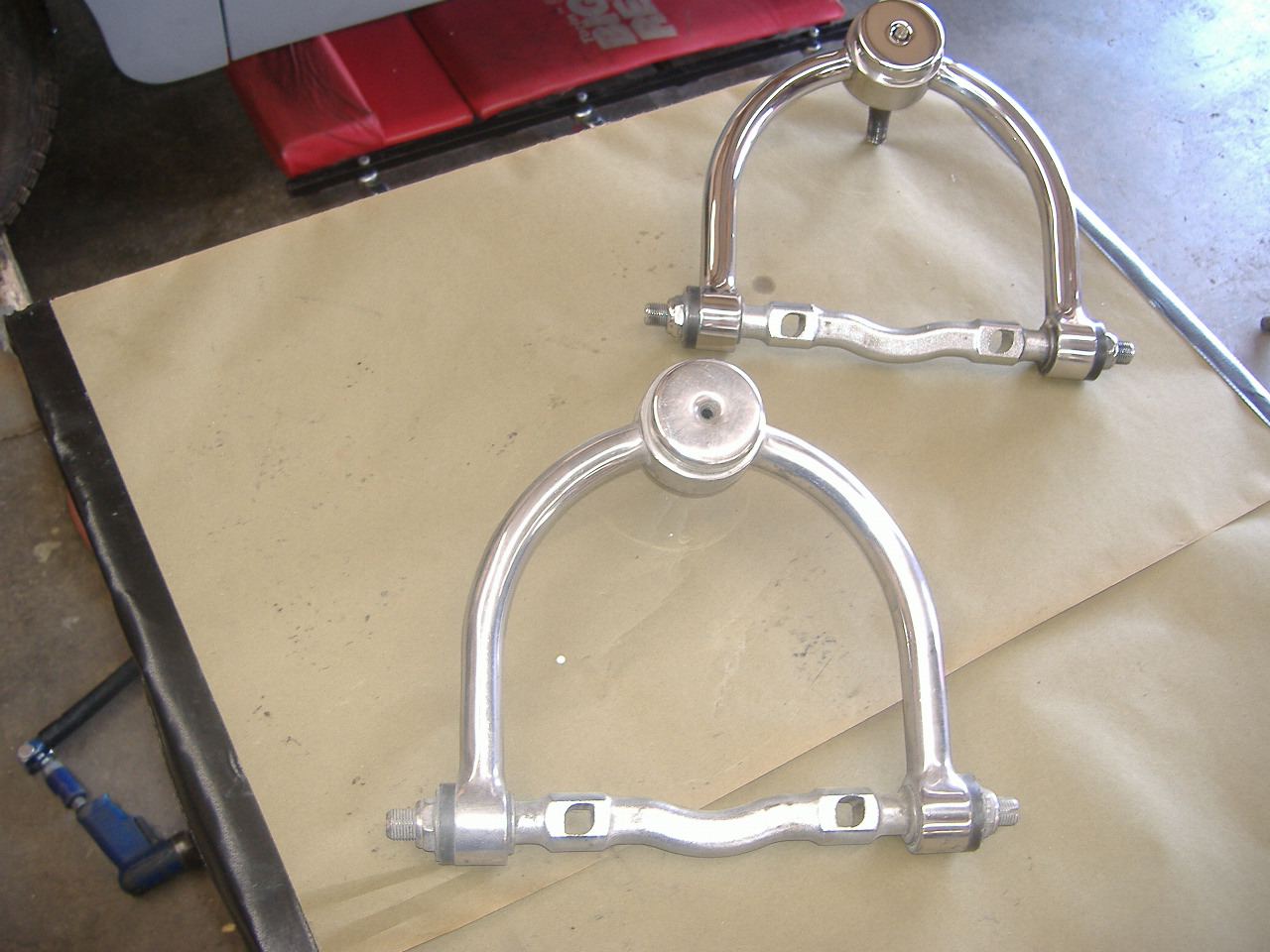

Upper control arms - Before & After Polishing

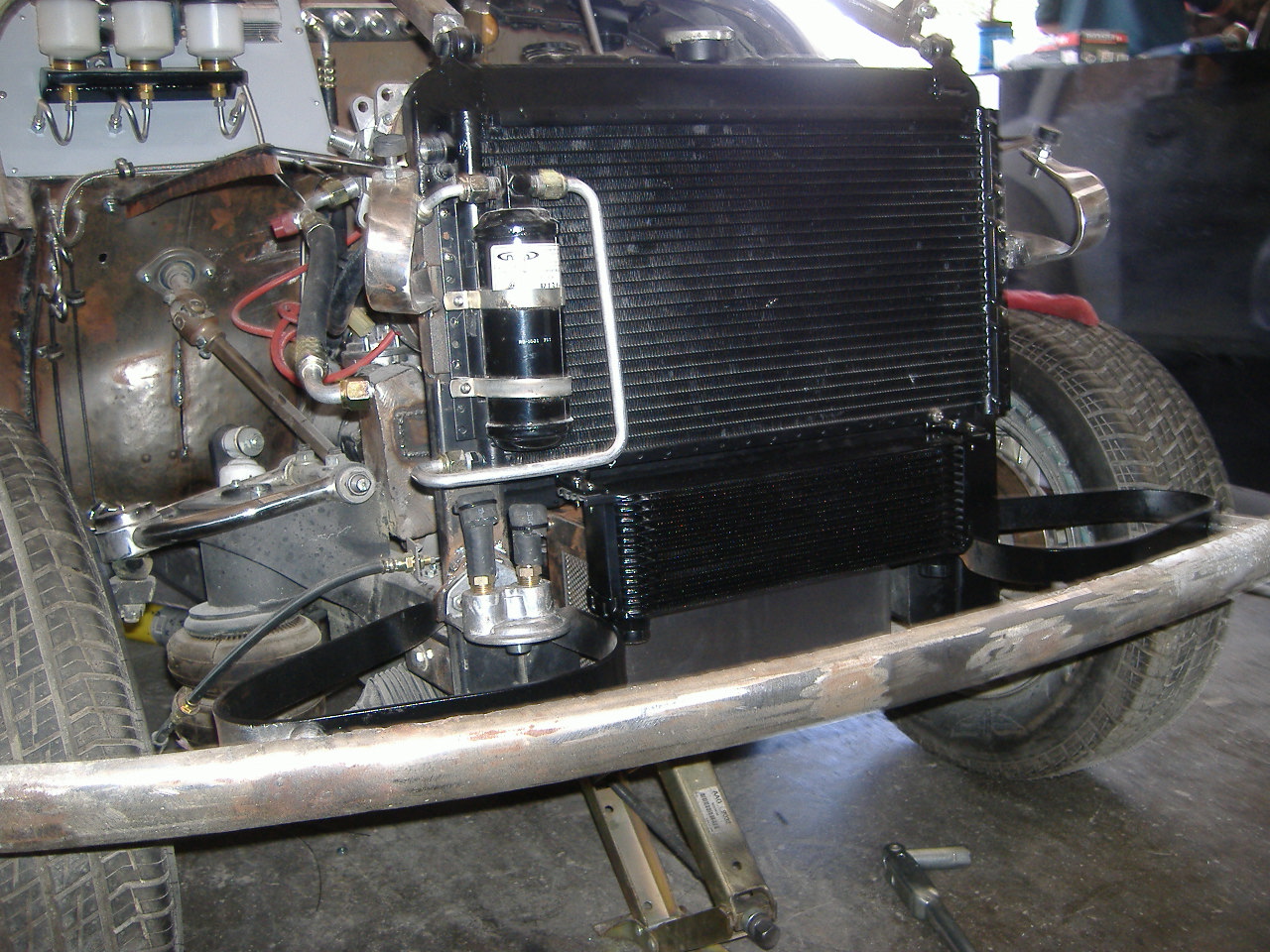

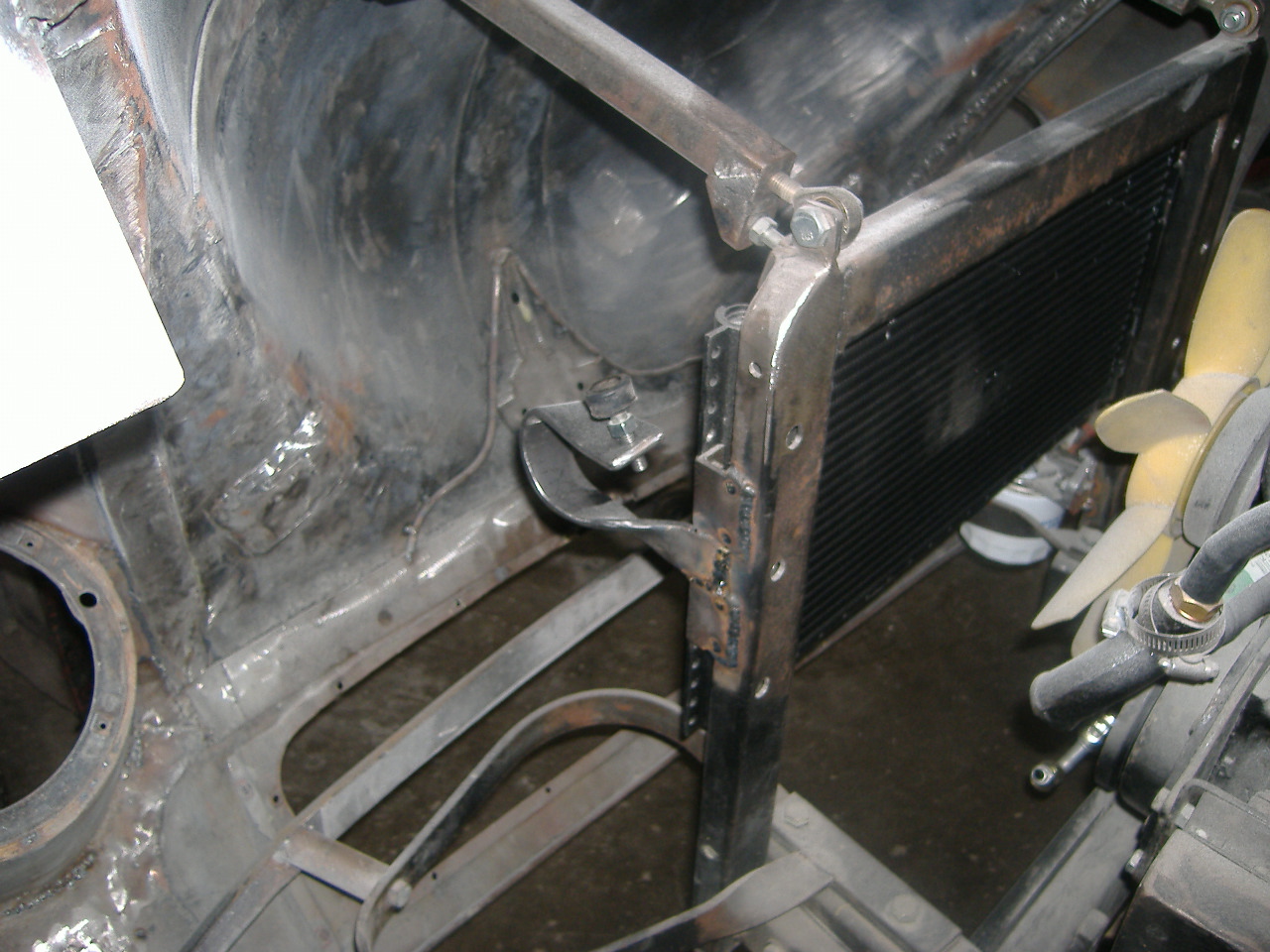

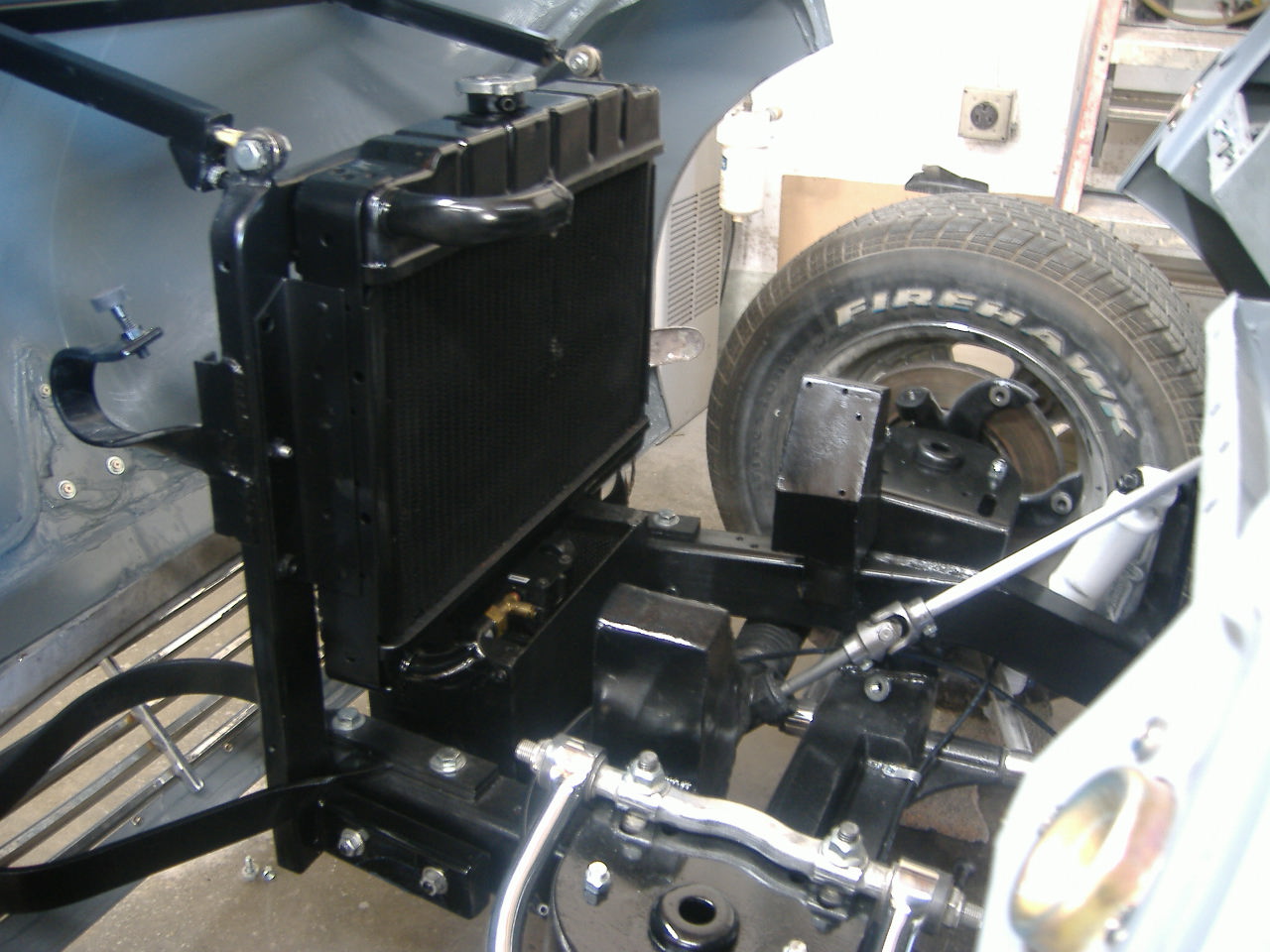

Radiator installed, view of air lines. Normally the air line comes up through the hole near the upper control arm and is subject to damage.





Tail lights

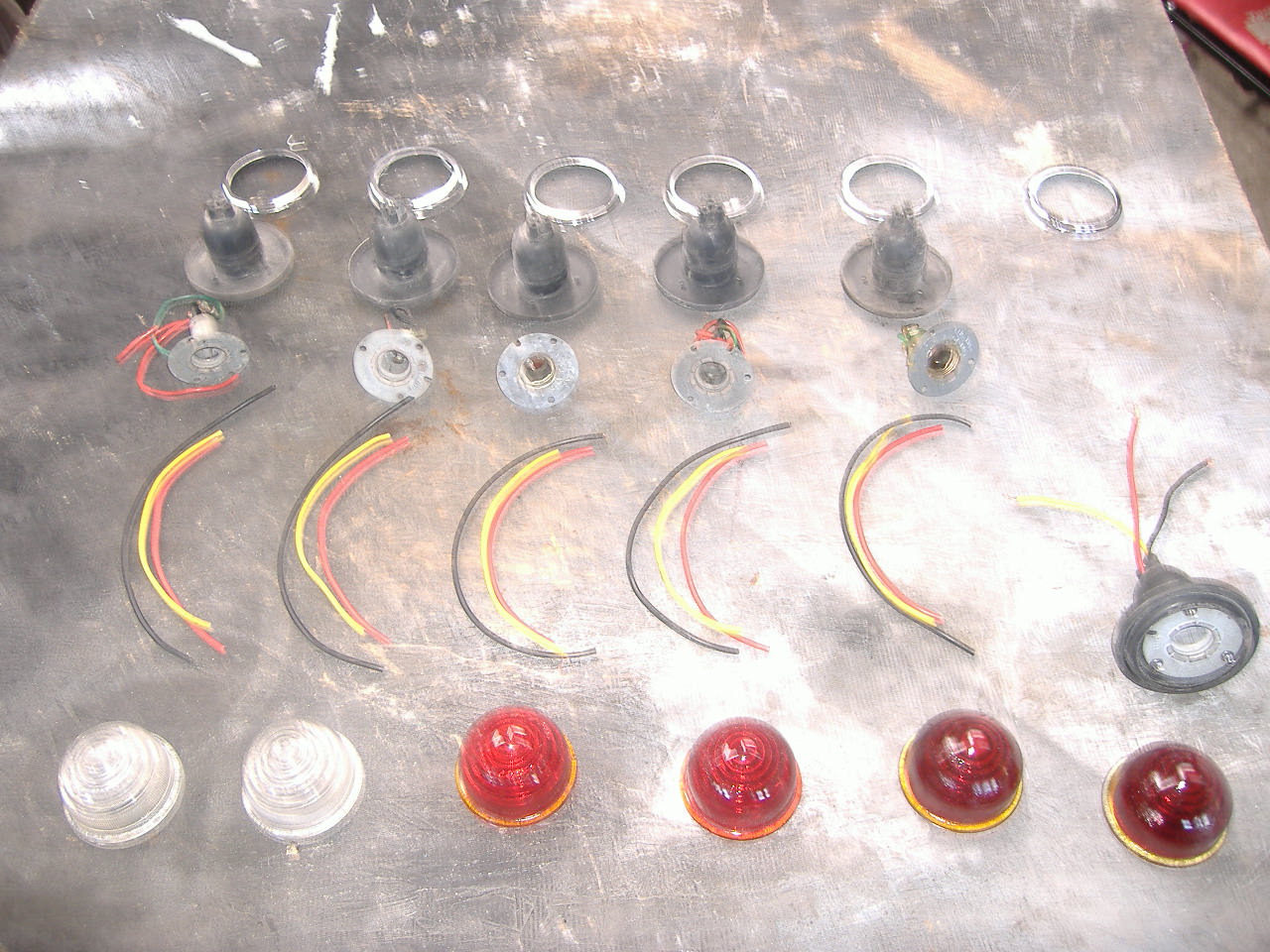

Tail light disassembly

Cleaned and wired.

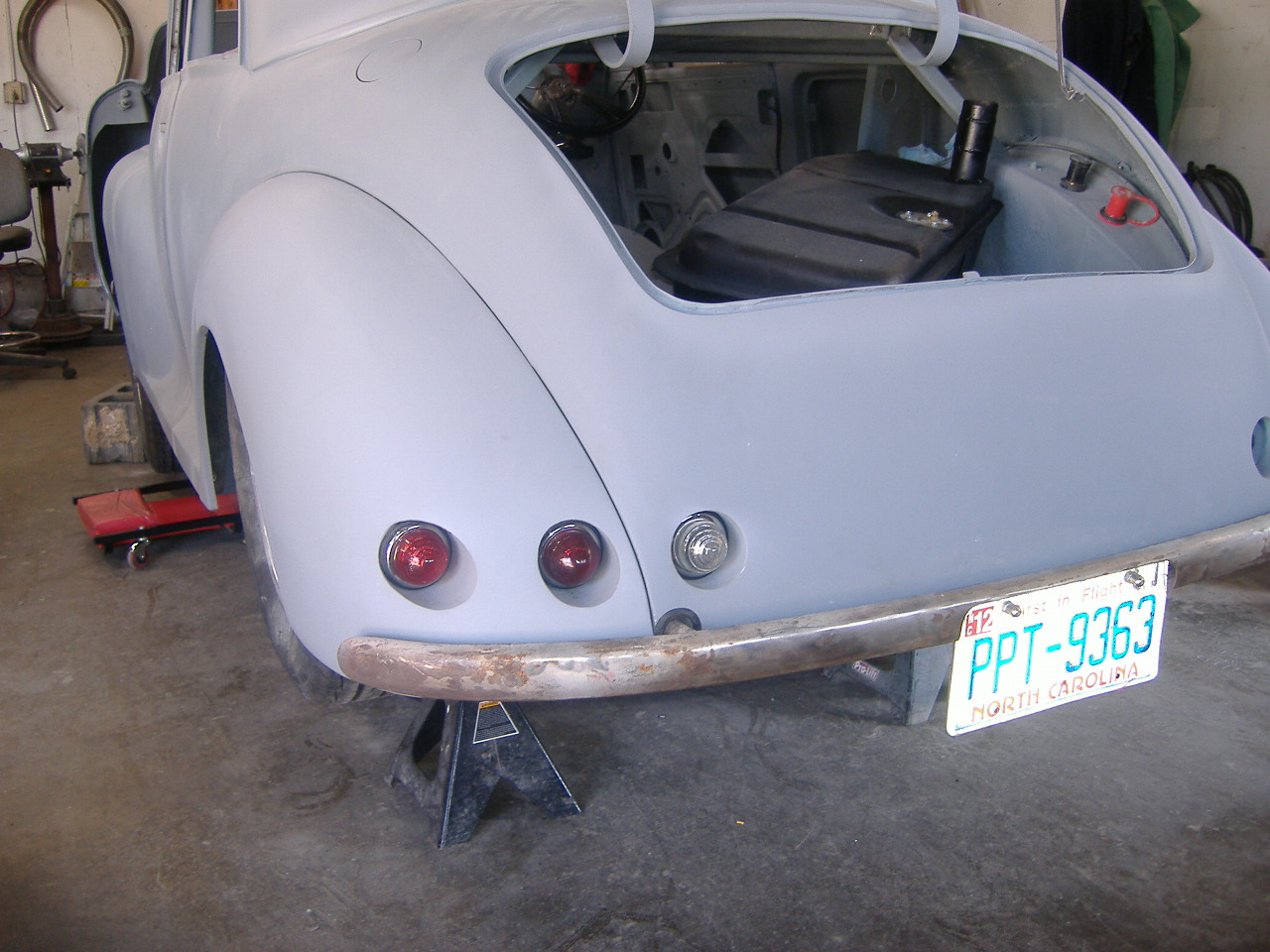

Last mock up in car

Side view

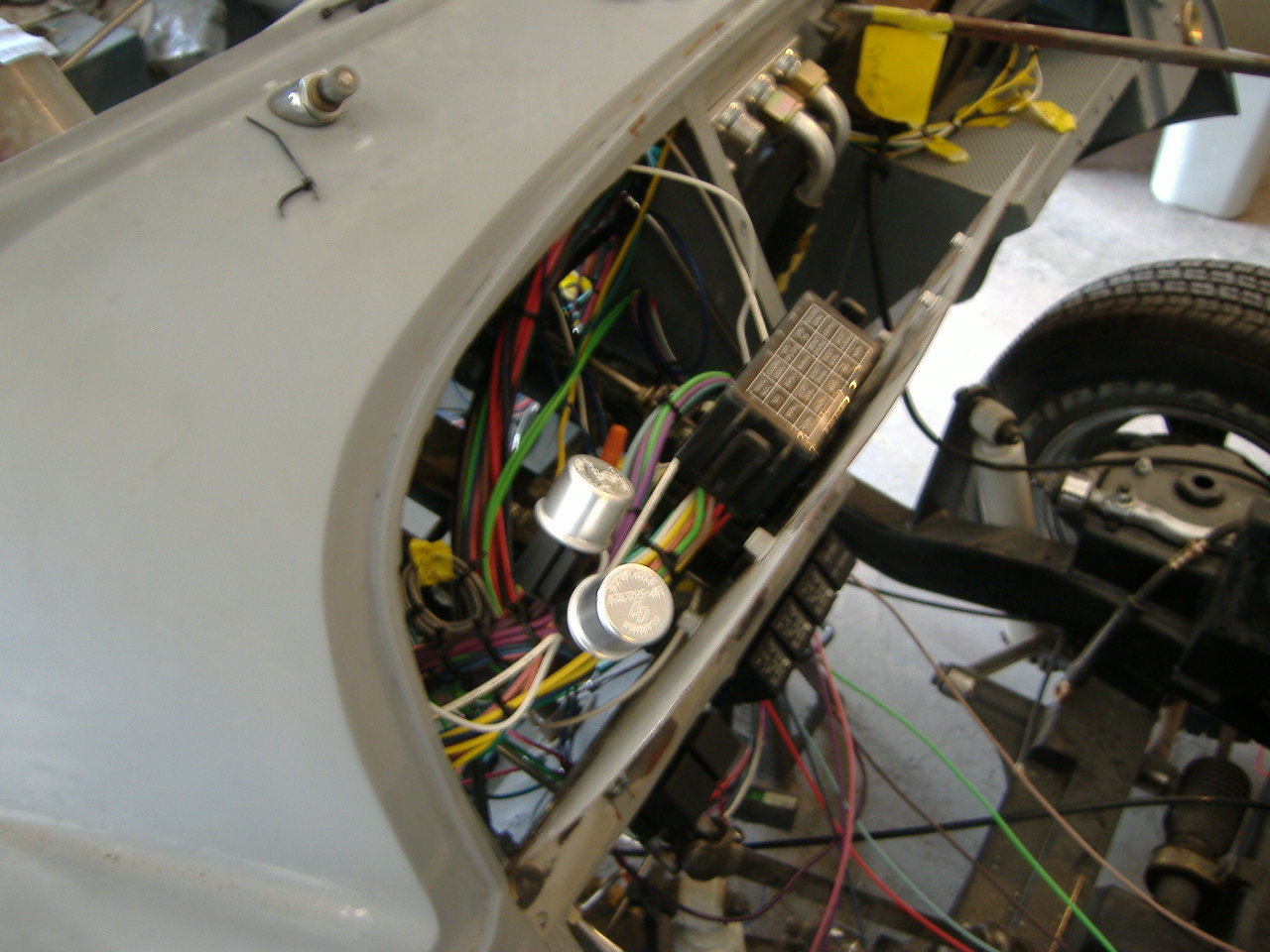

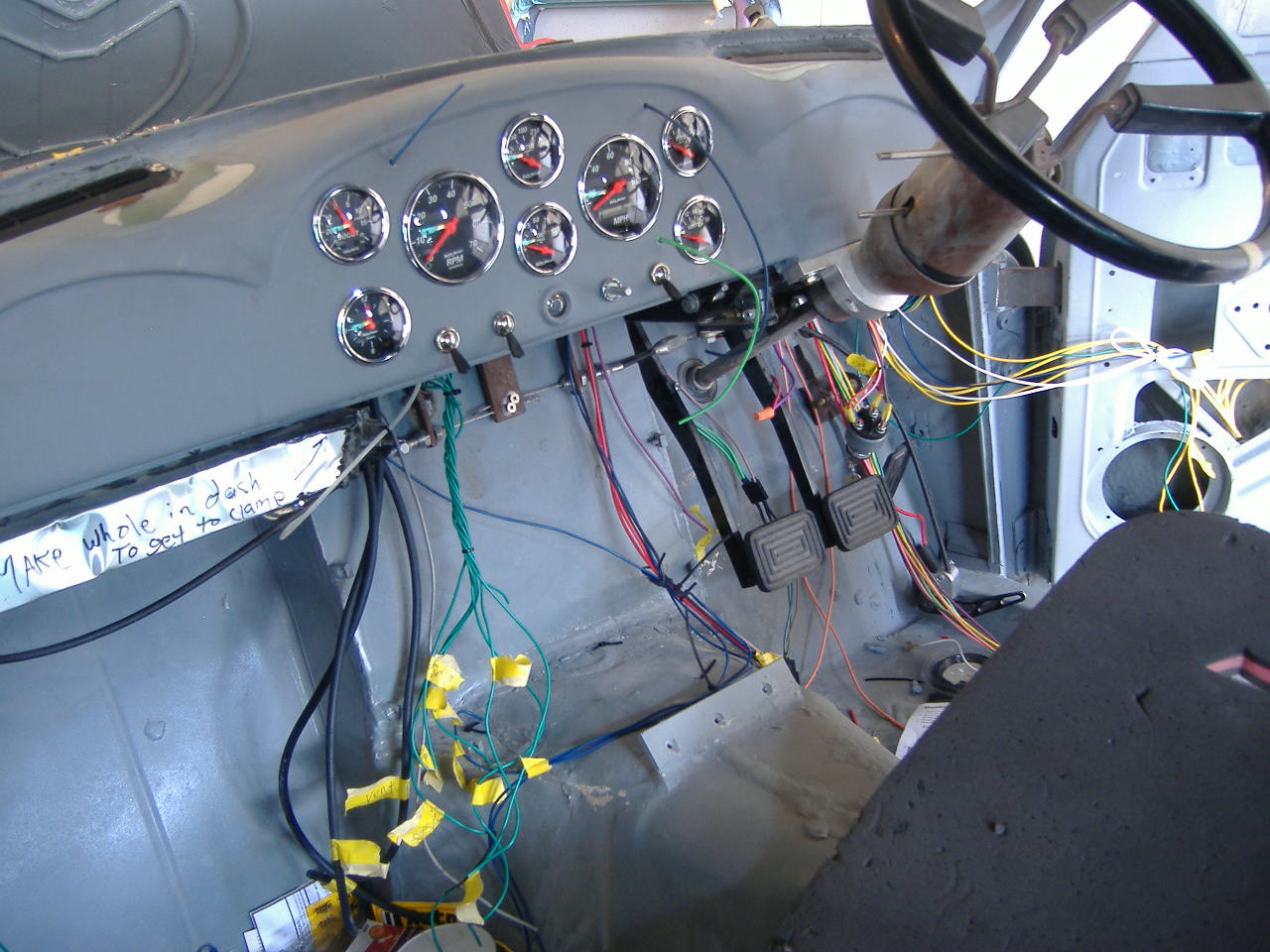

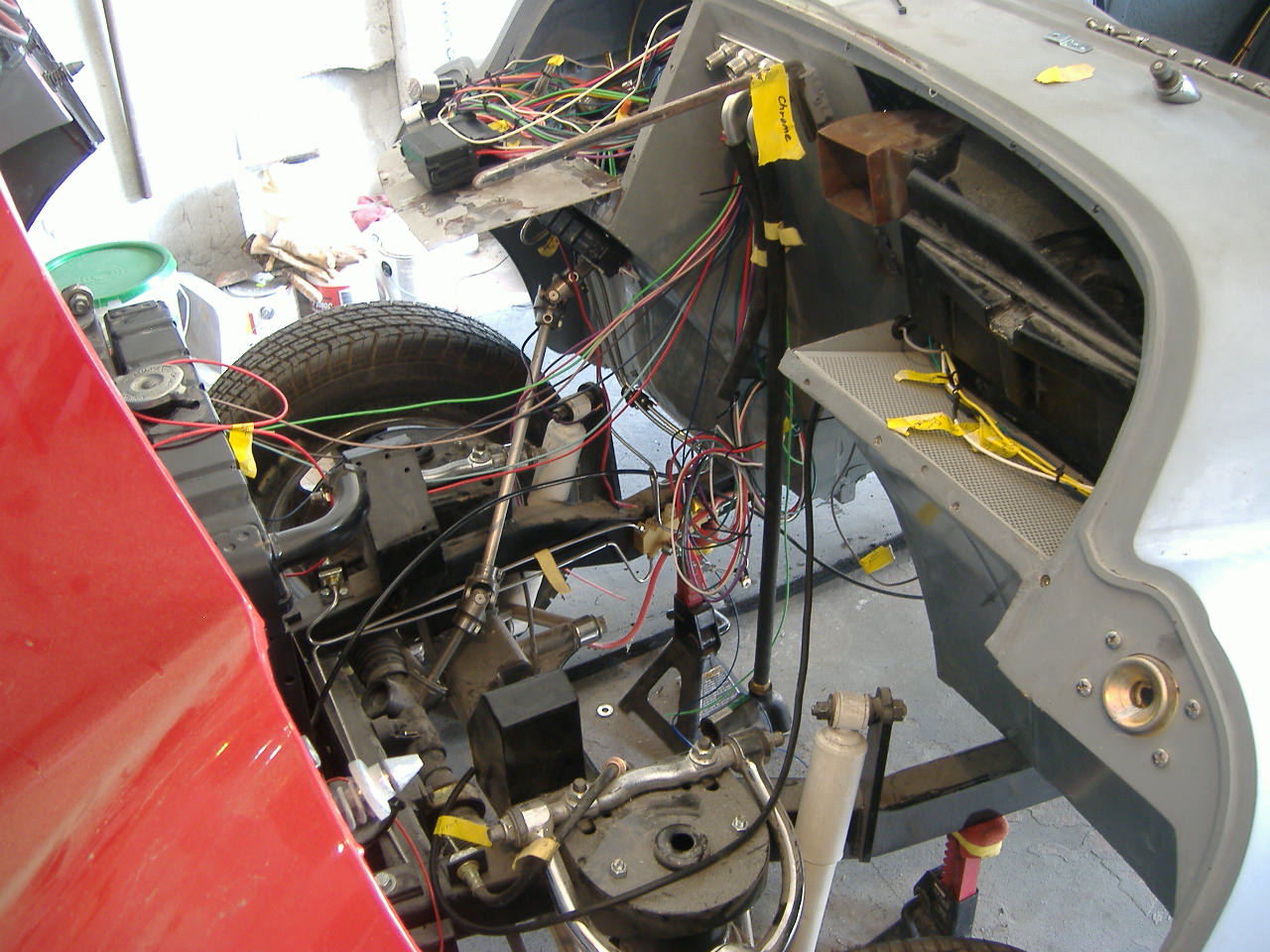

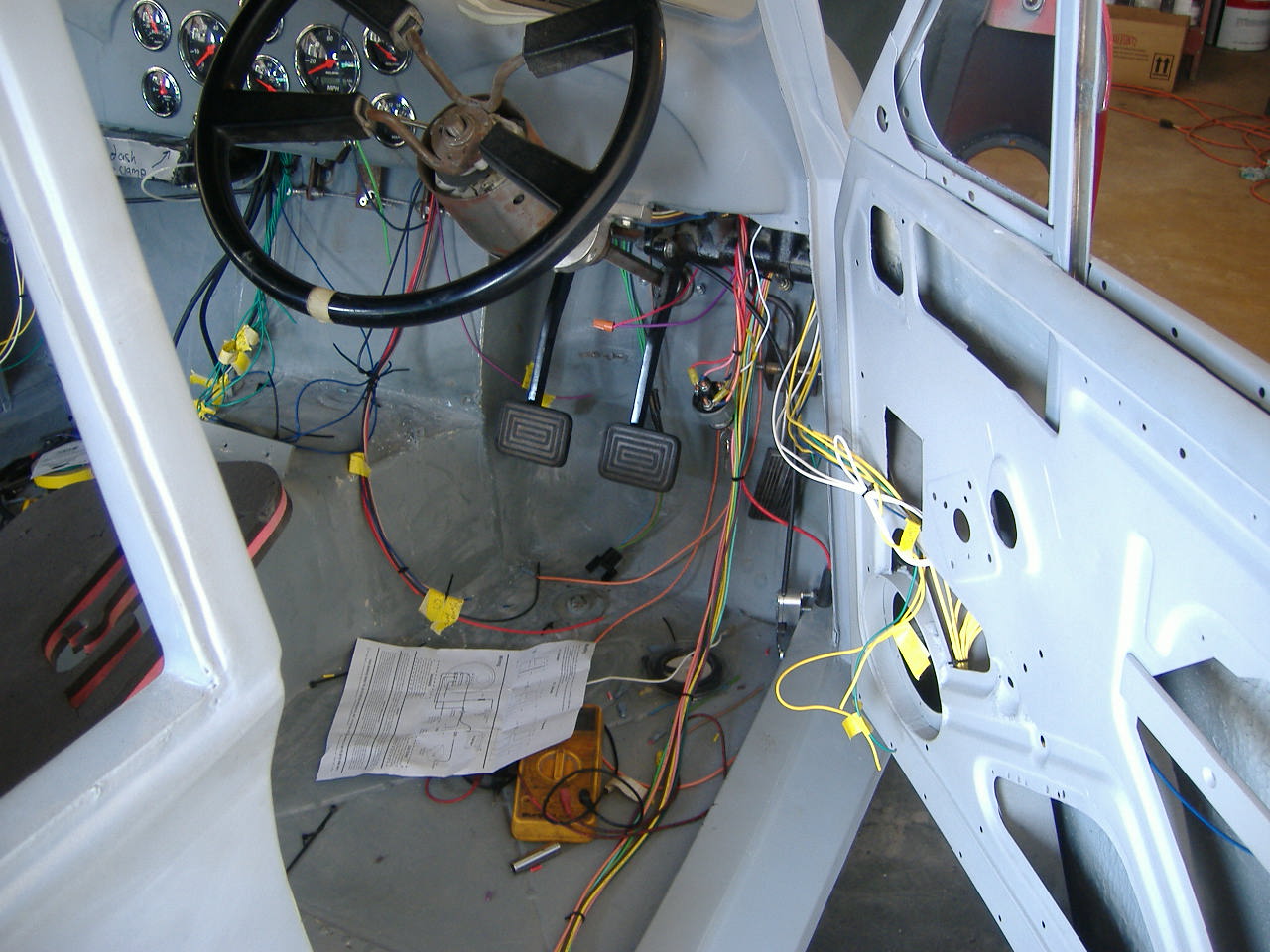

Running Wires

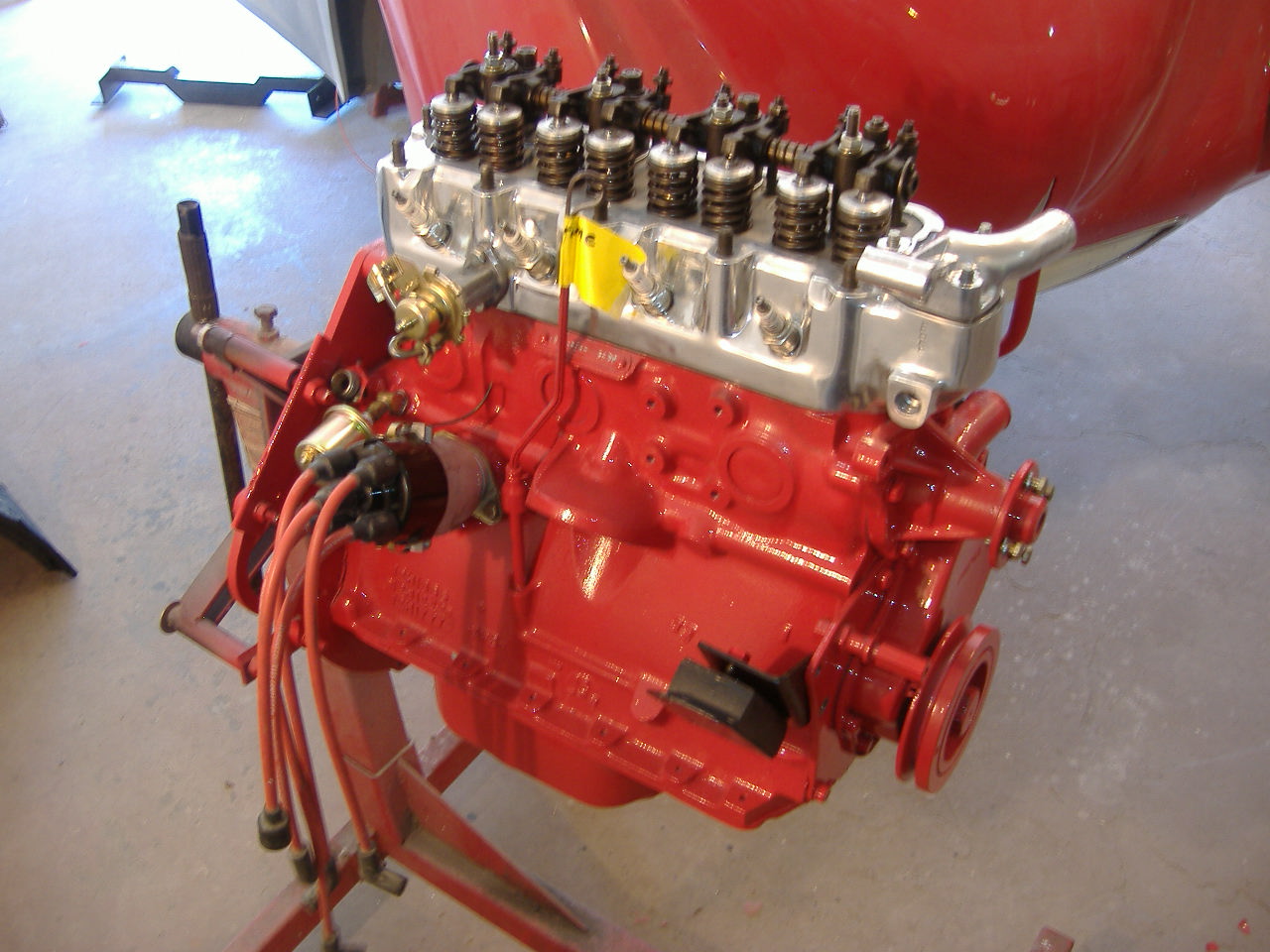

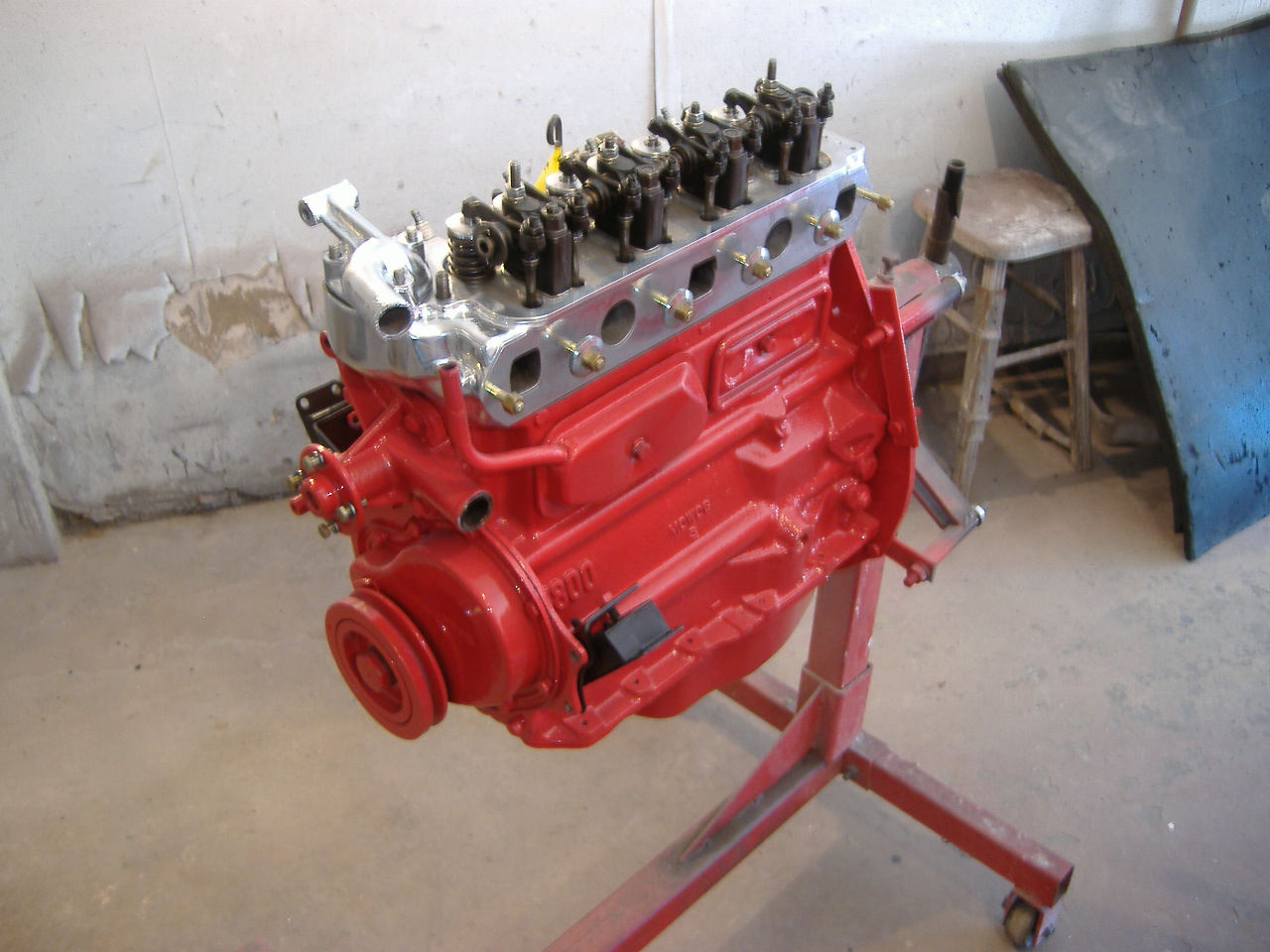

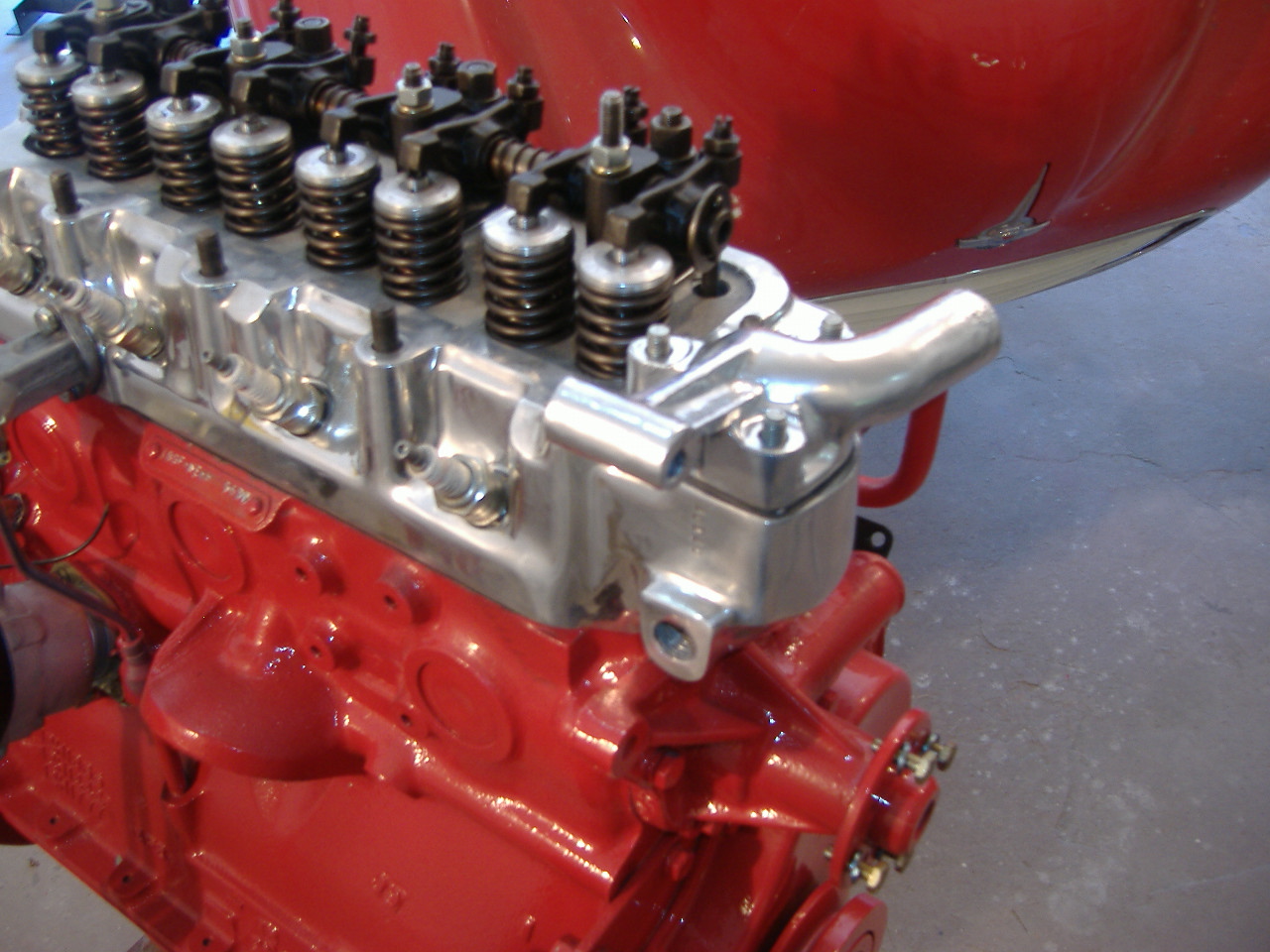

Engine
