1969 Pontiac GTO
Fabrication
Mock-Ups
|
|
|
|

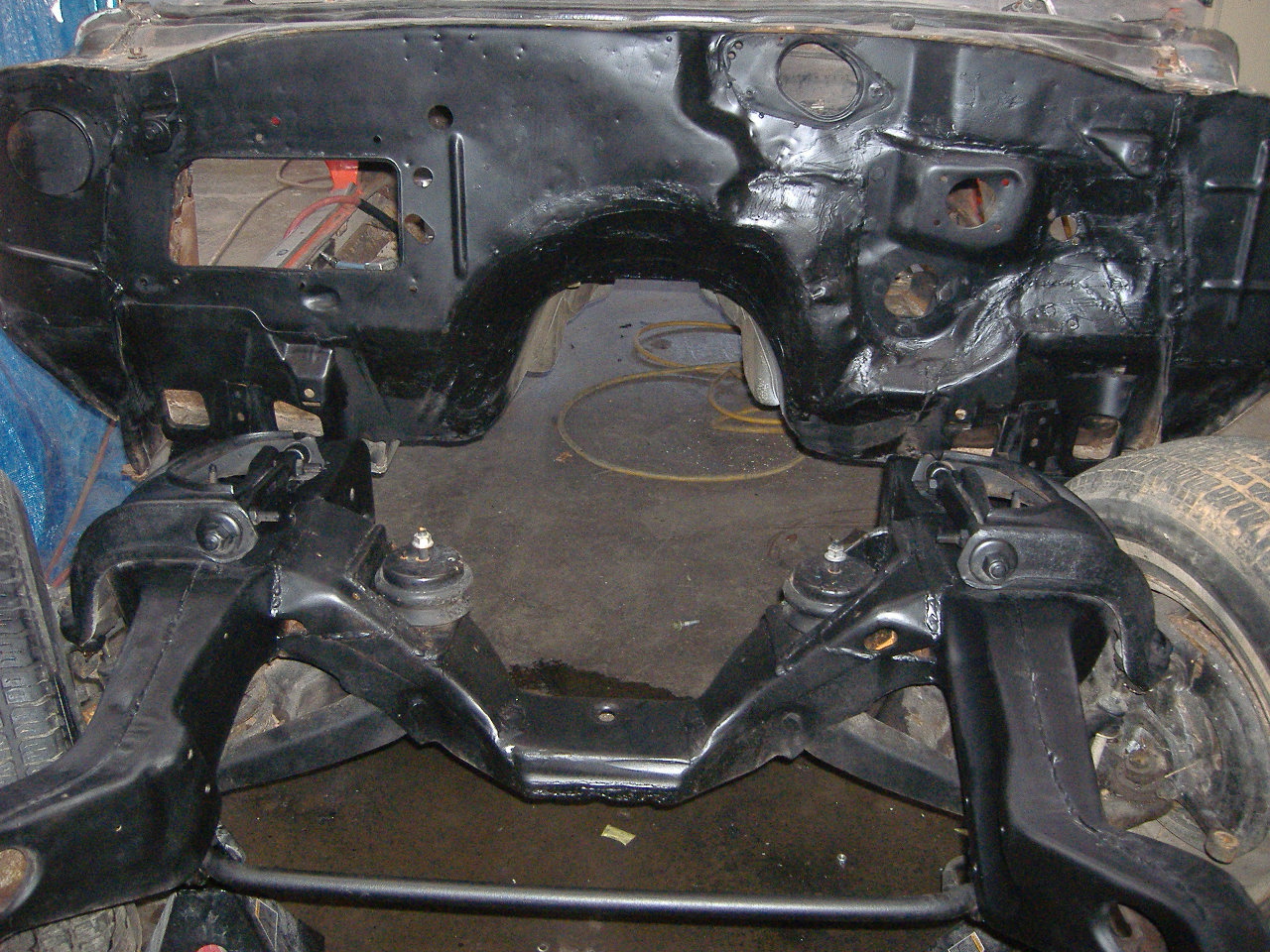

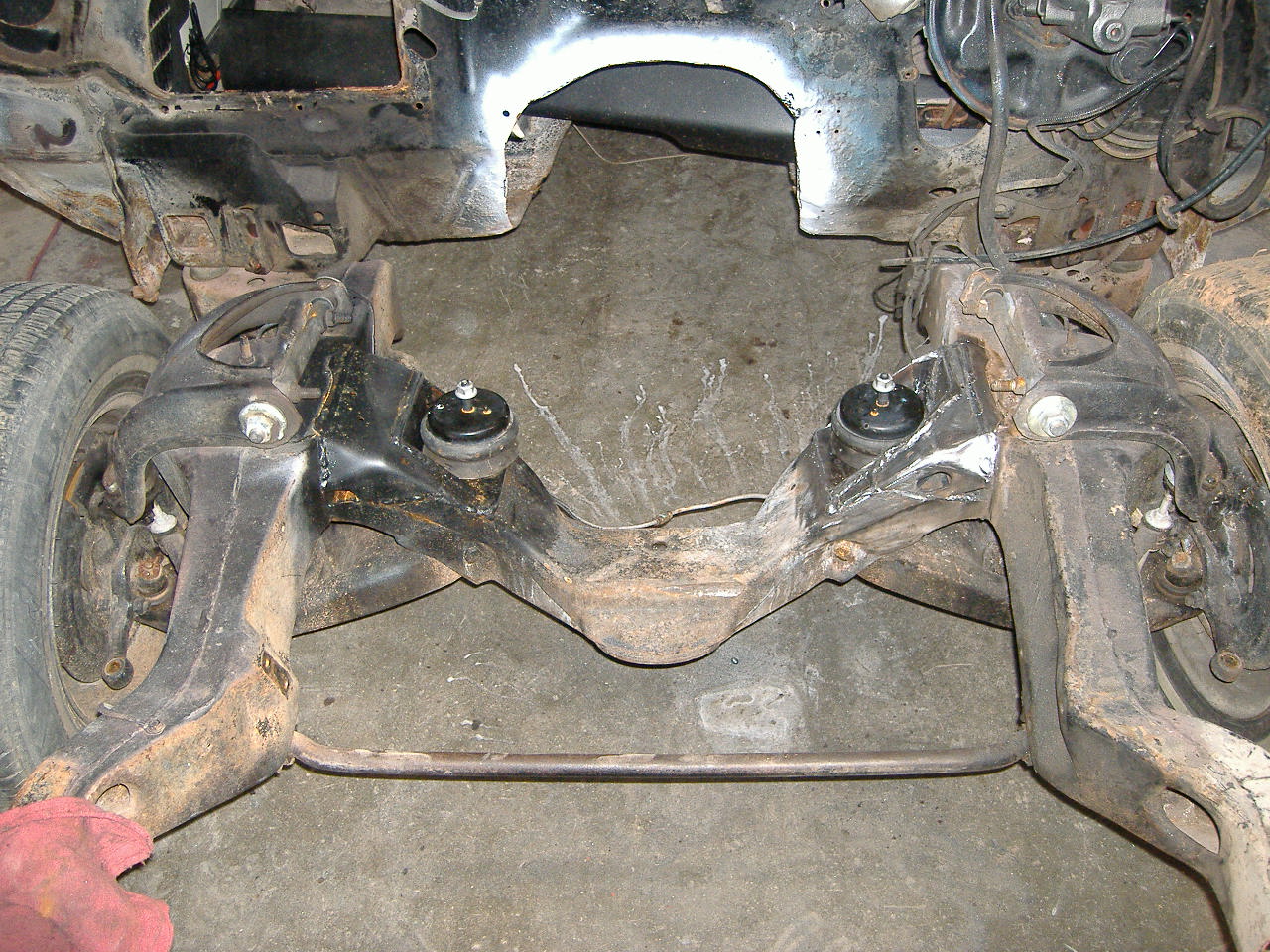

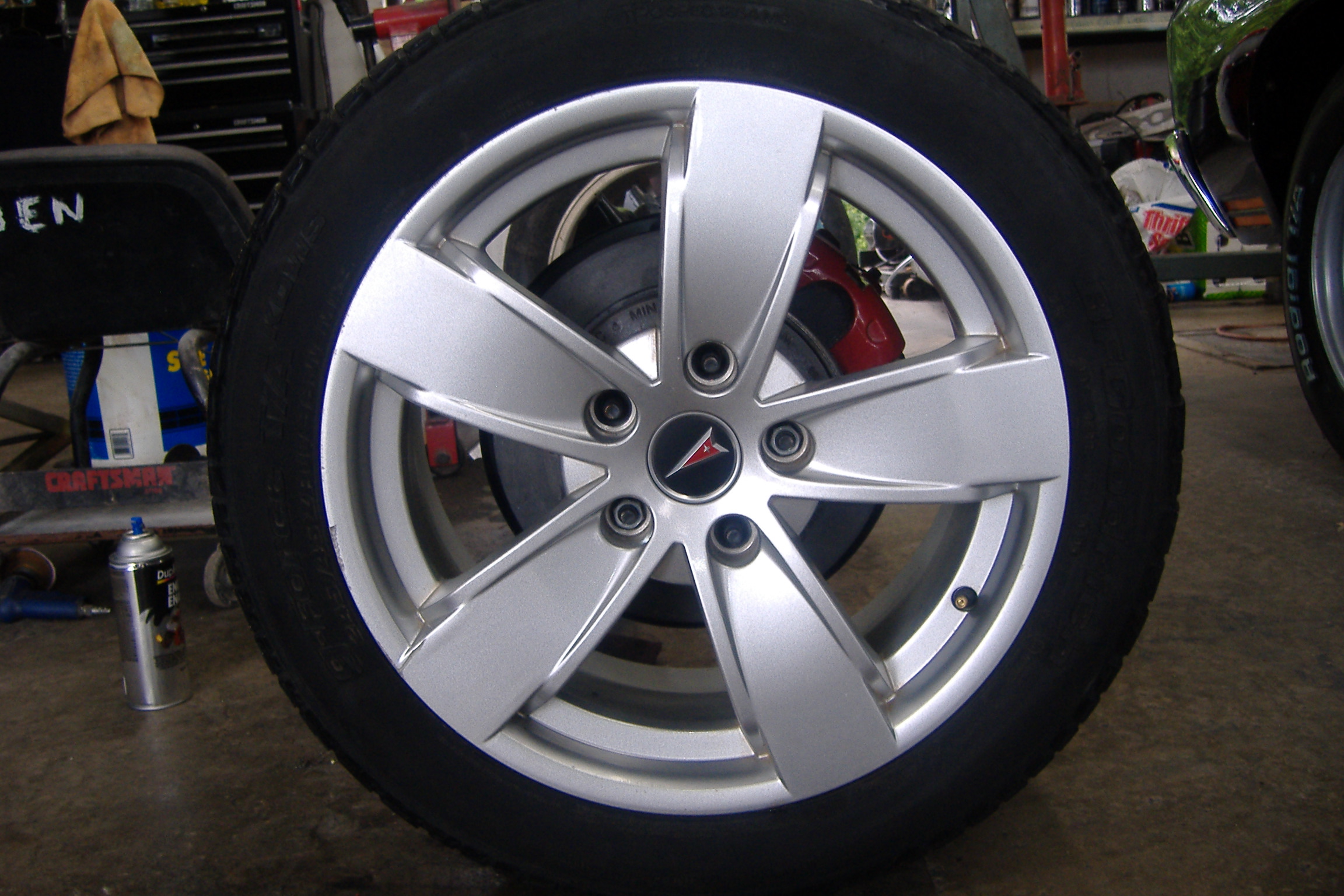

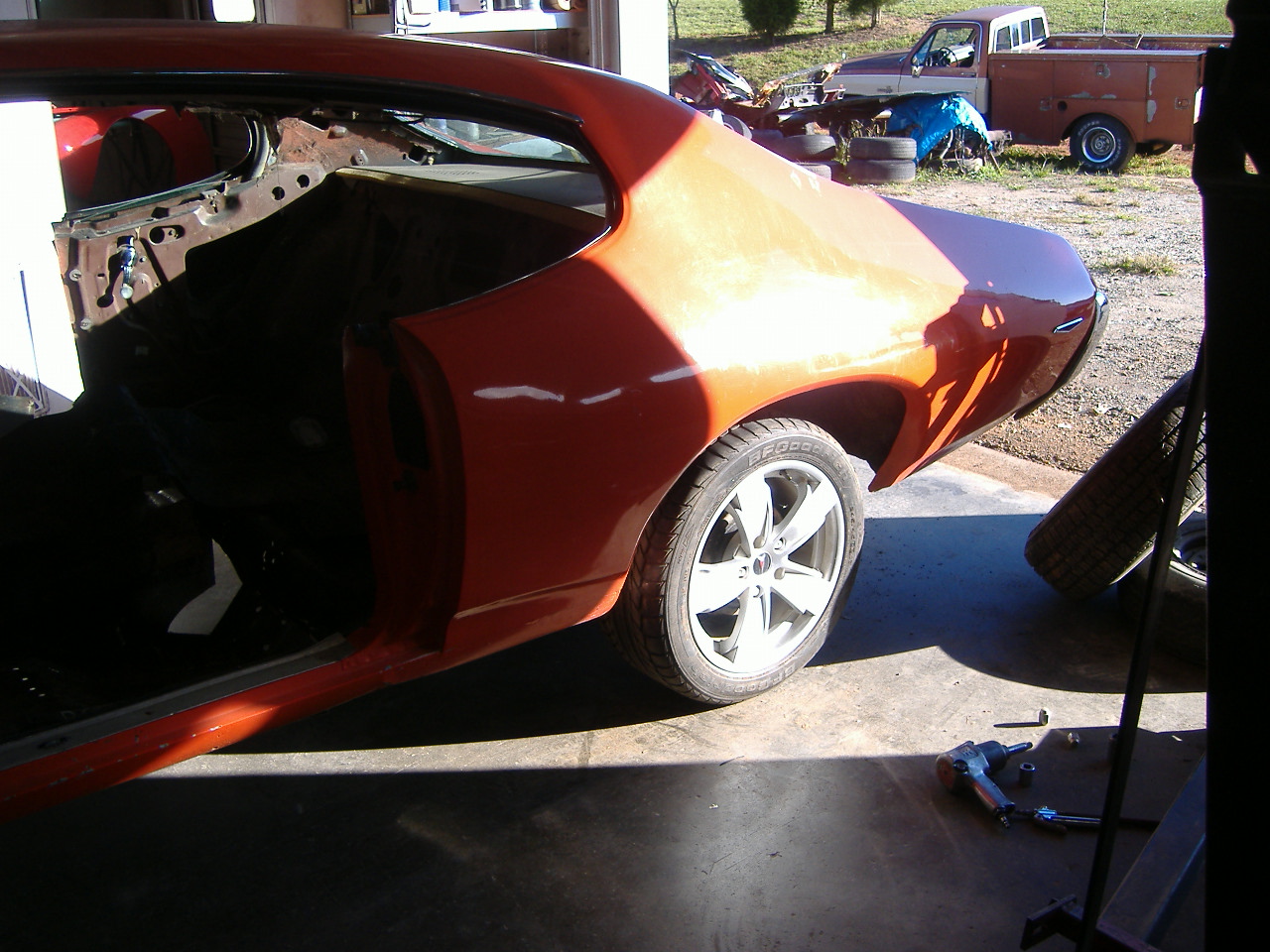

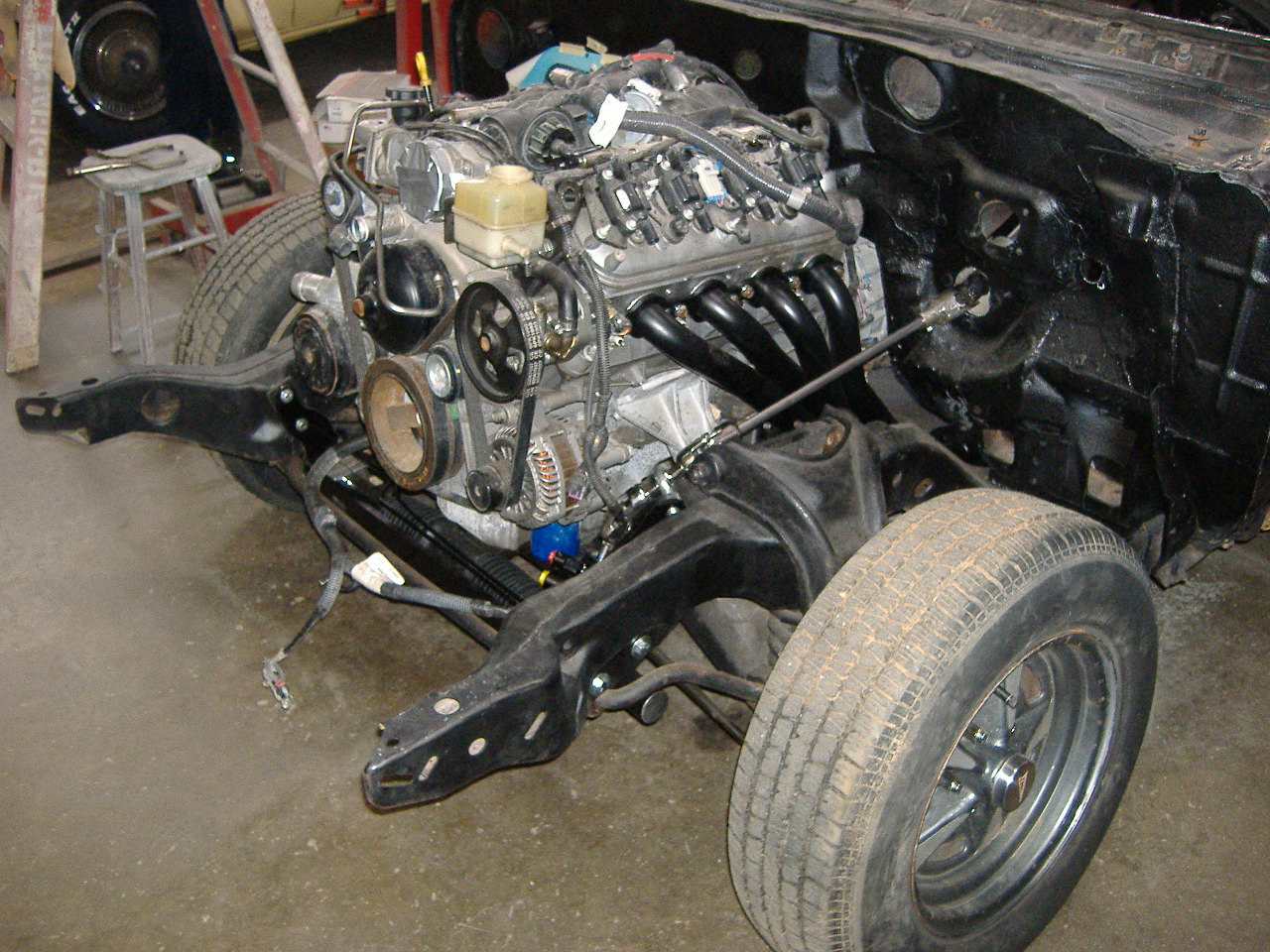

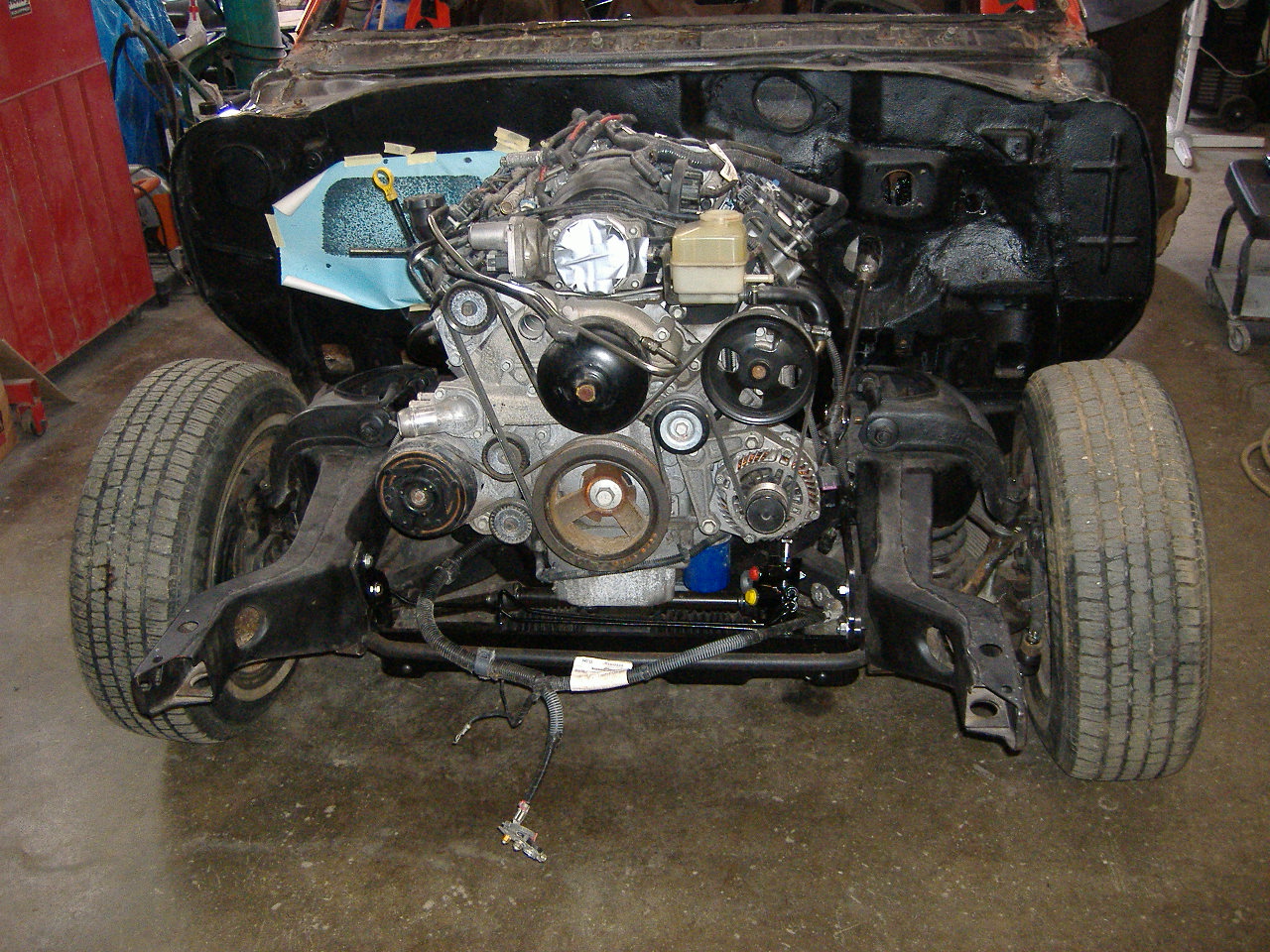

Mocking up the wheel and tire from the 06 GTO
|
|
|

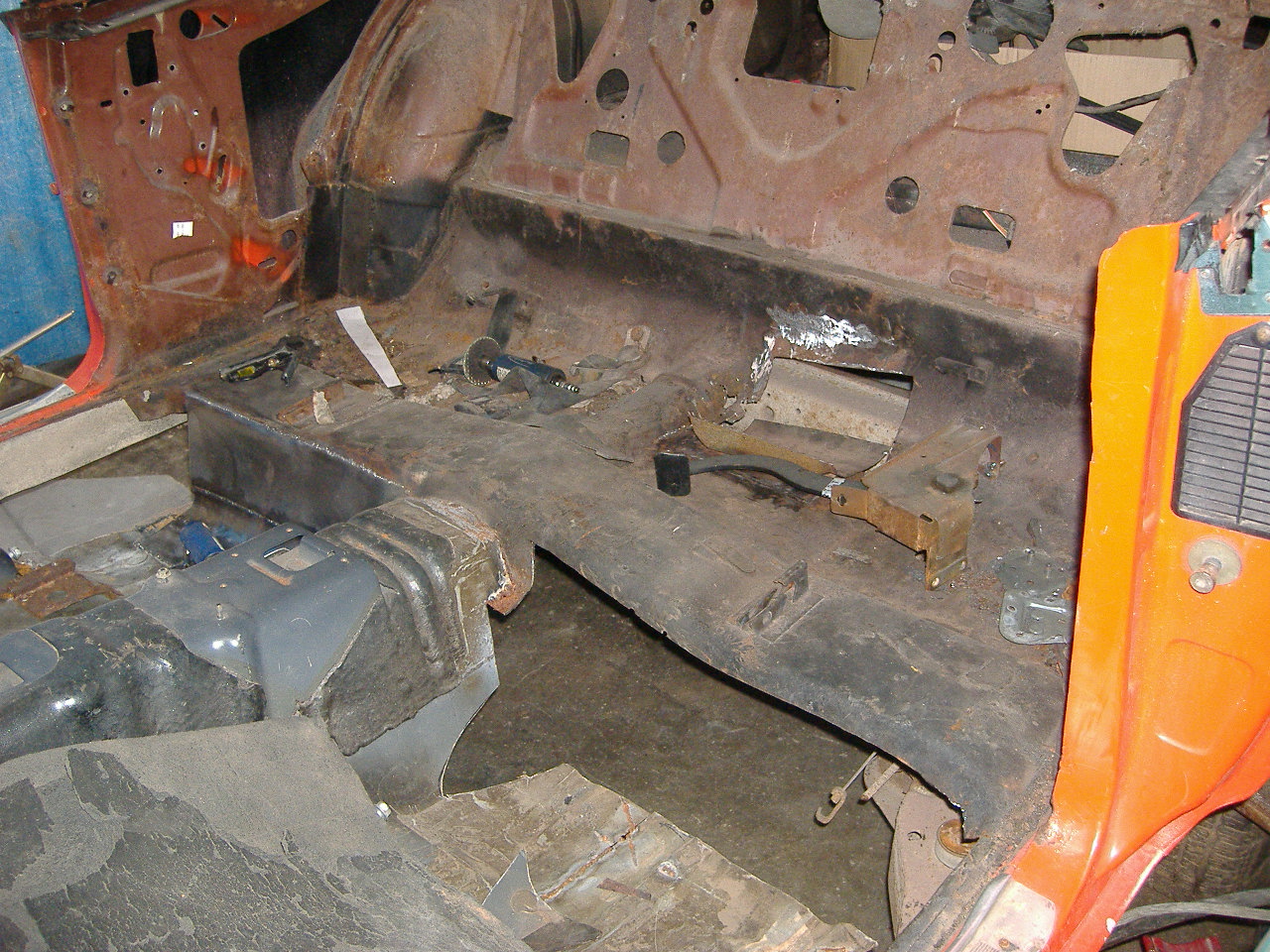

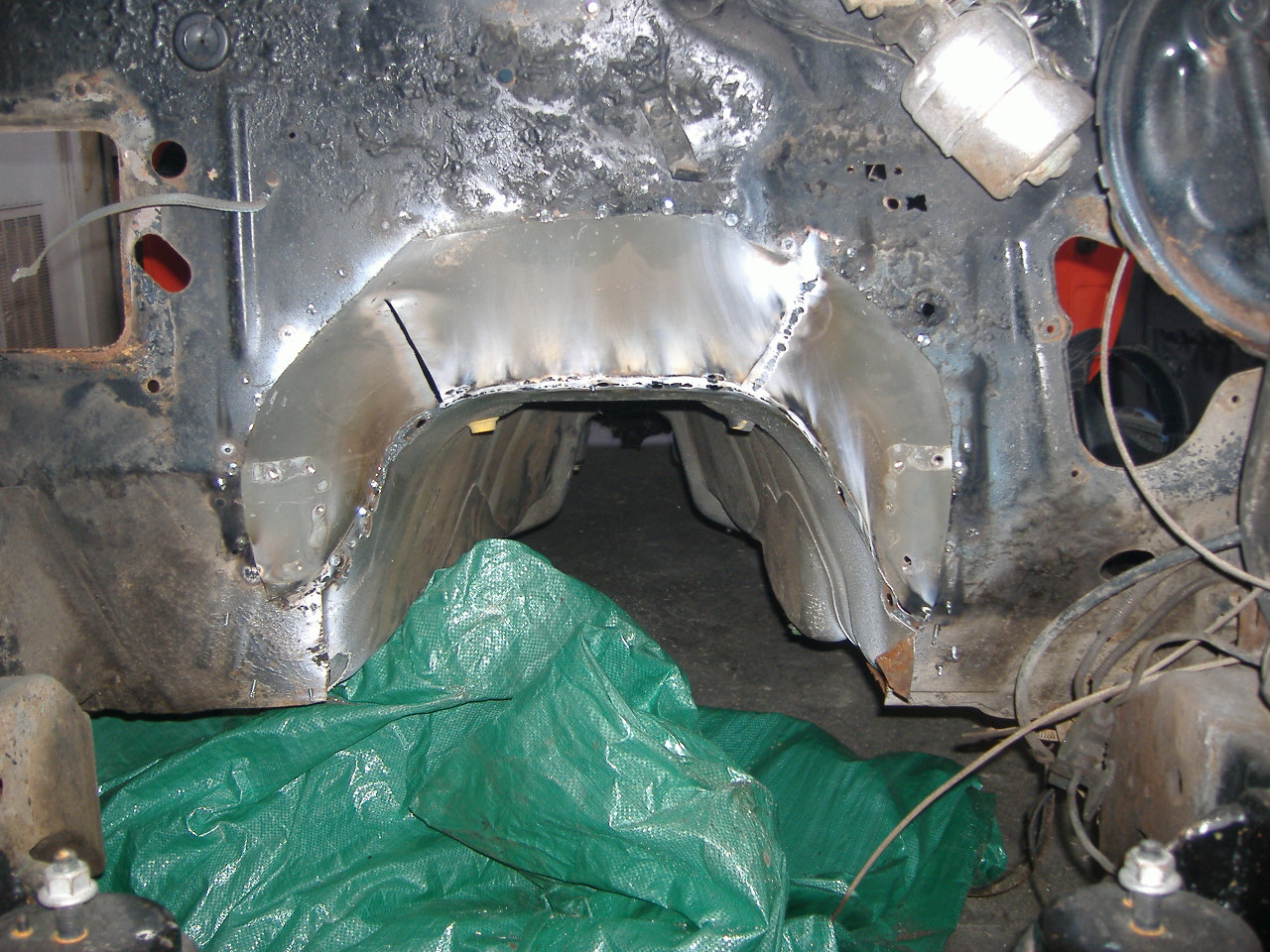

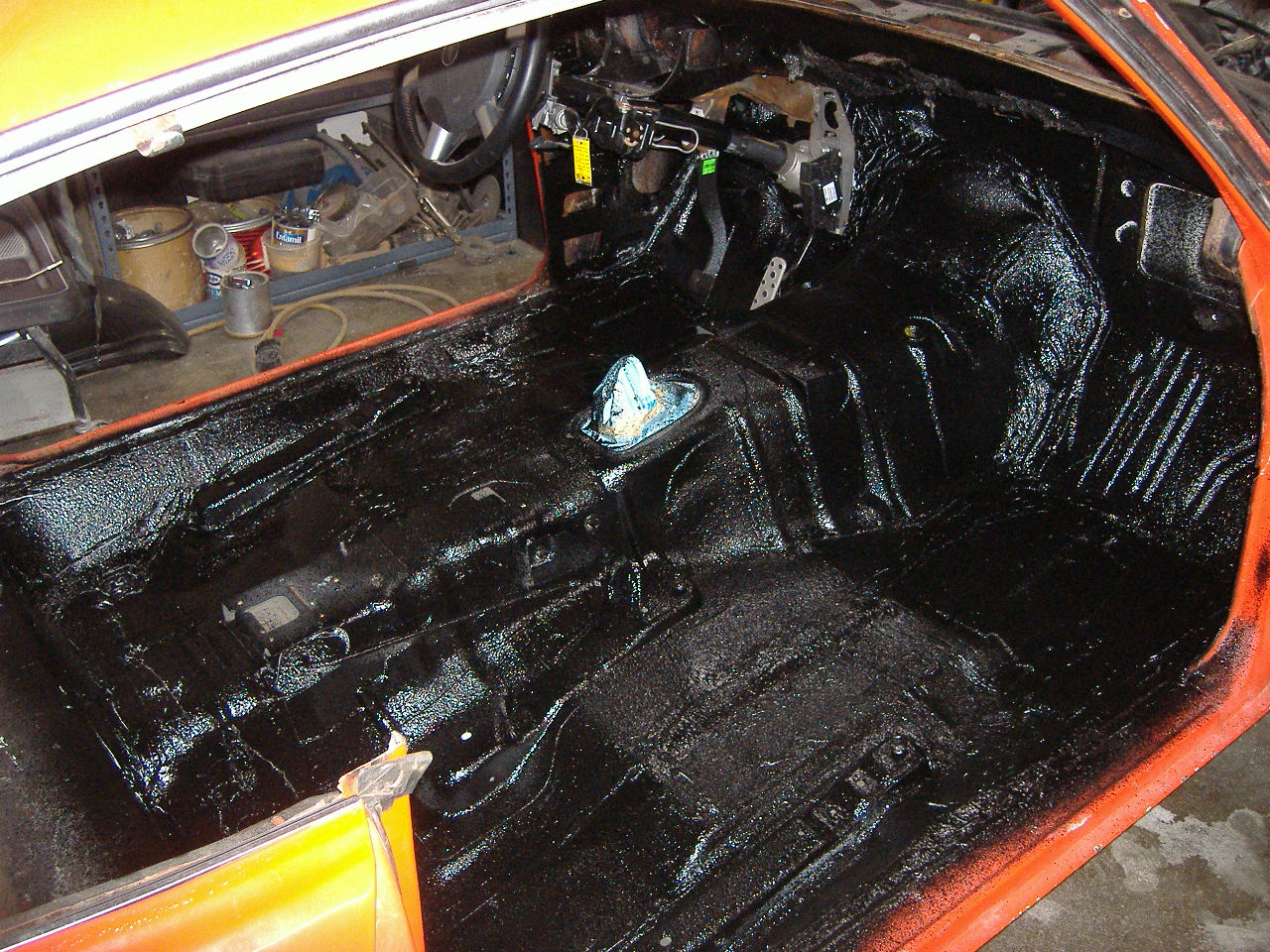

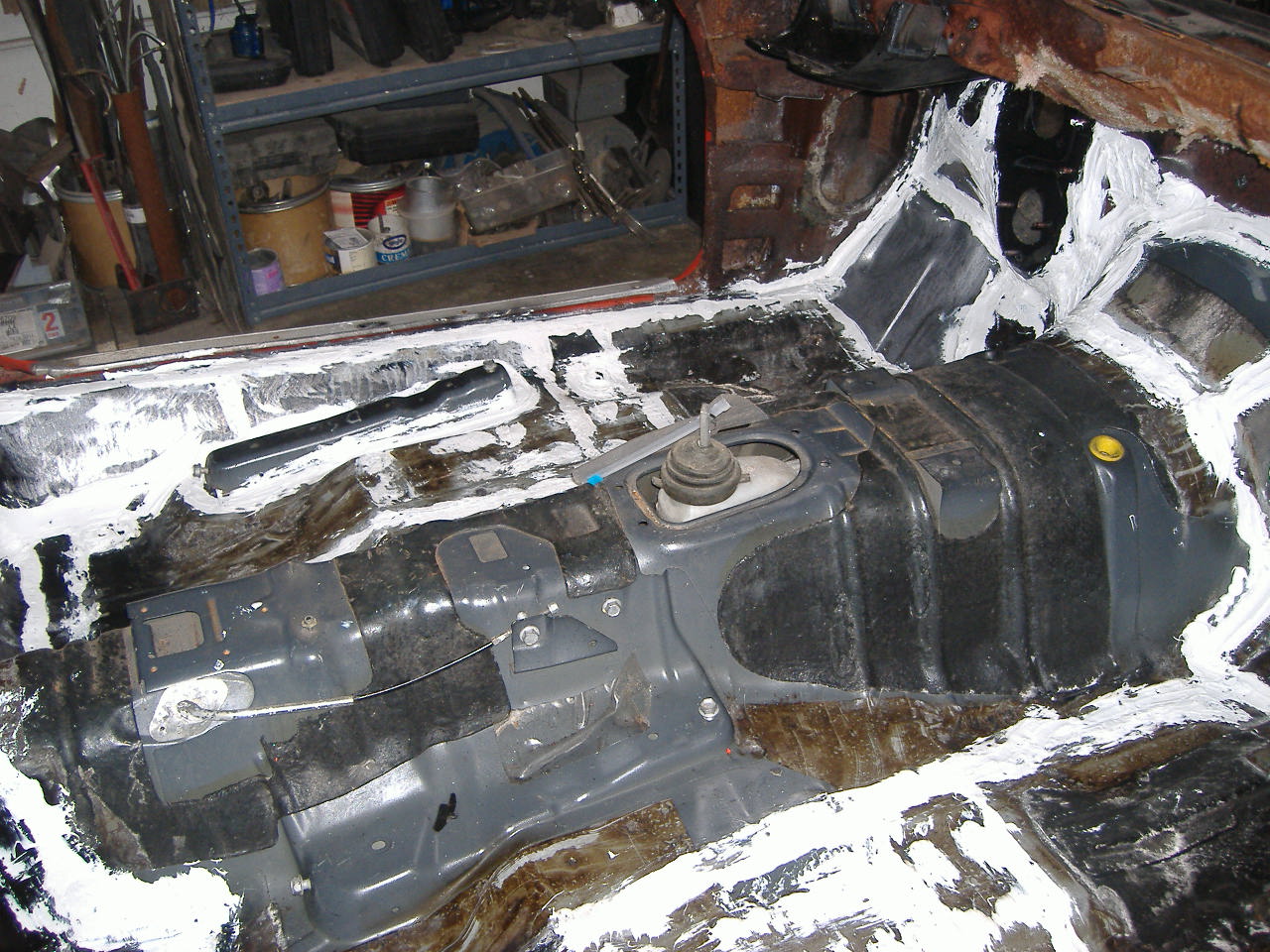

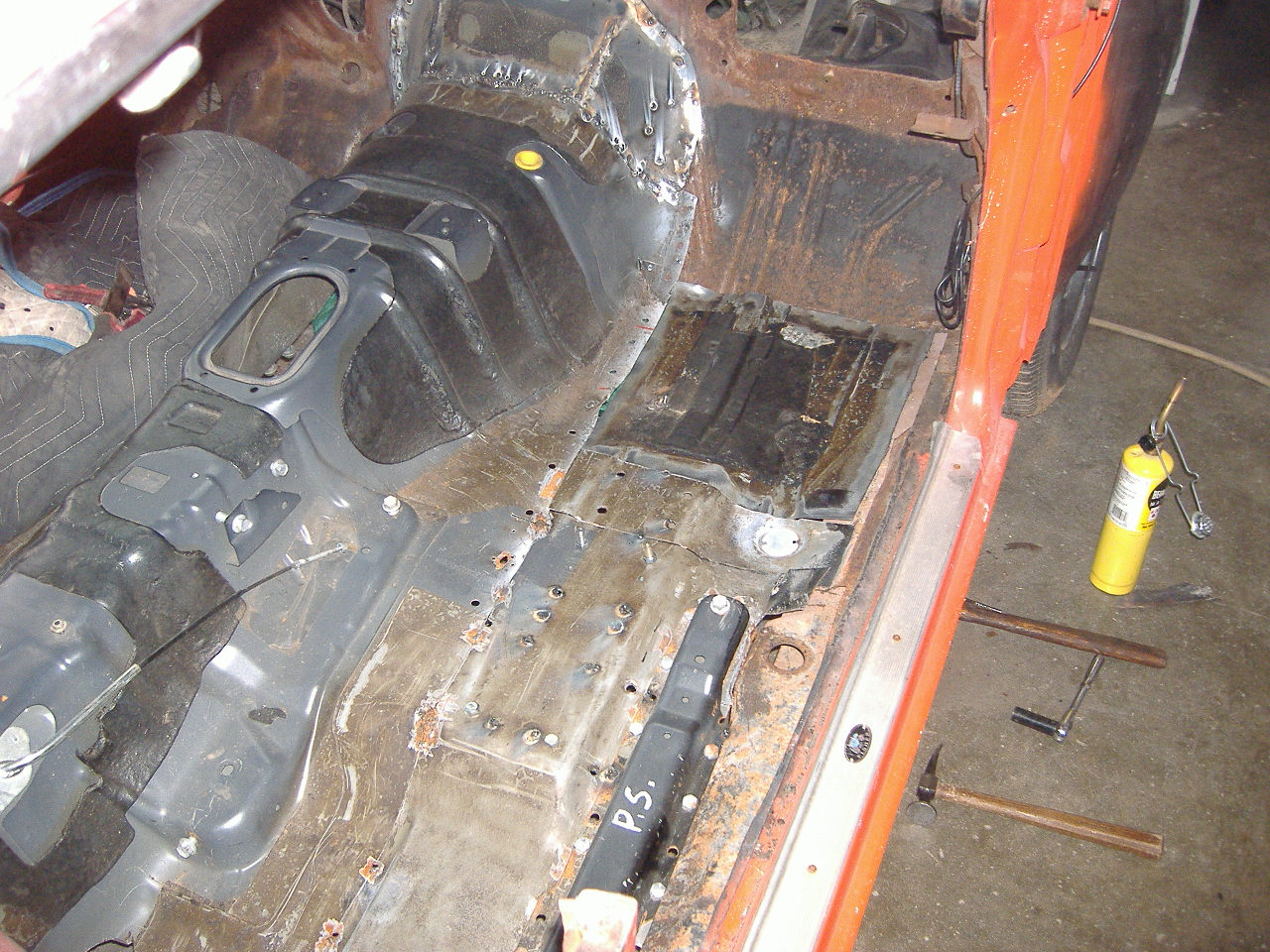

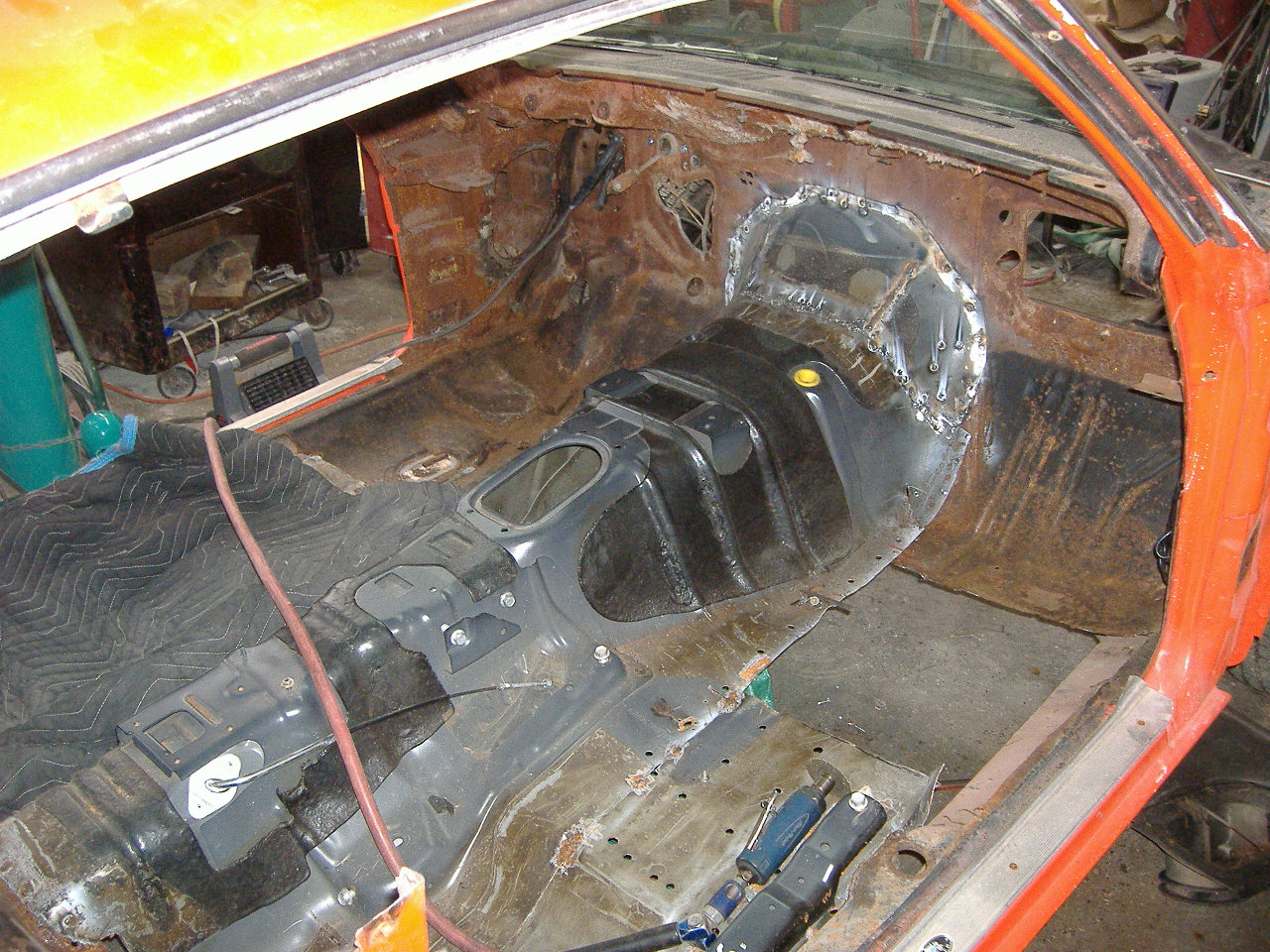

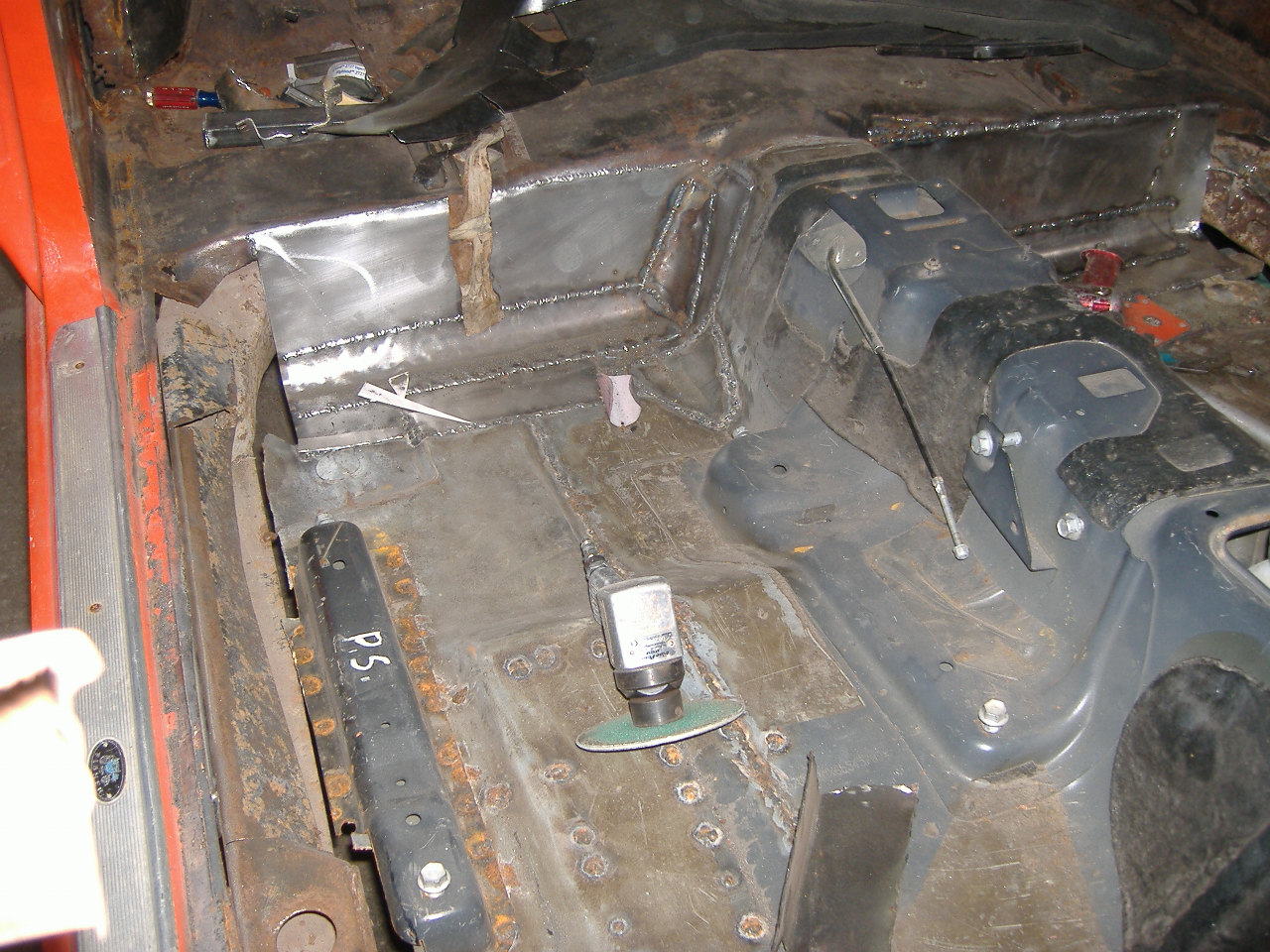

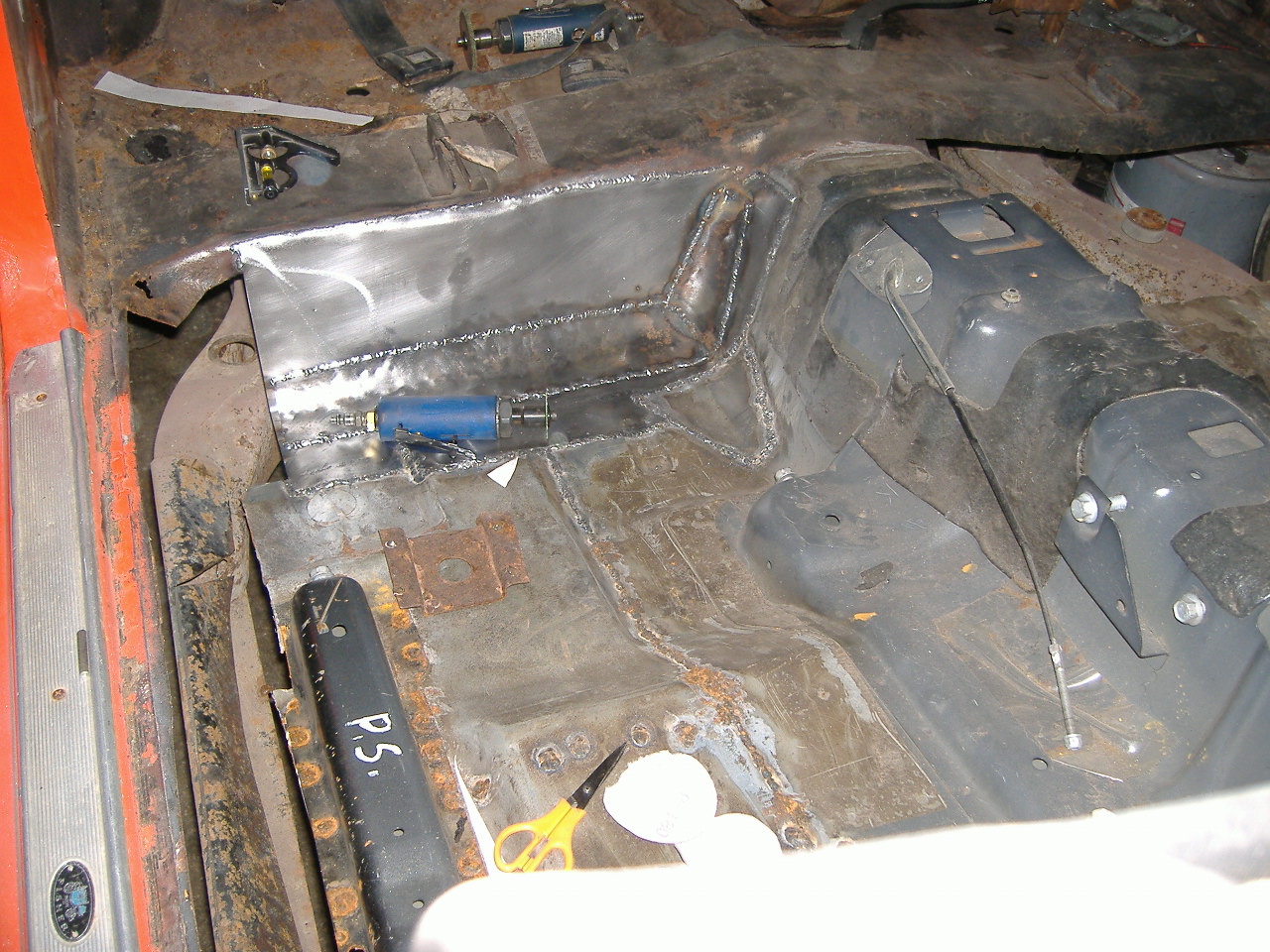

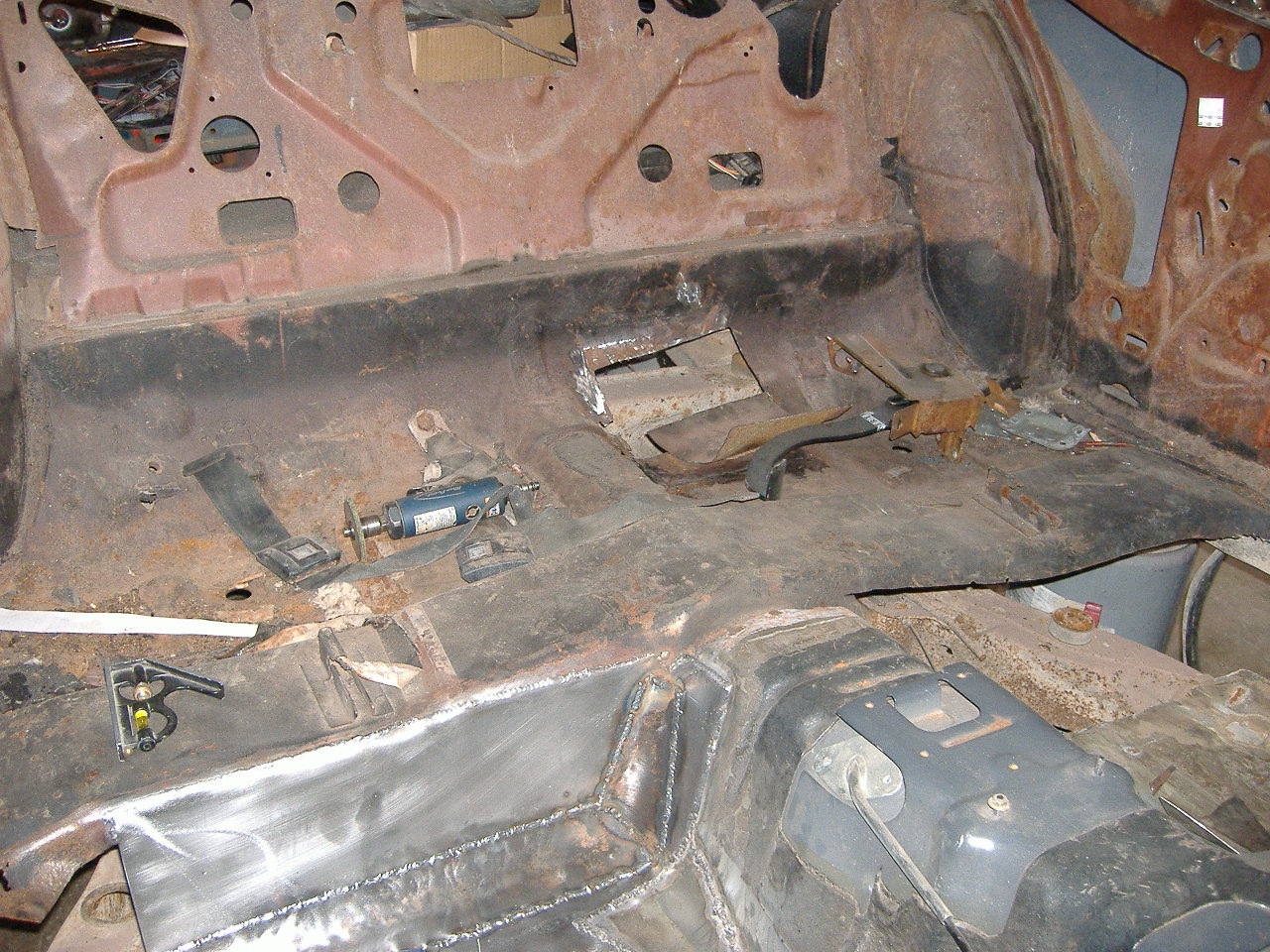

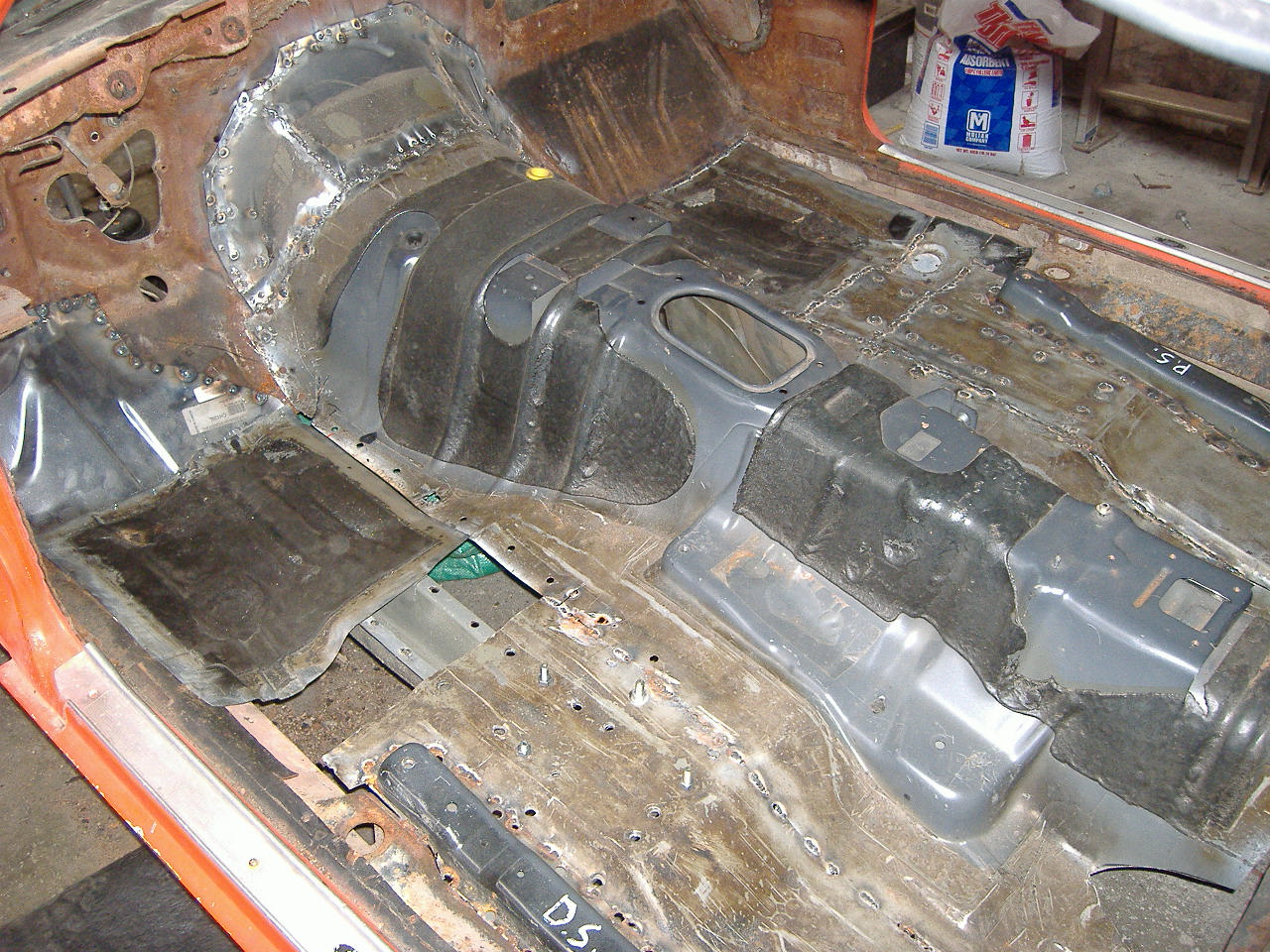

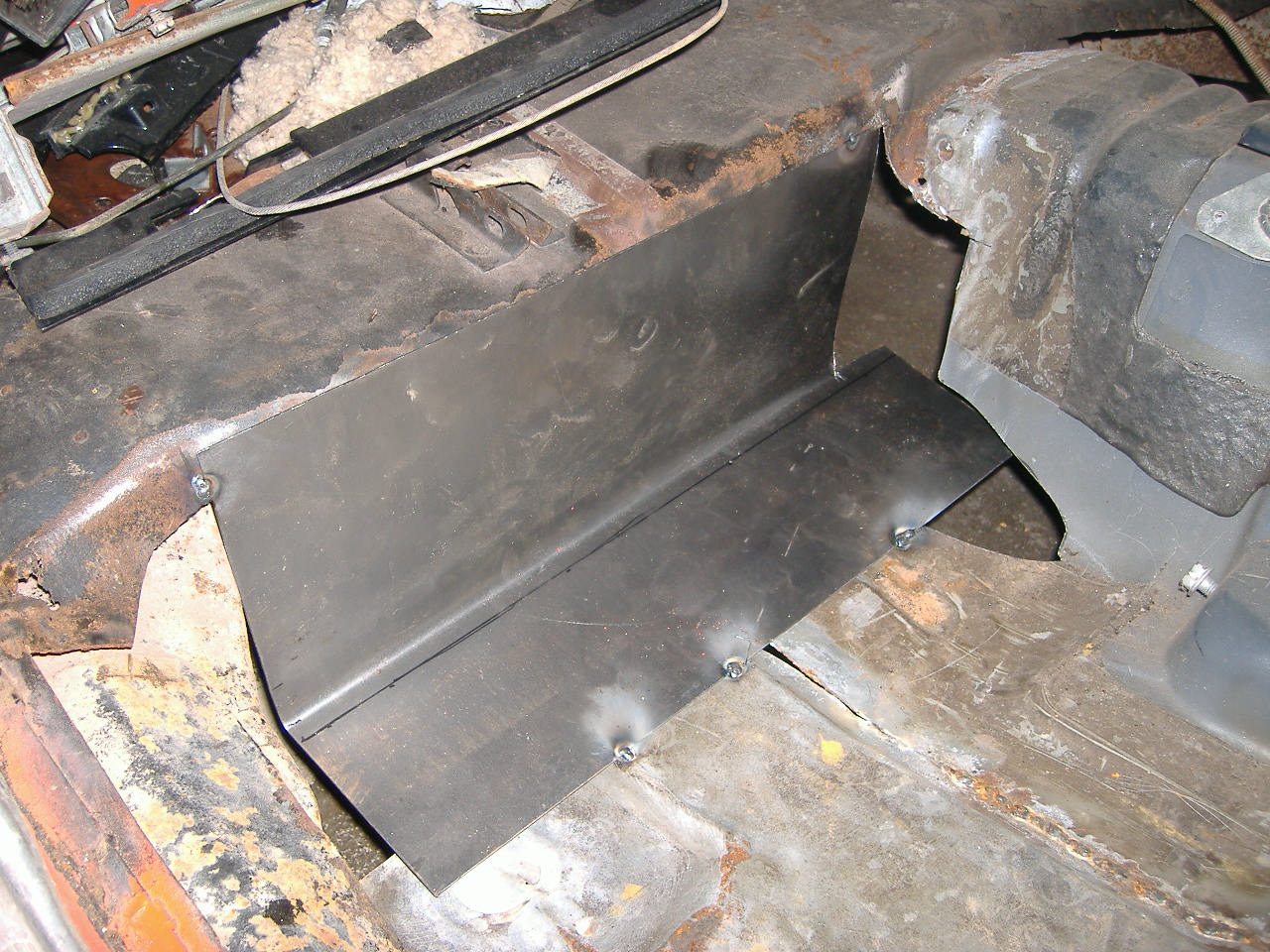

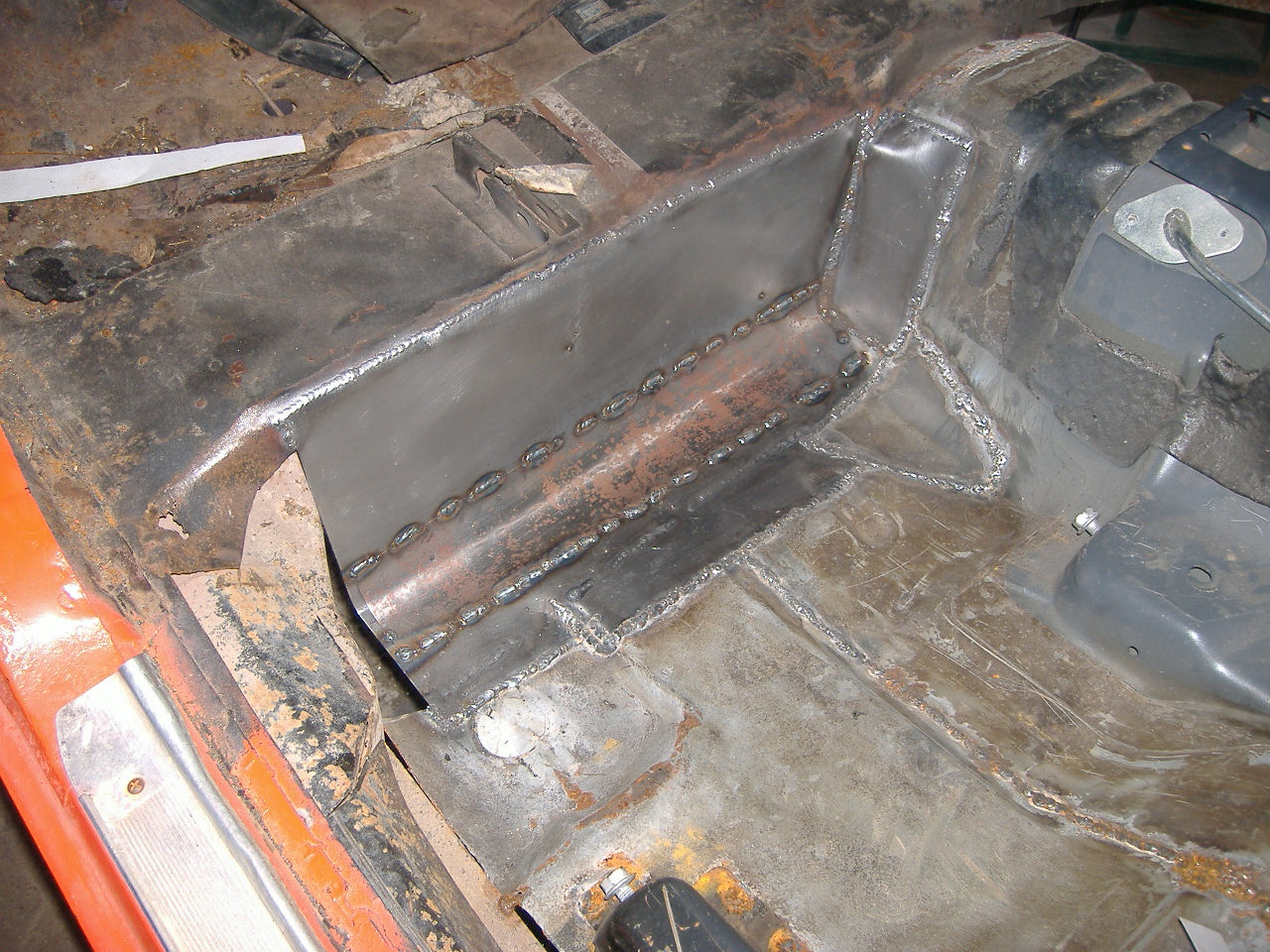

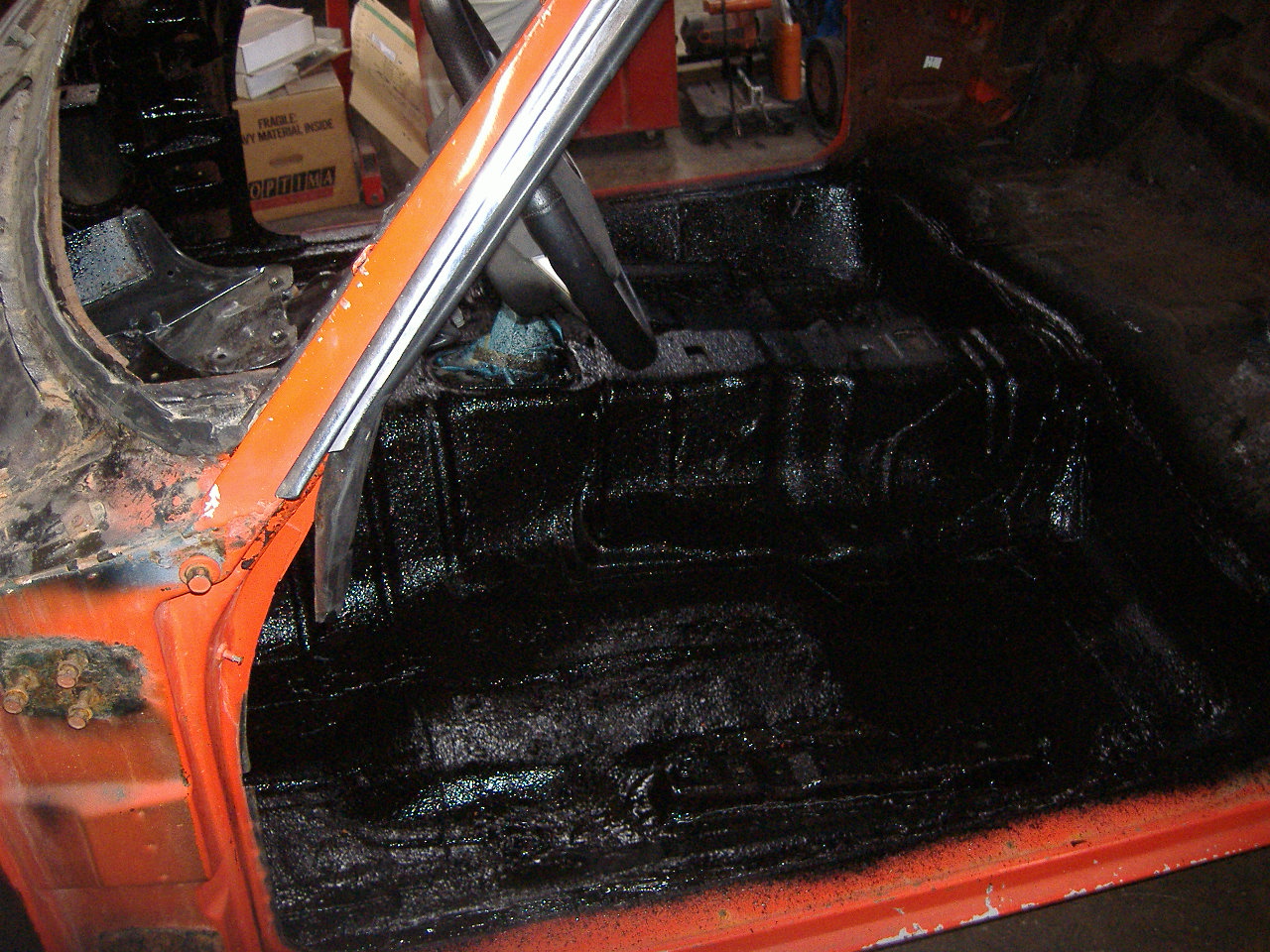

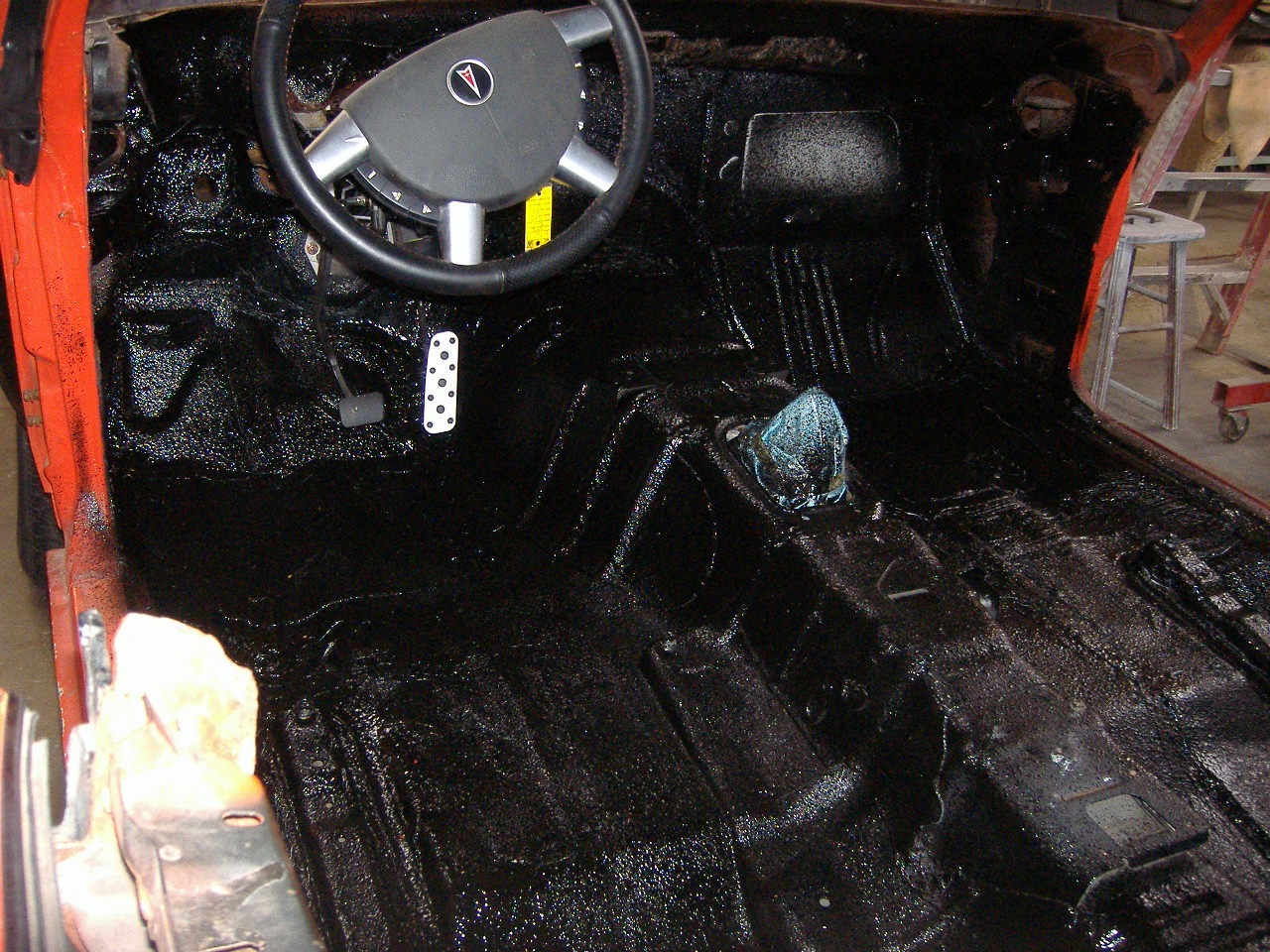

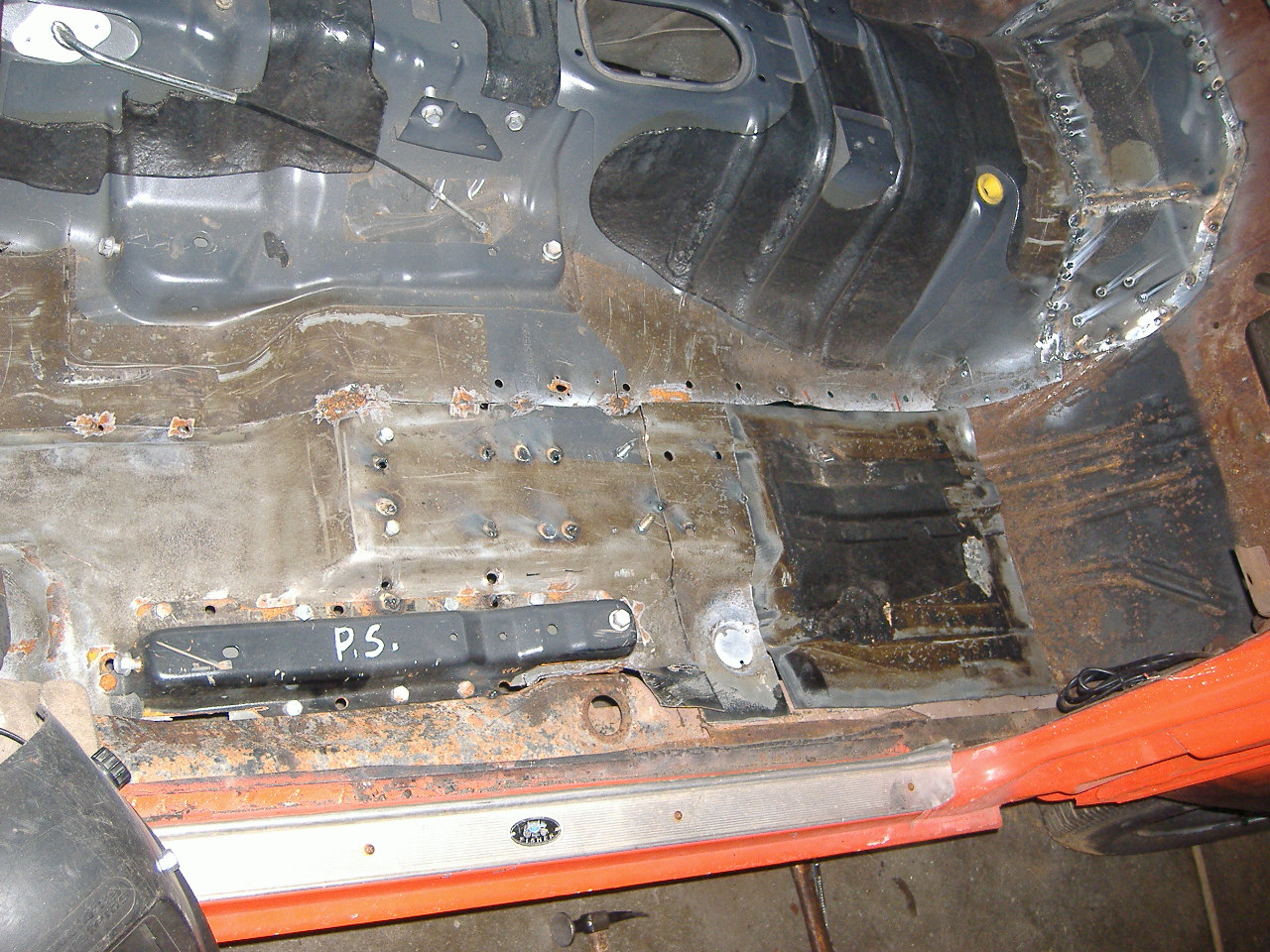

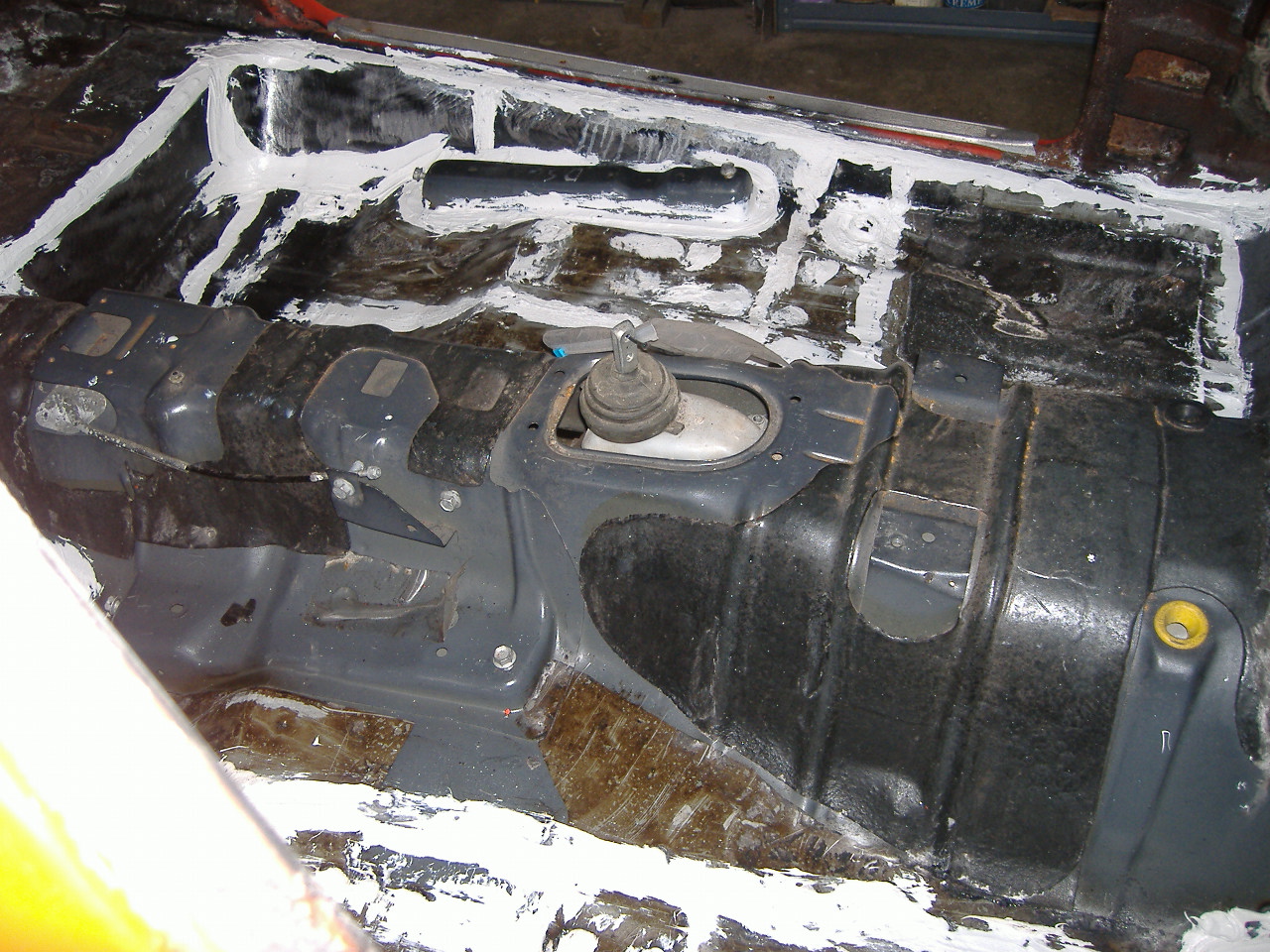

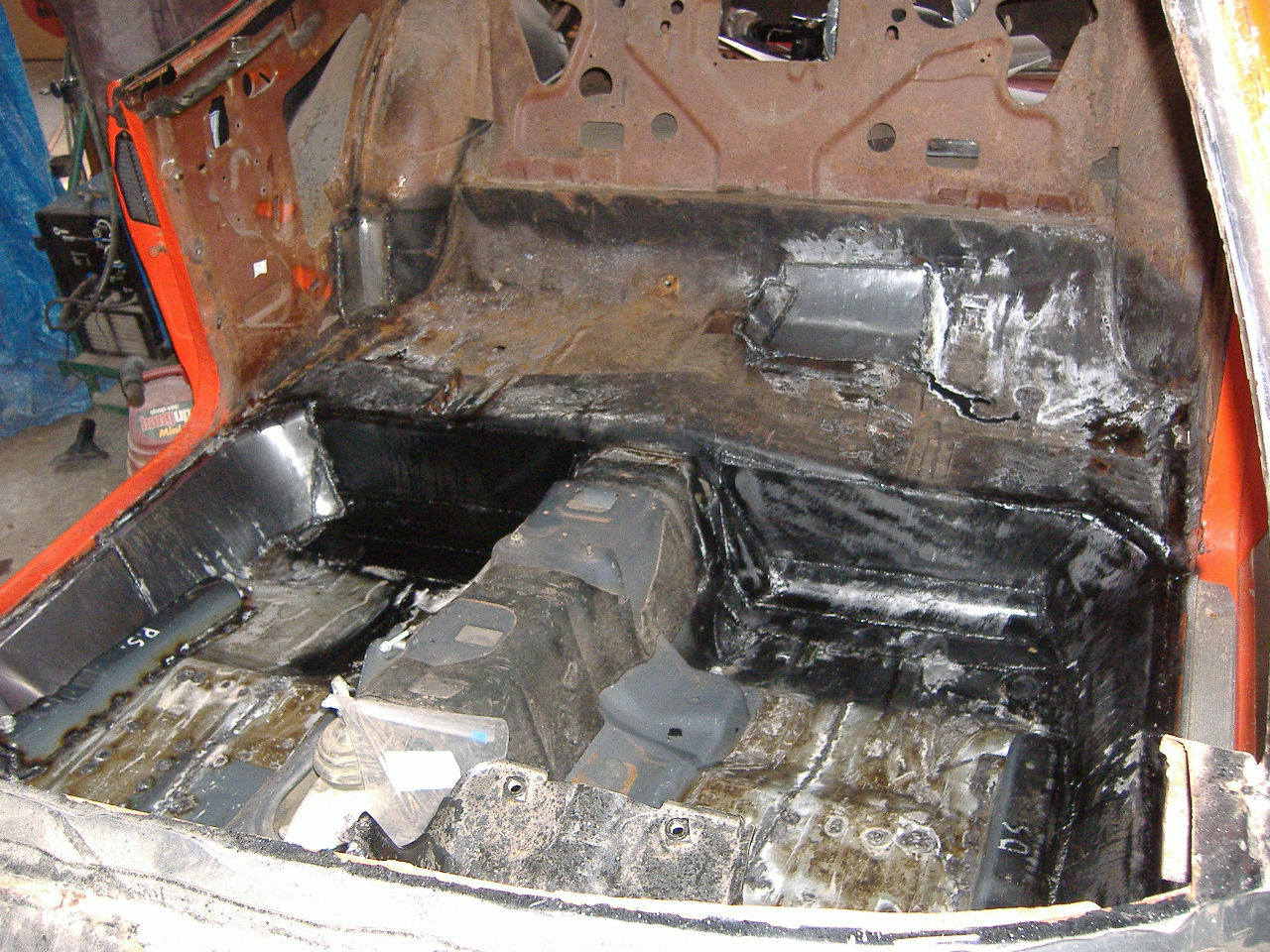

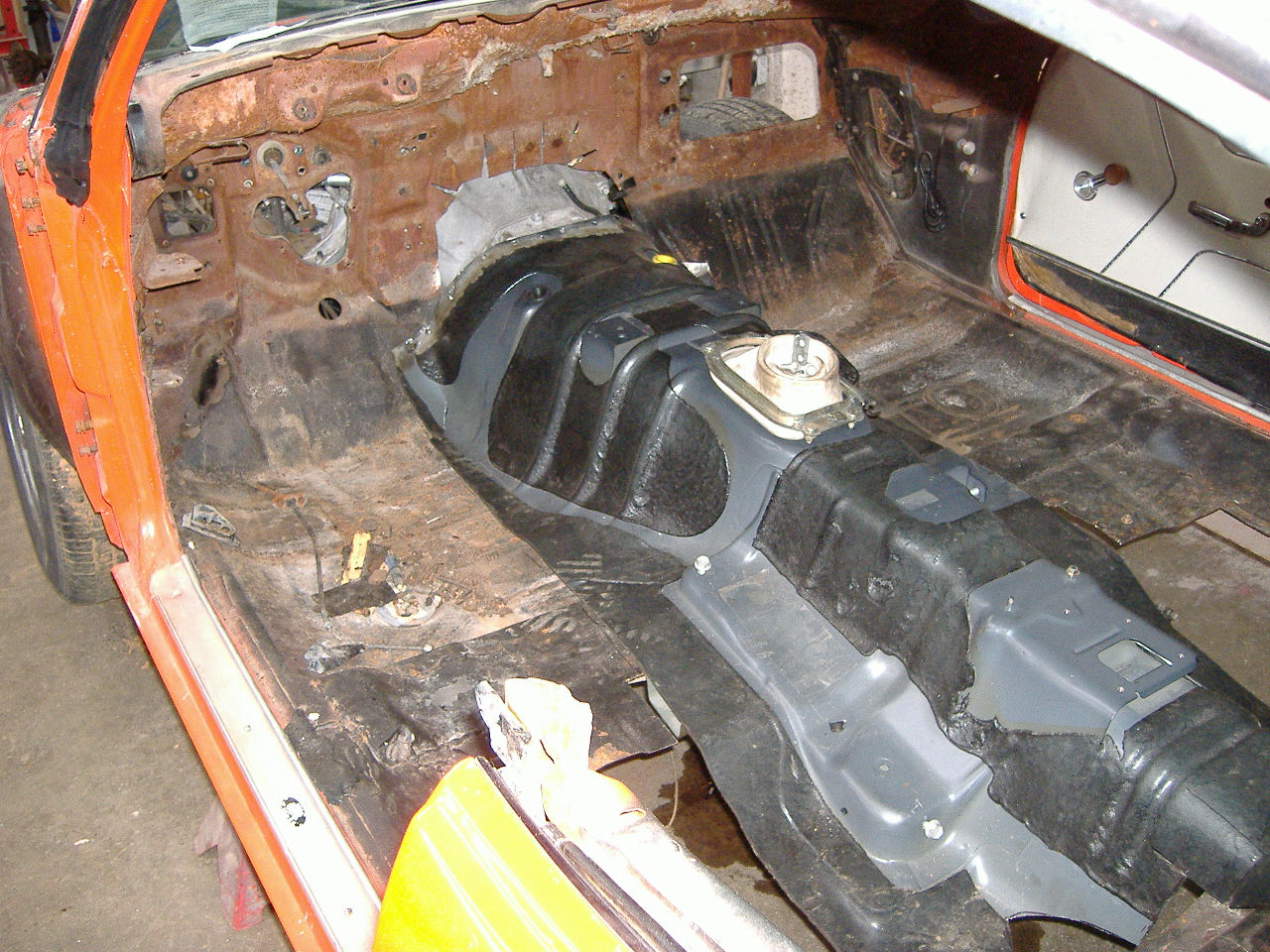

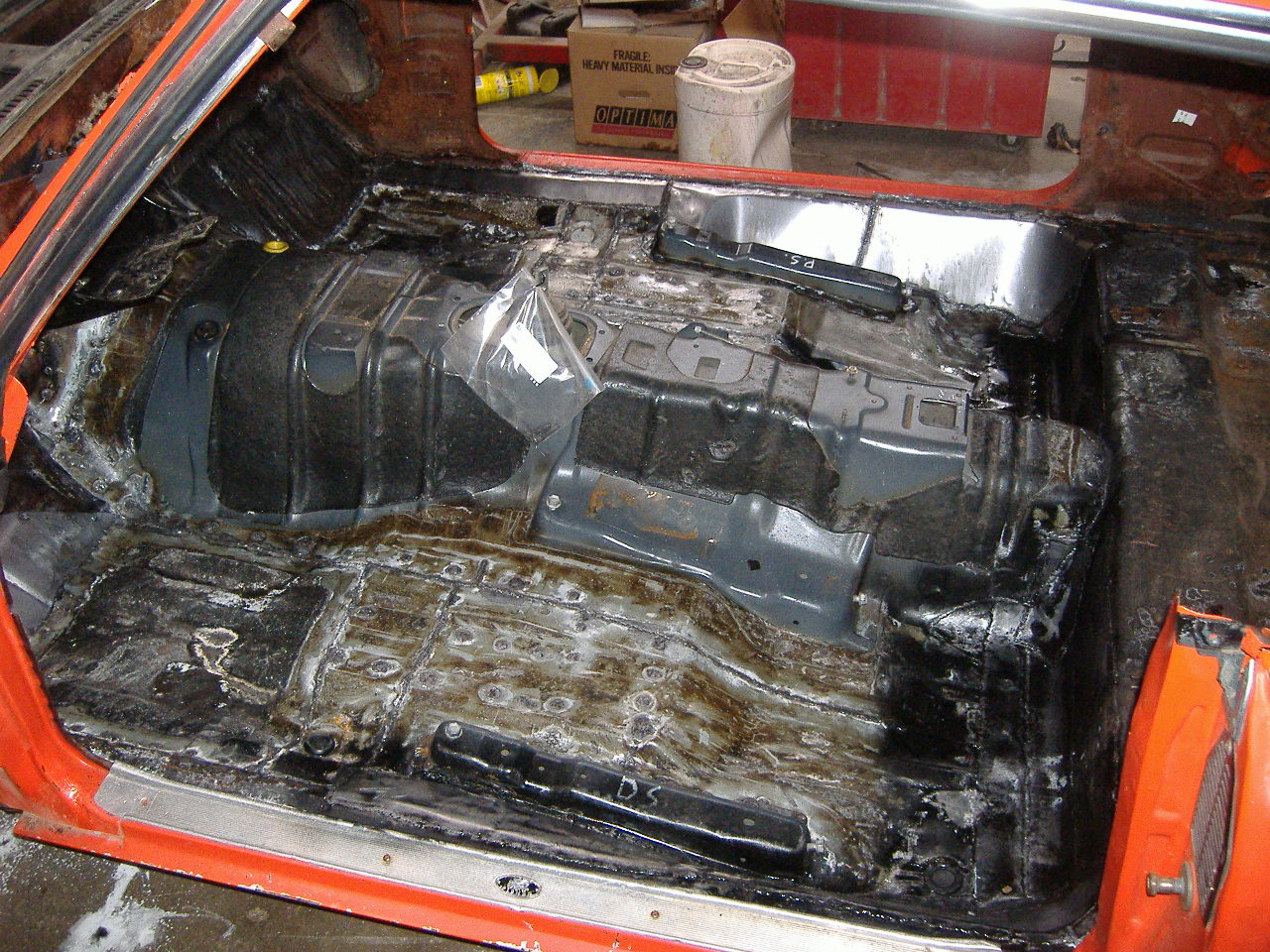

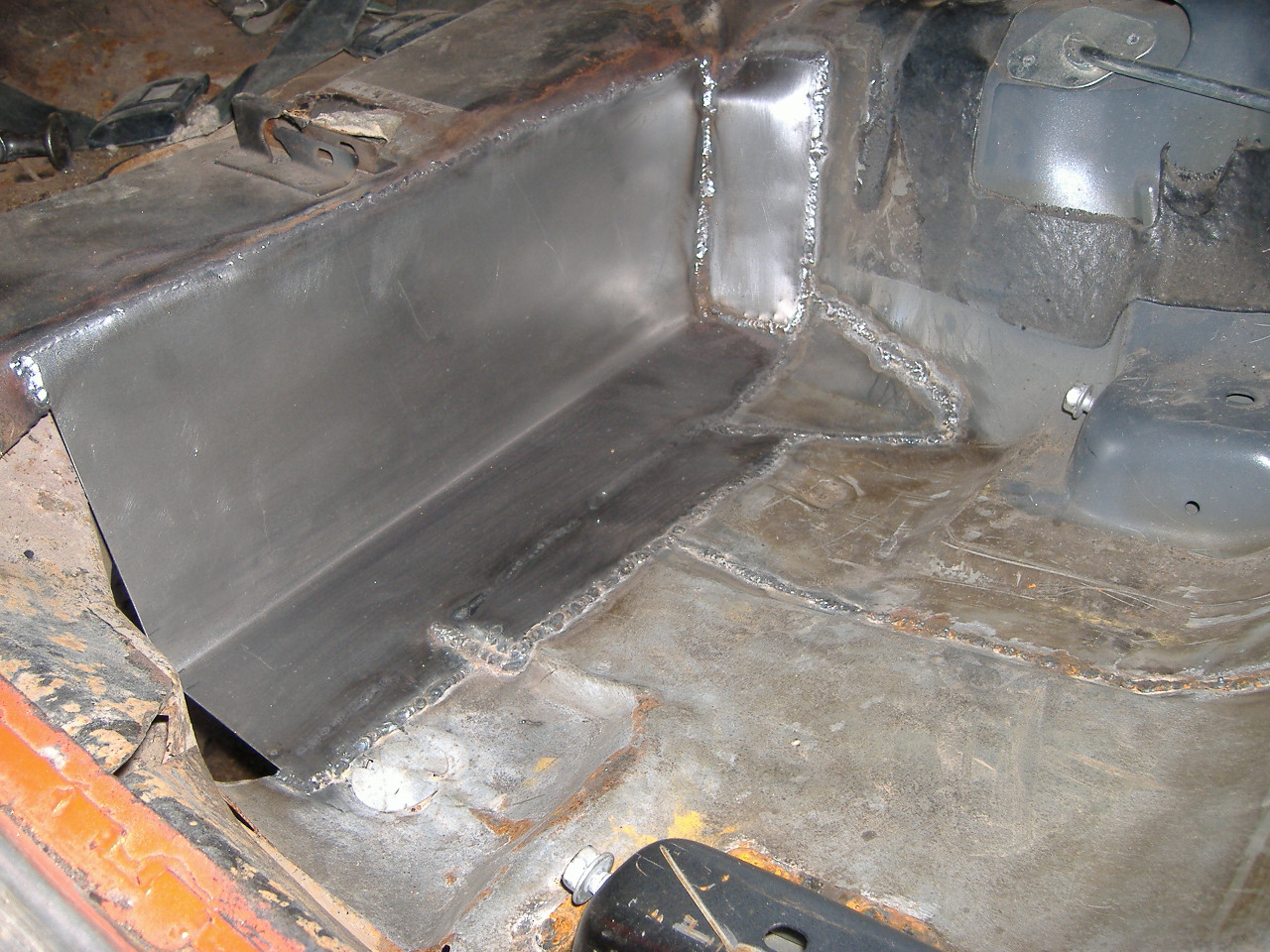

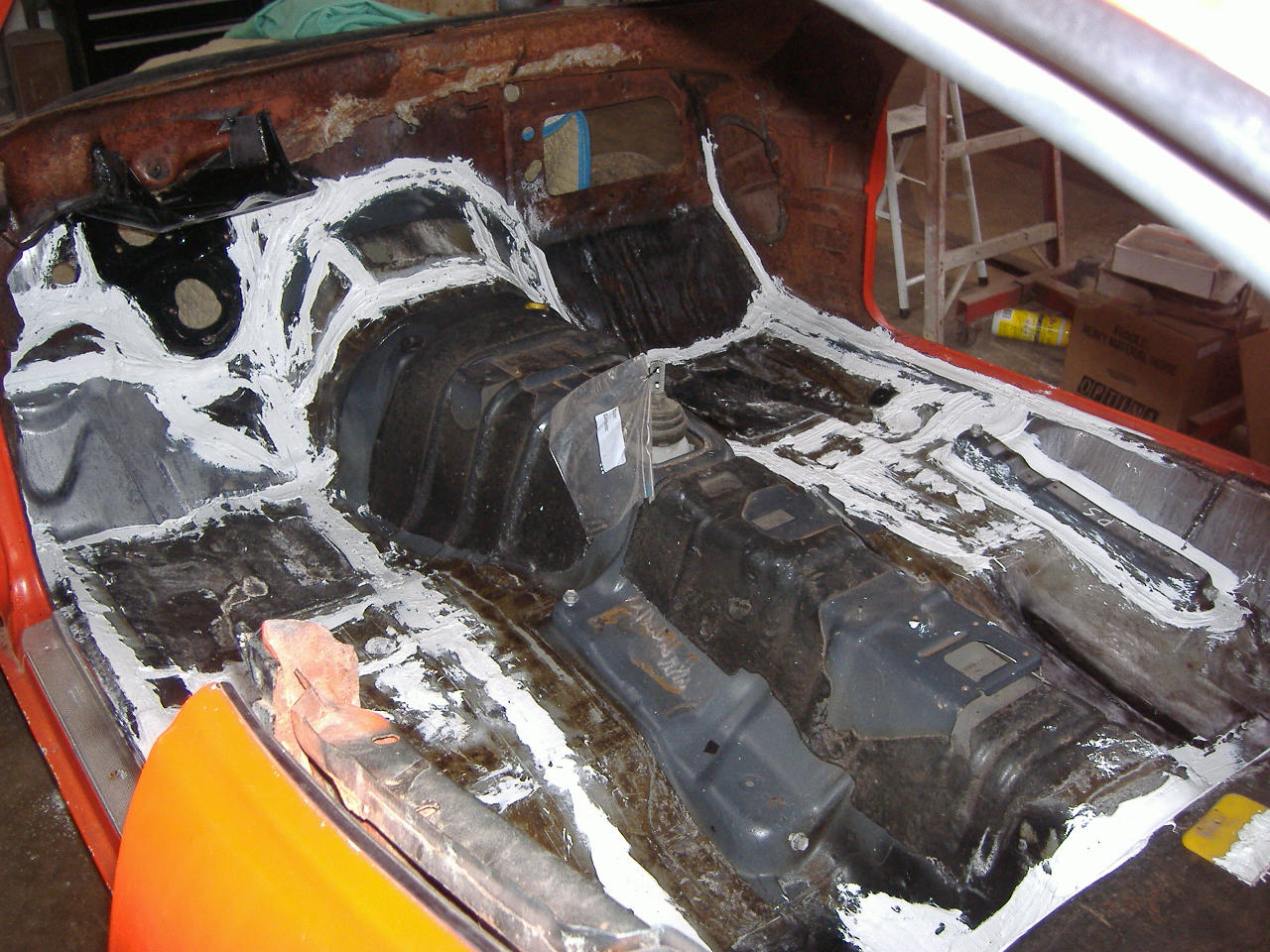

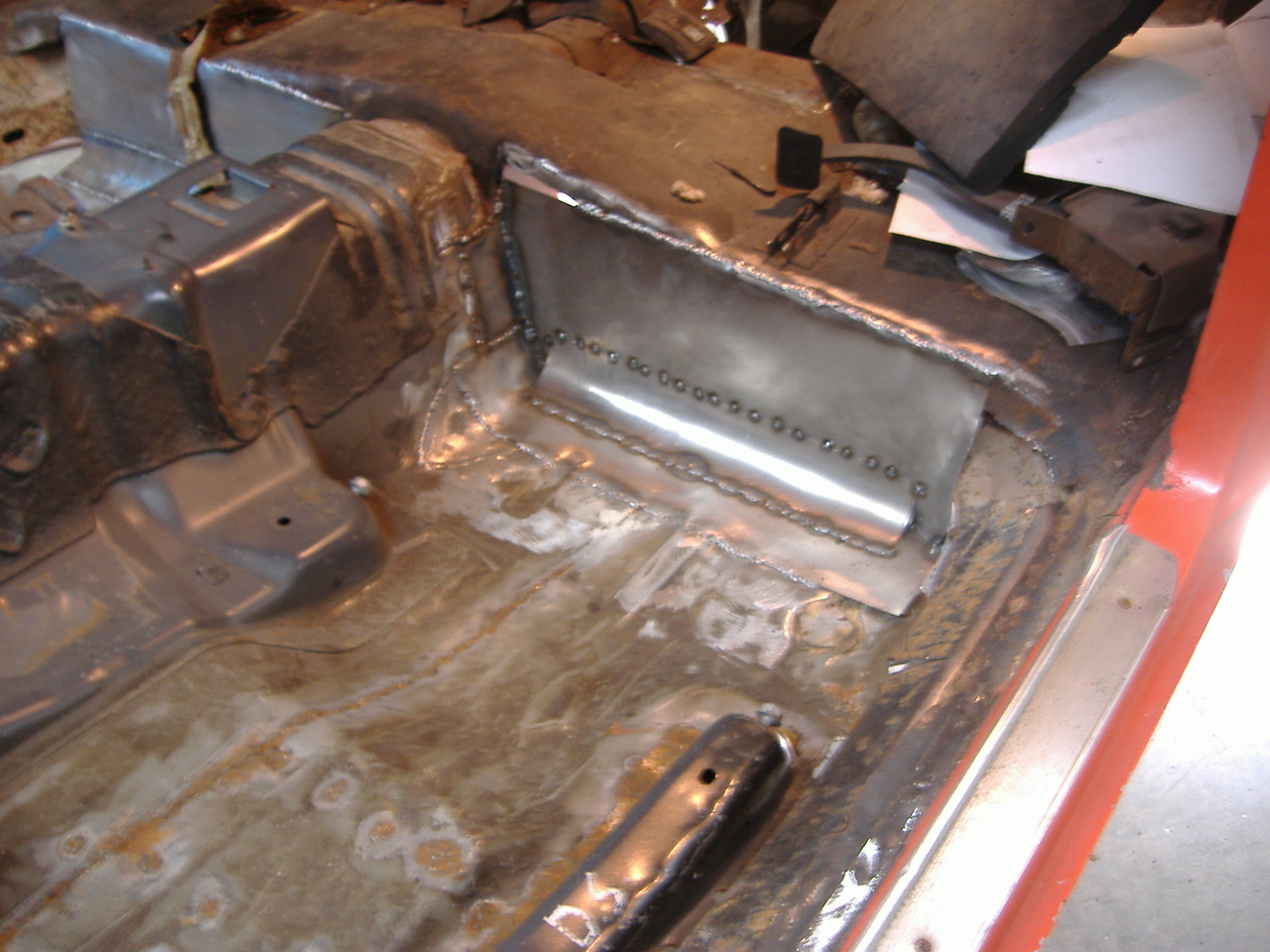

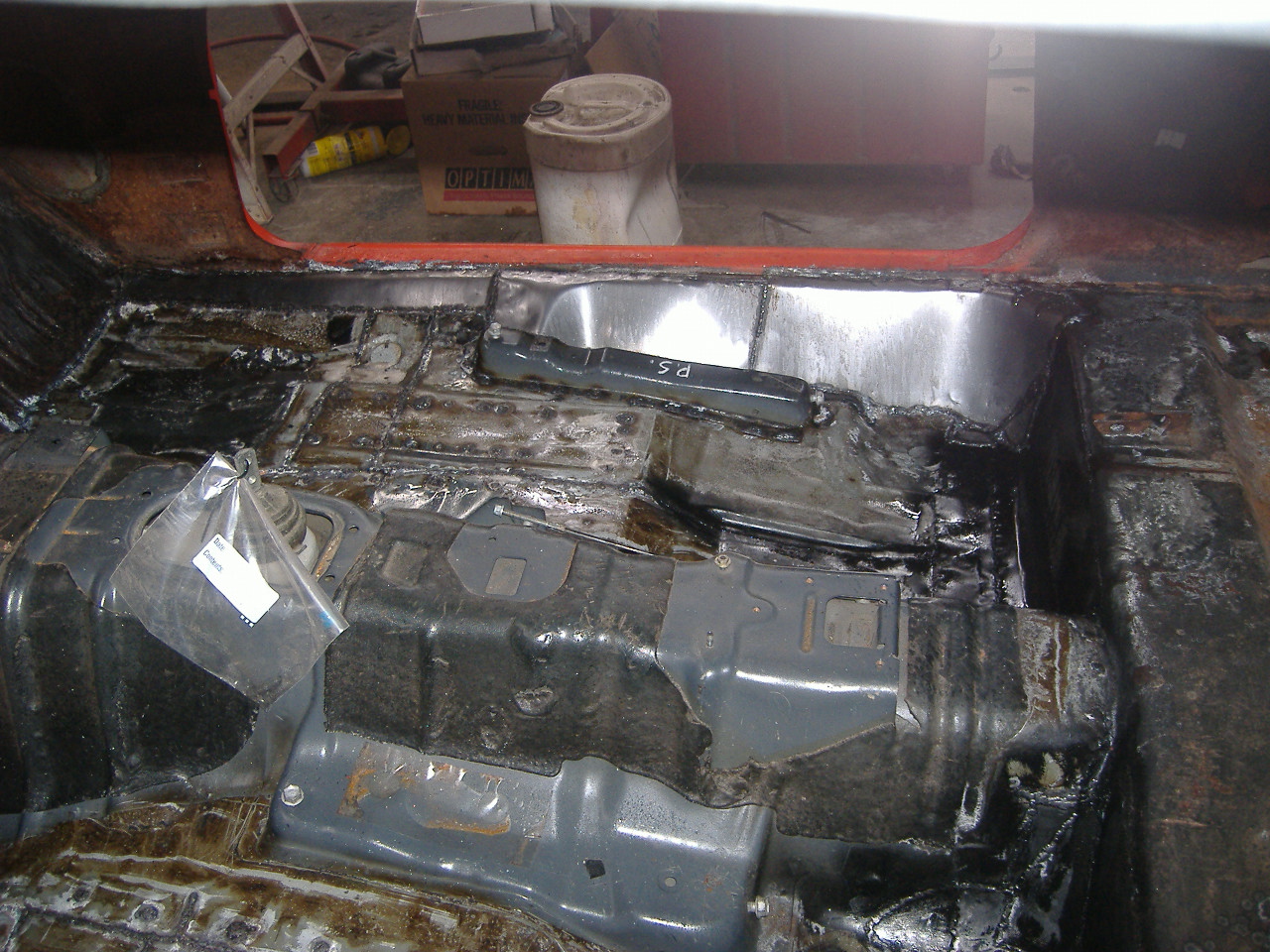

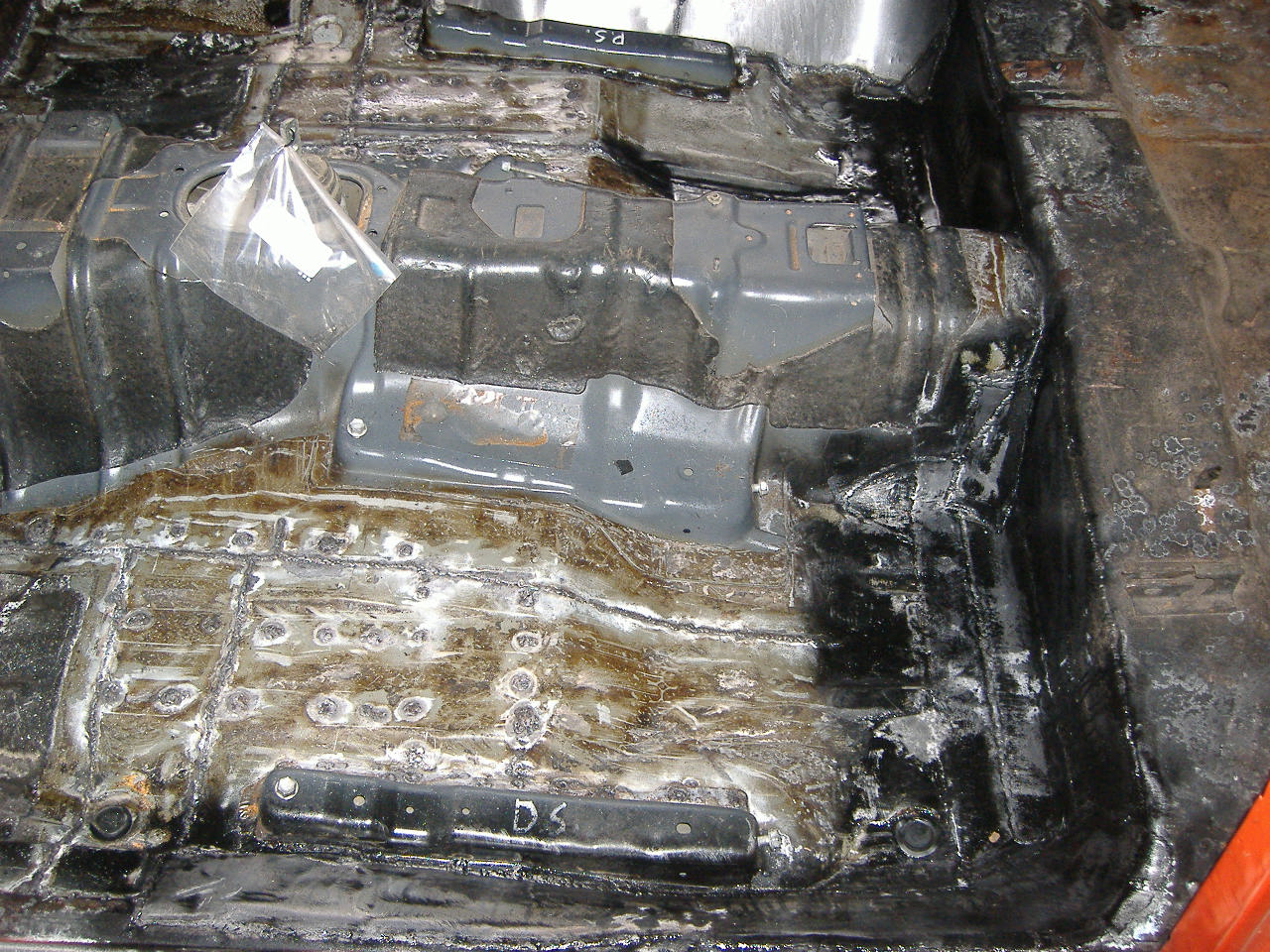

Floor Pan Fabrication

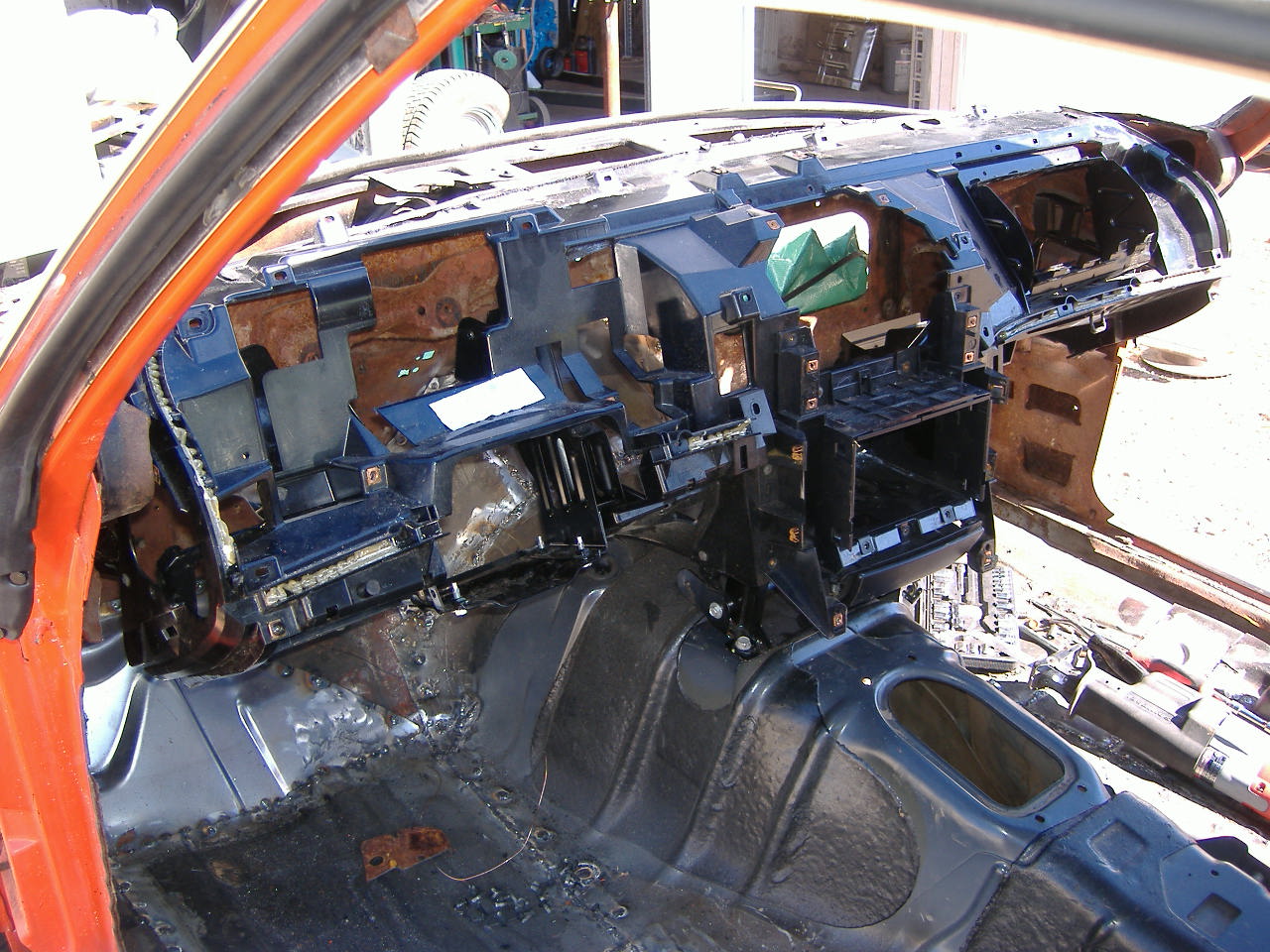

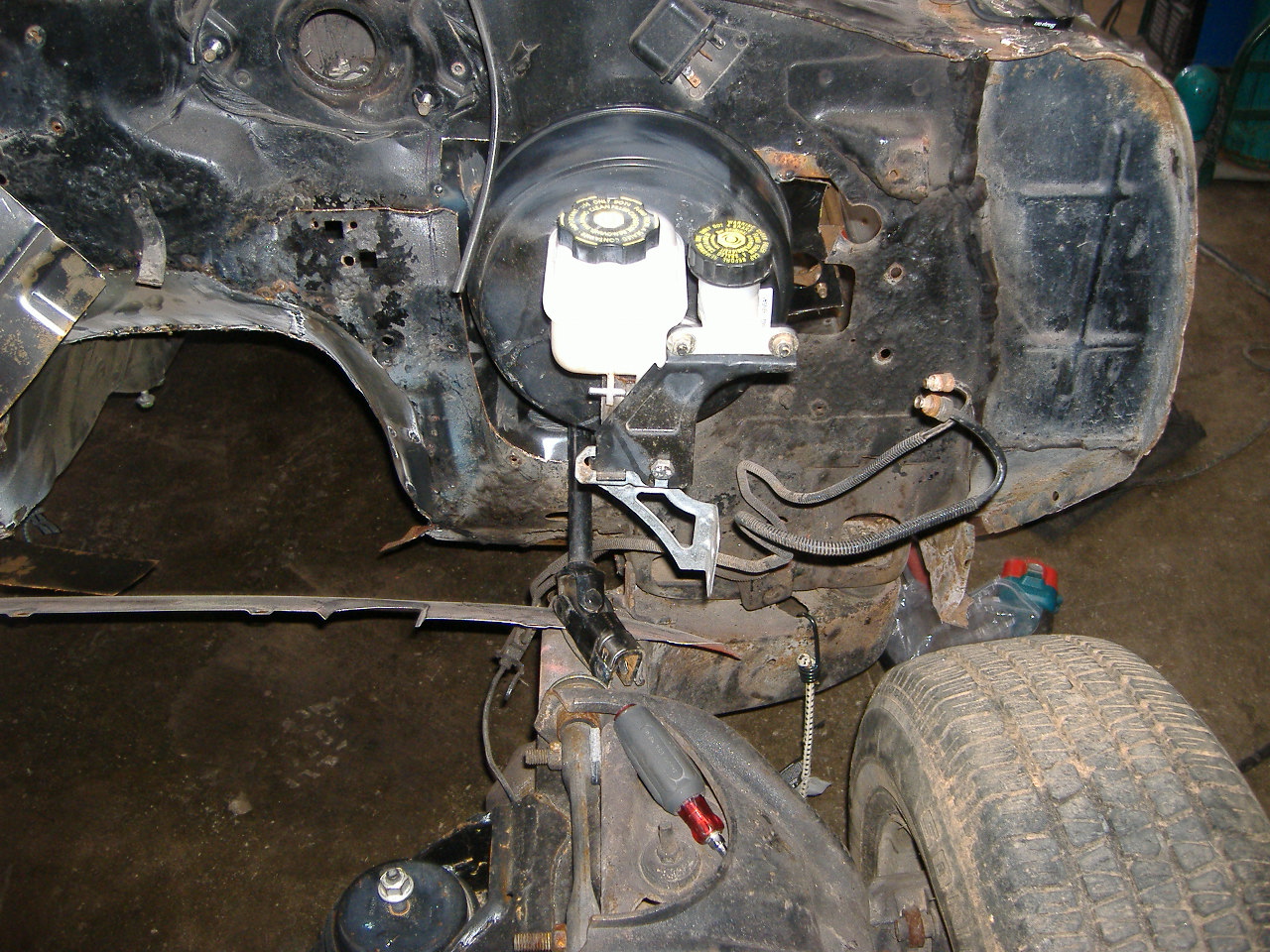

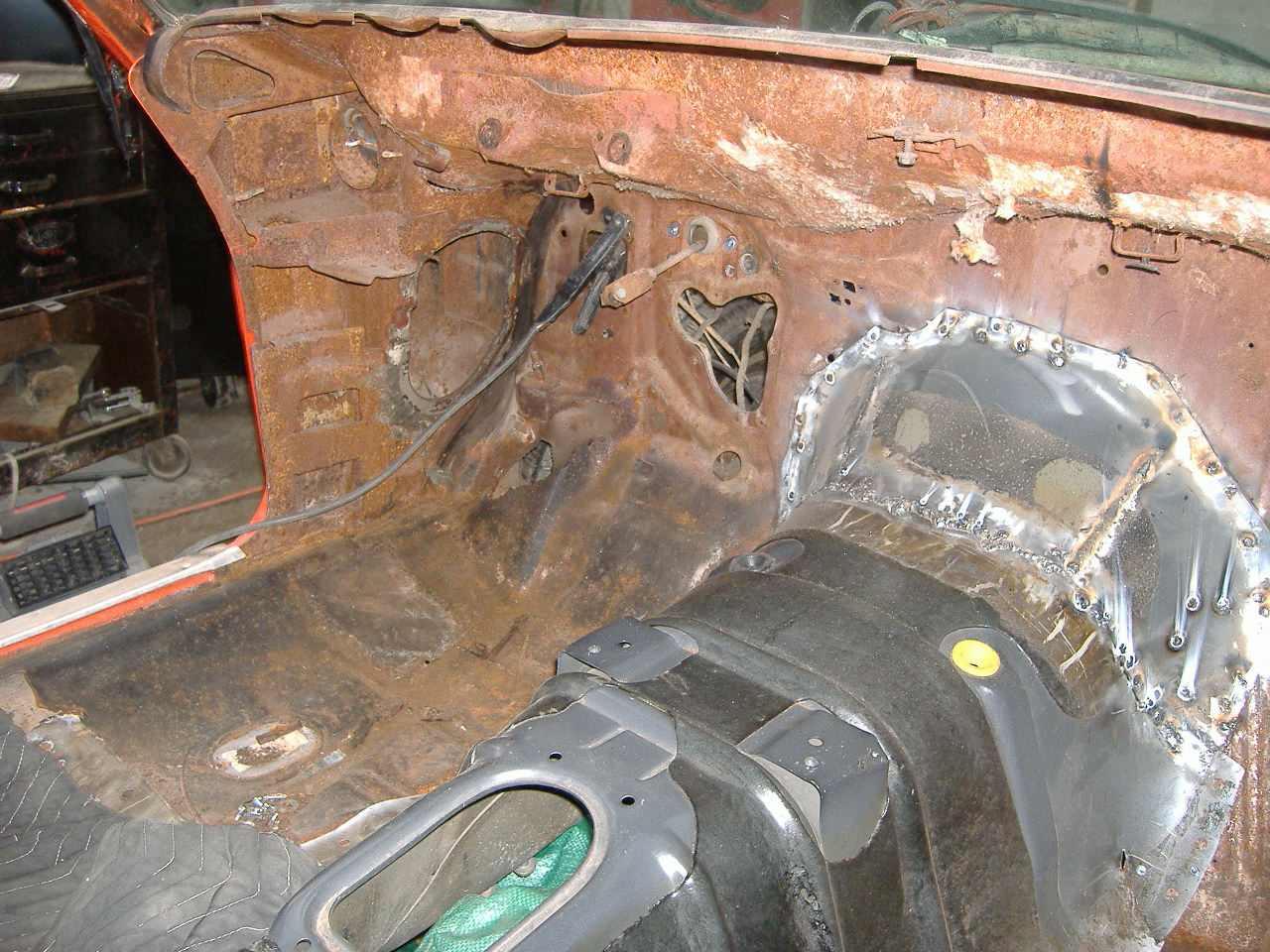

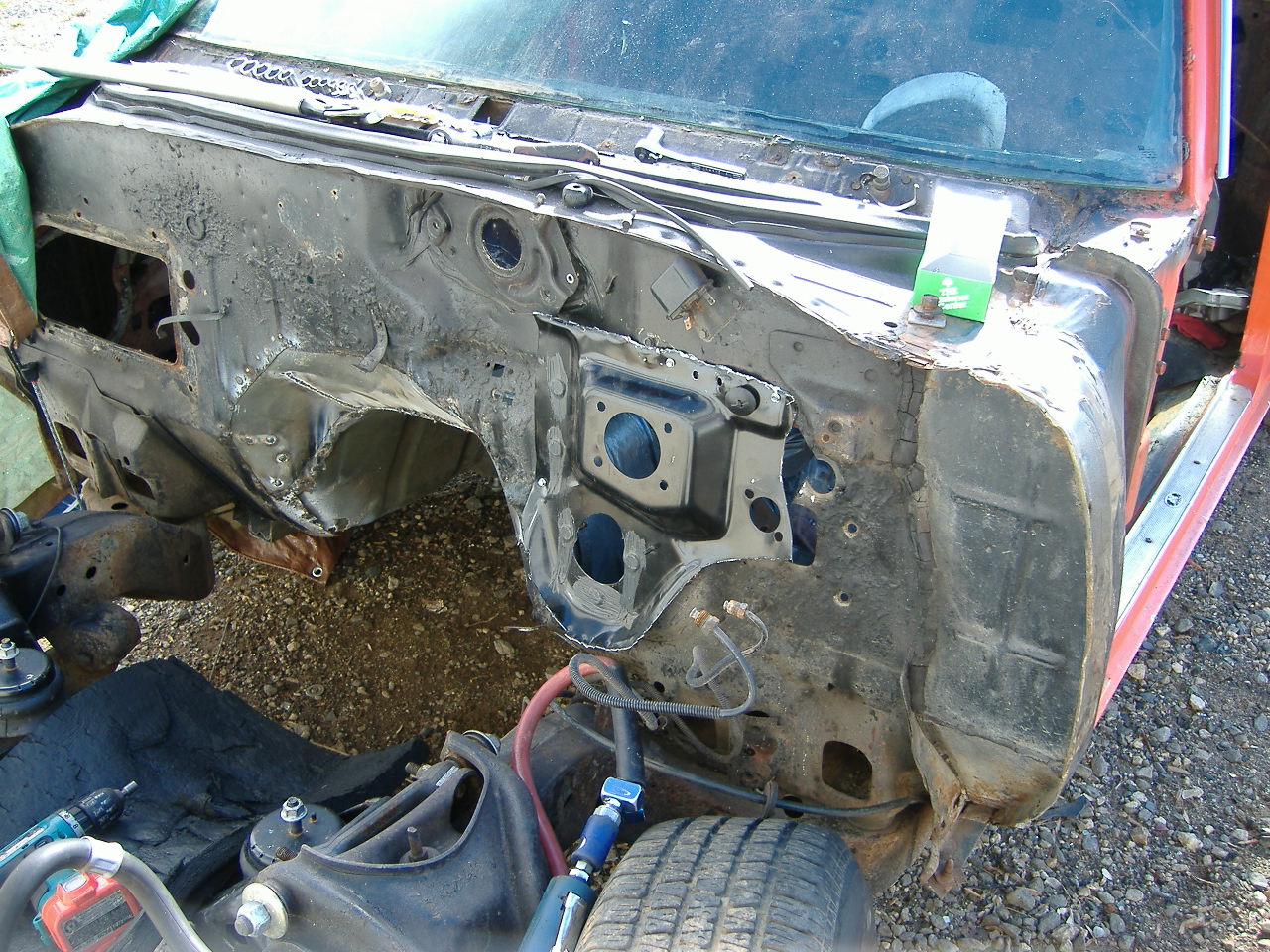

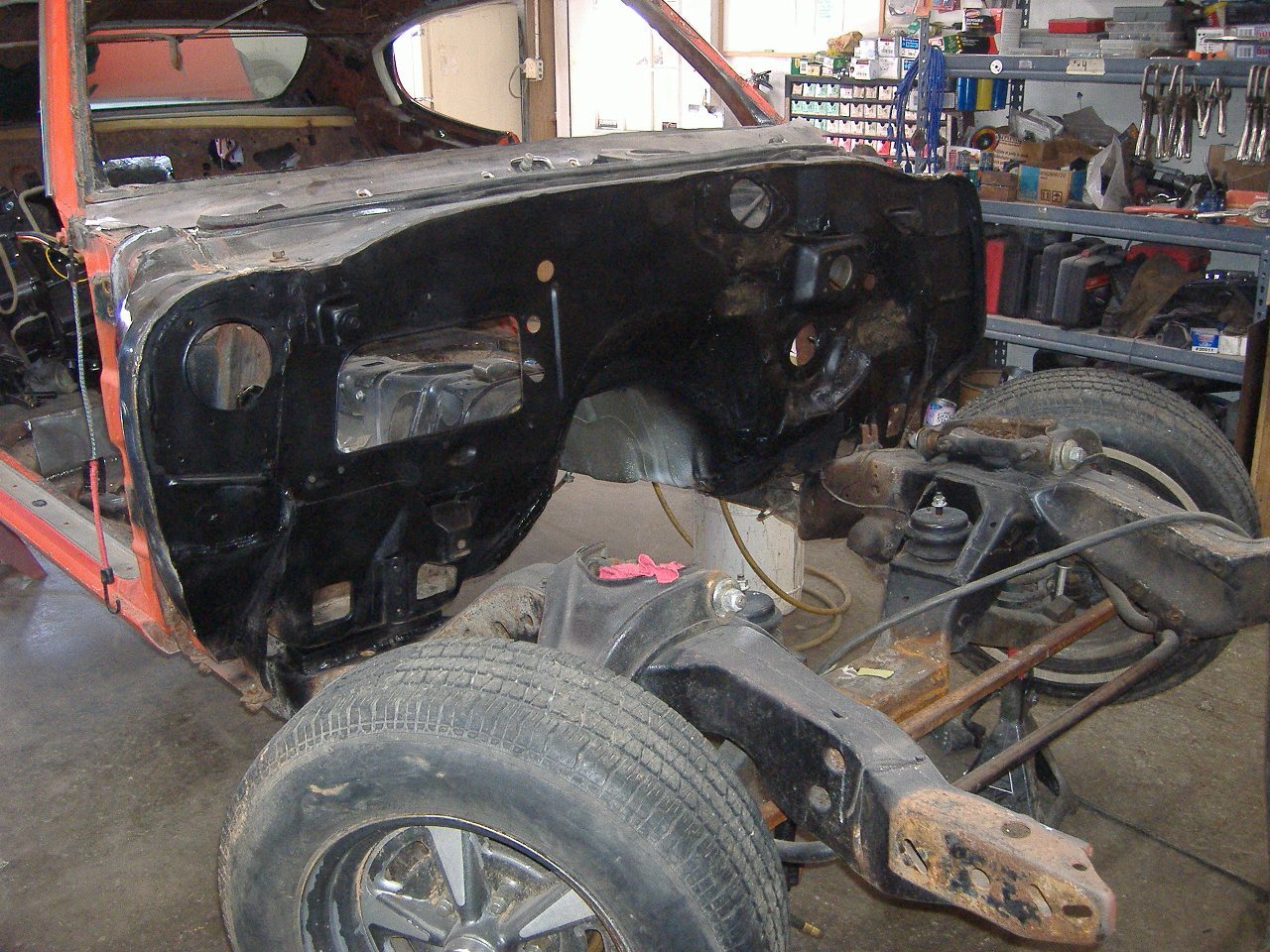

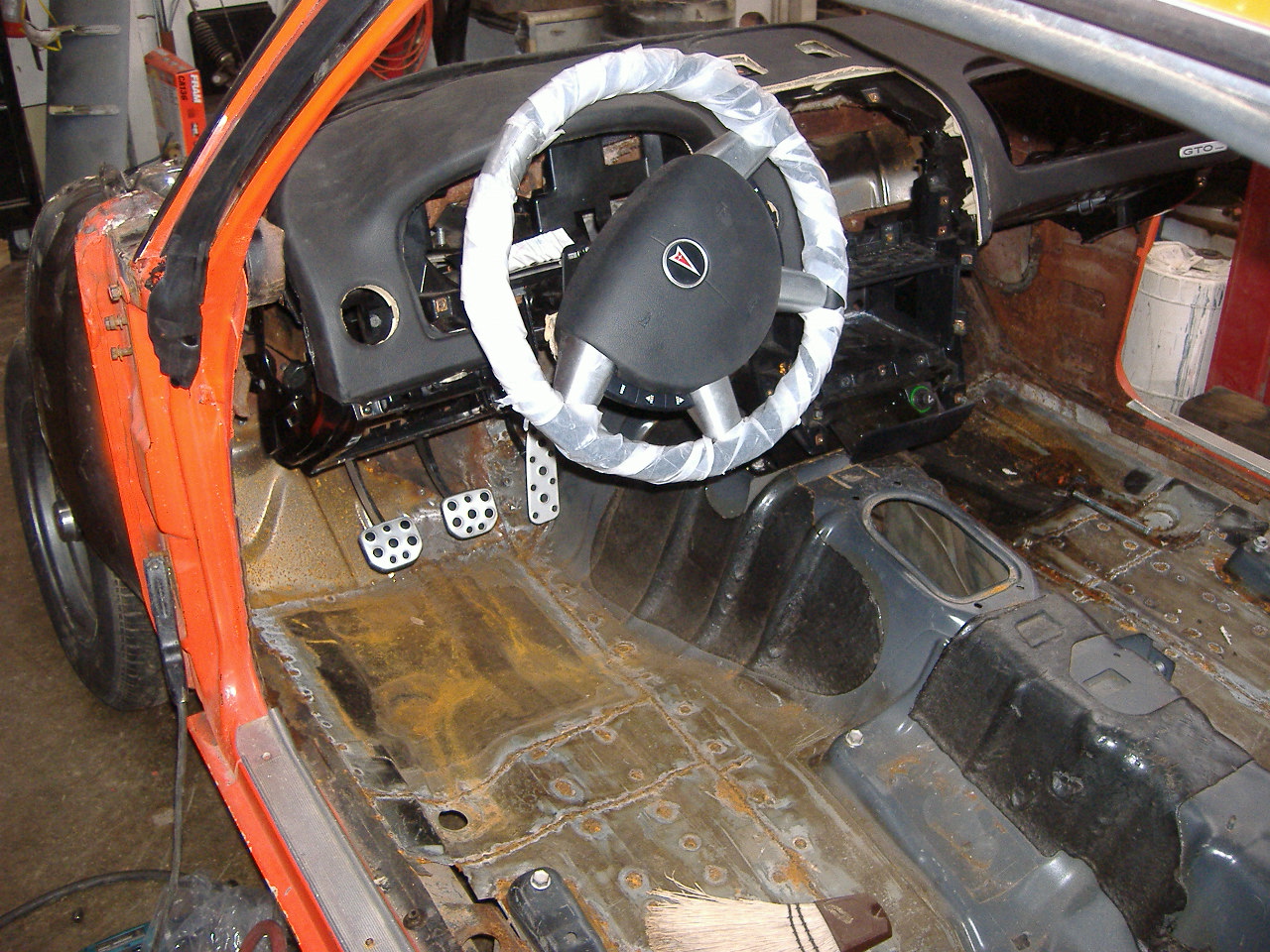

Dash/Firewall Modifications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

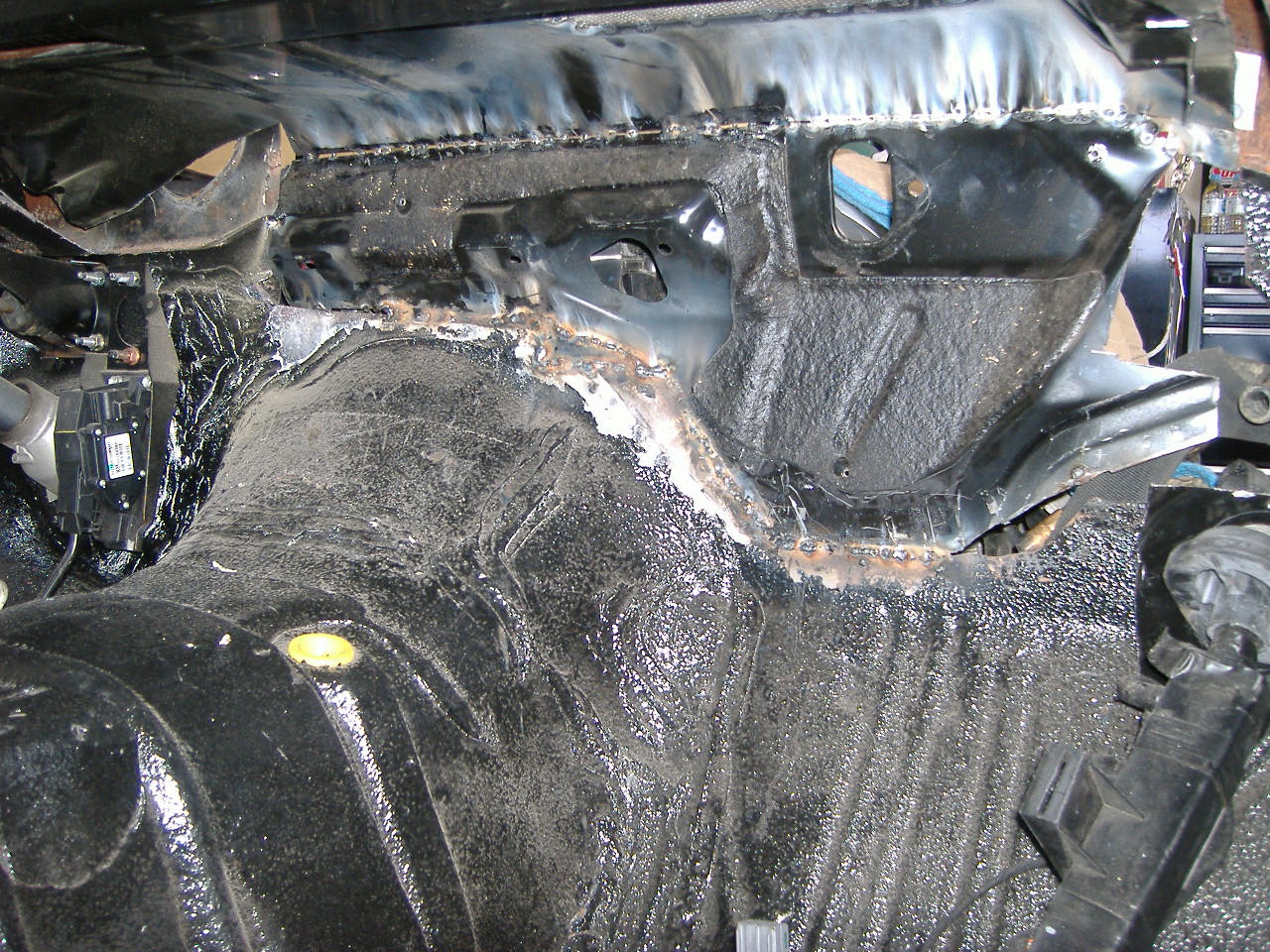

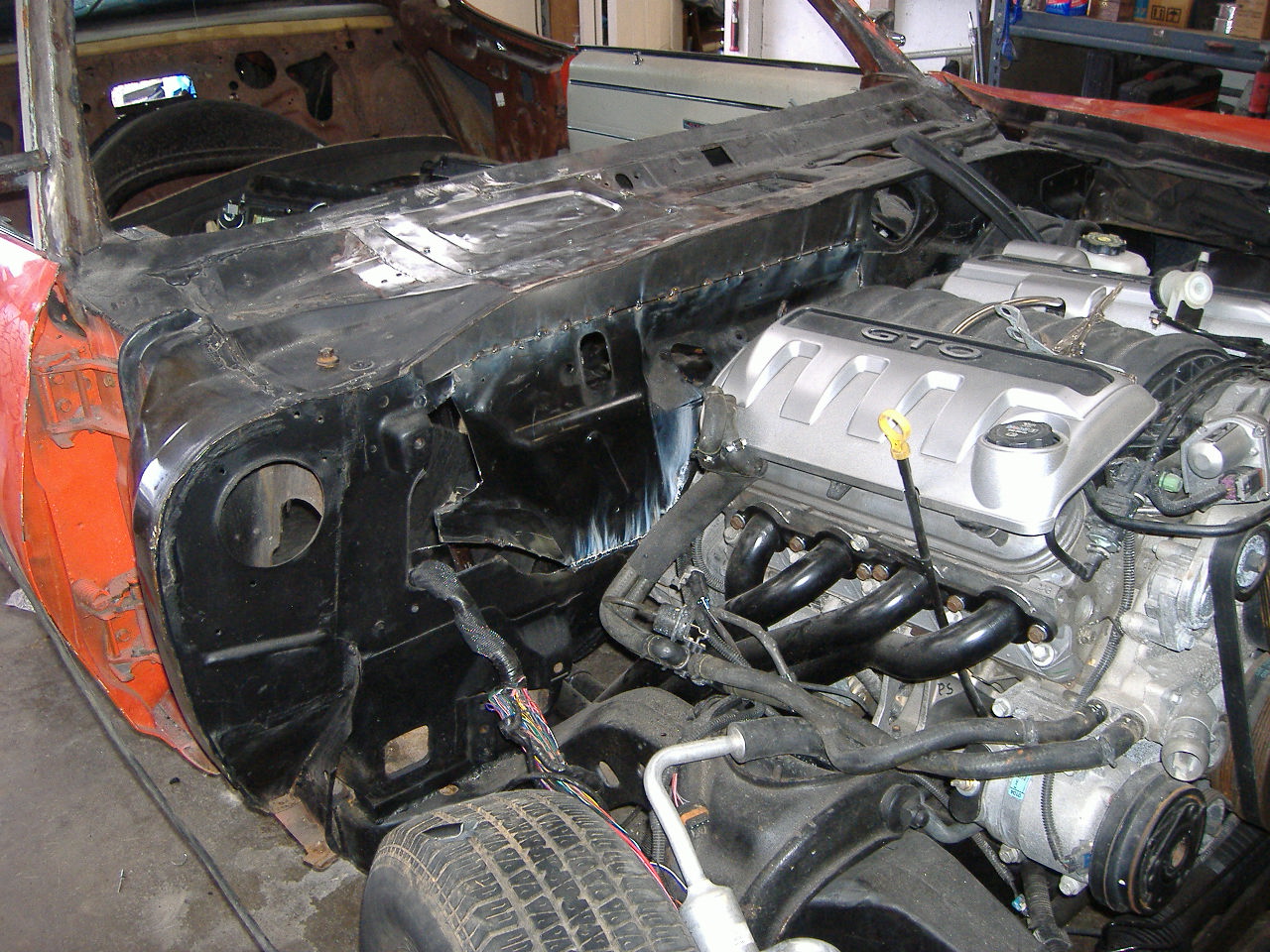

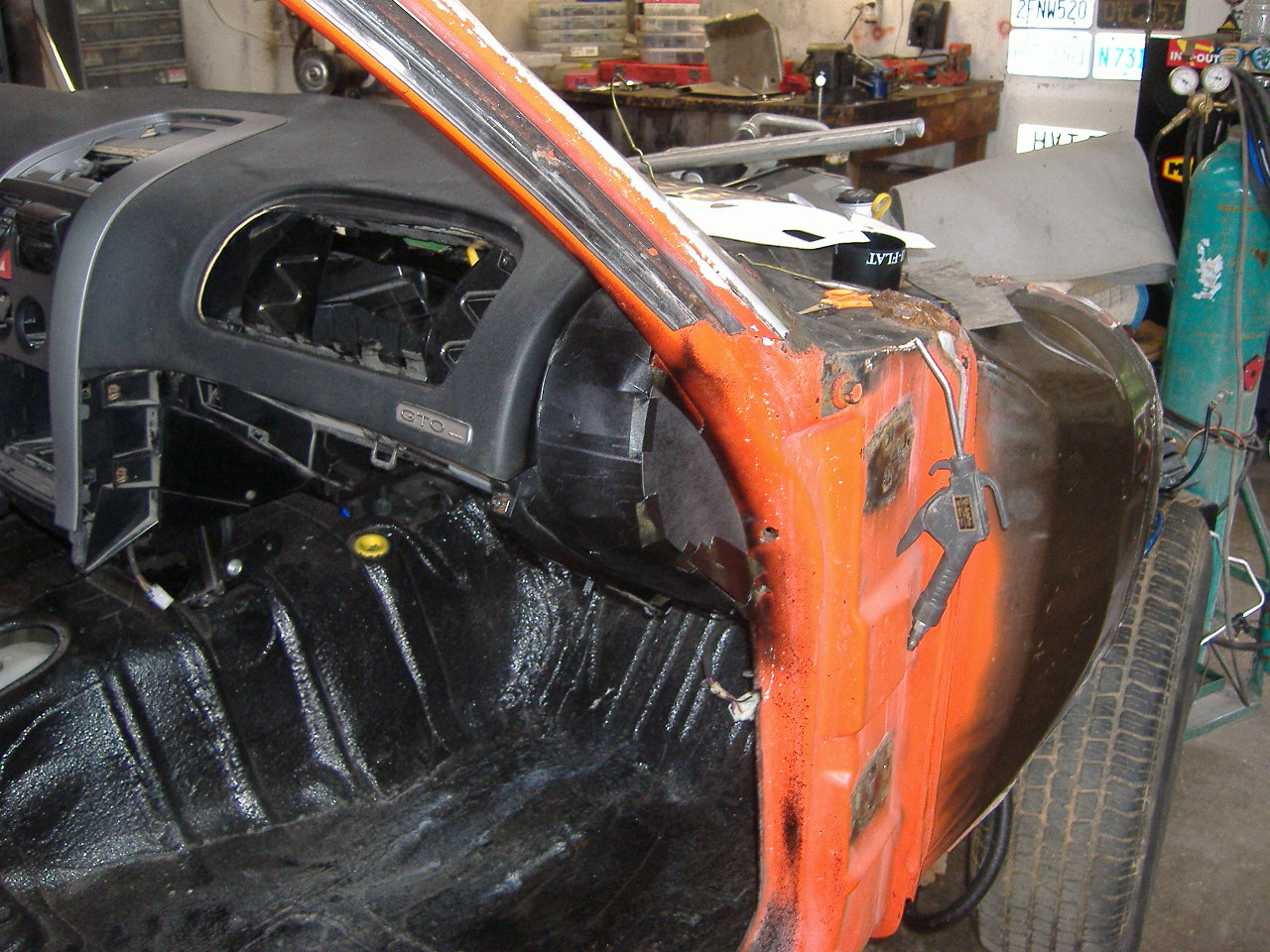

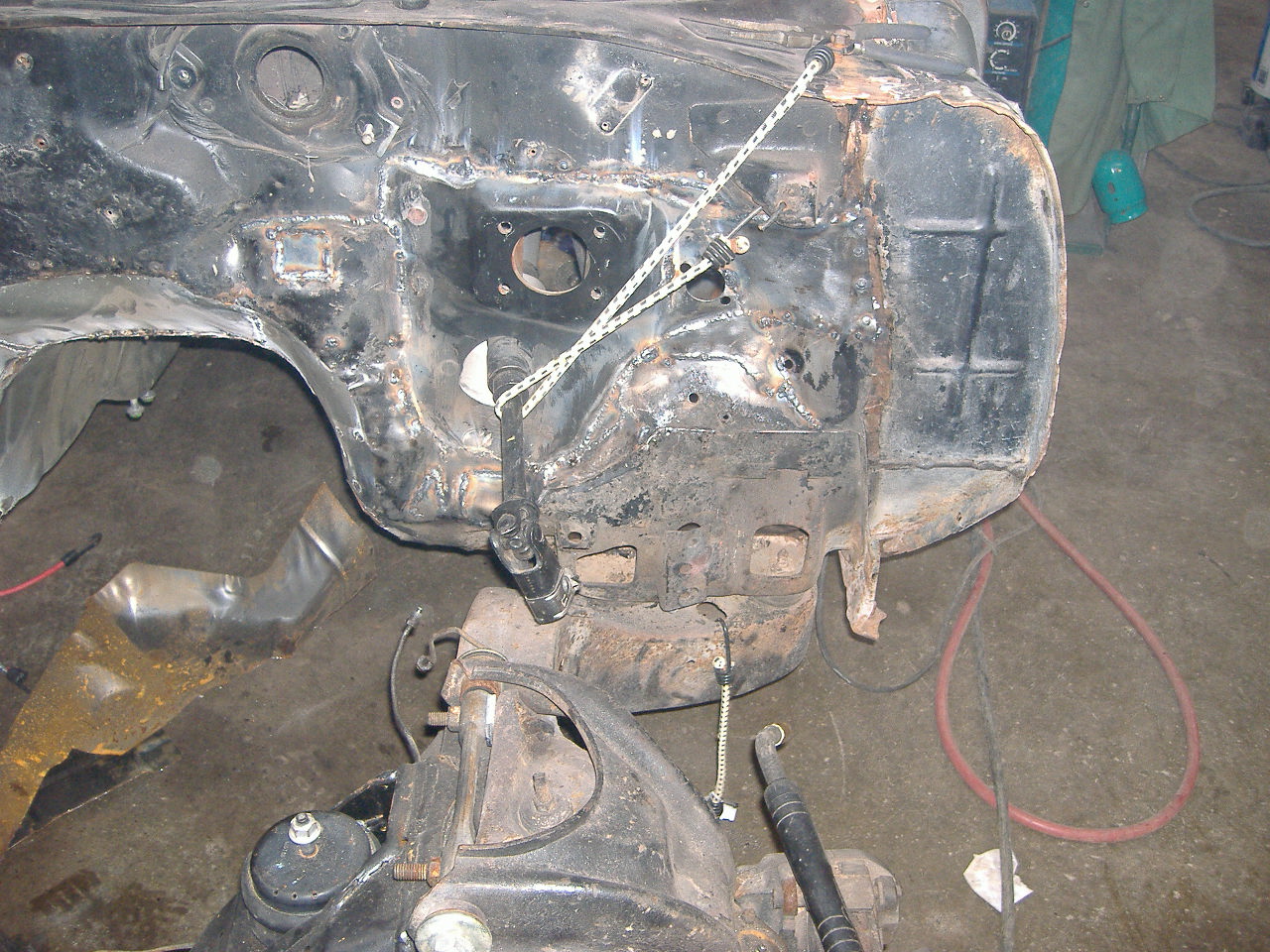

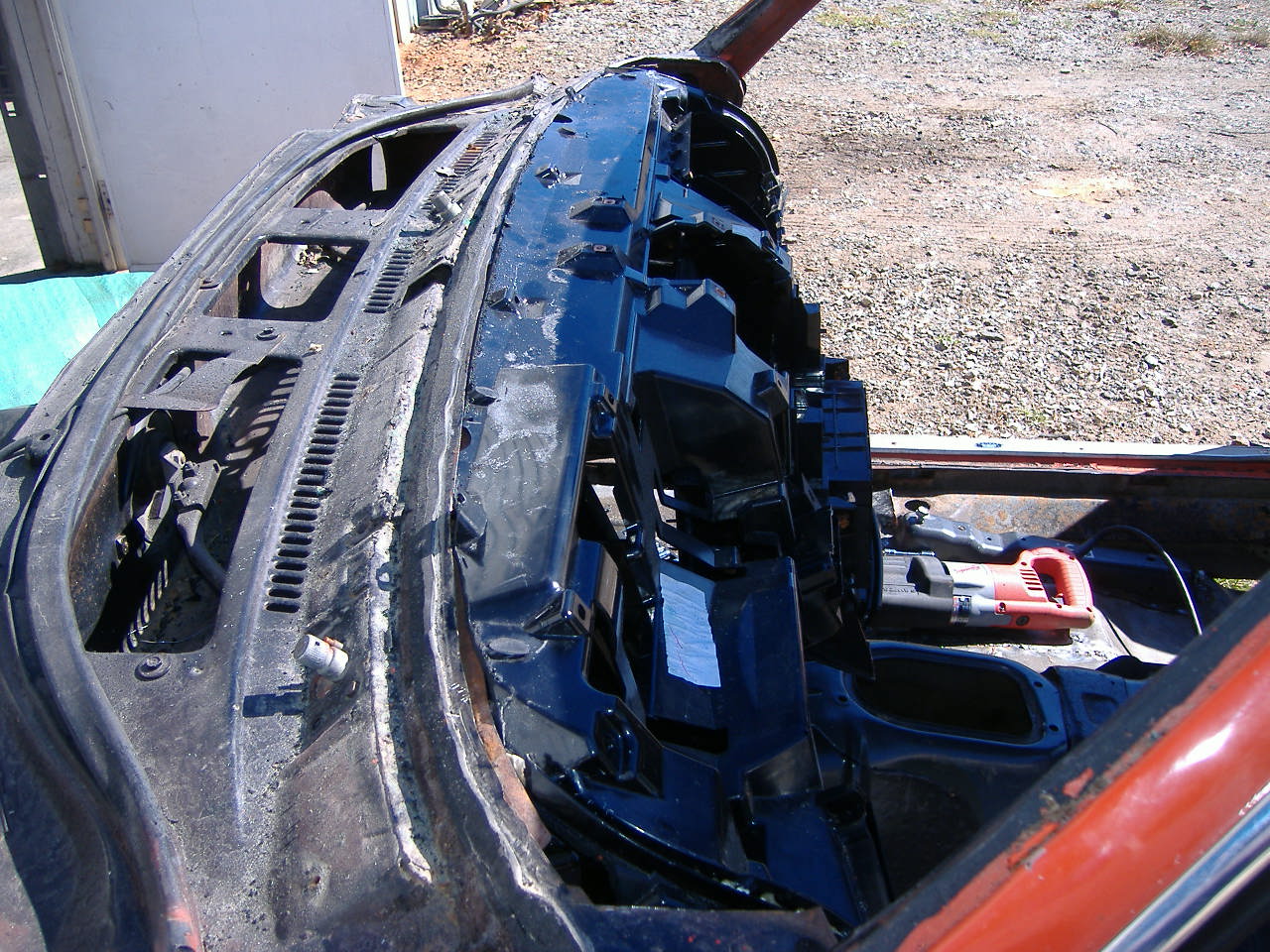

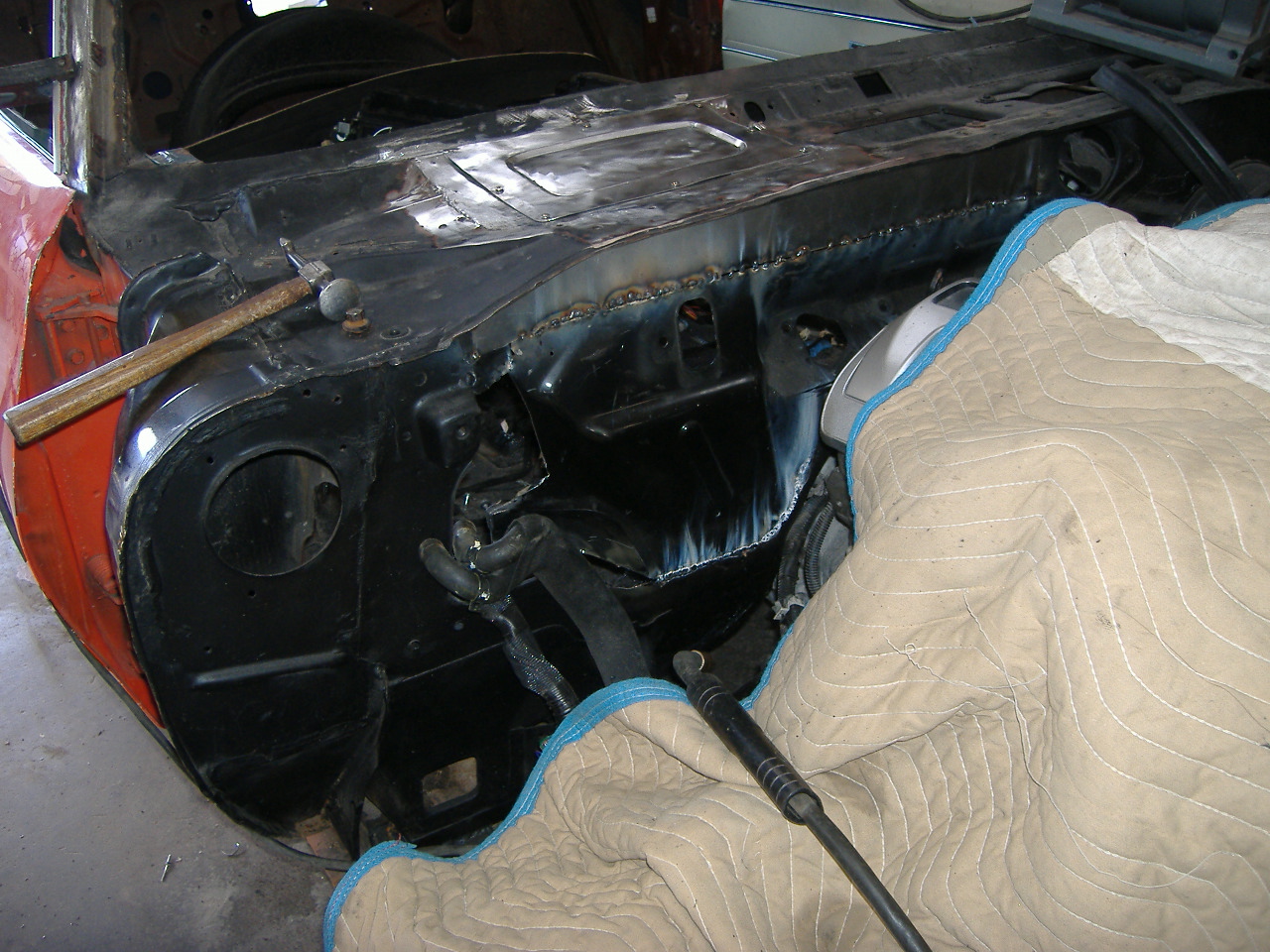

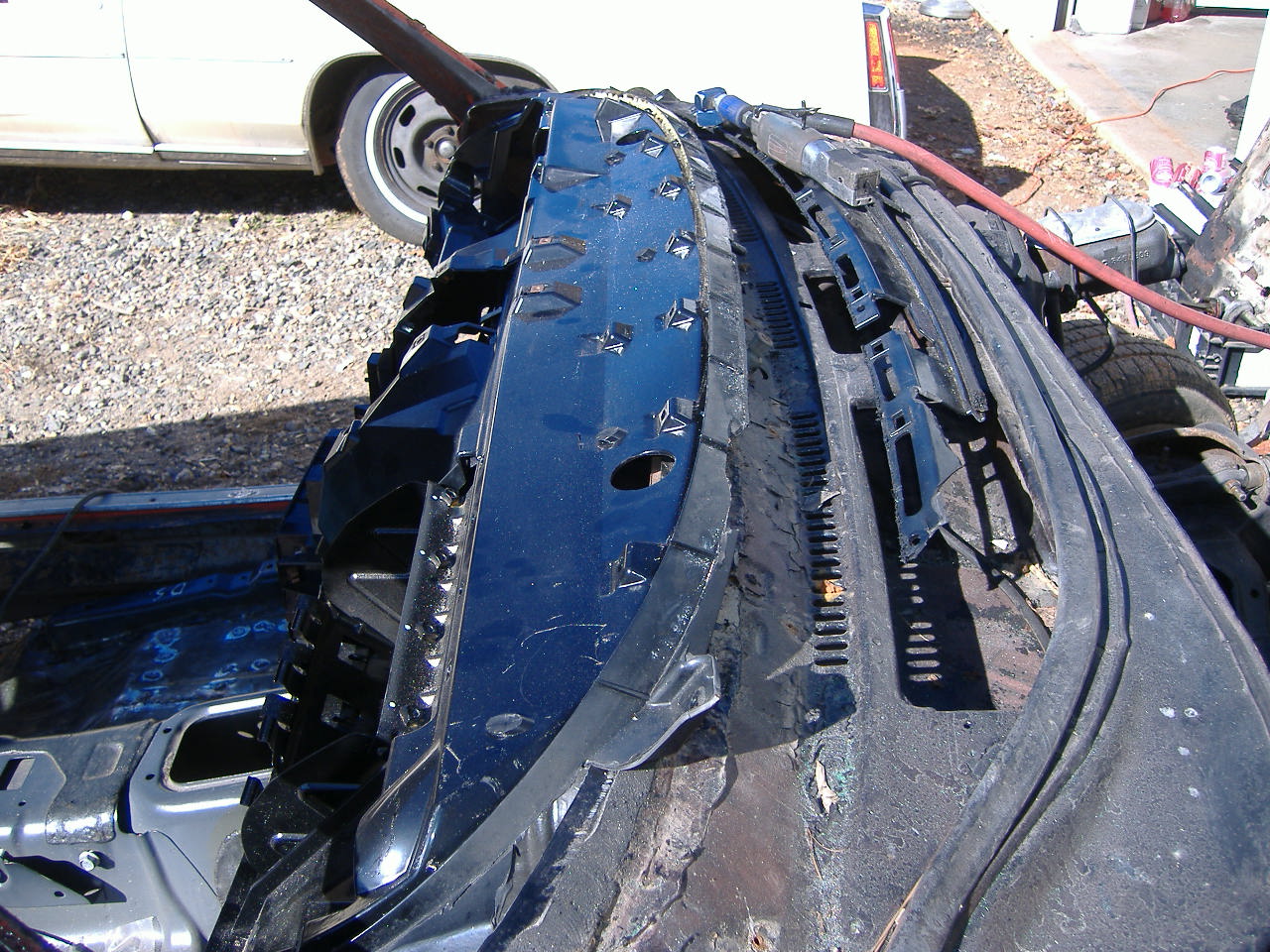

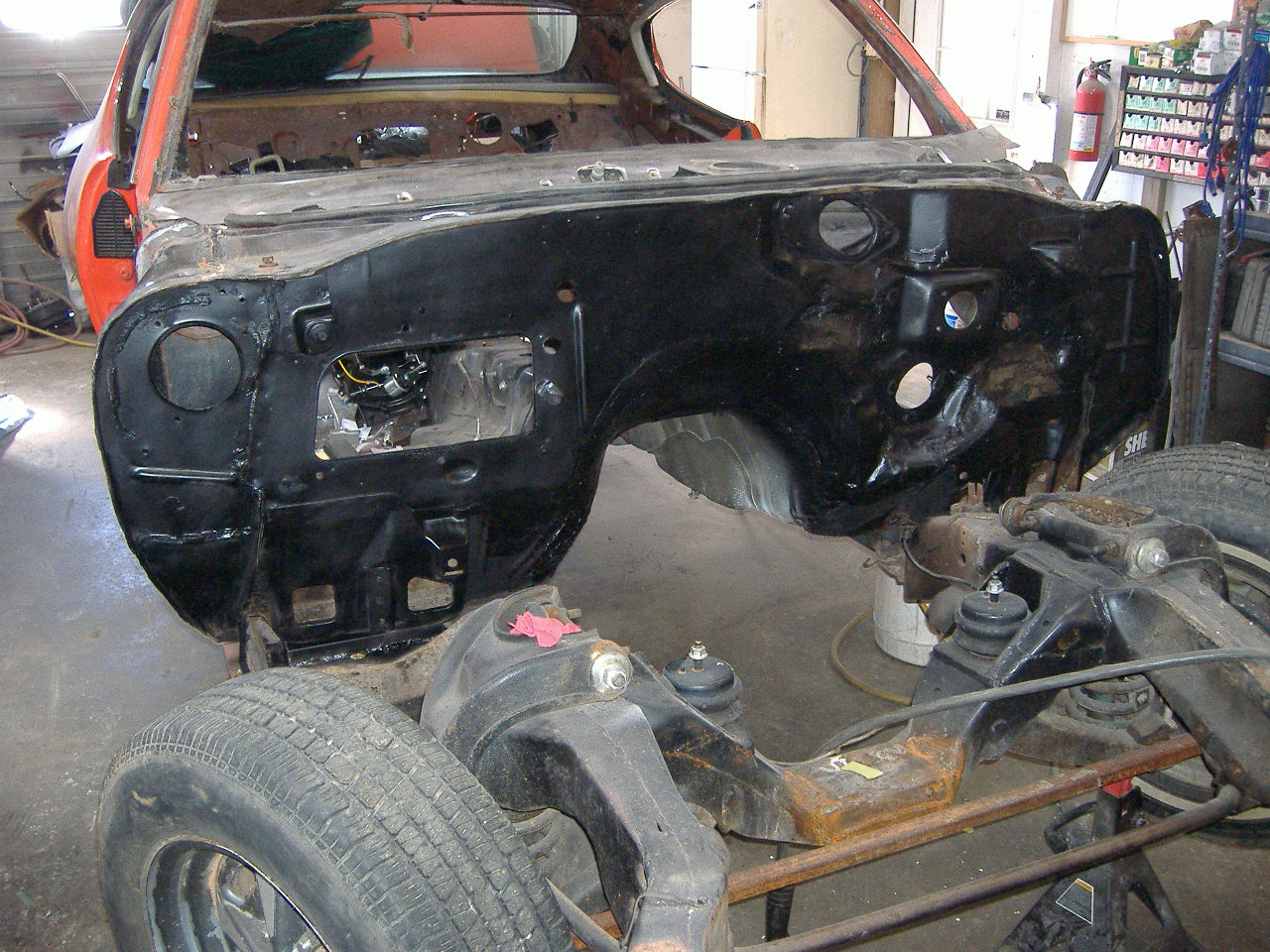

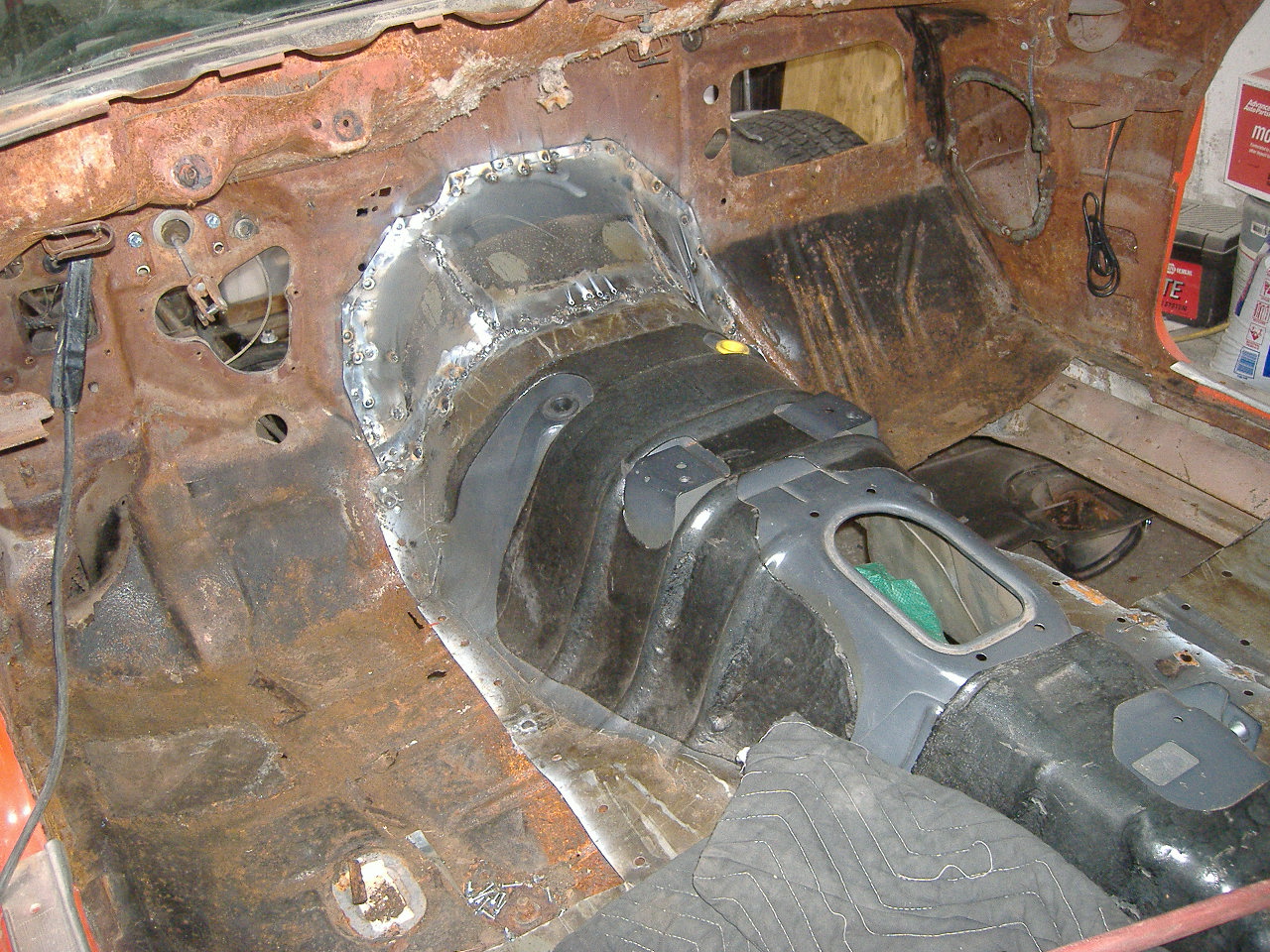

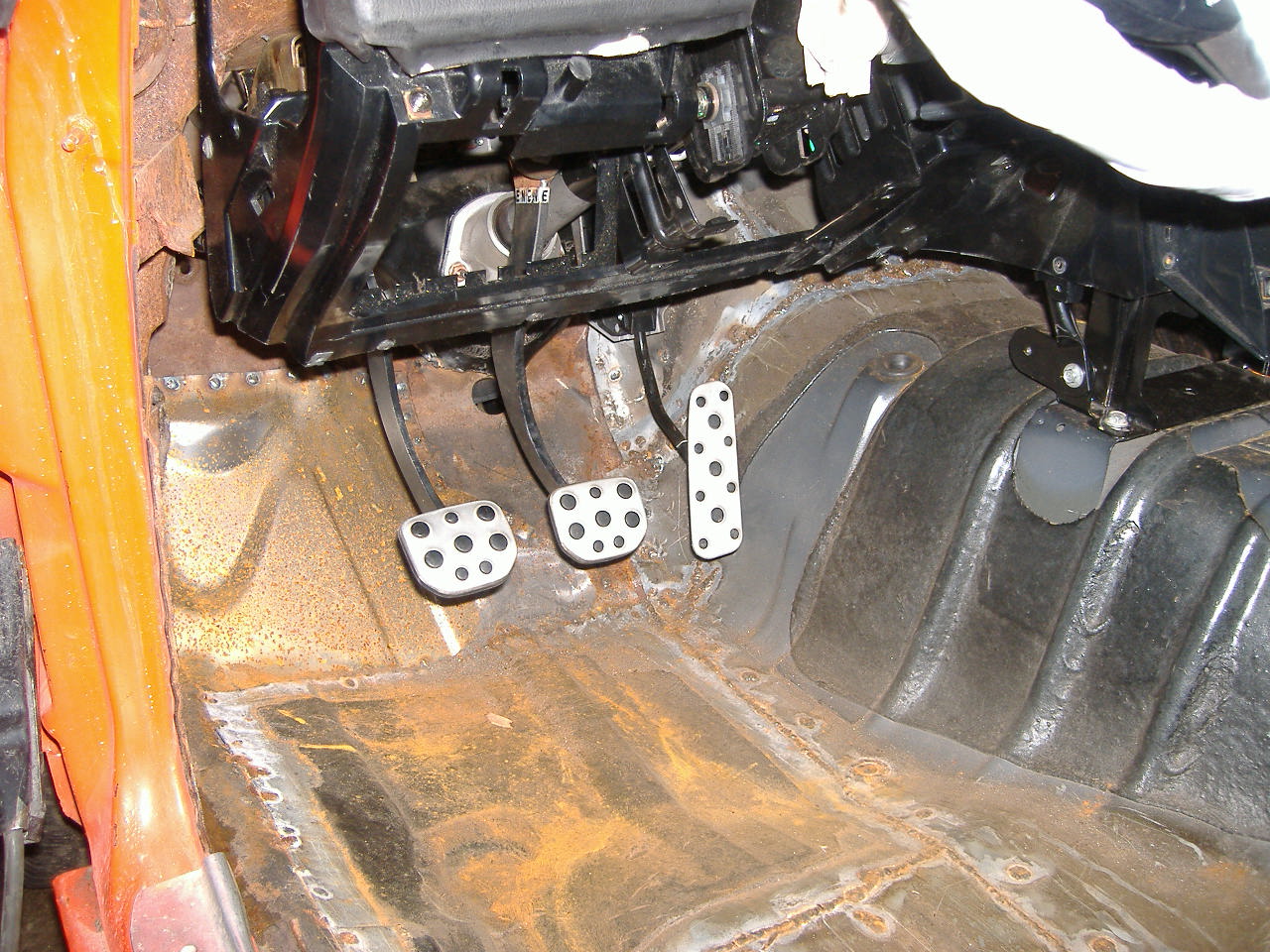

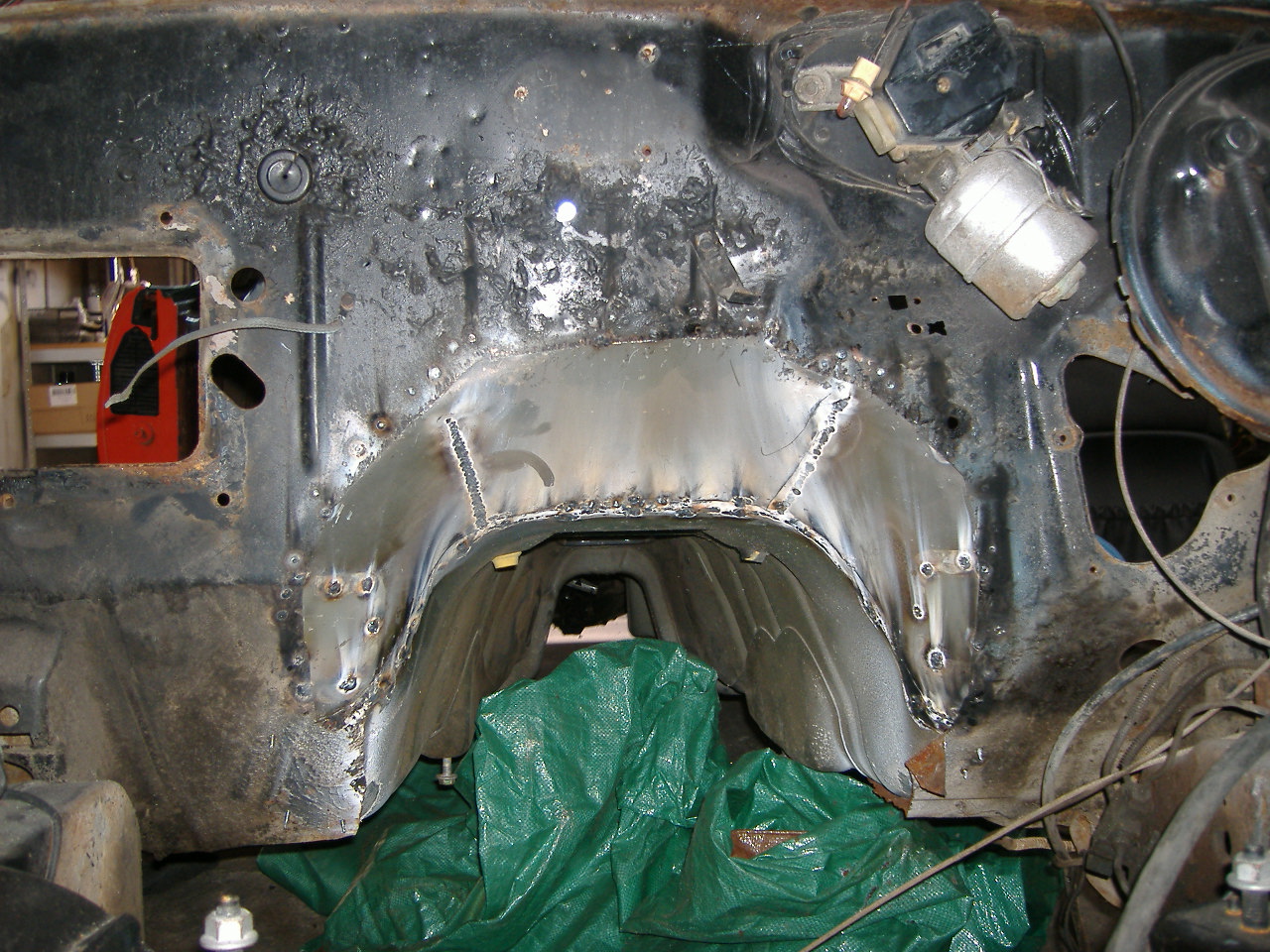

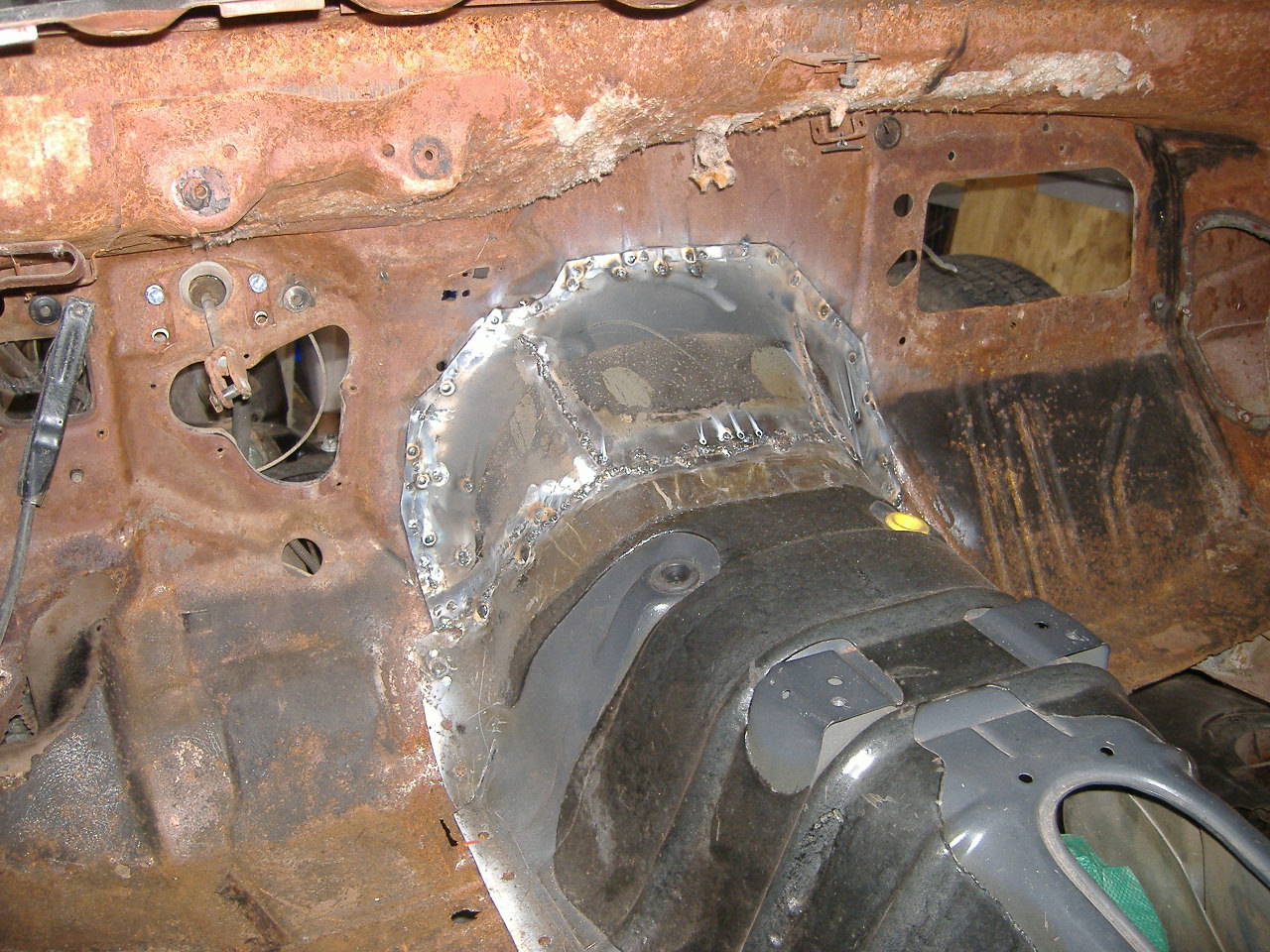

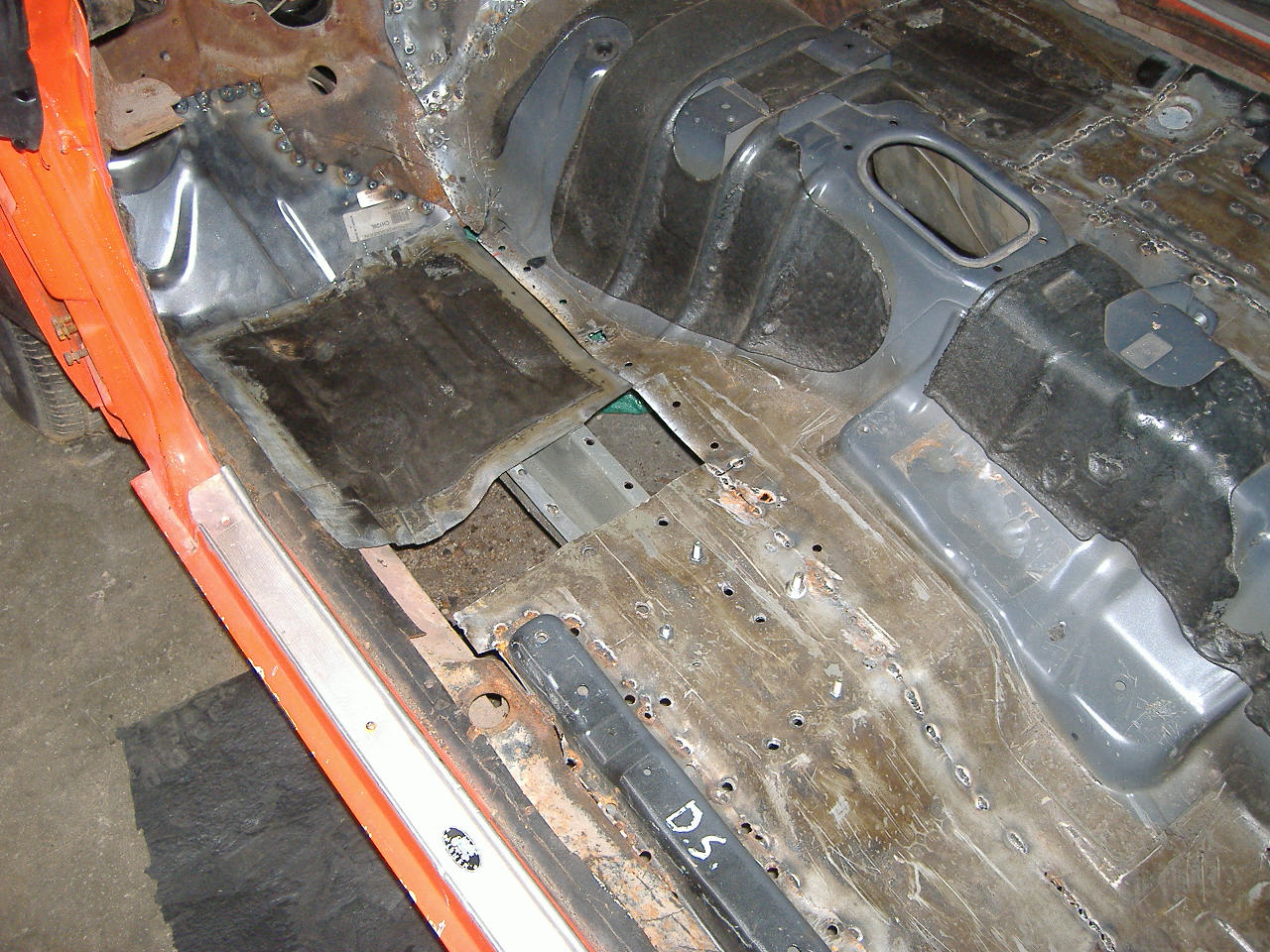

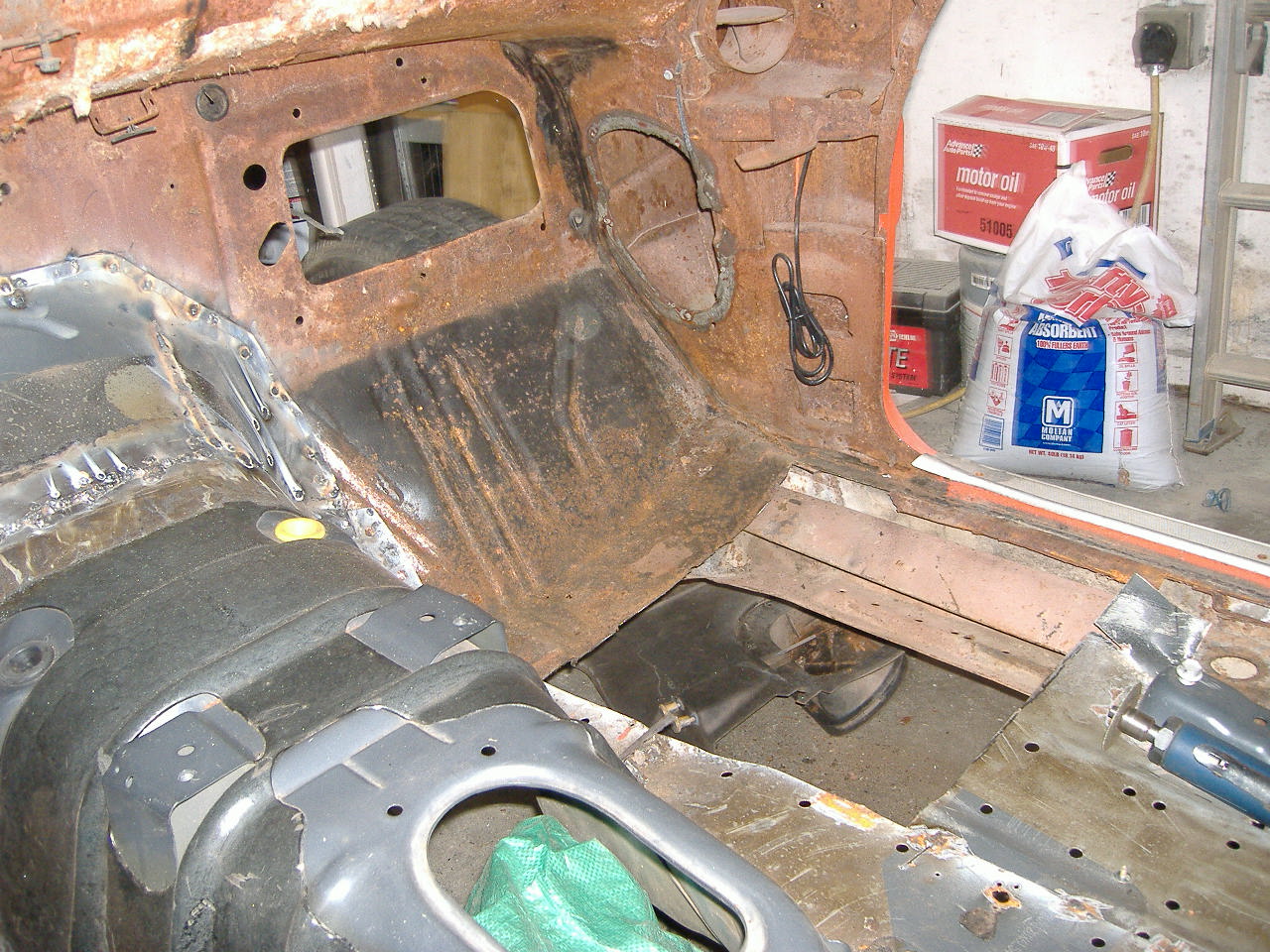

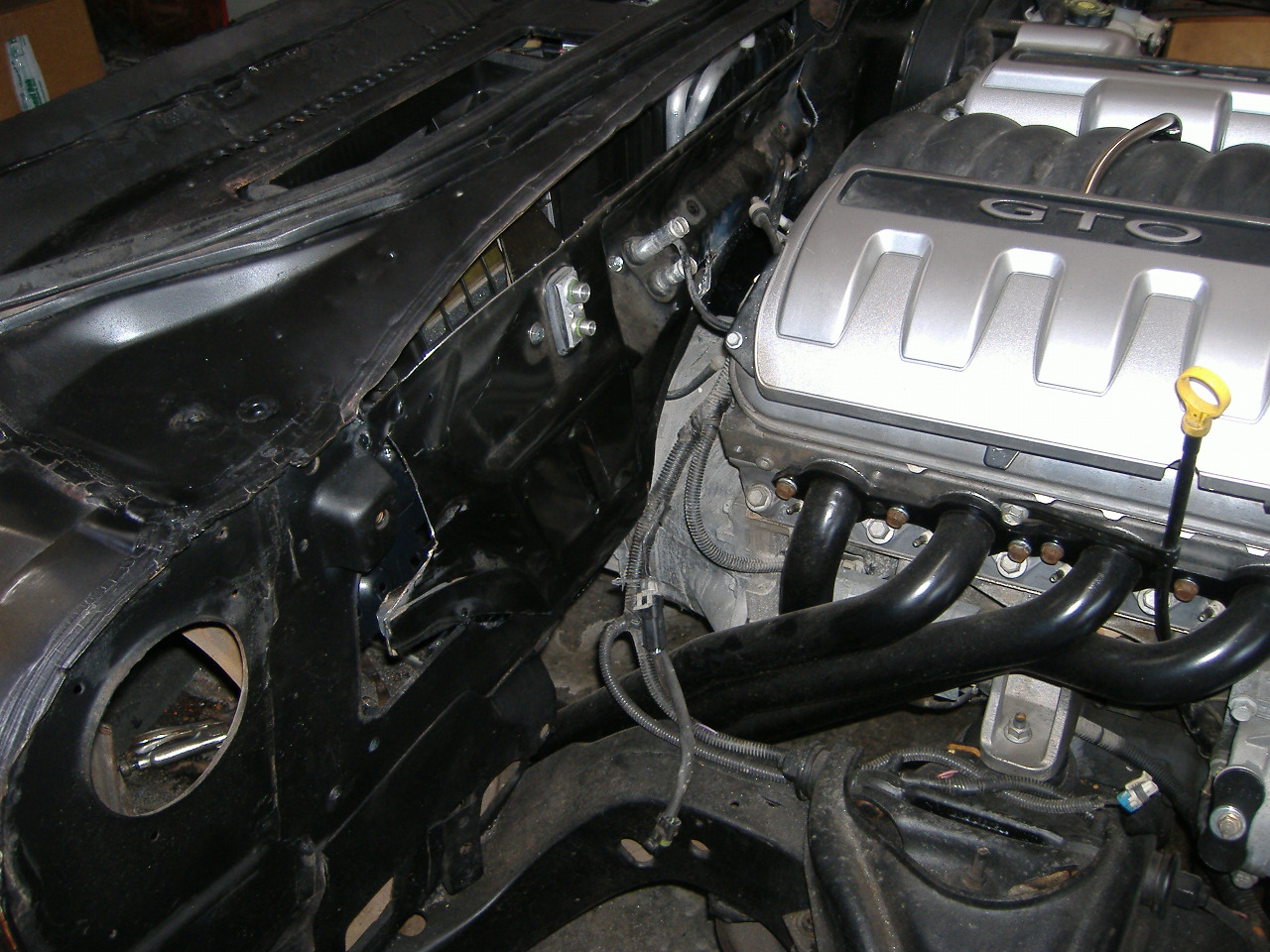

grafting sections of the 2006 firewall into the 69 firewall
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

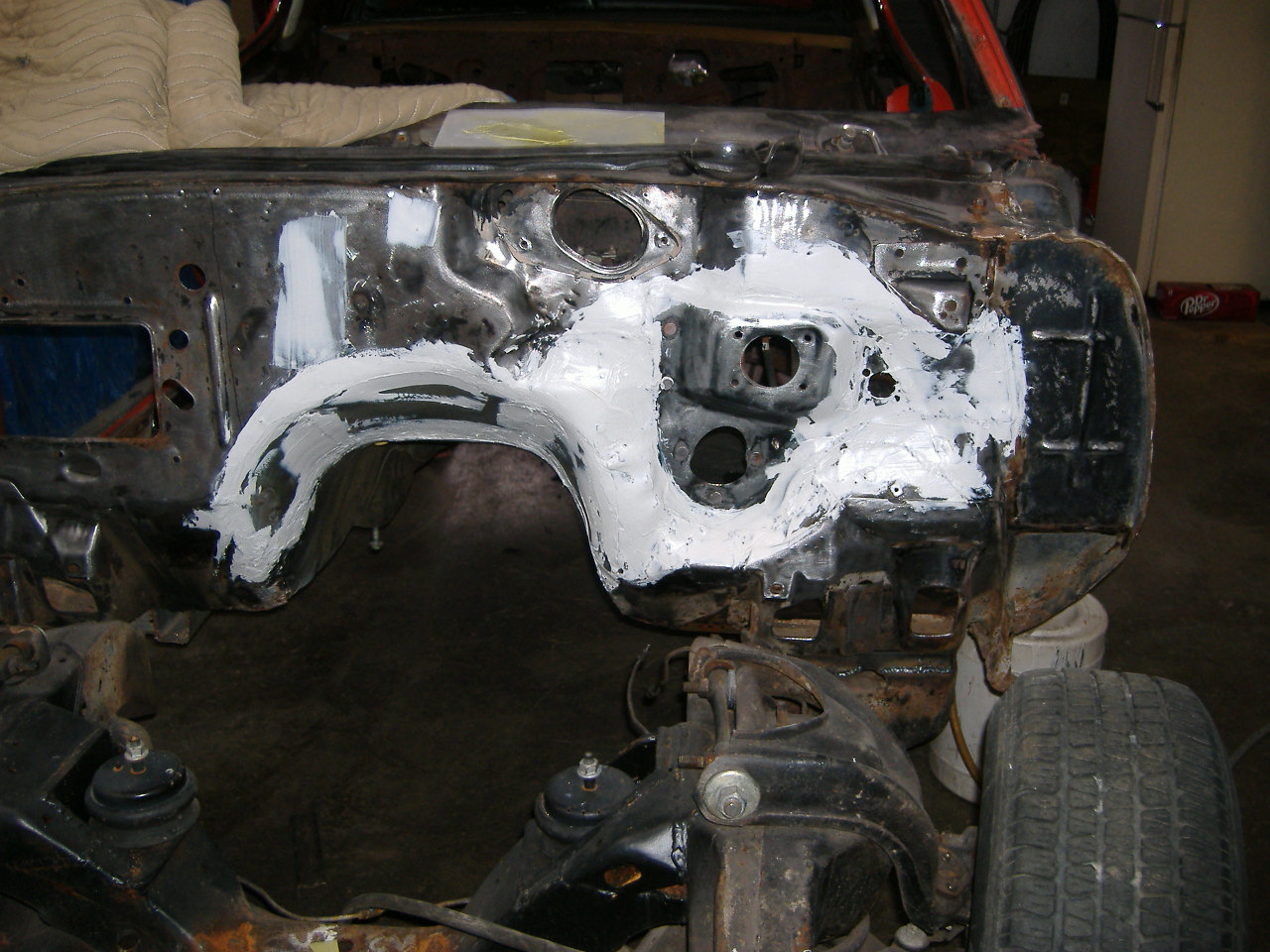

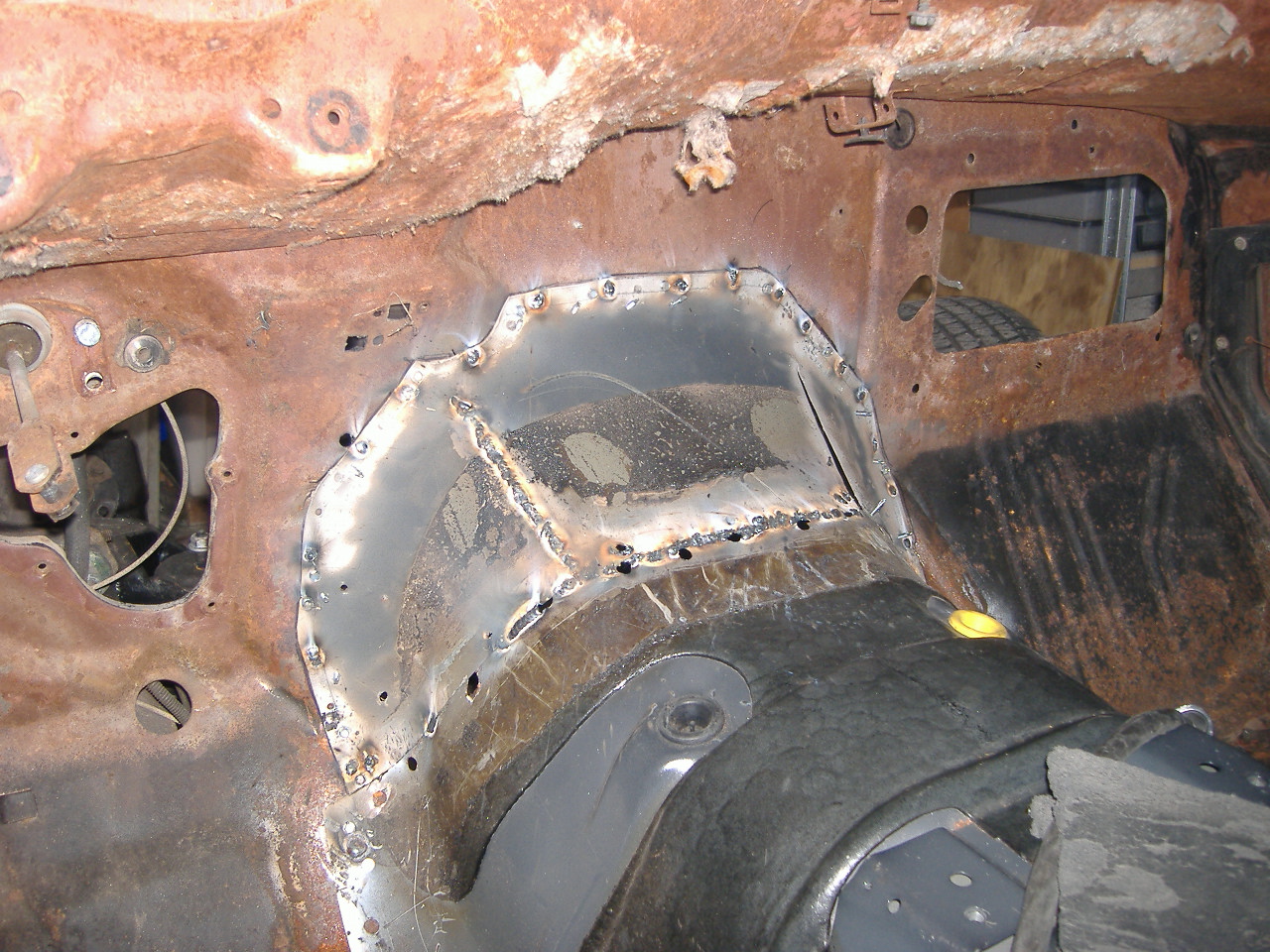

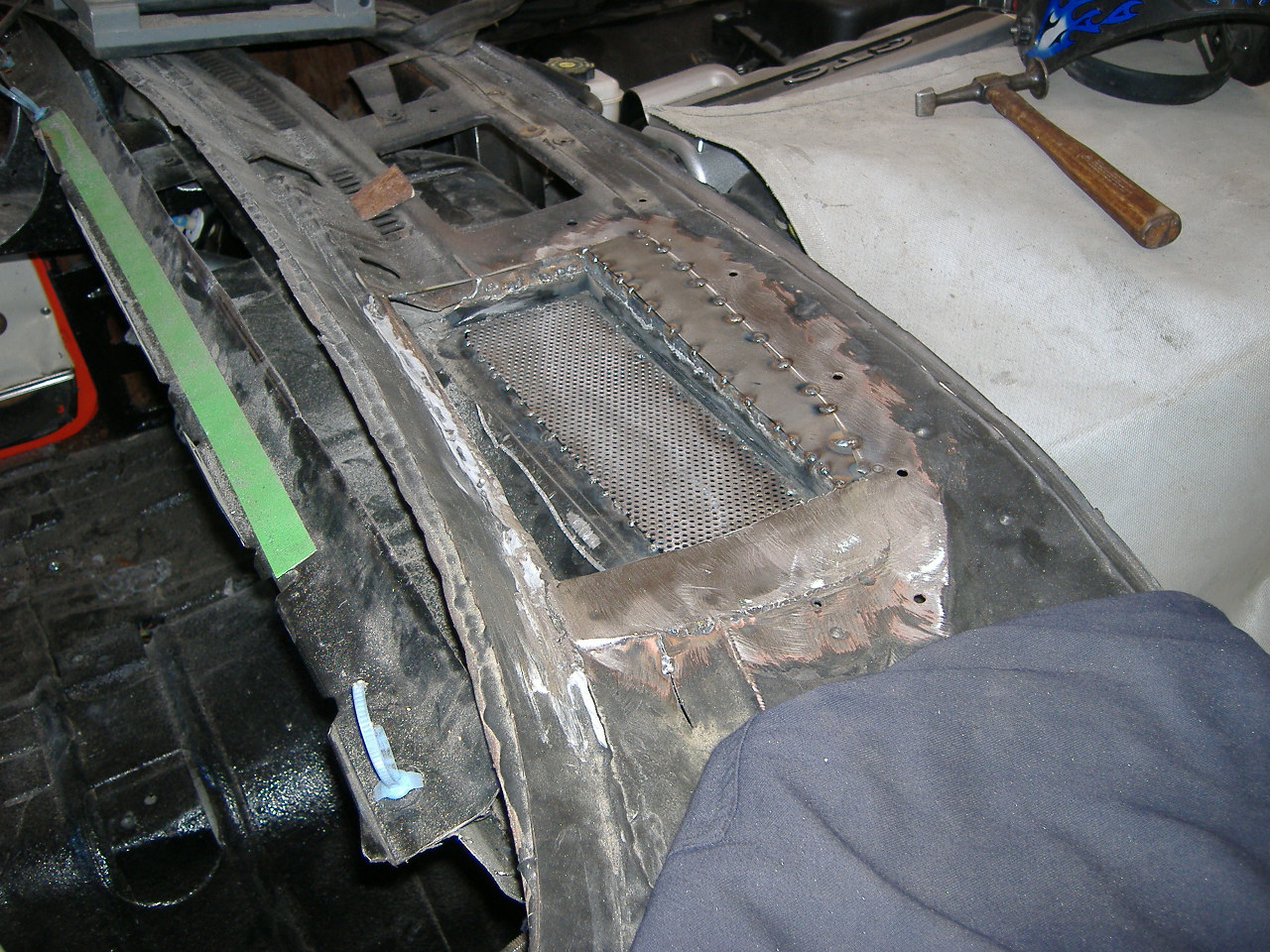

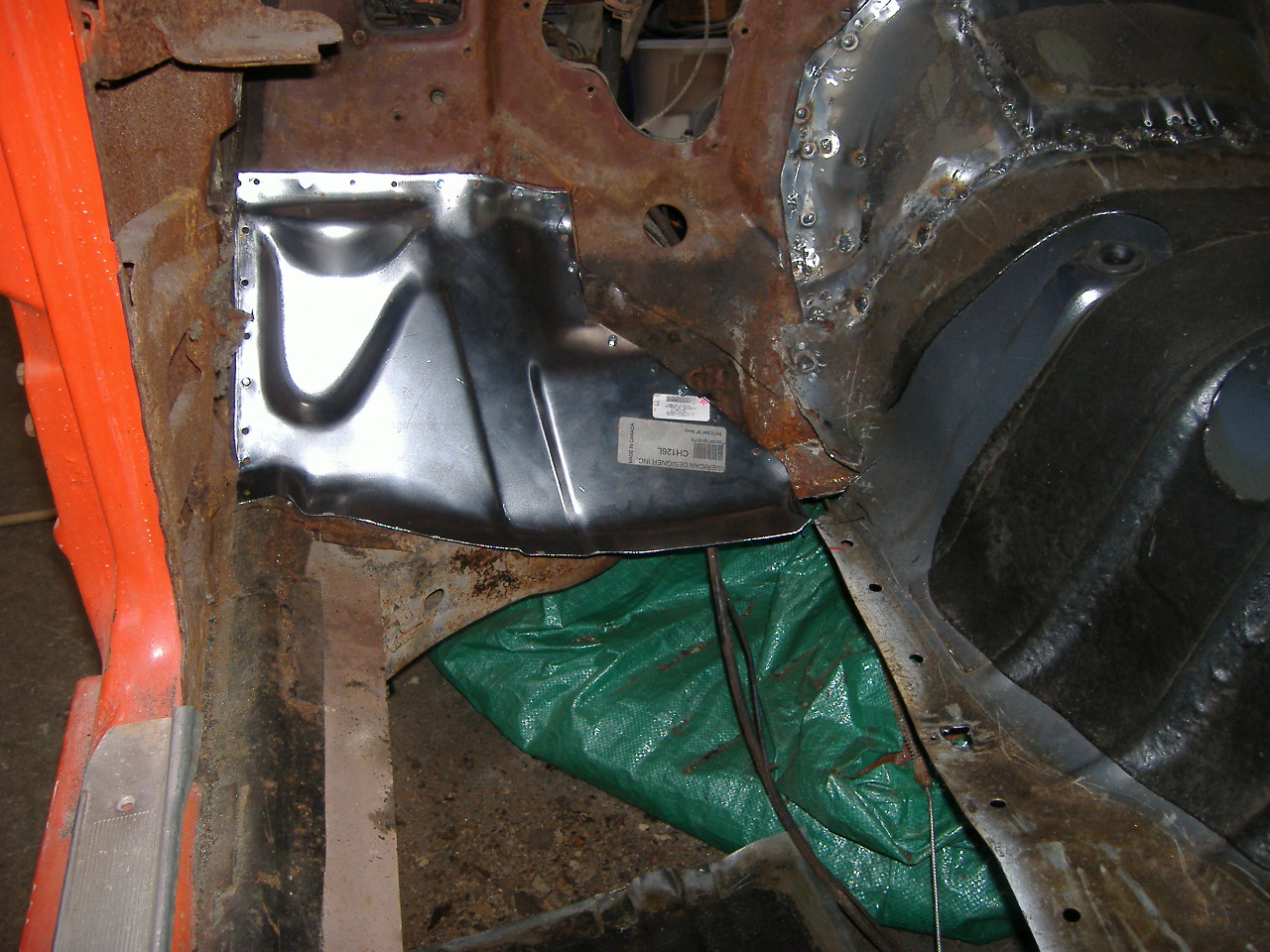

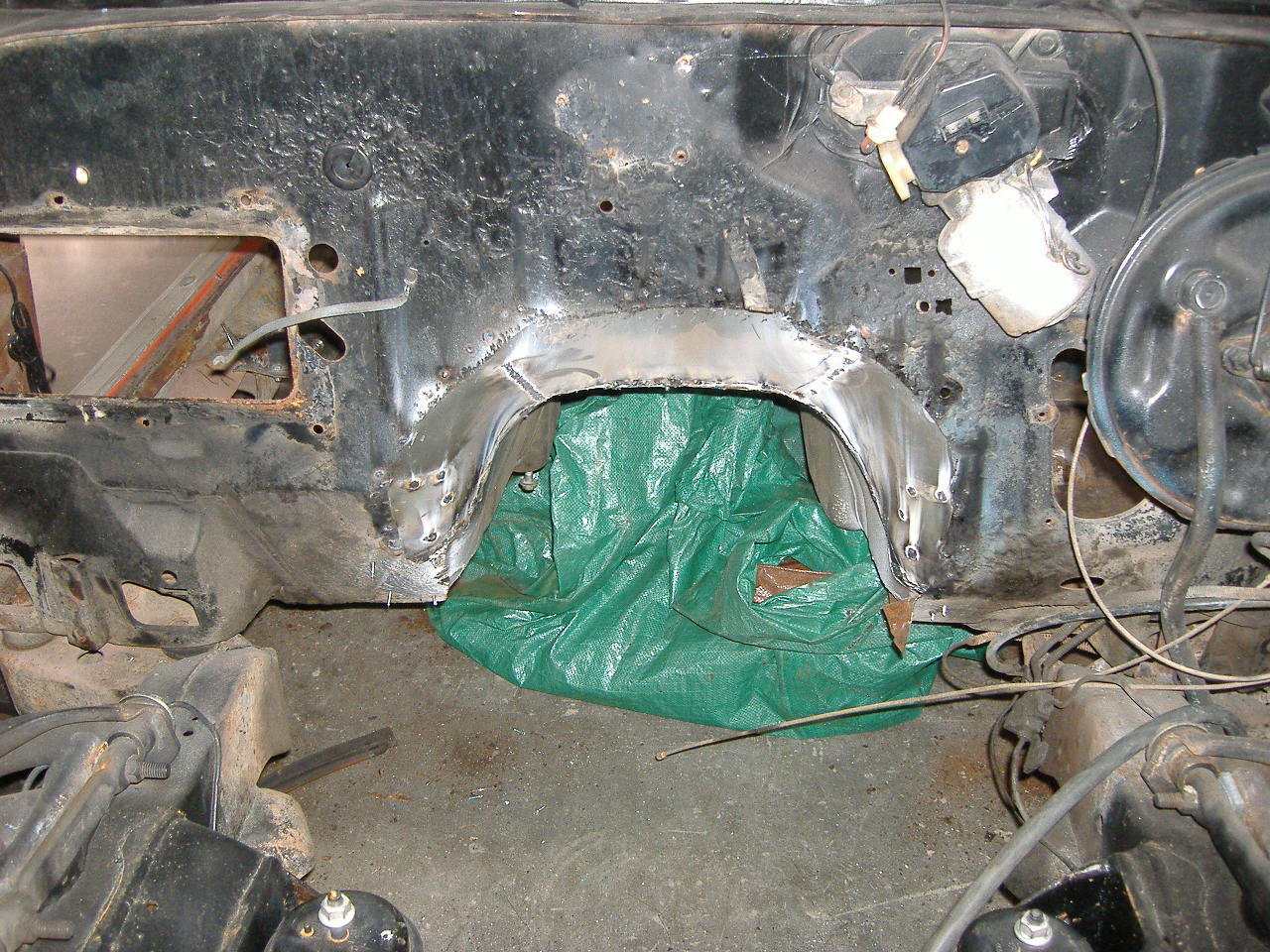

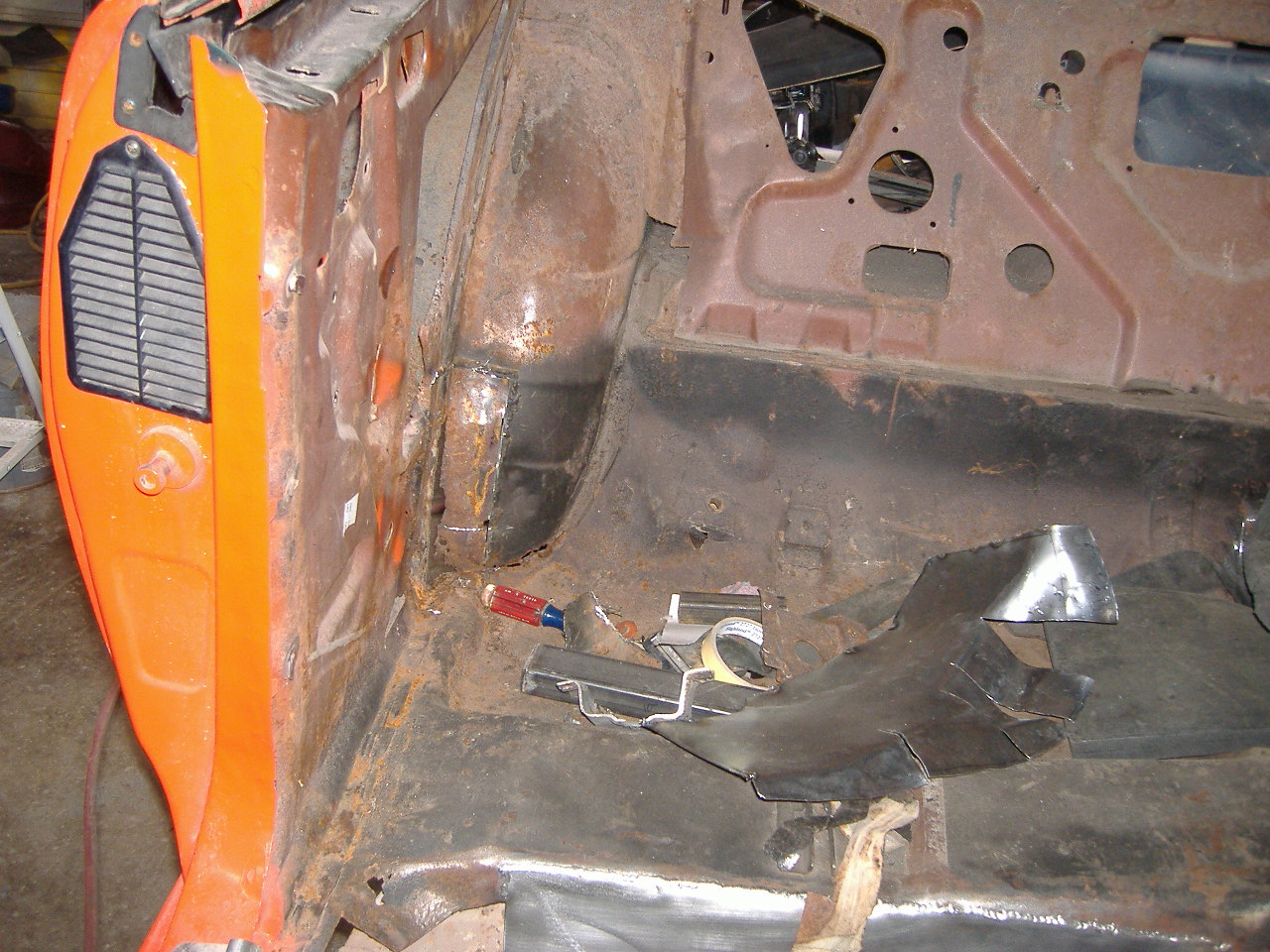

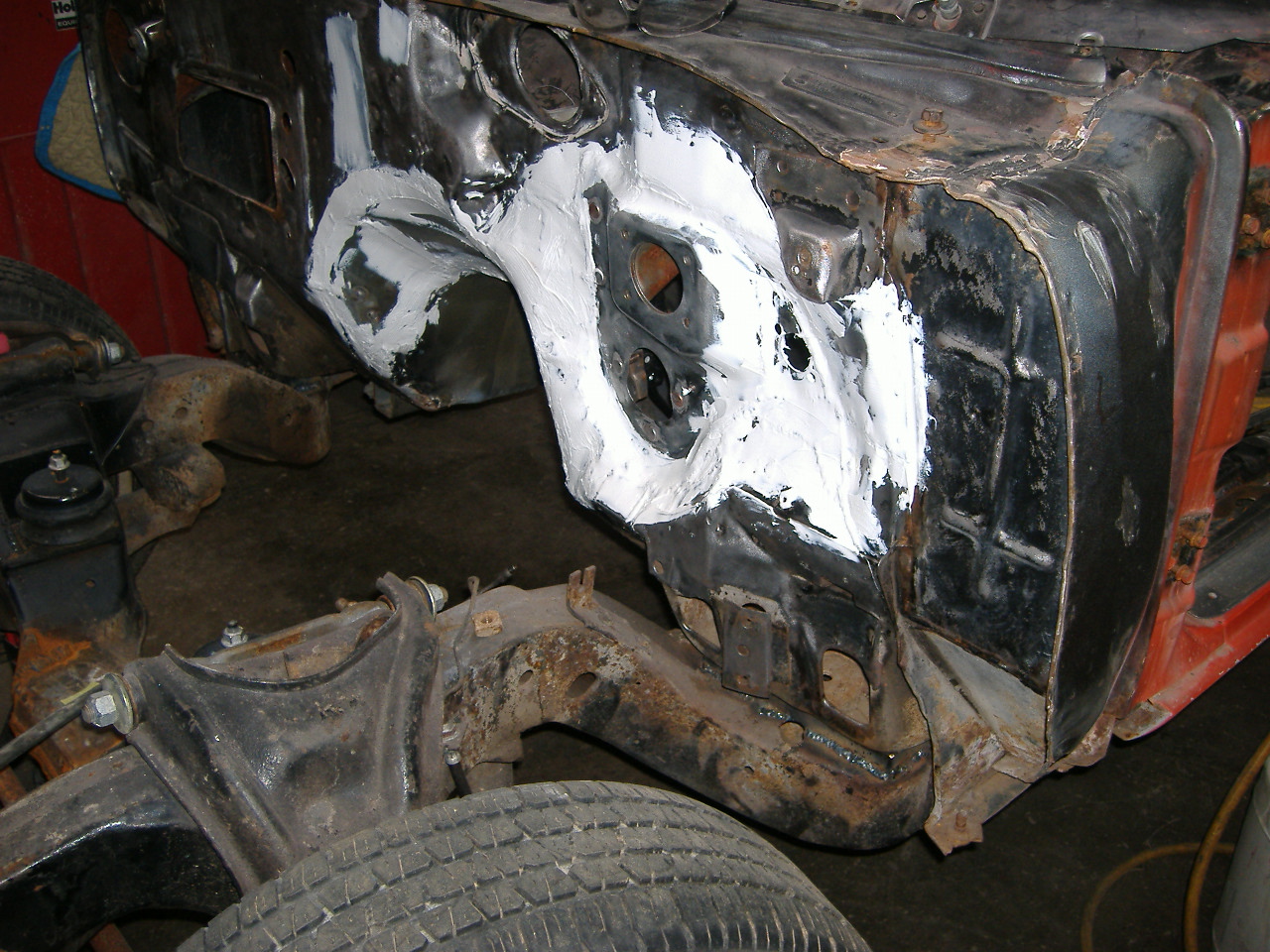

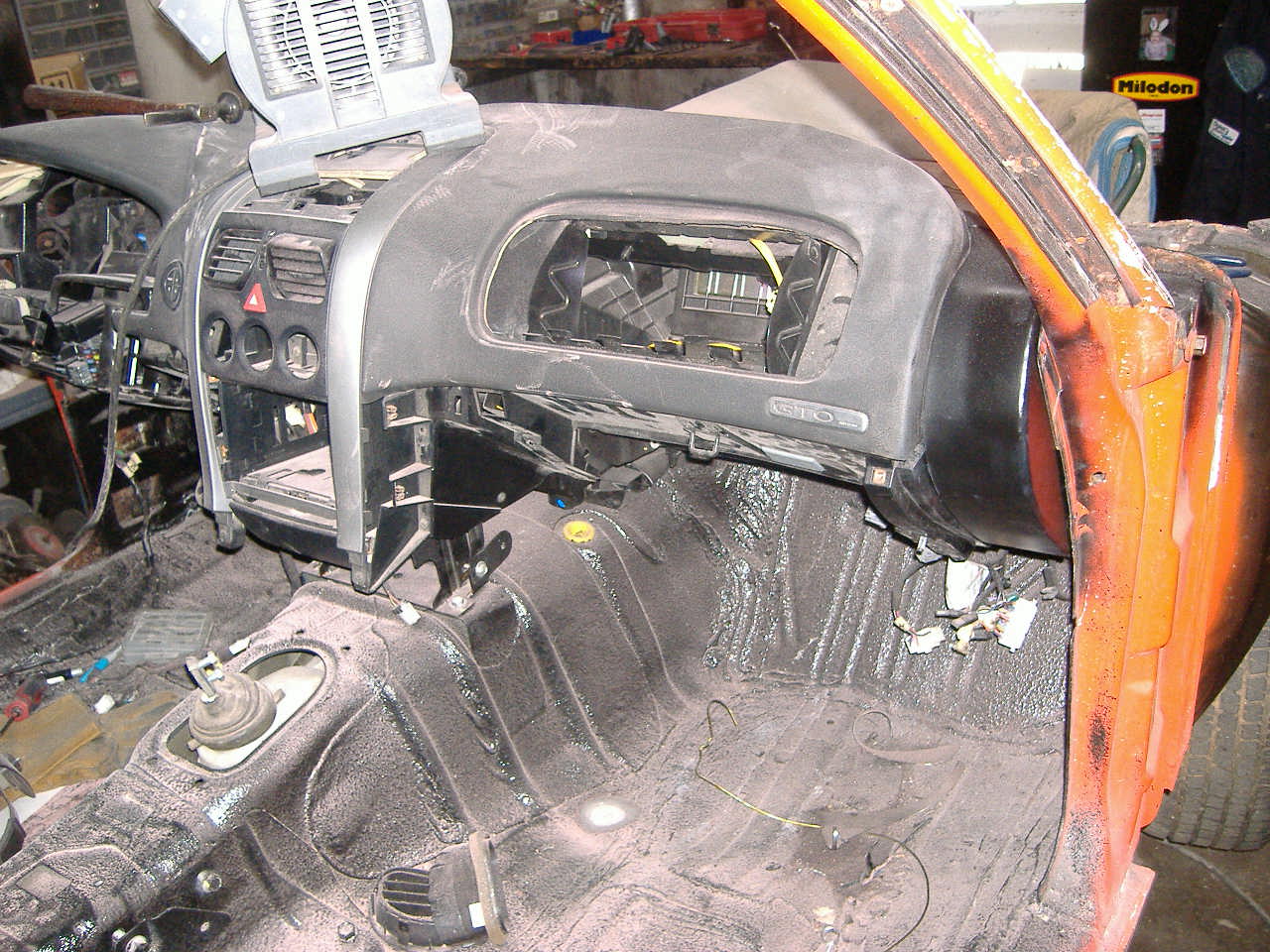

Fabricating panels to fill the gaps on each side of the dash
|
|
|
|
|
|
|
|
|

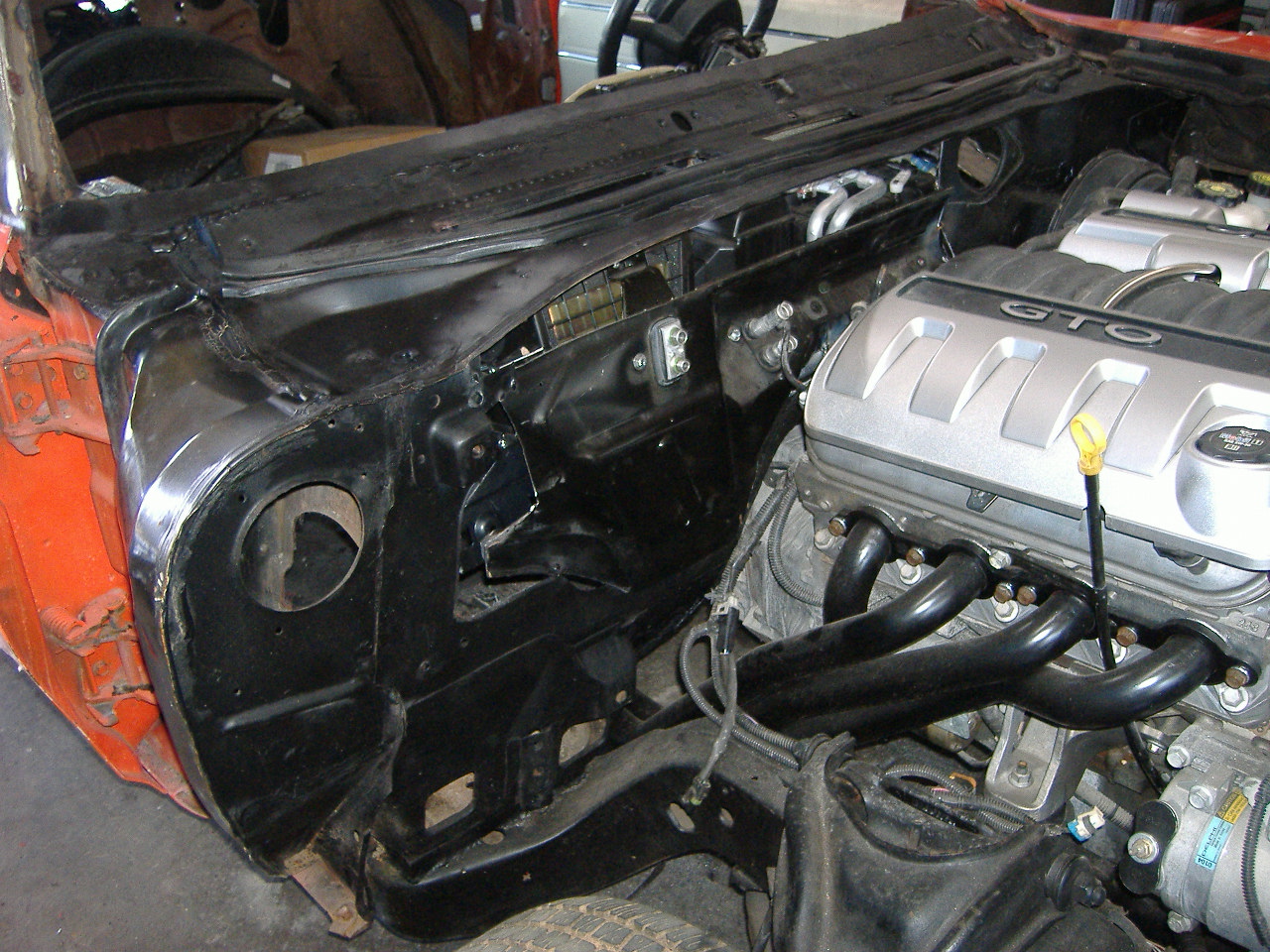

Header Modification

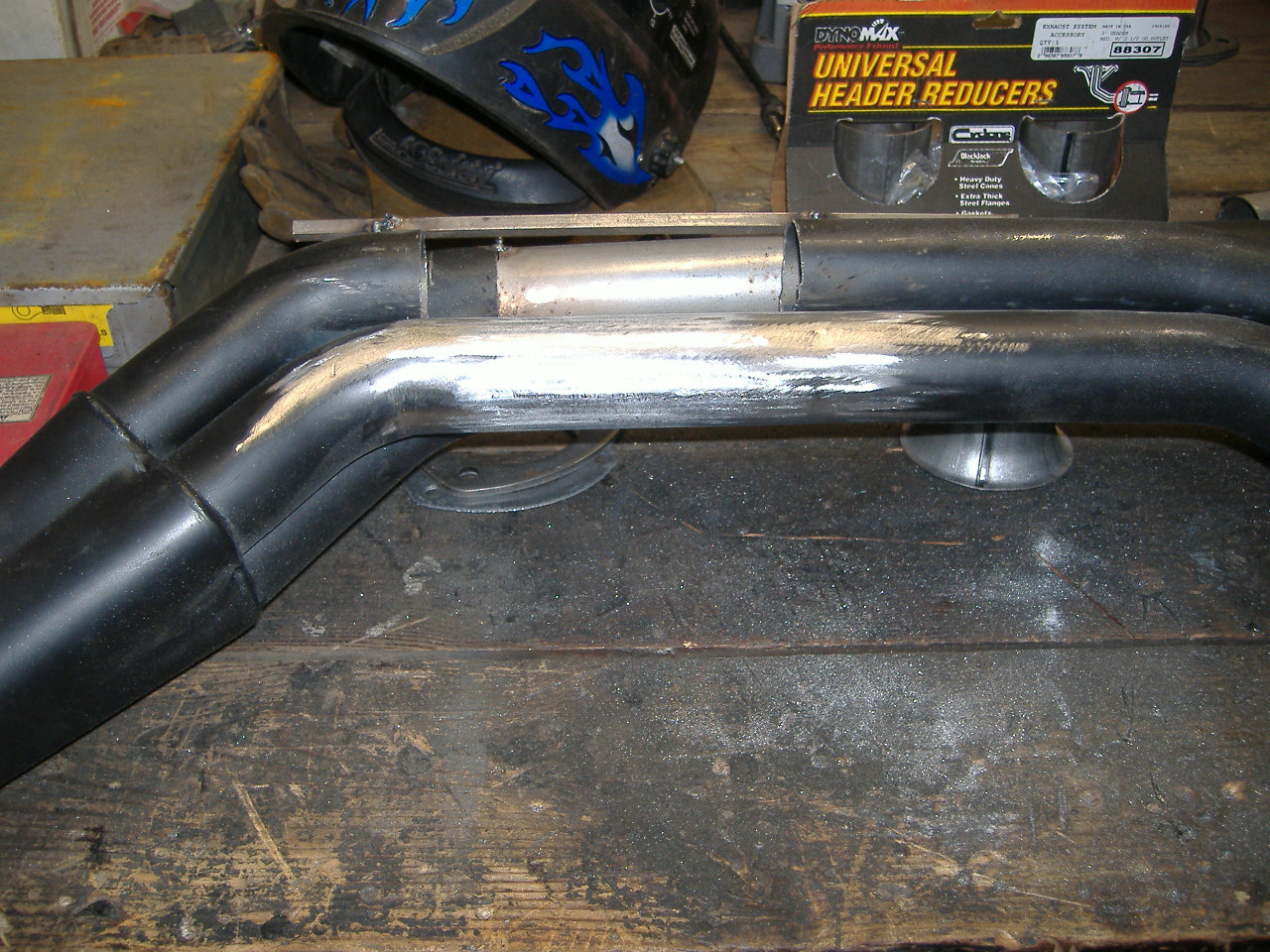

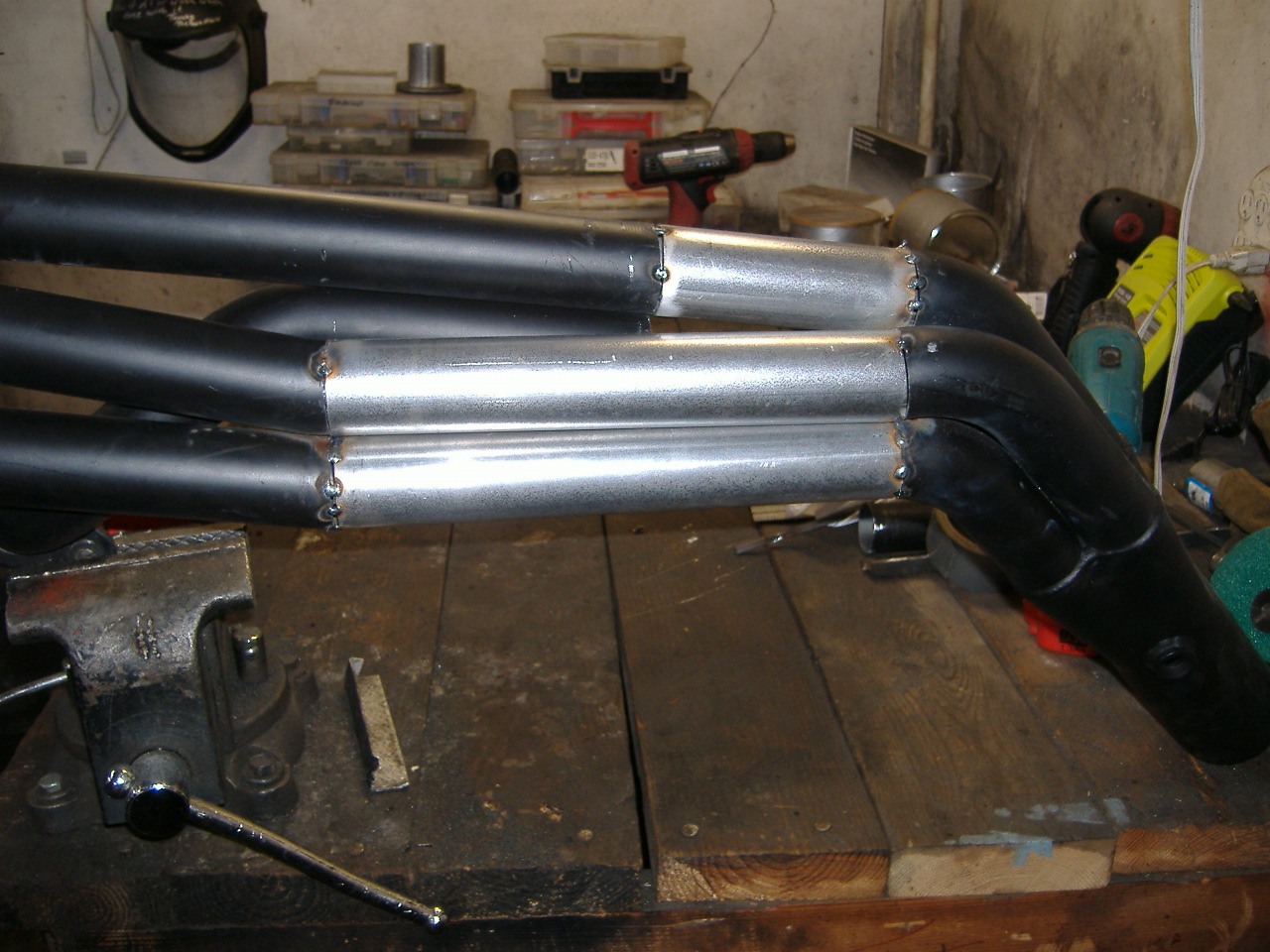

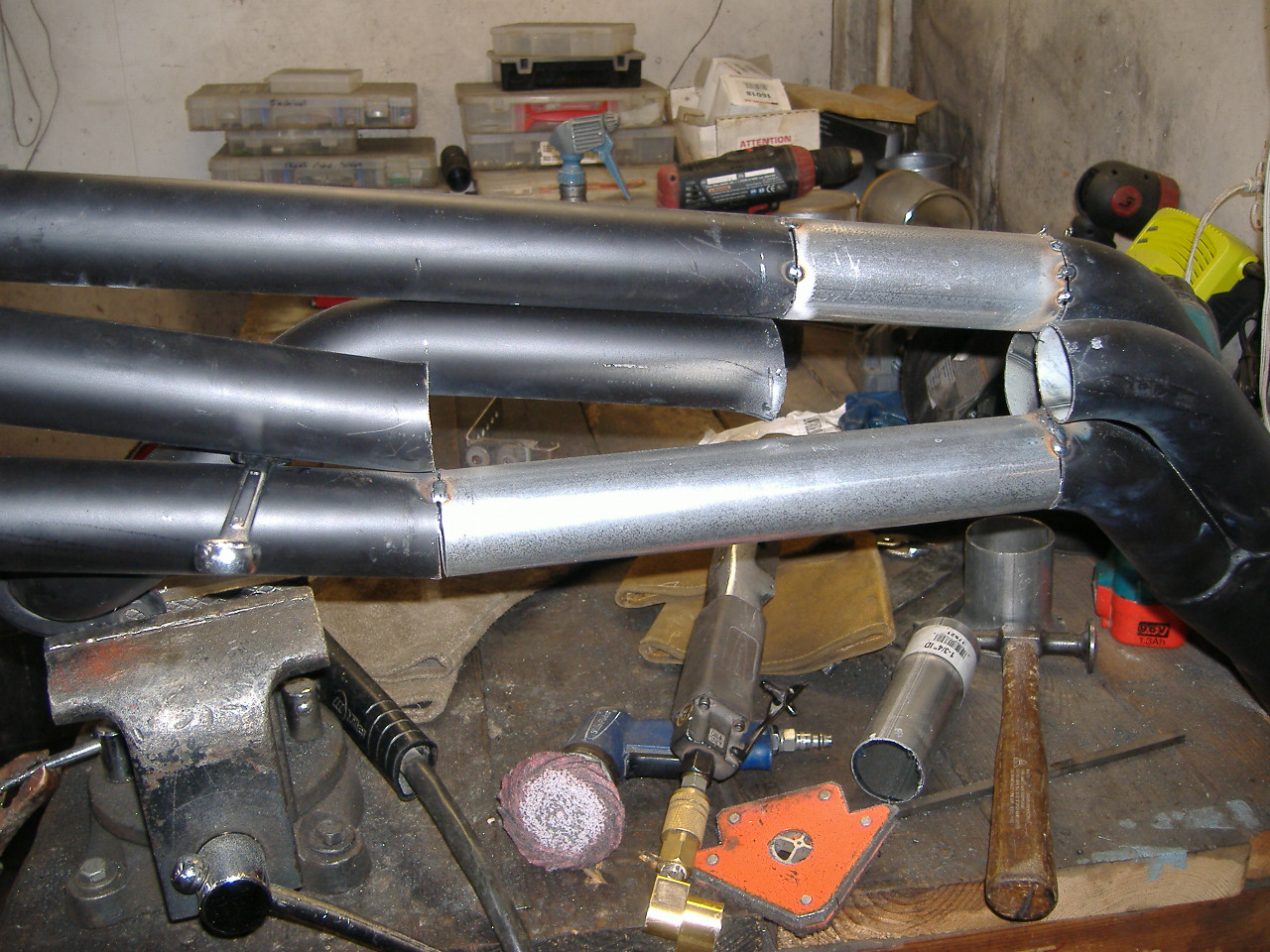

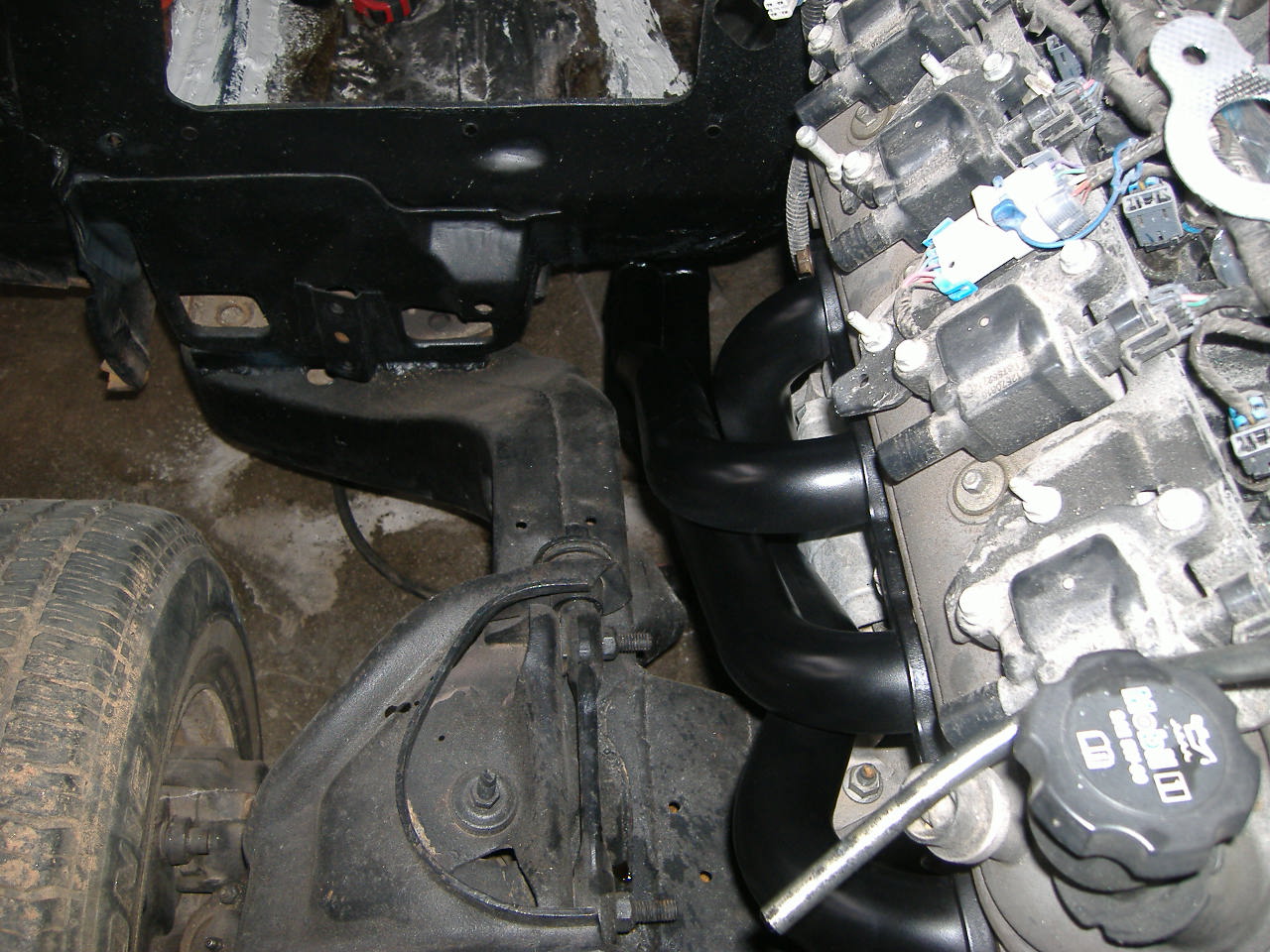

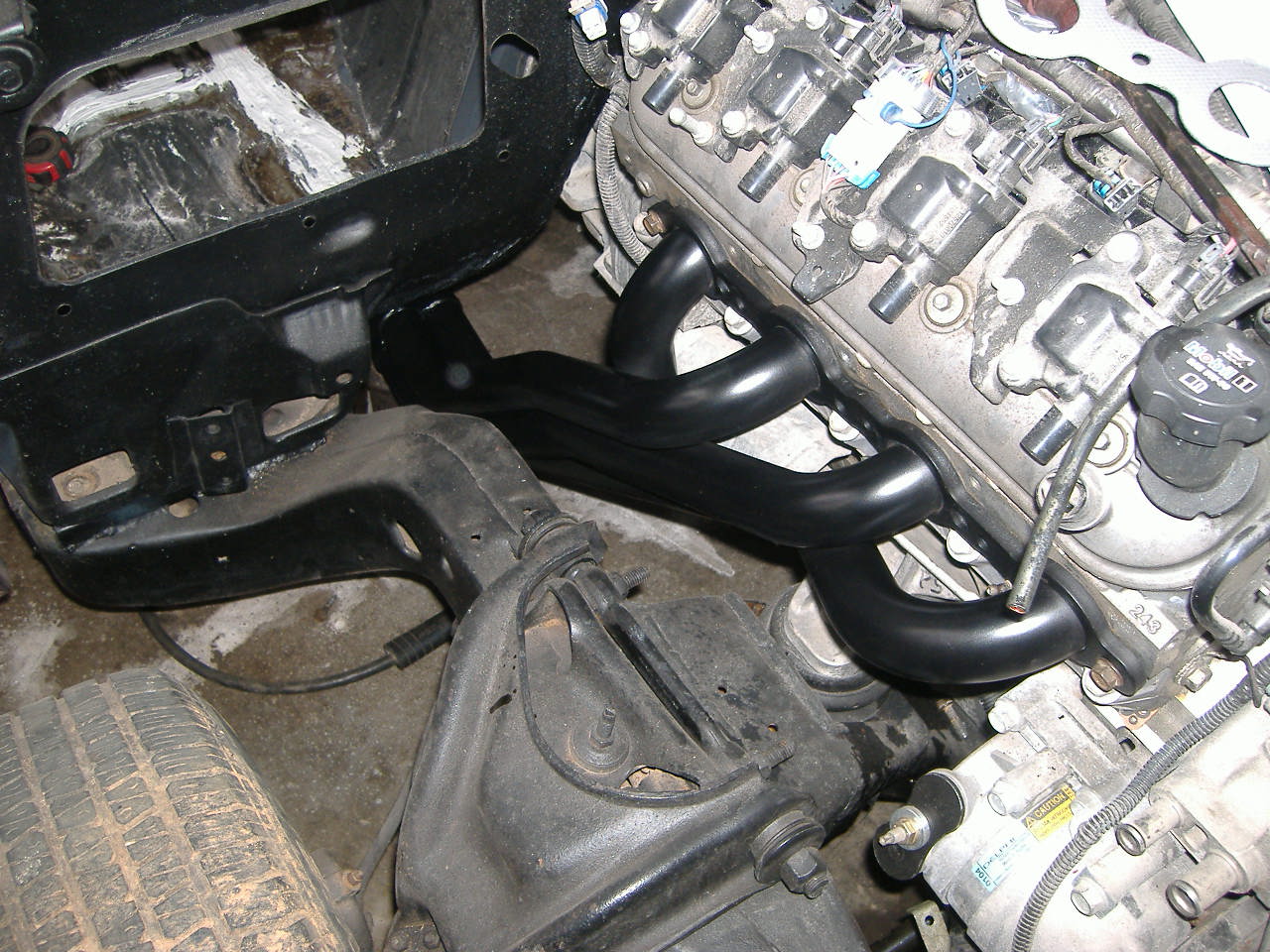

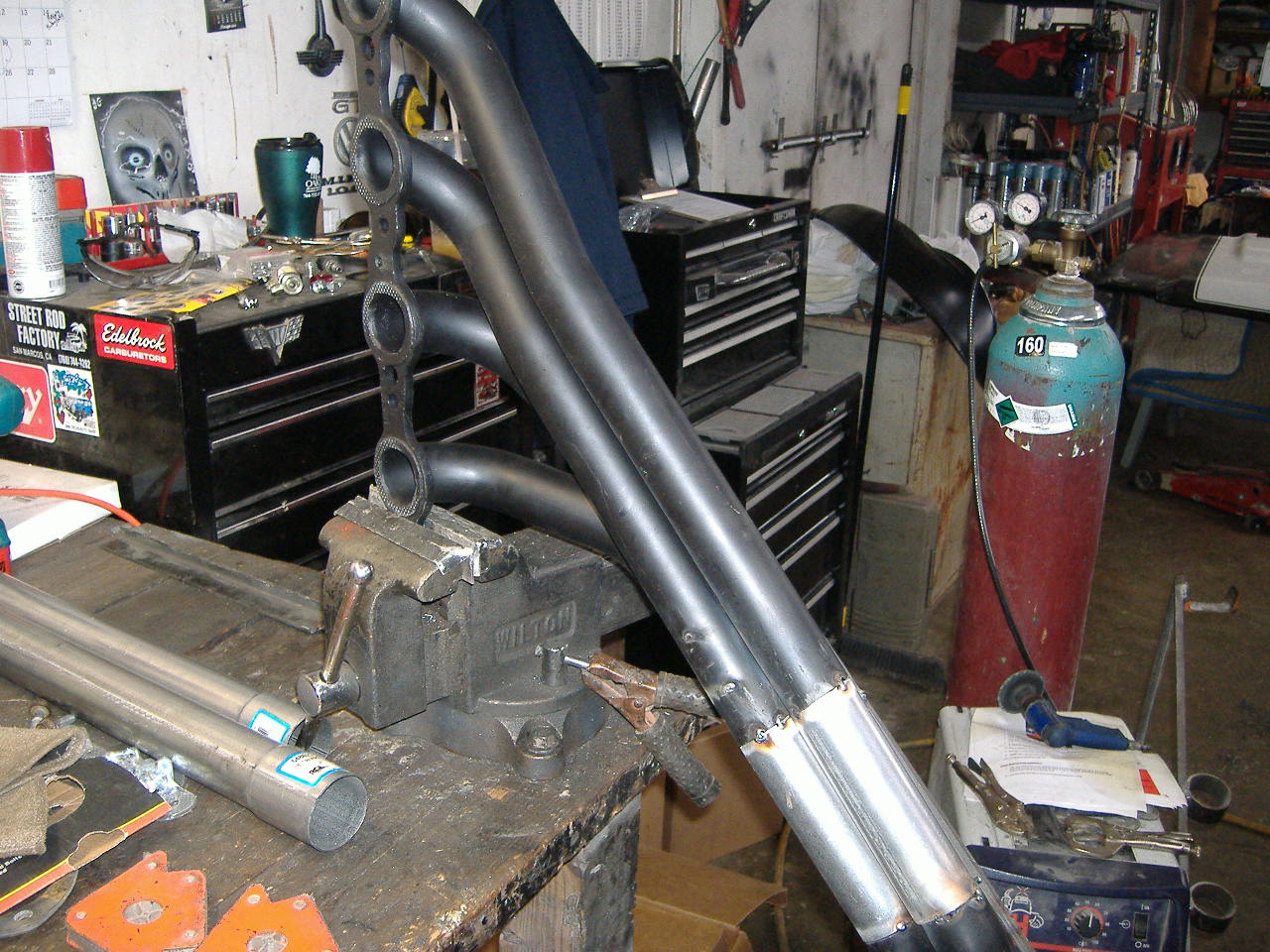

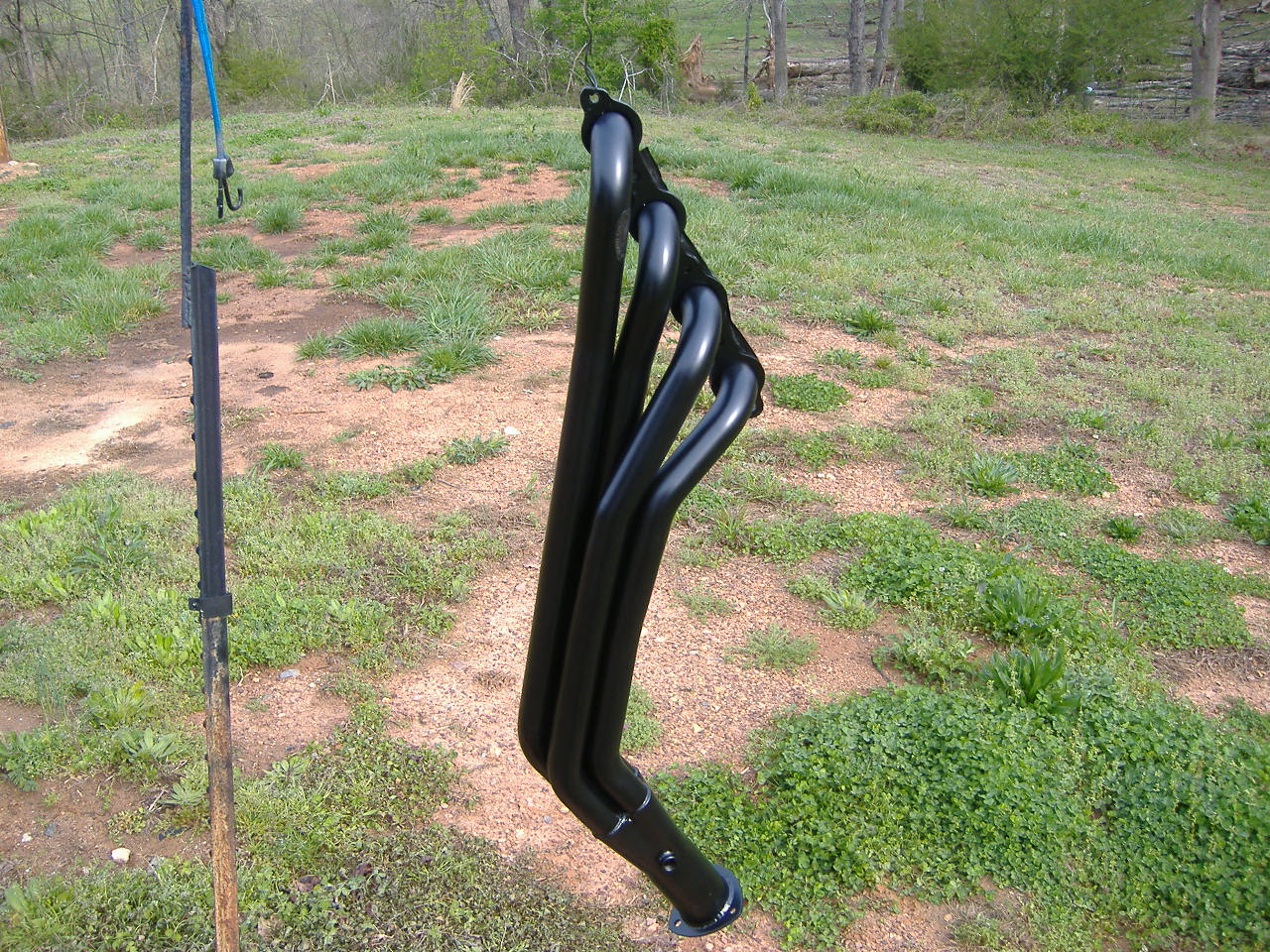

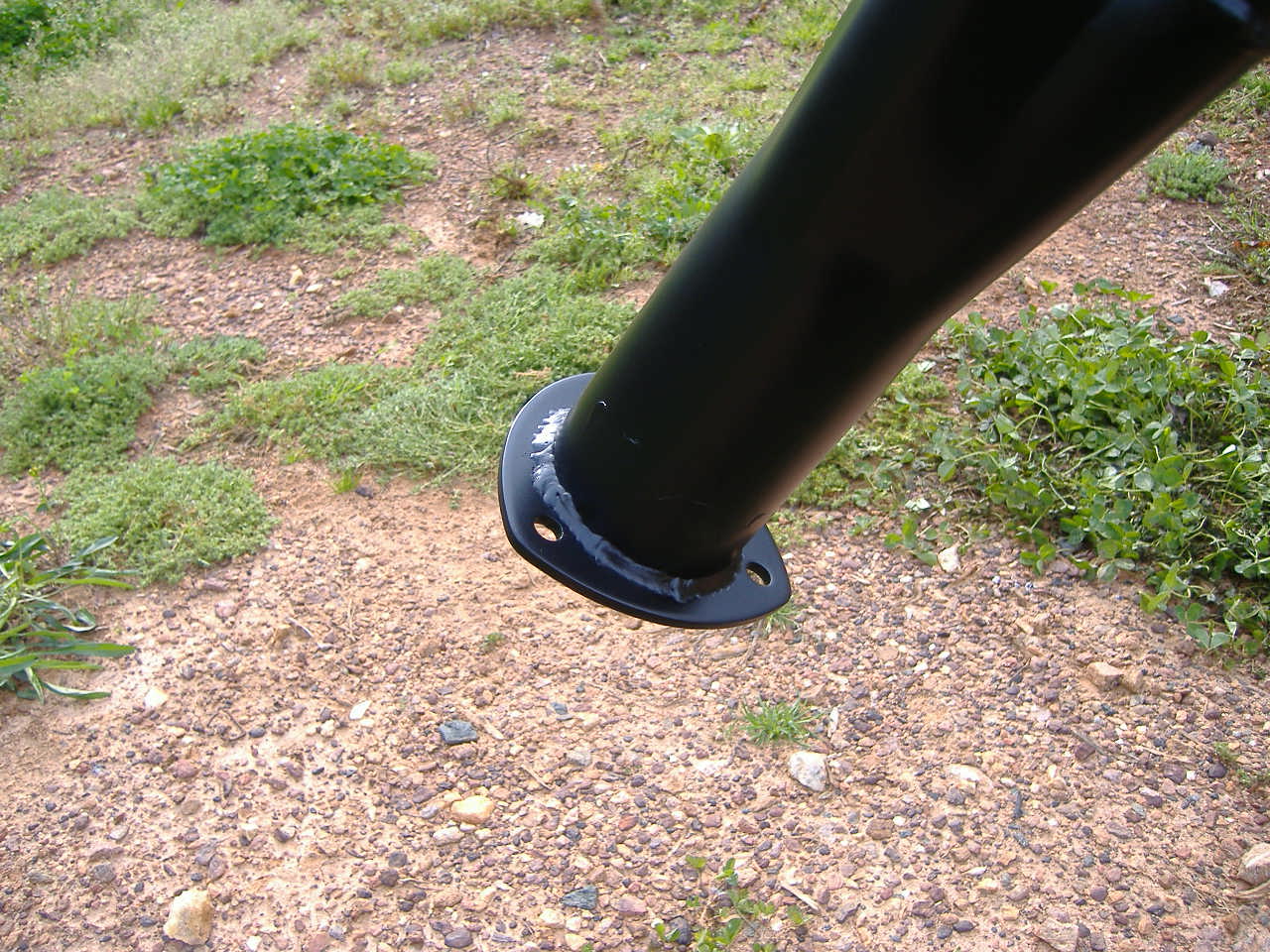

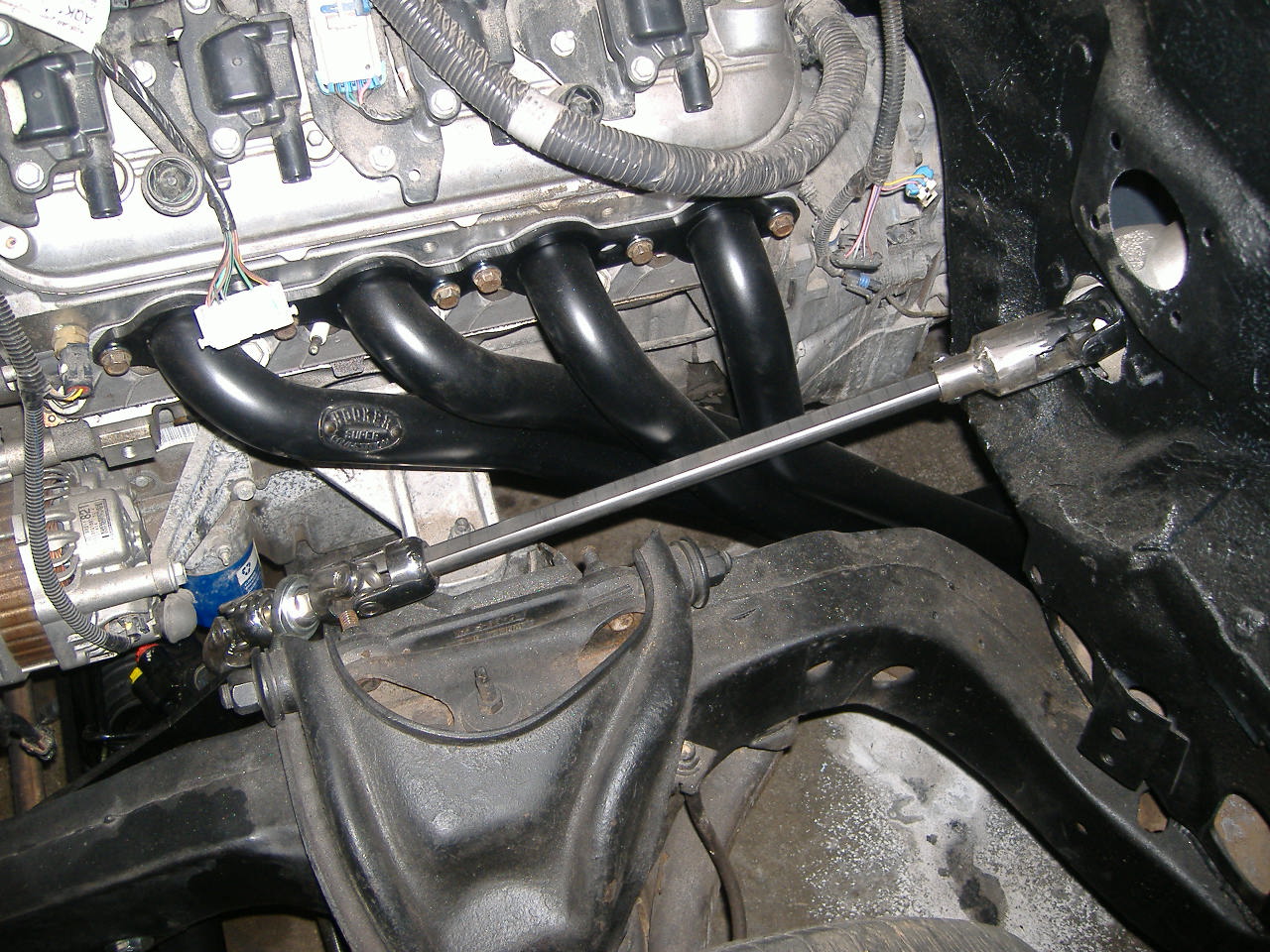

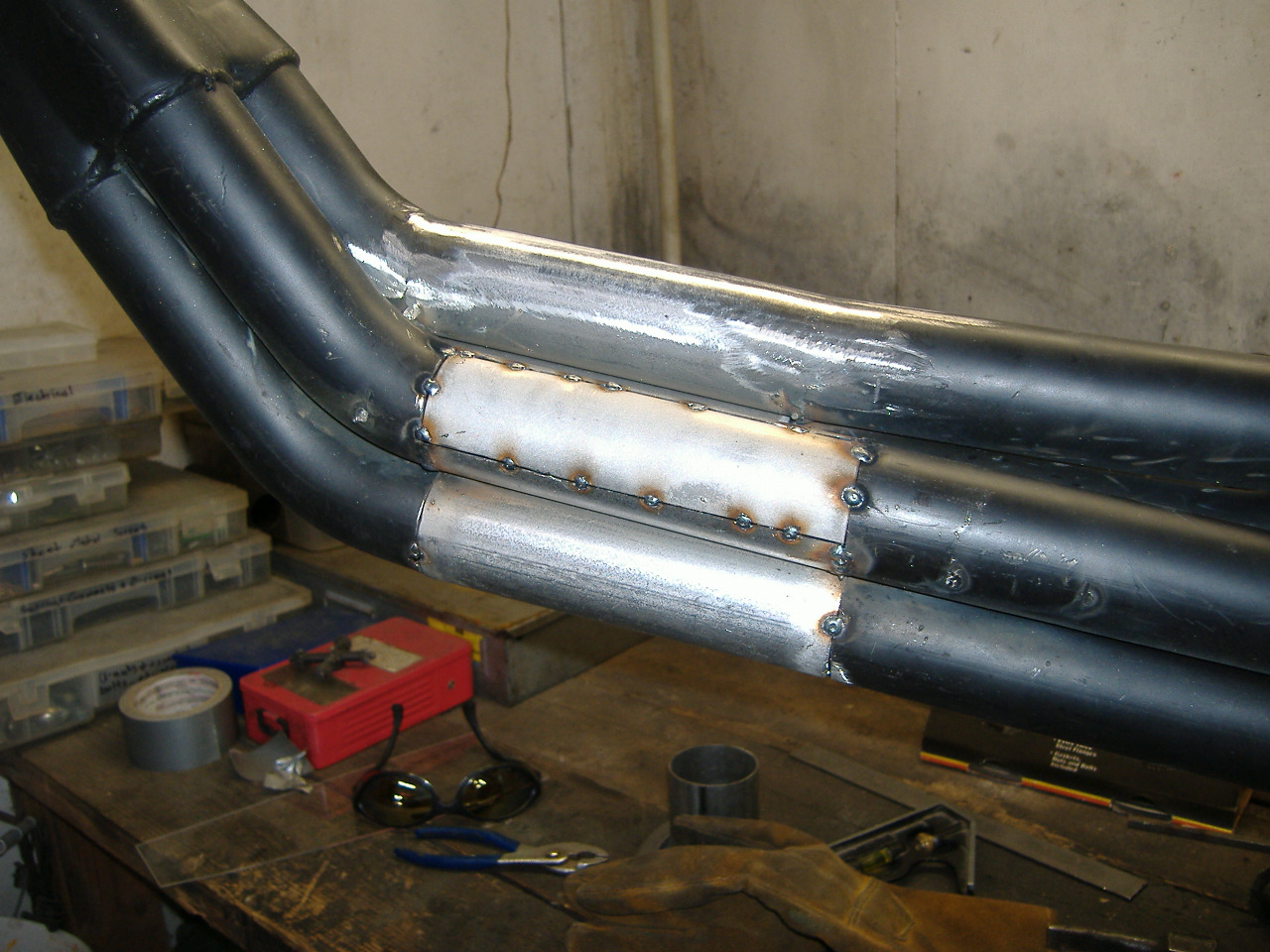

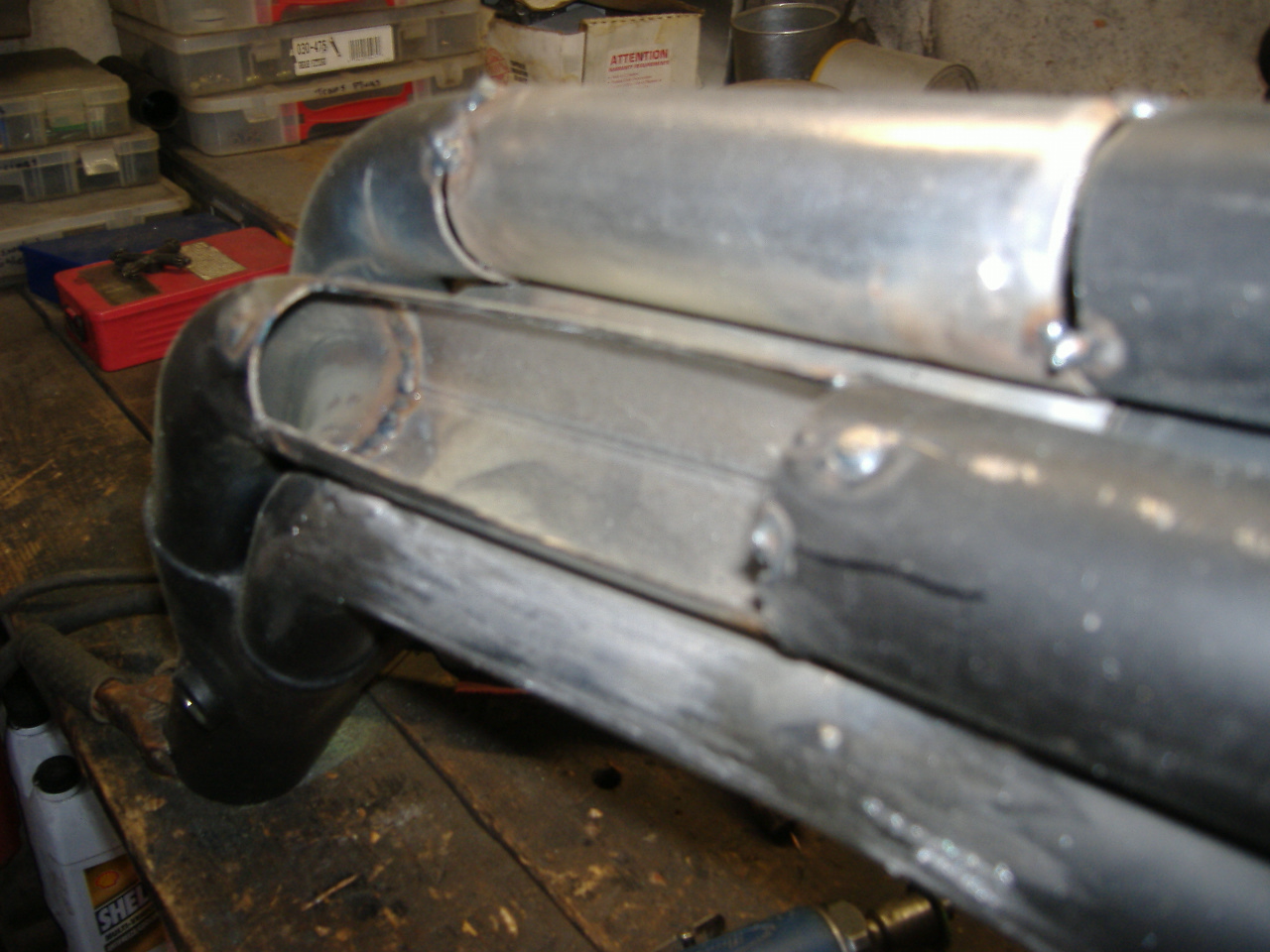

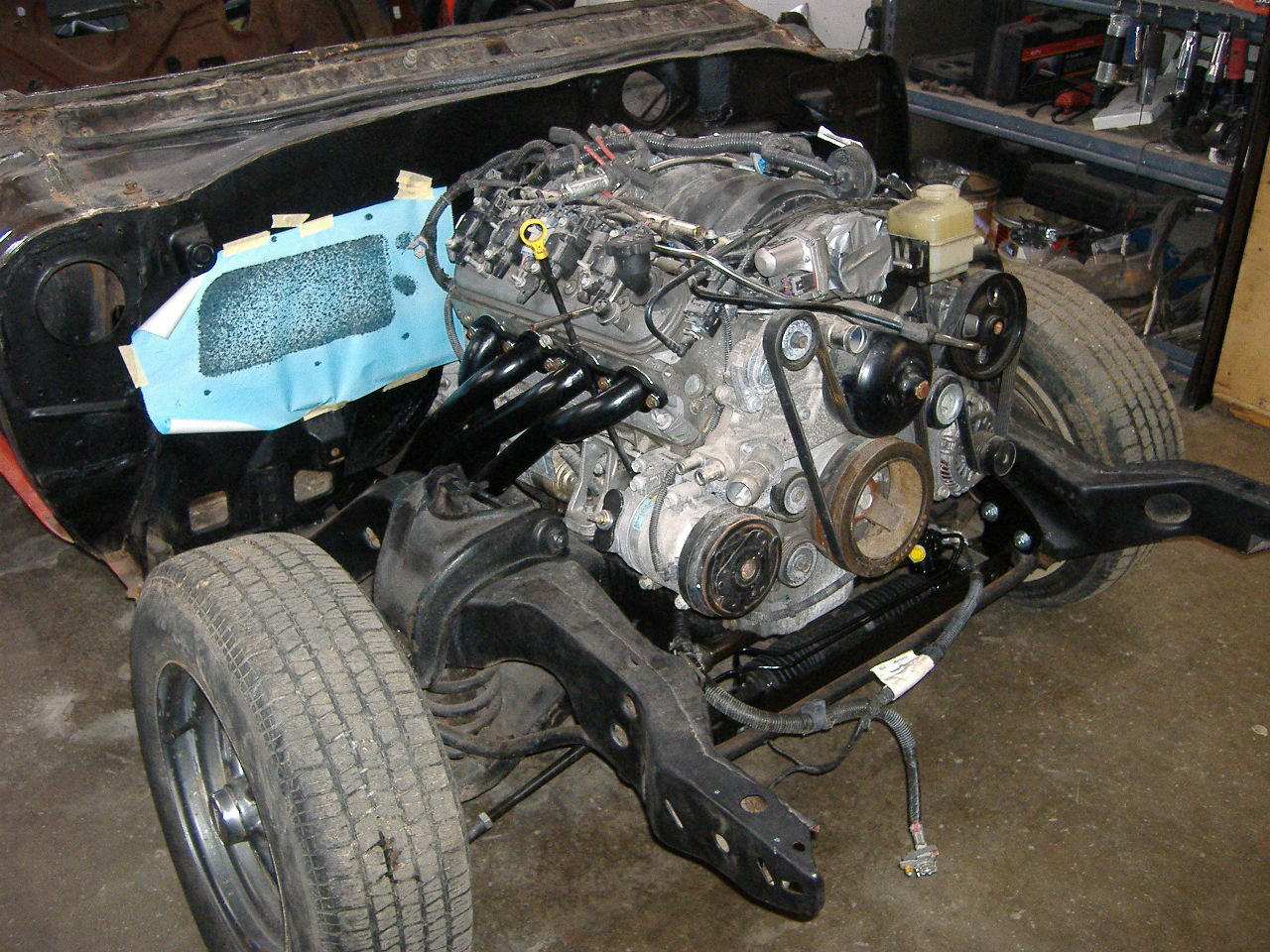

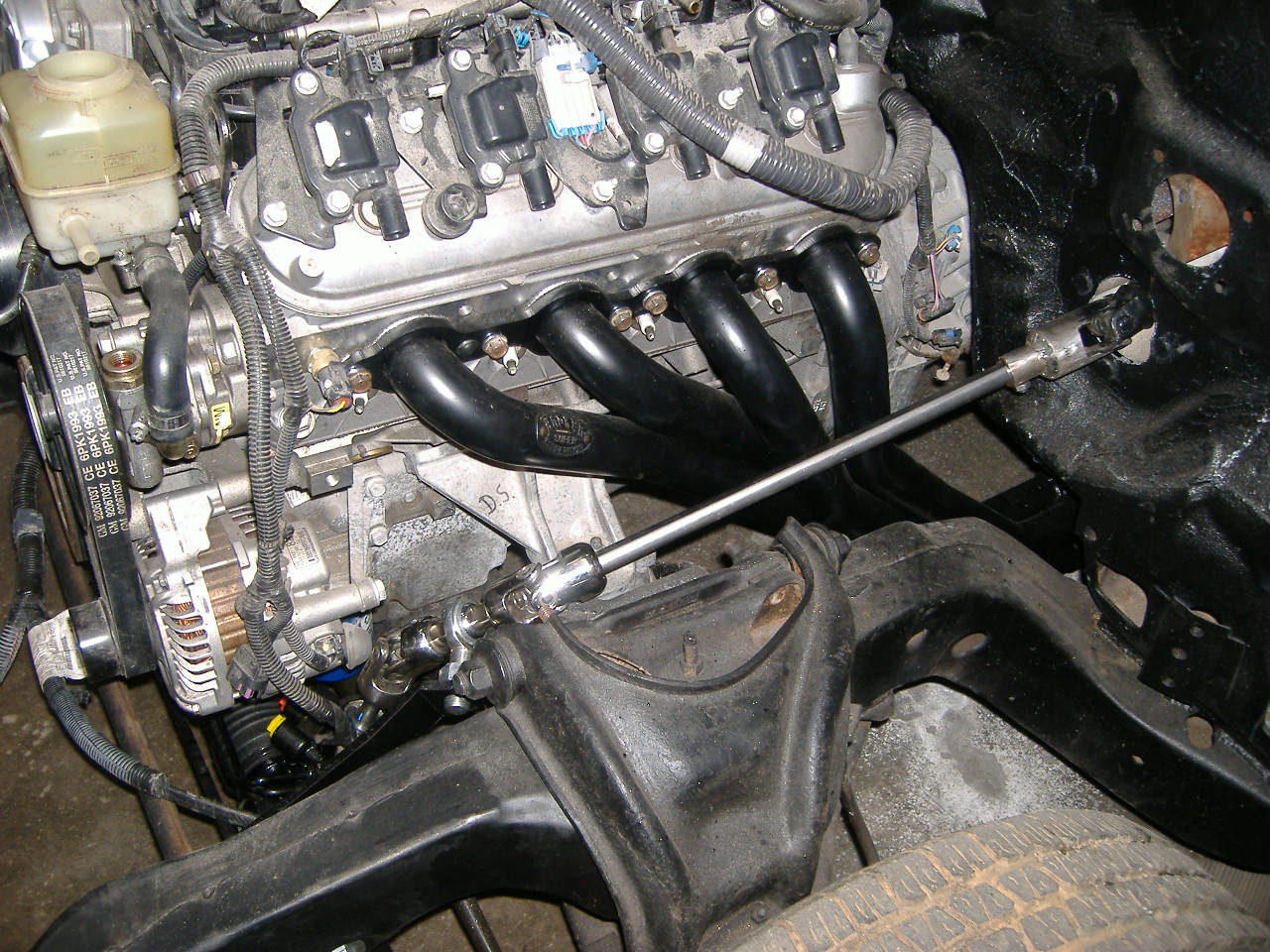

The headers were

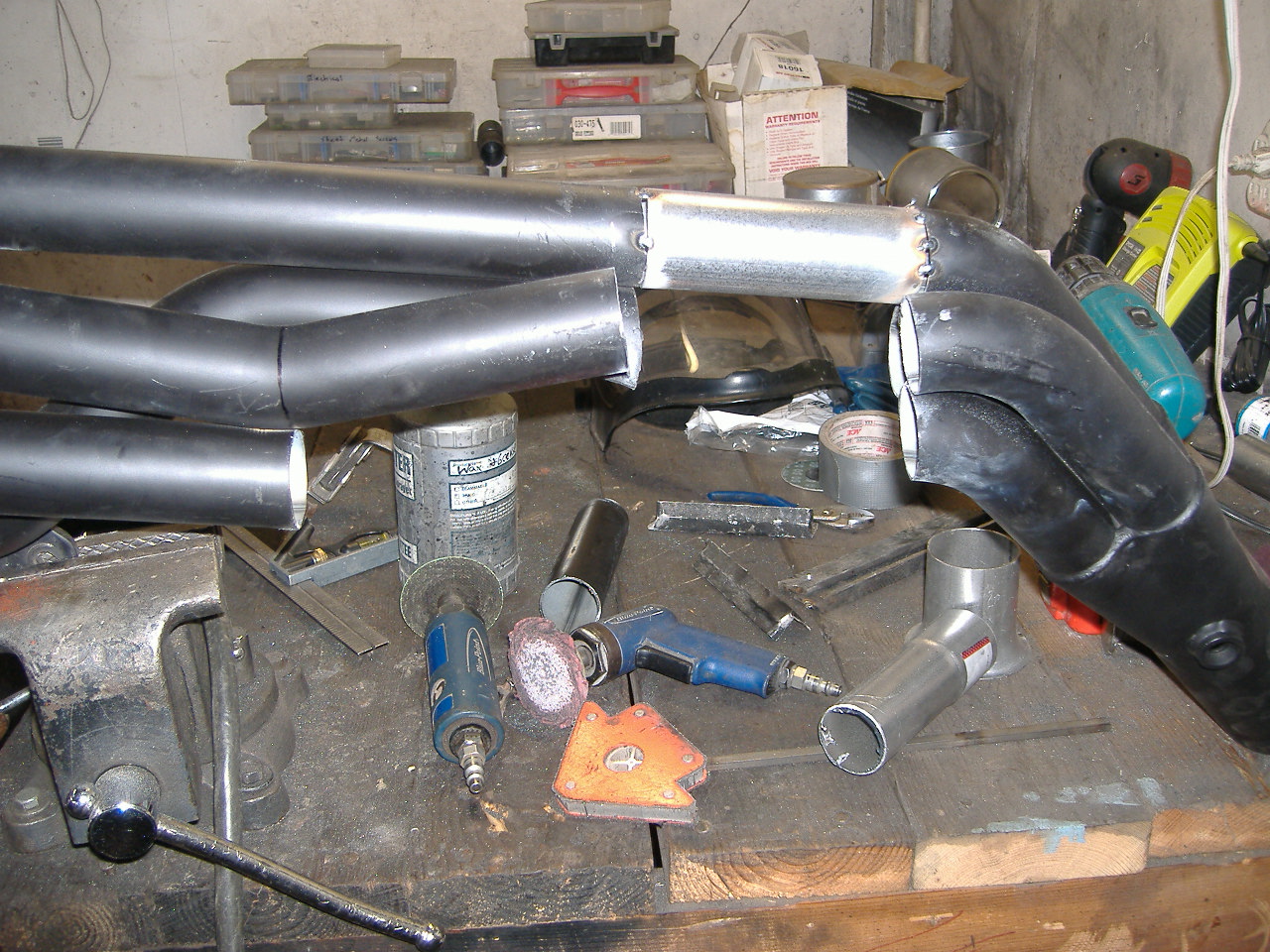

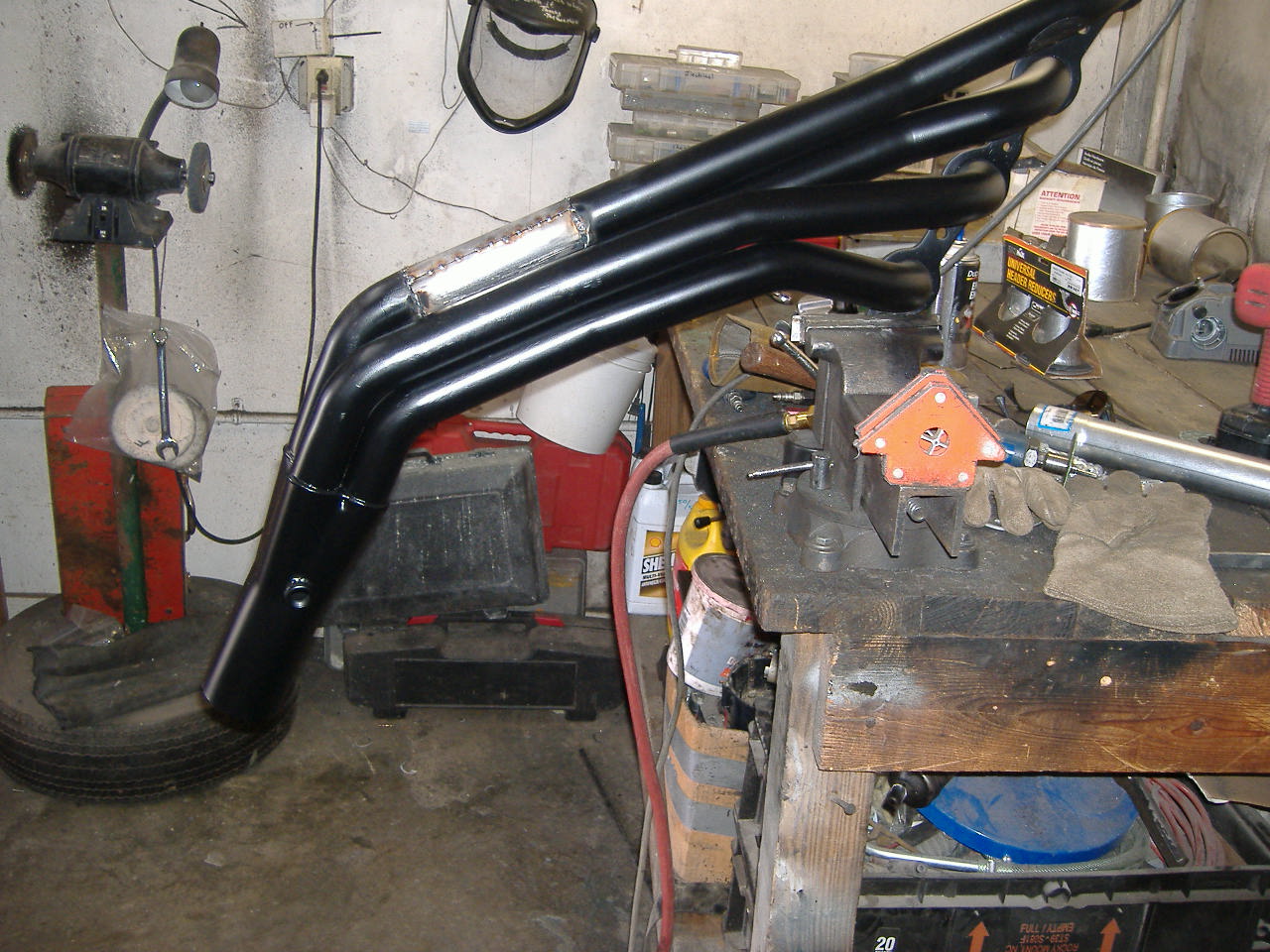

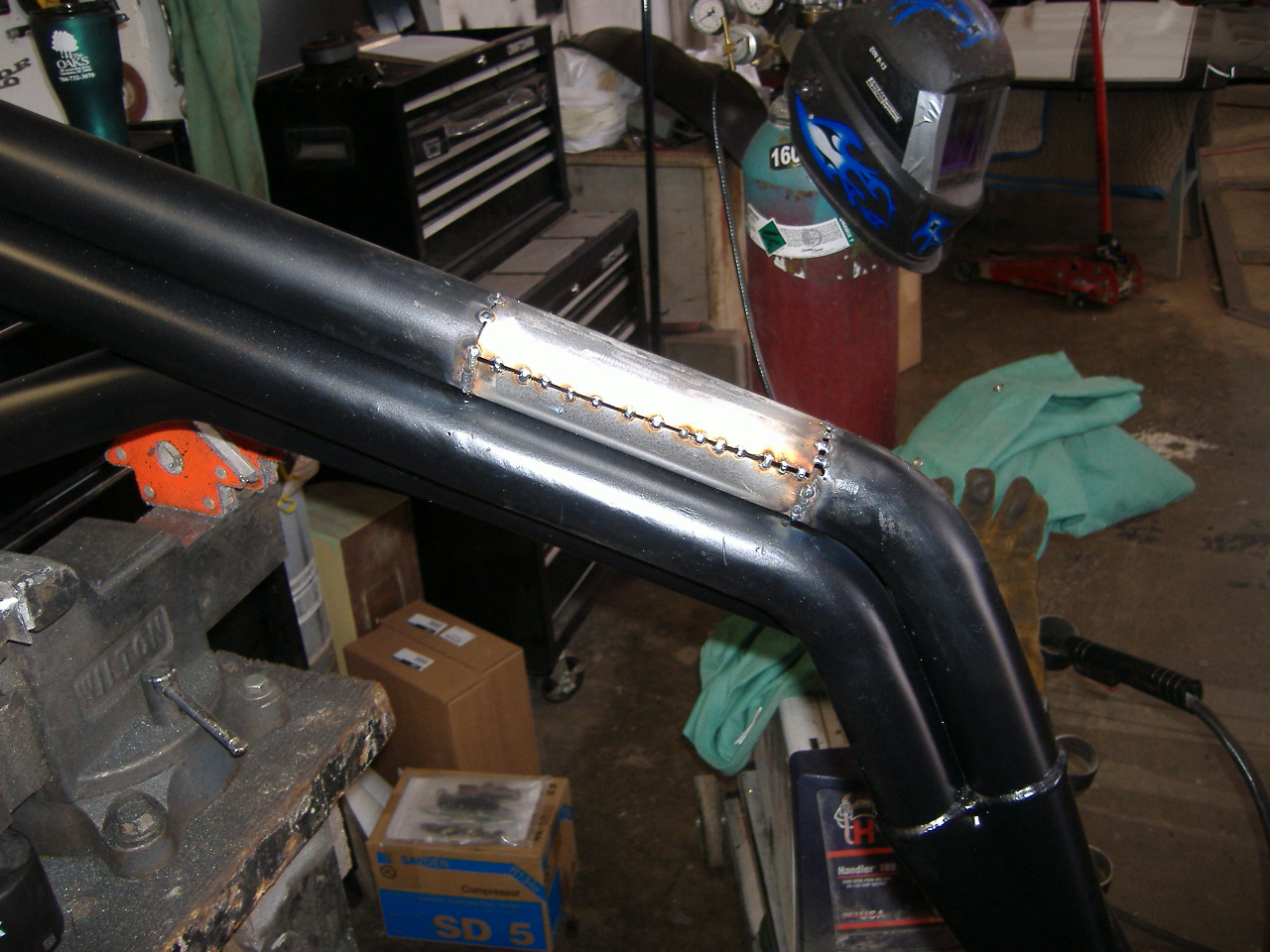

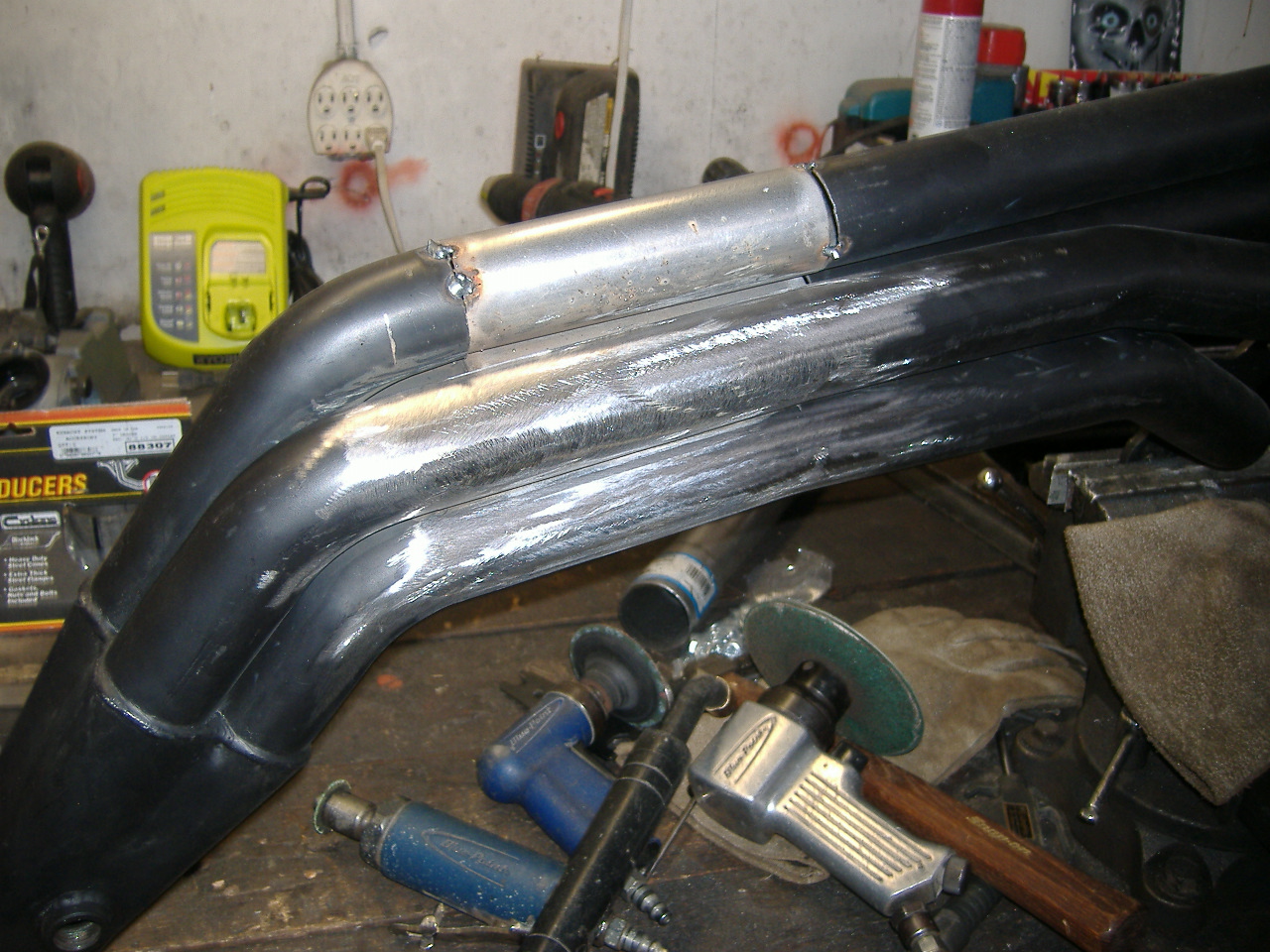

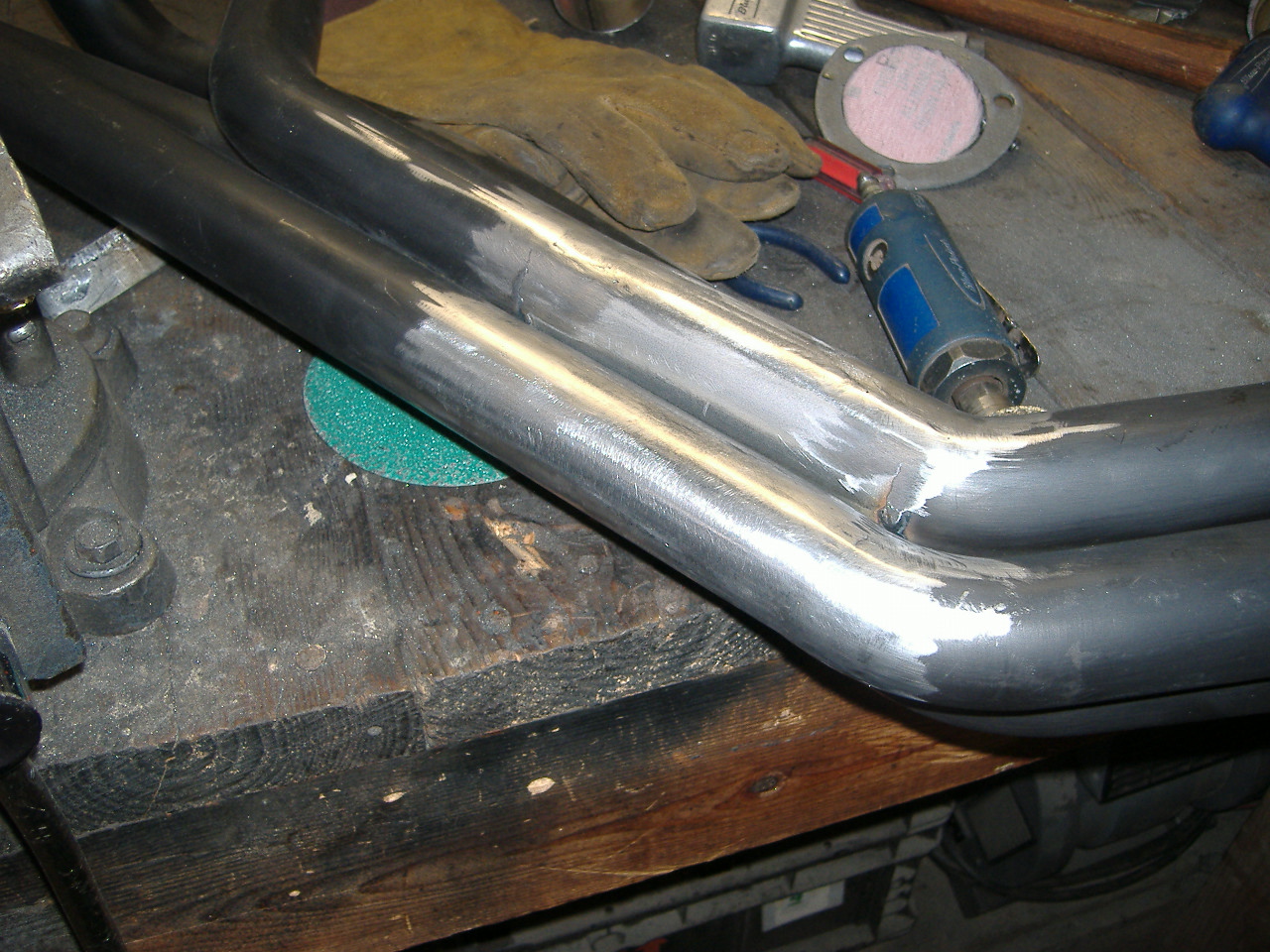

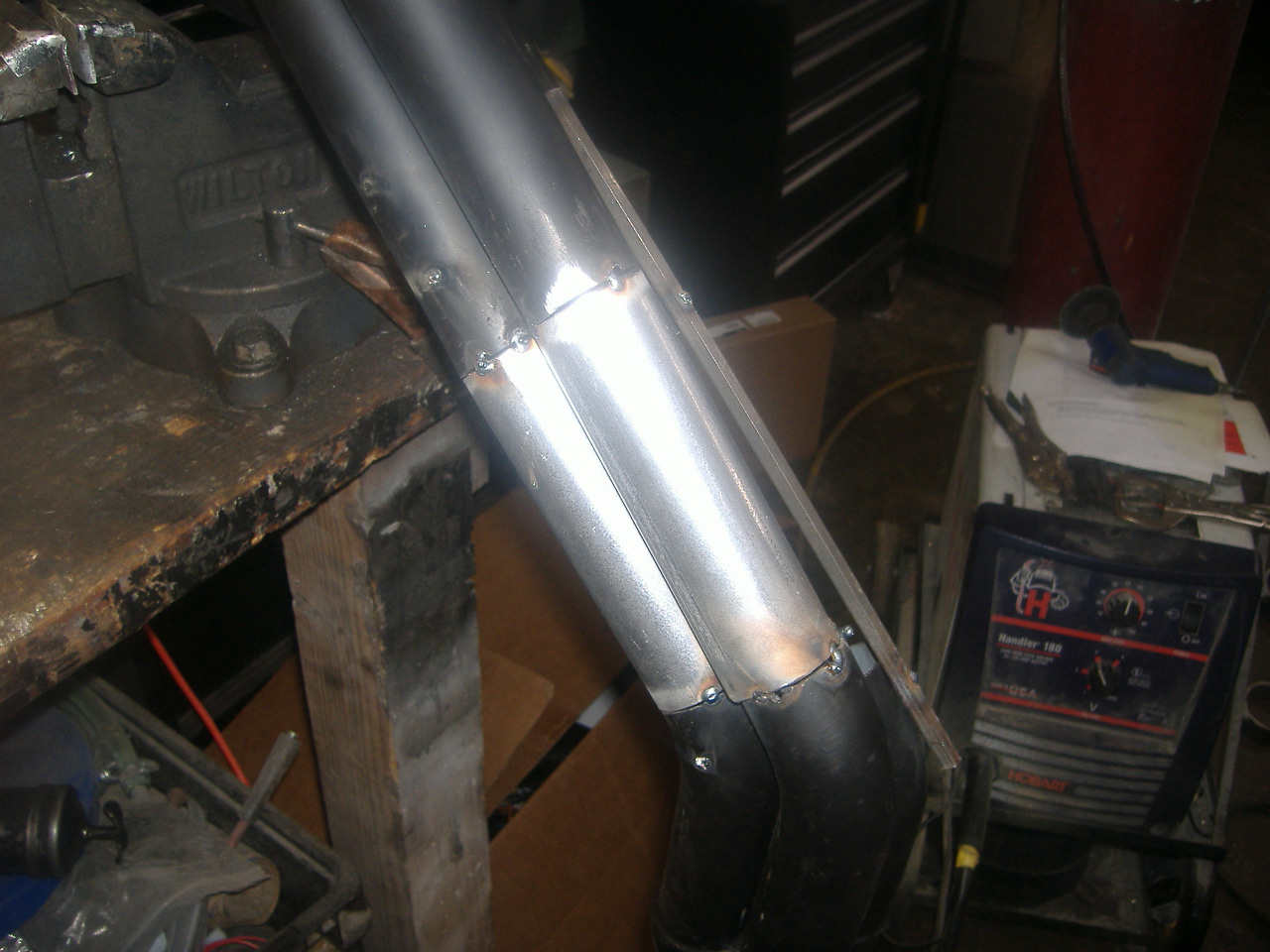

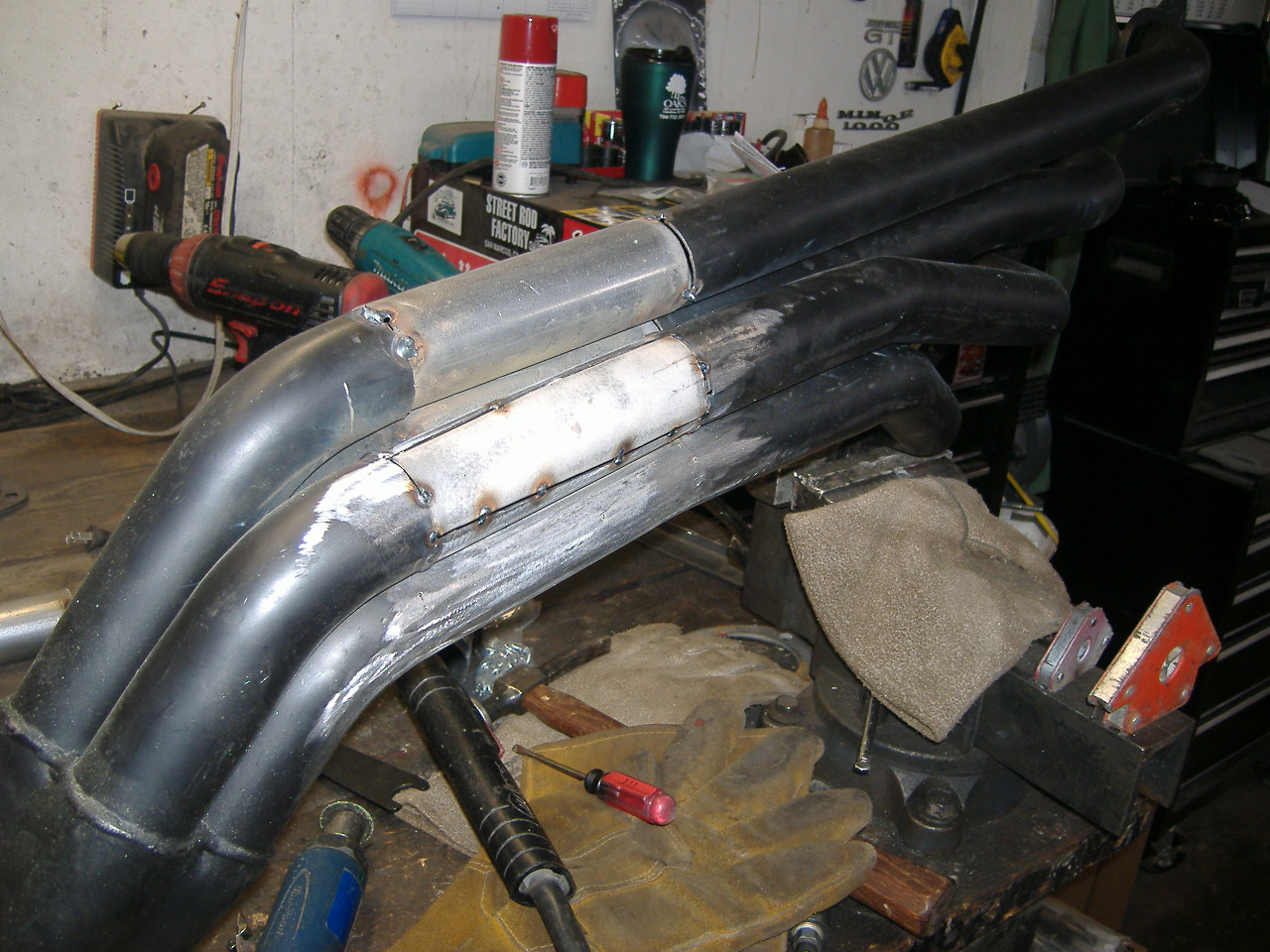

too short so we added a few extra inches to them.

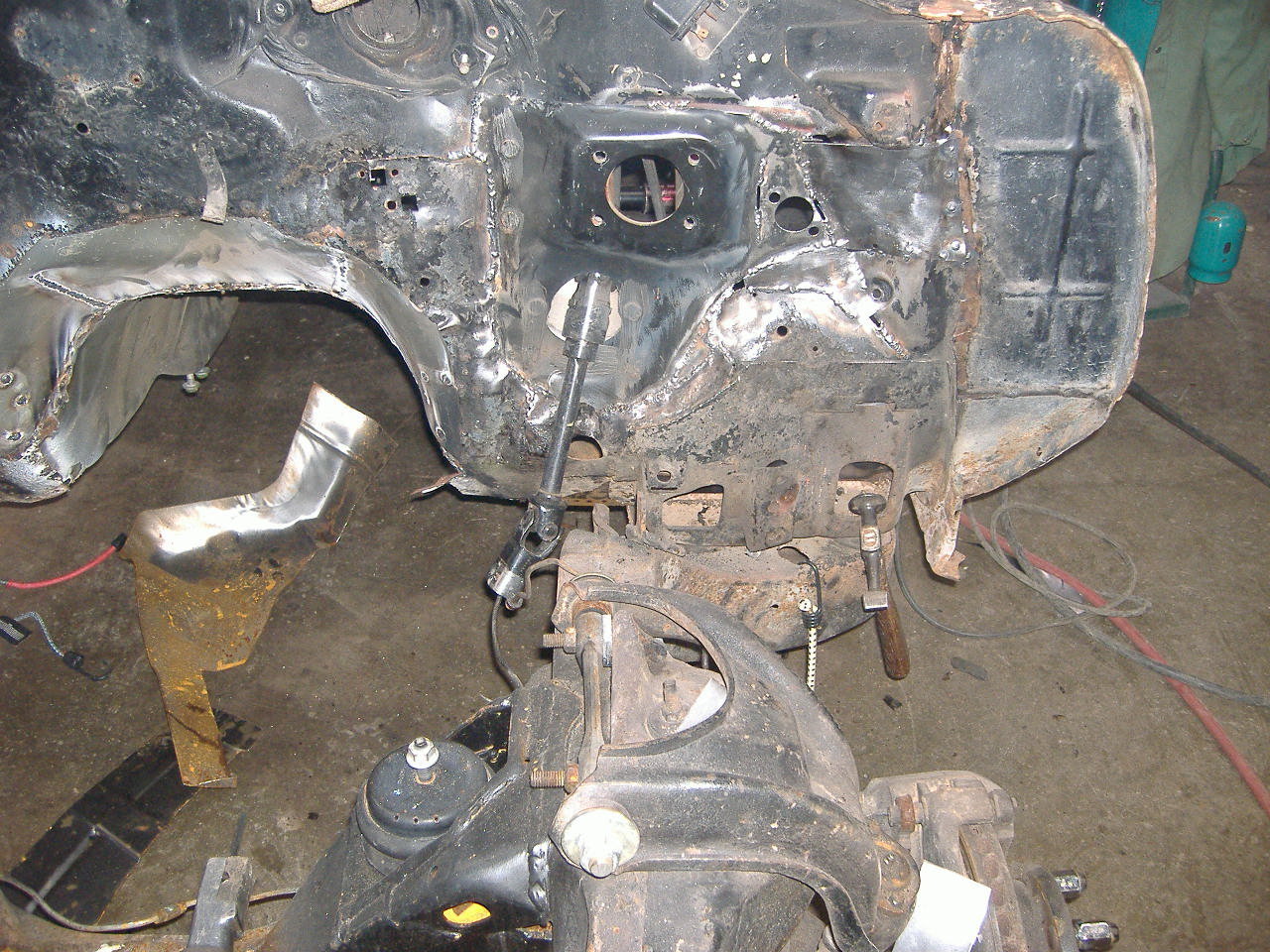

Steering Modification
Rack & pinion

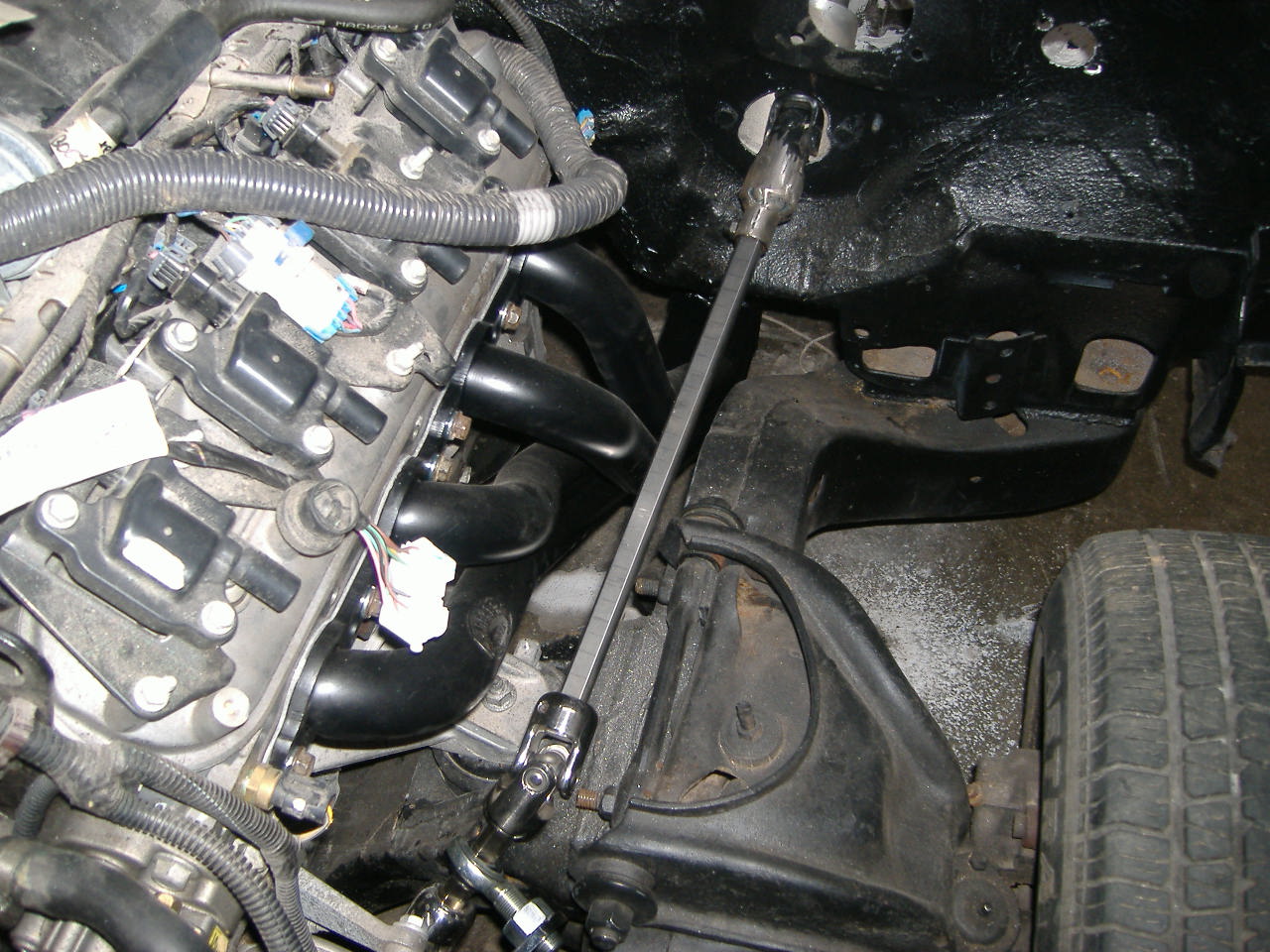

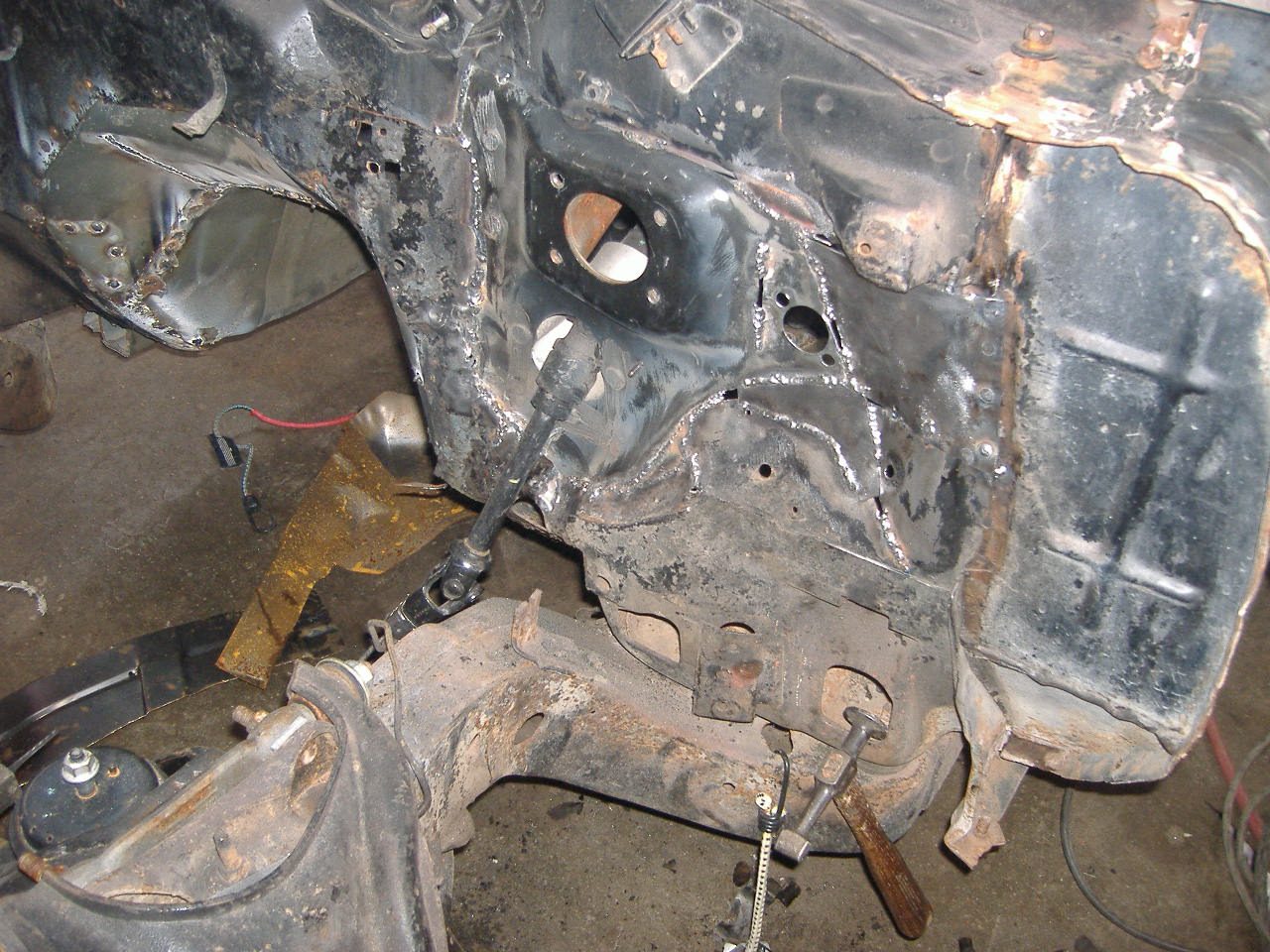

connected to the 2006 GTO column
|
|
|
|
New Rack and Pinion steering
|
|
|
|
|
A/C Installation

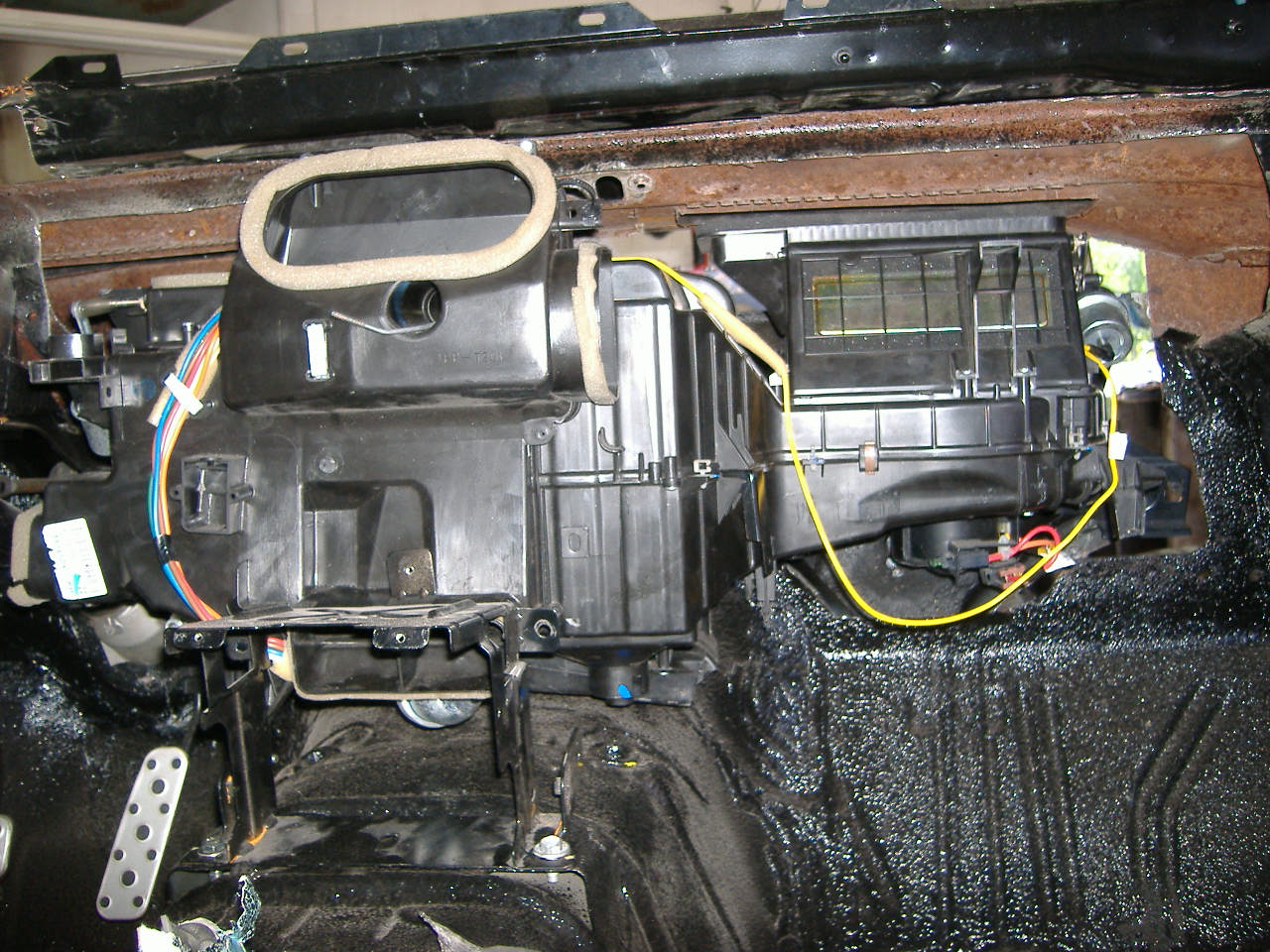

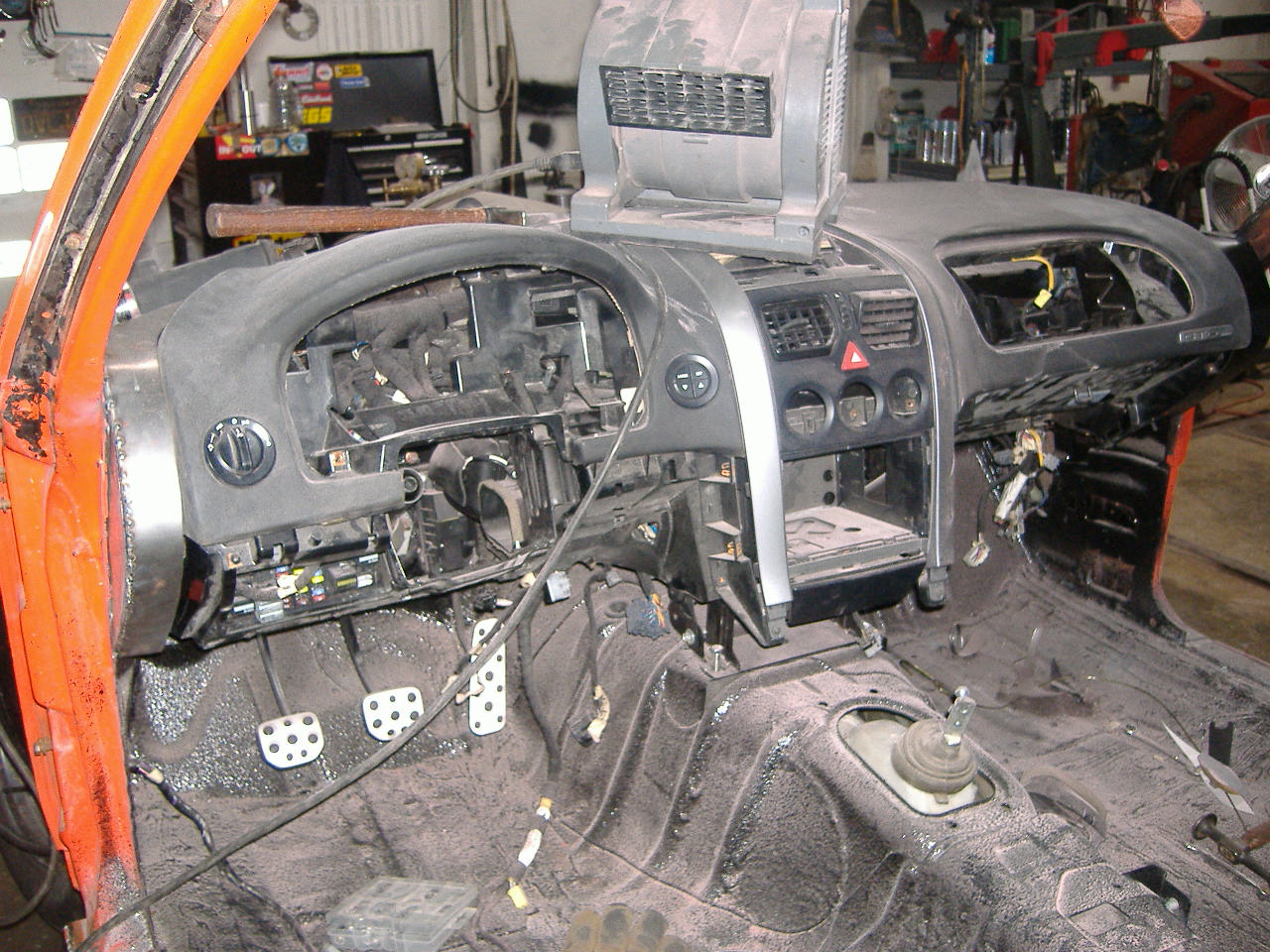

2006 GTO A/C box
into the 69 (very tight fit)
|
|
|
|
|
|
mocking it up
|
|
|
|

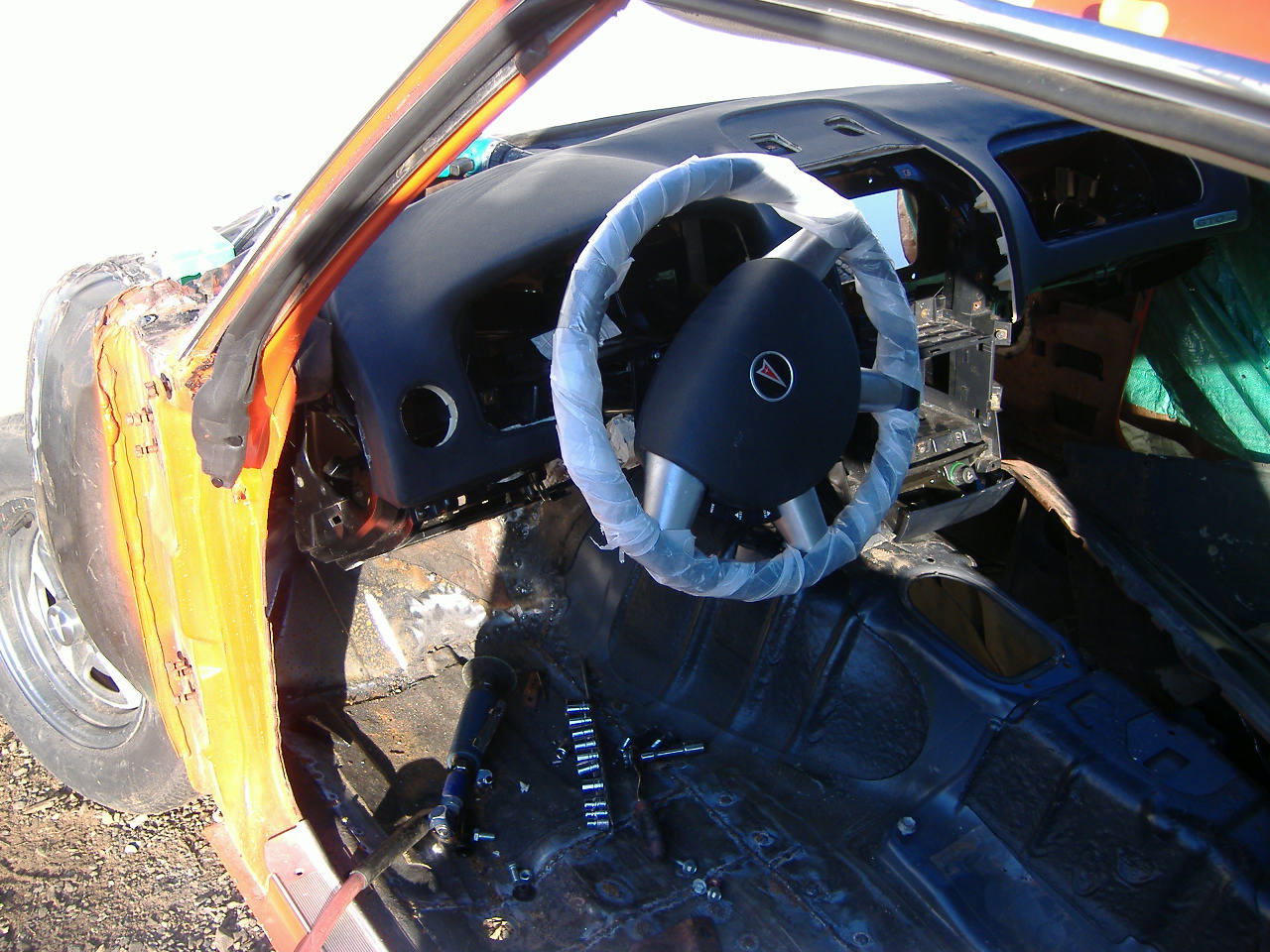

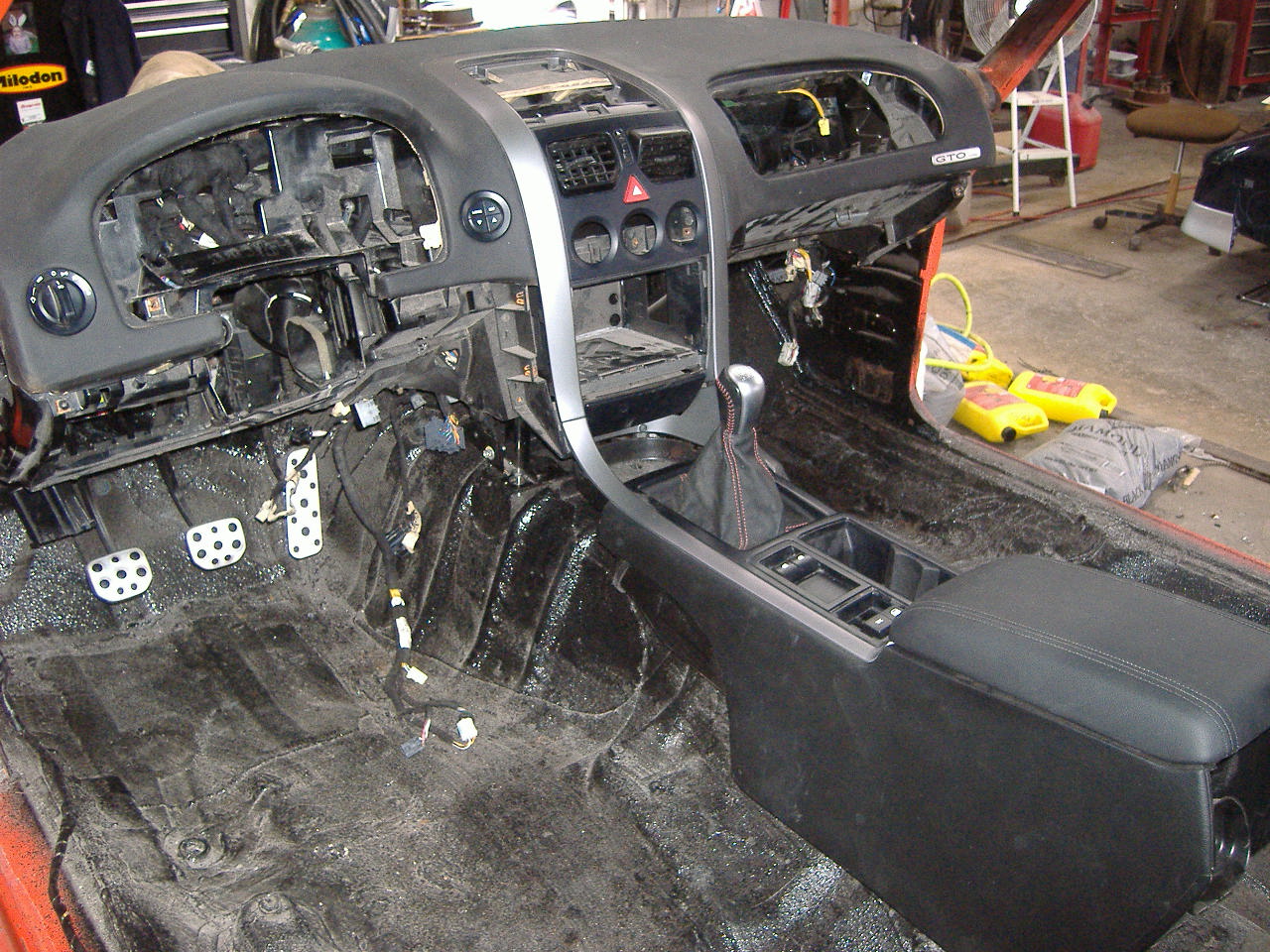

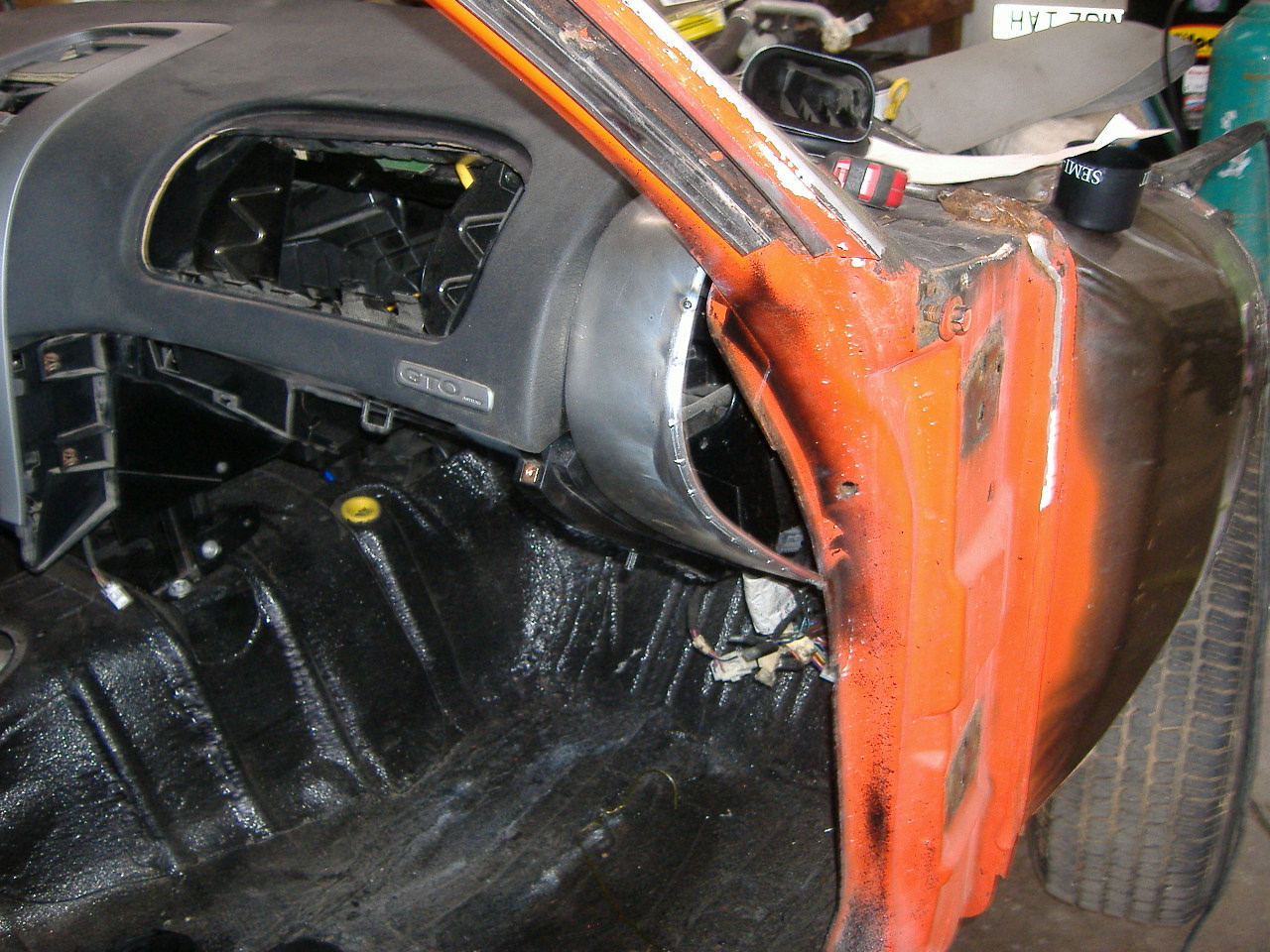

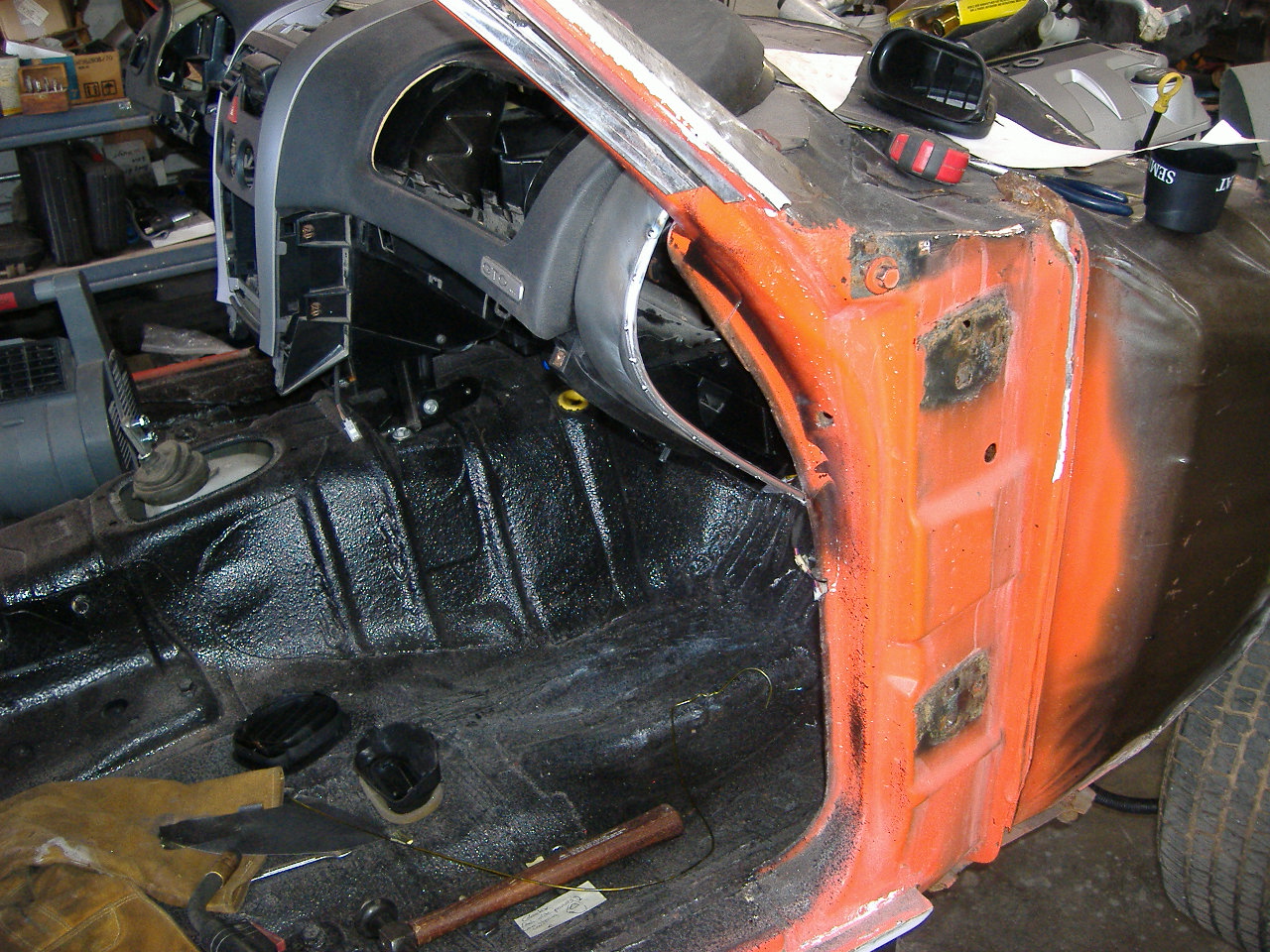

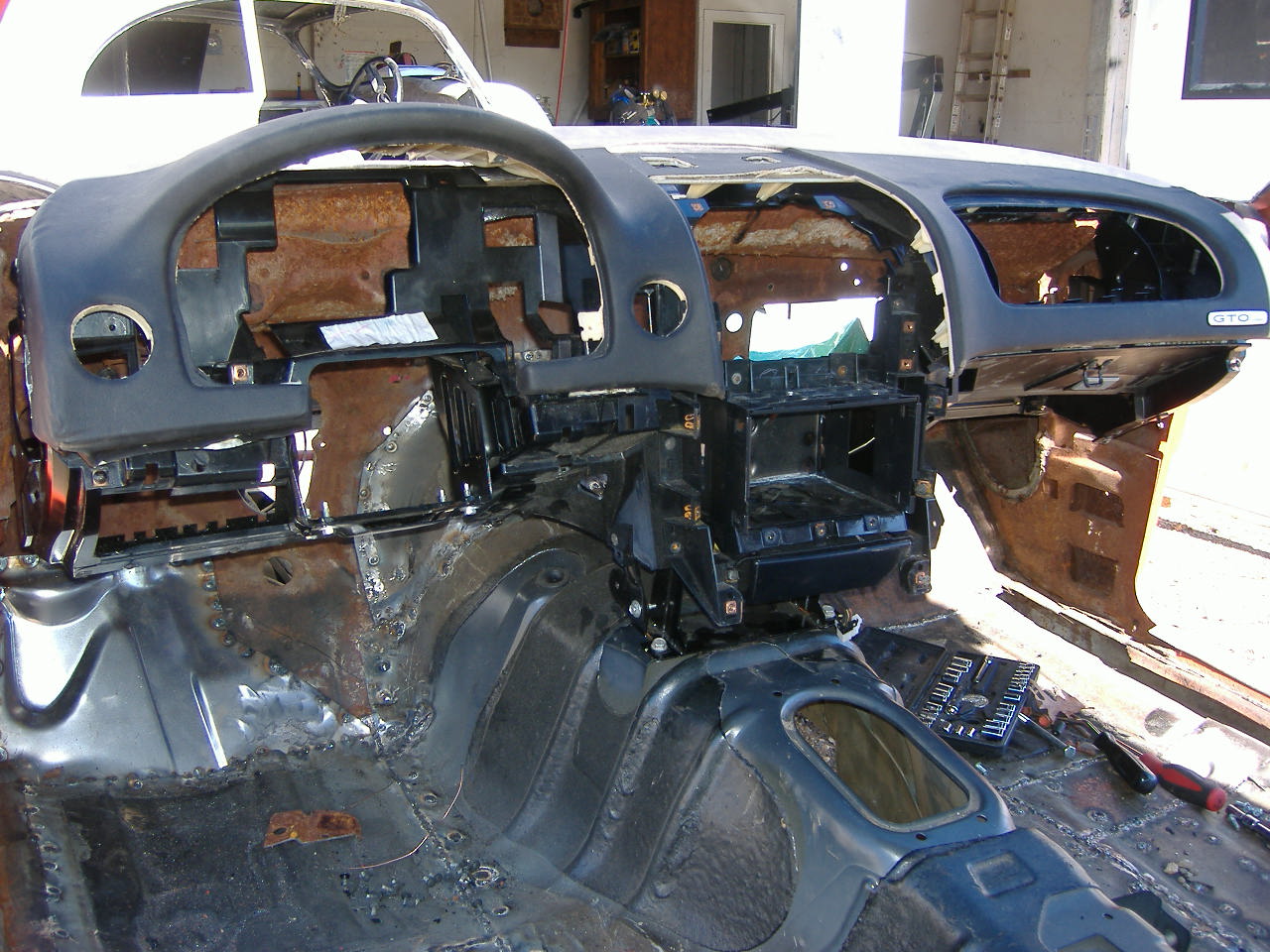

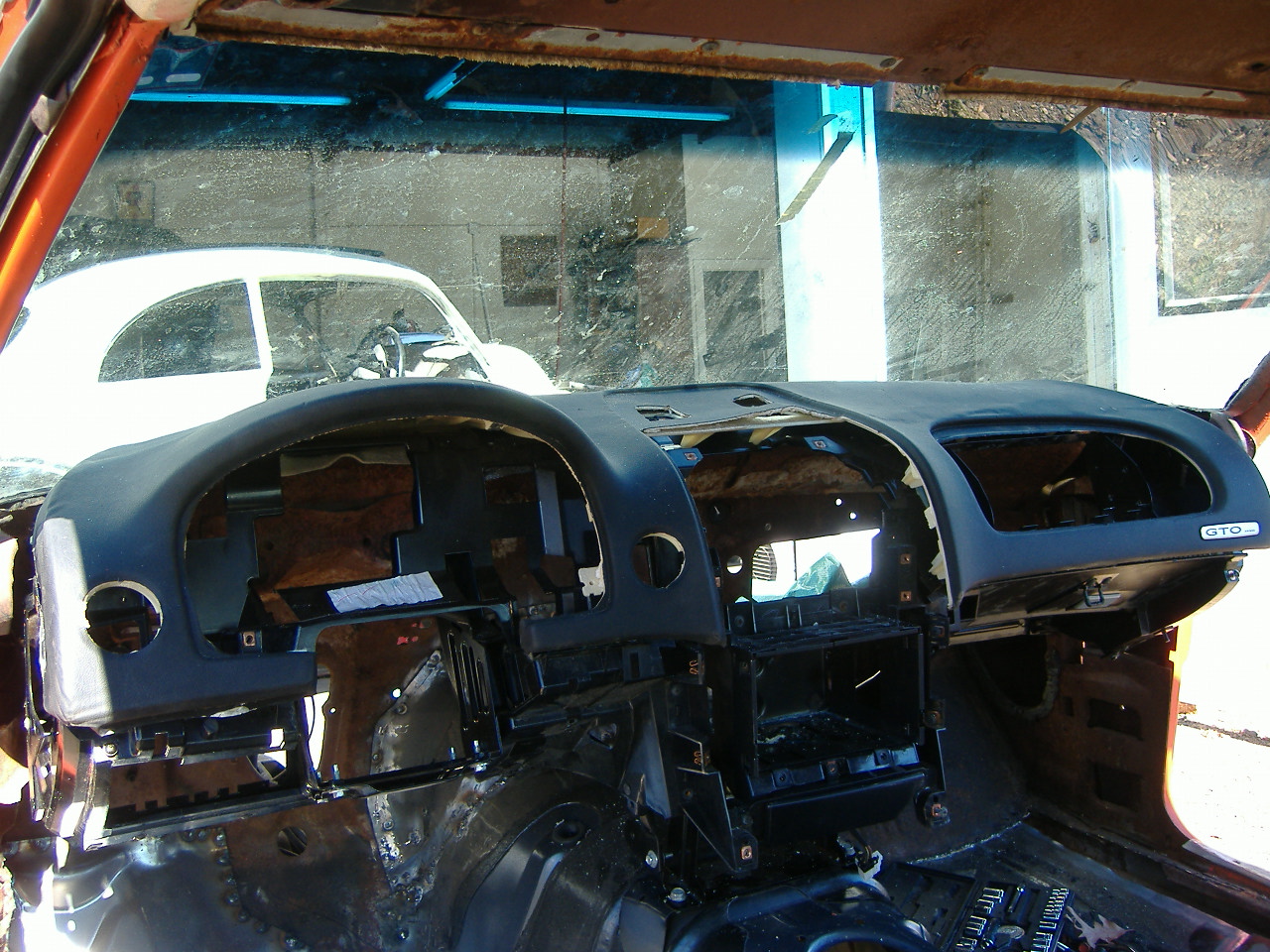

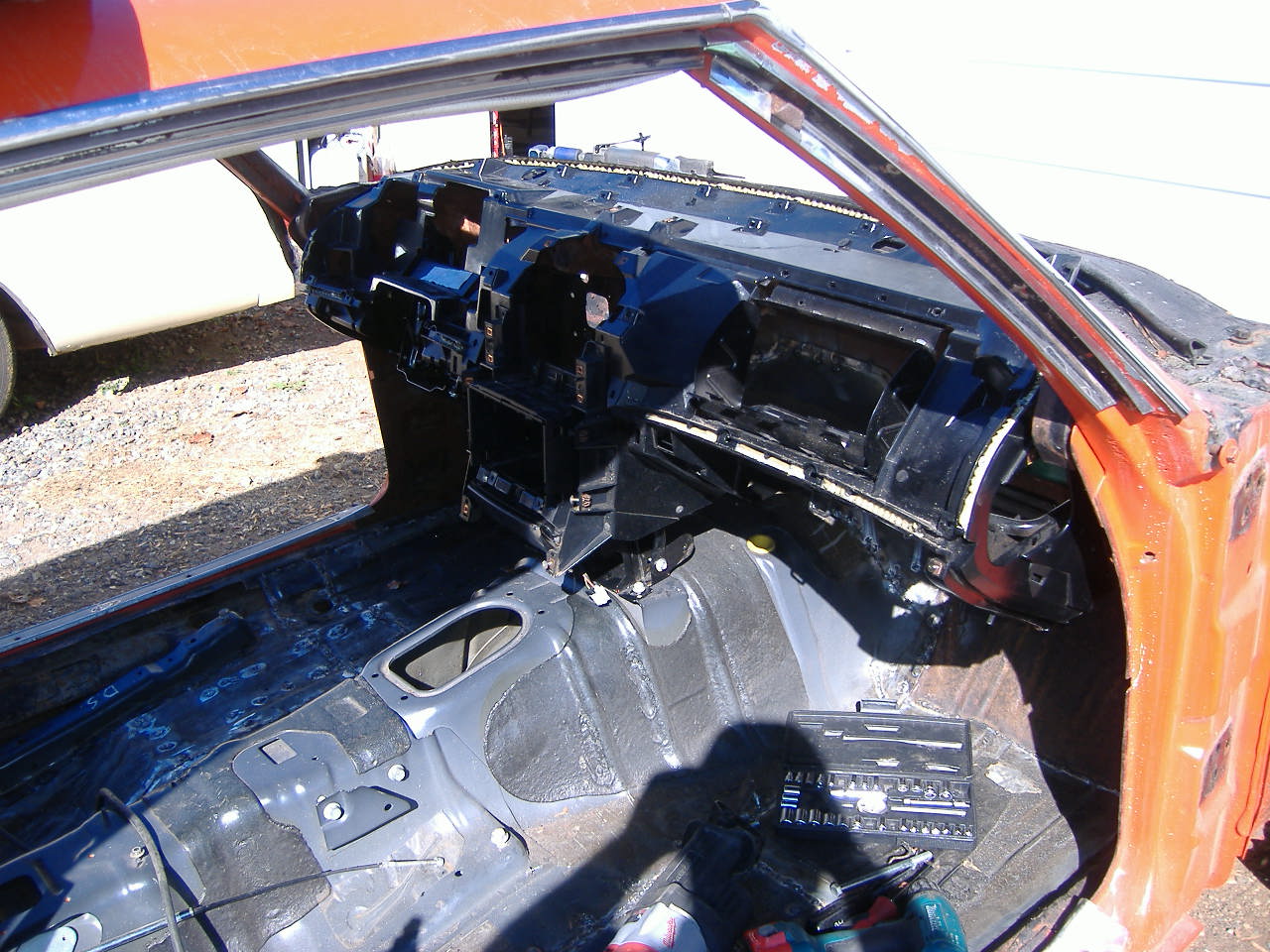

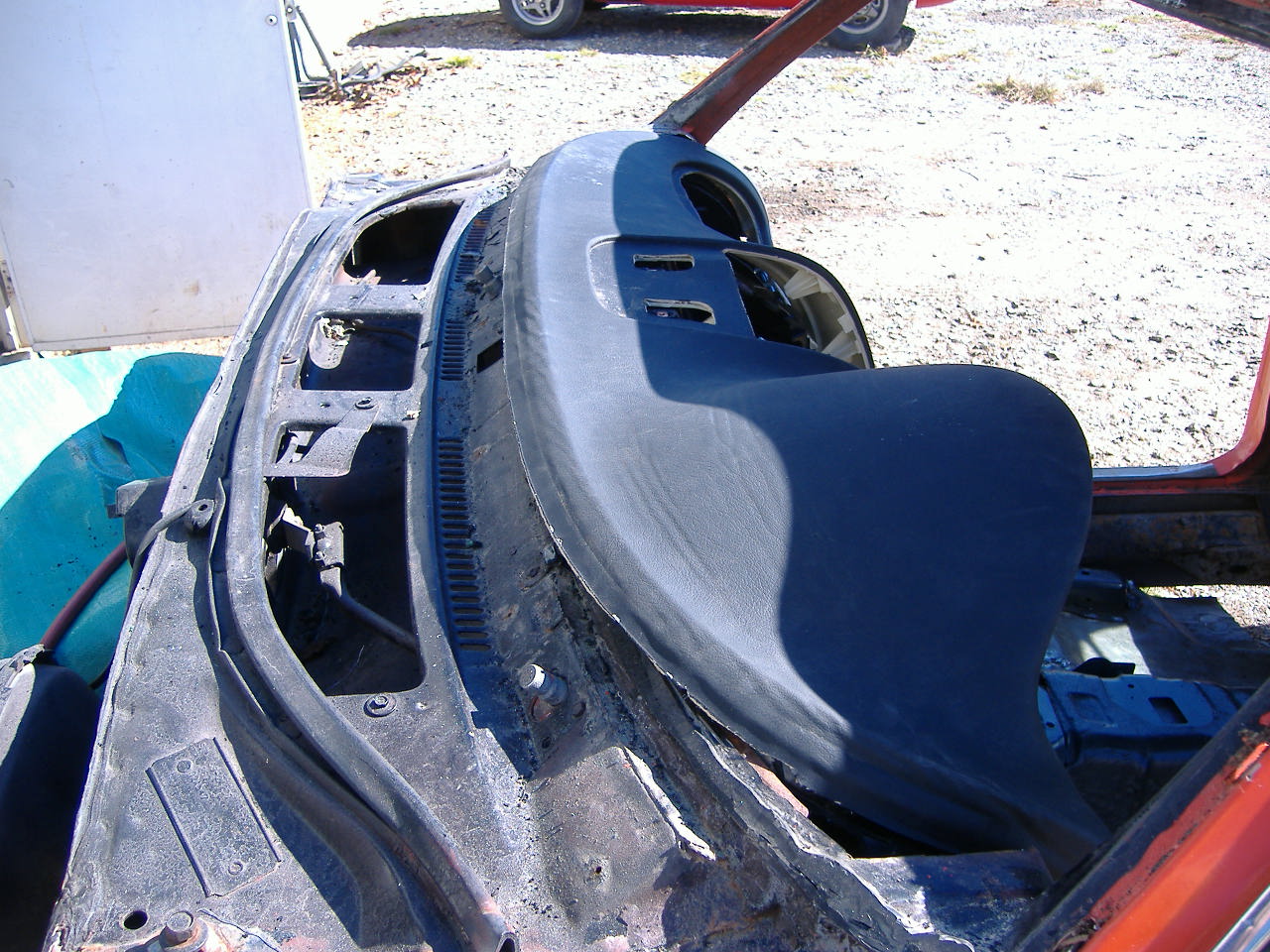

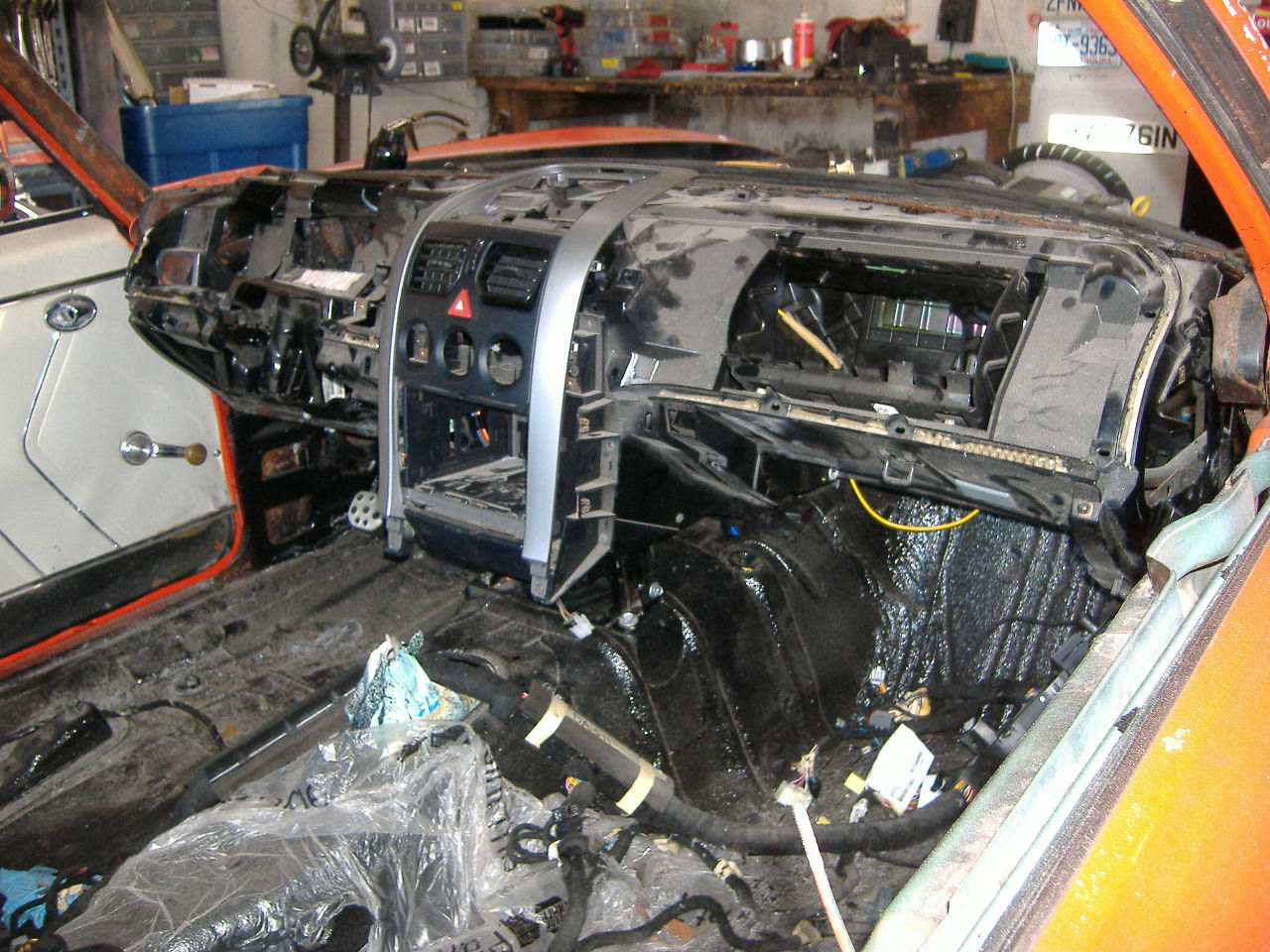

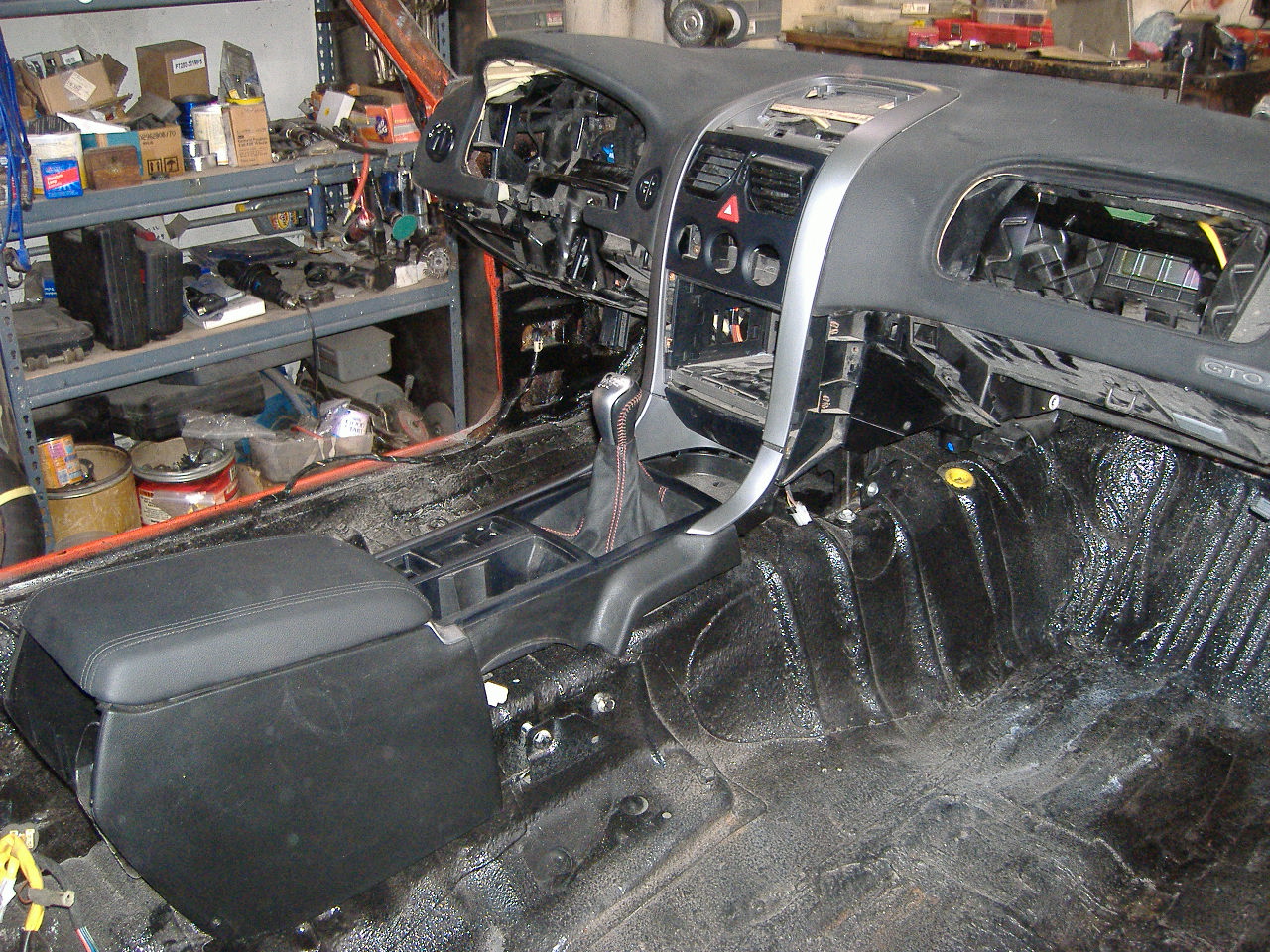

Insuring the dash will fit
|
|
|
|
|
|

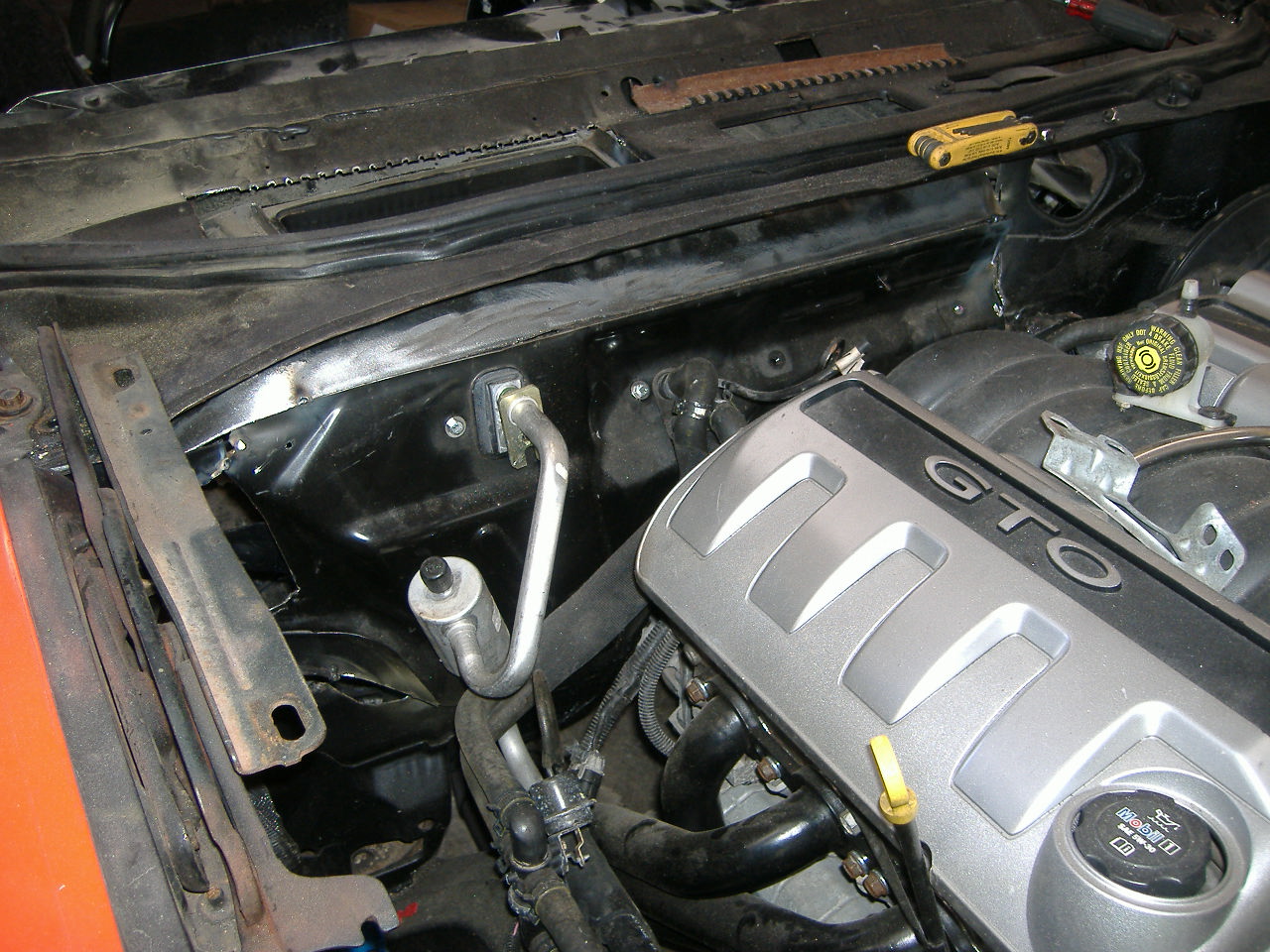

Hooking up the hoses/lines
|
|
|
|
|

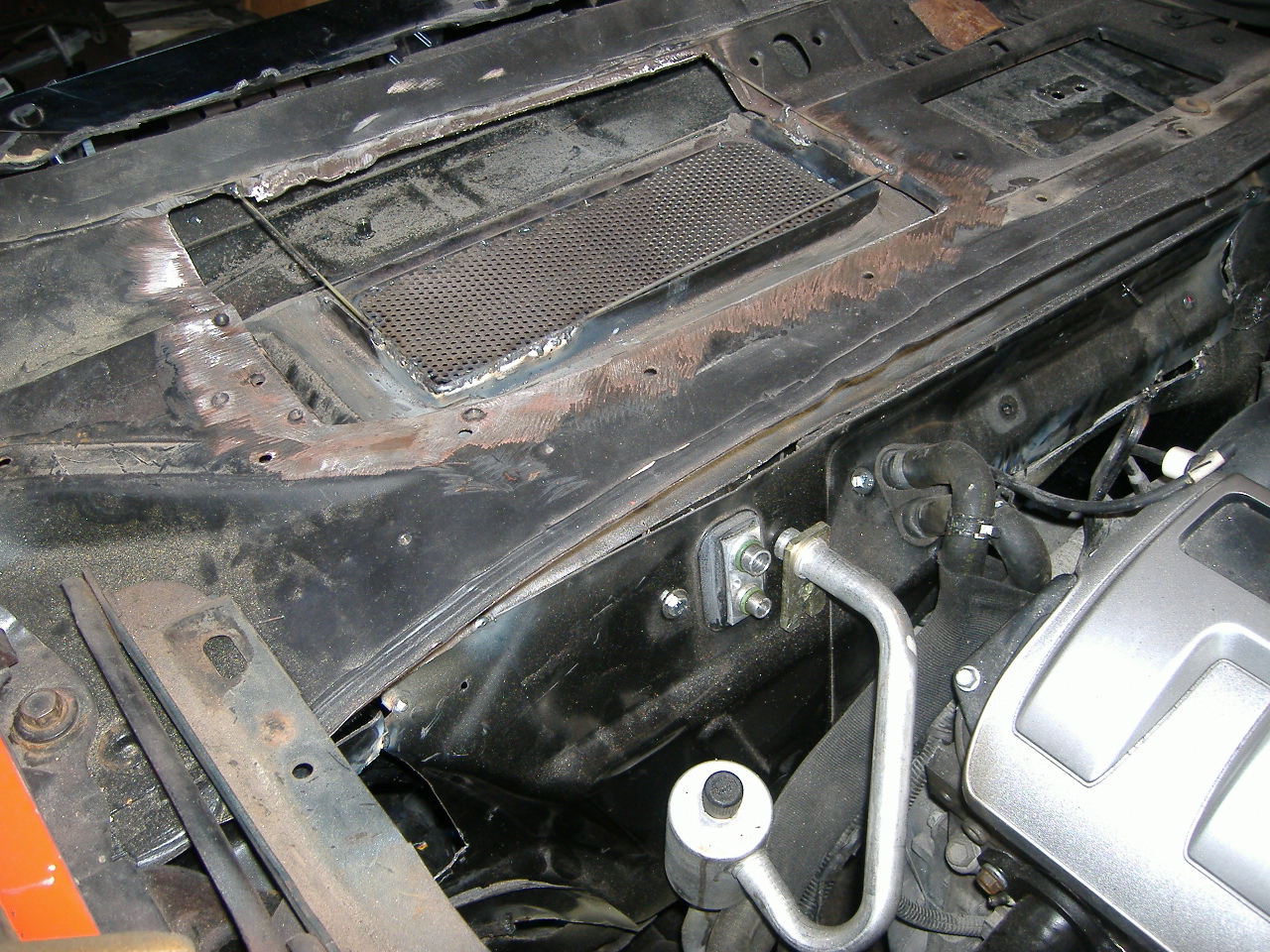

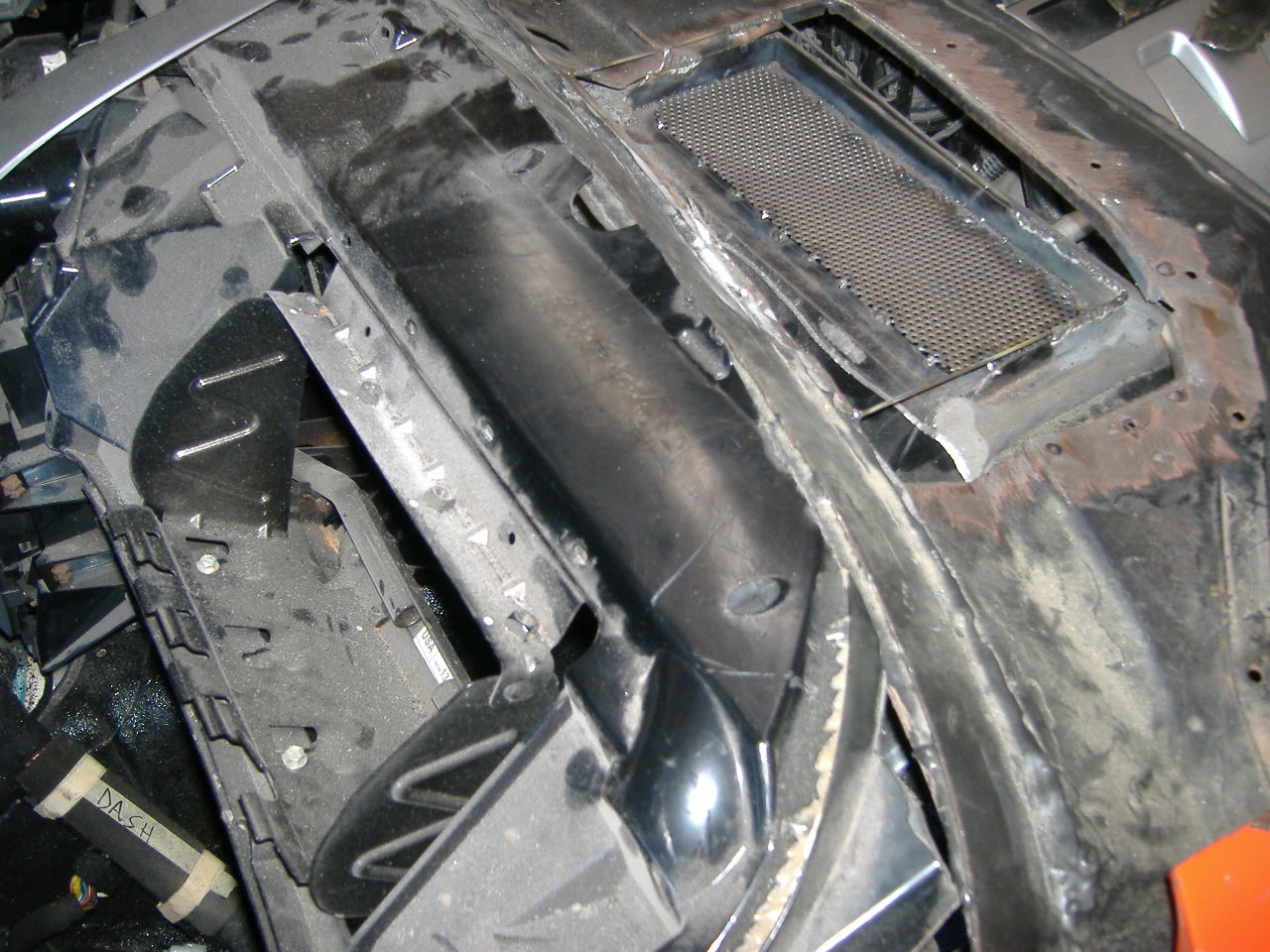

Fresh air vent in cowl
|
|
|
|
|
|
|
more fresh air vent fabrication
|
|
|
|
|

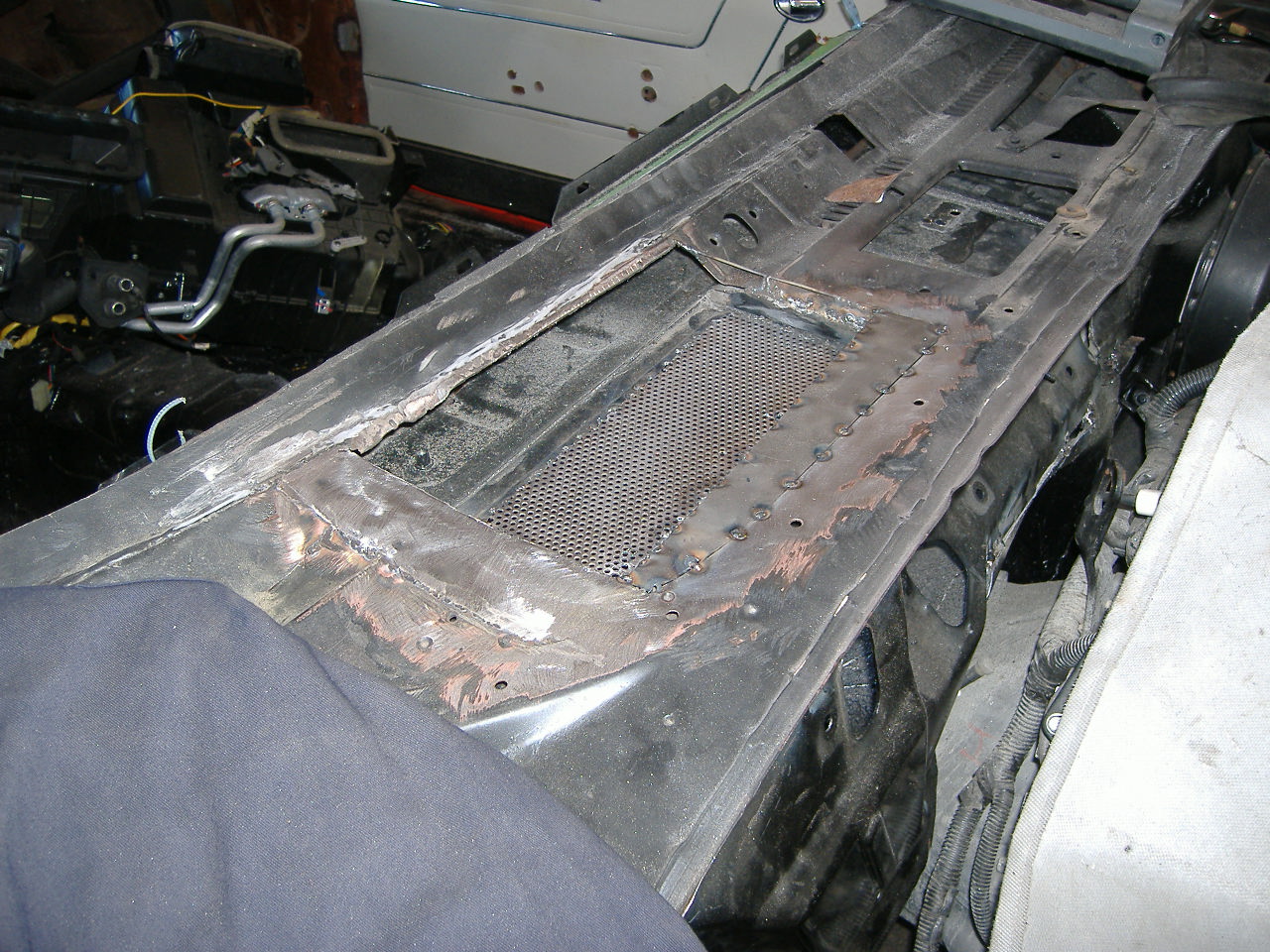

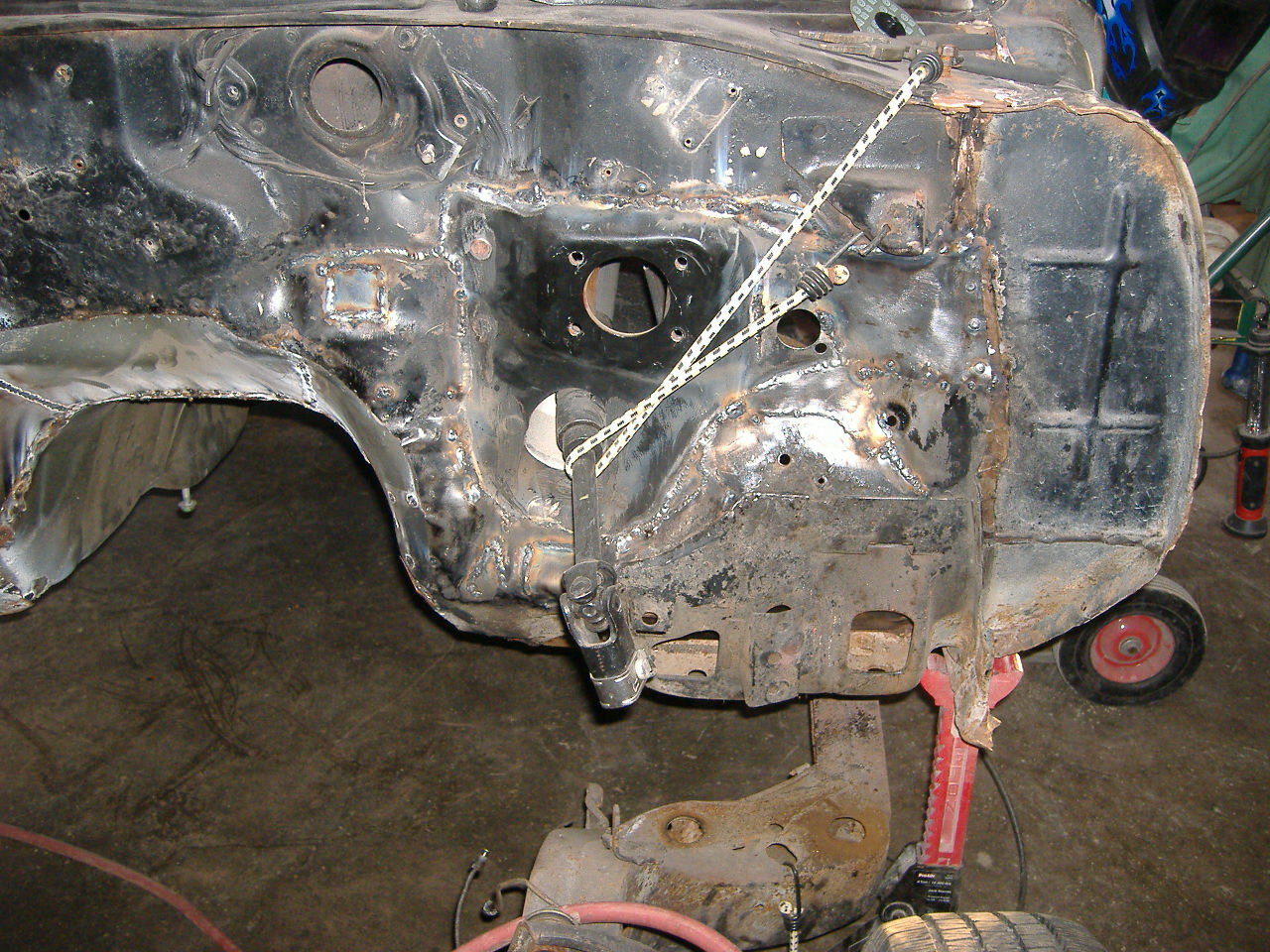

grafting the firewall.
|
|
|
|

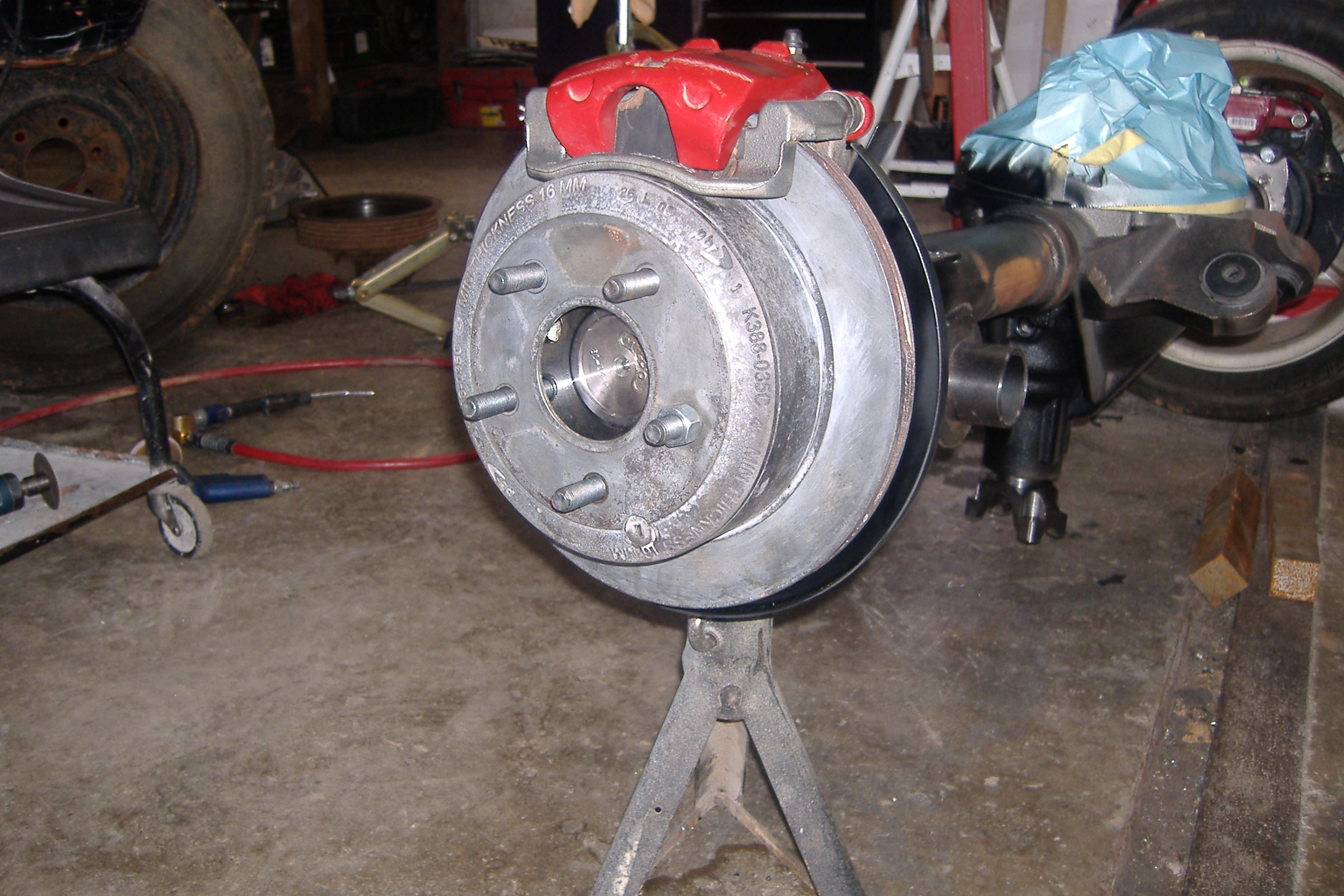

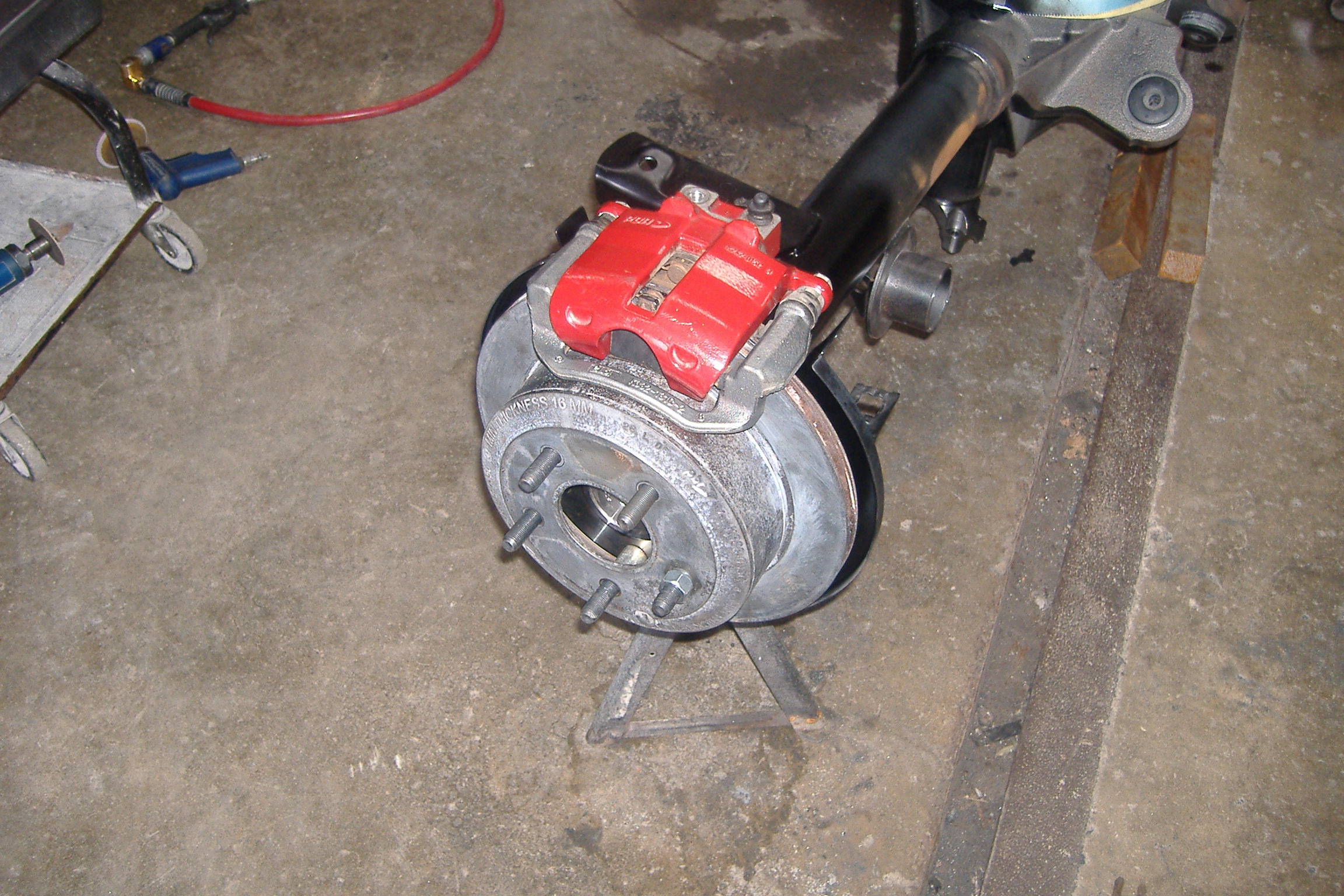

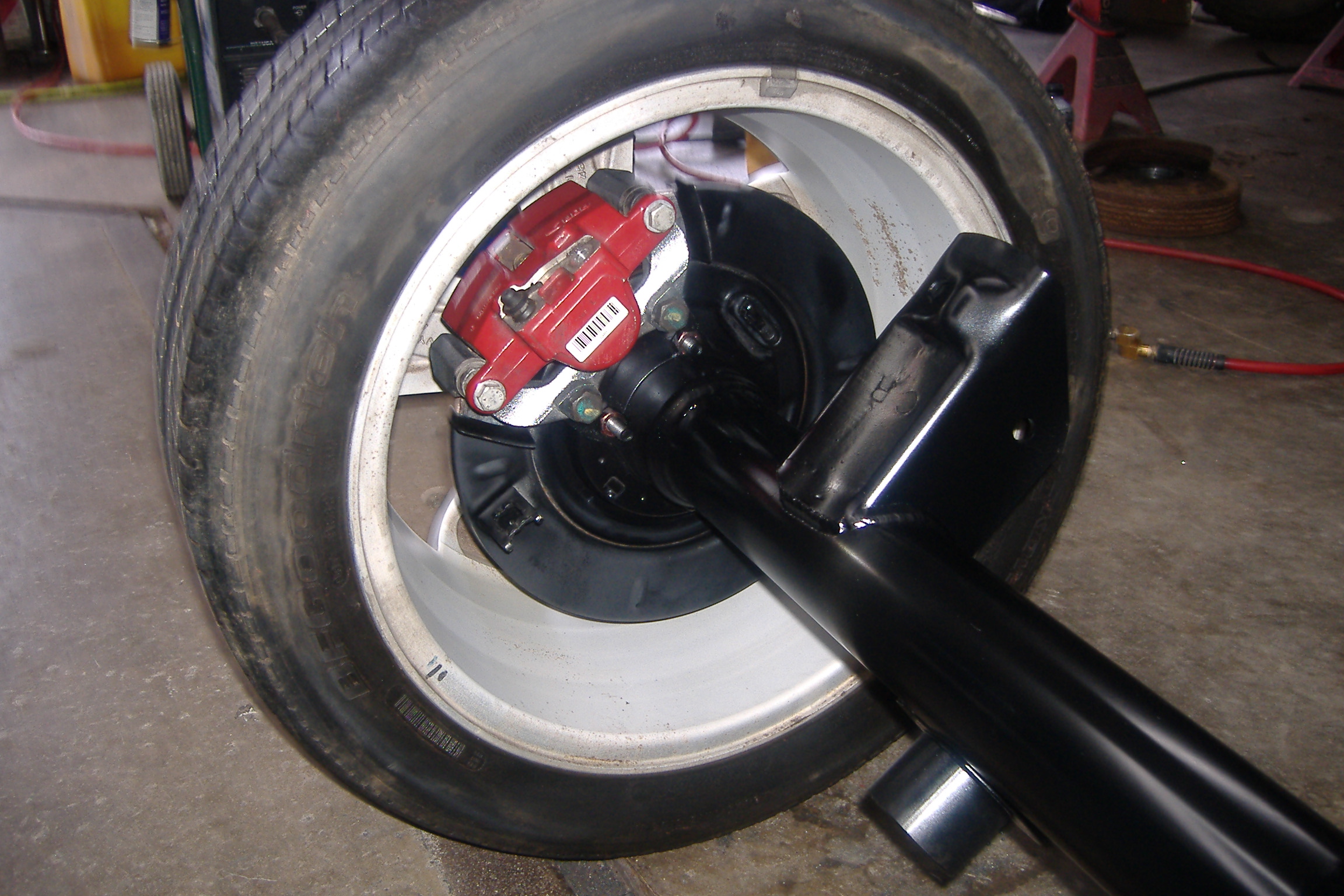

New Rear end with 06 Brakes (PBR)
|
|
|
|

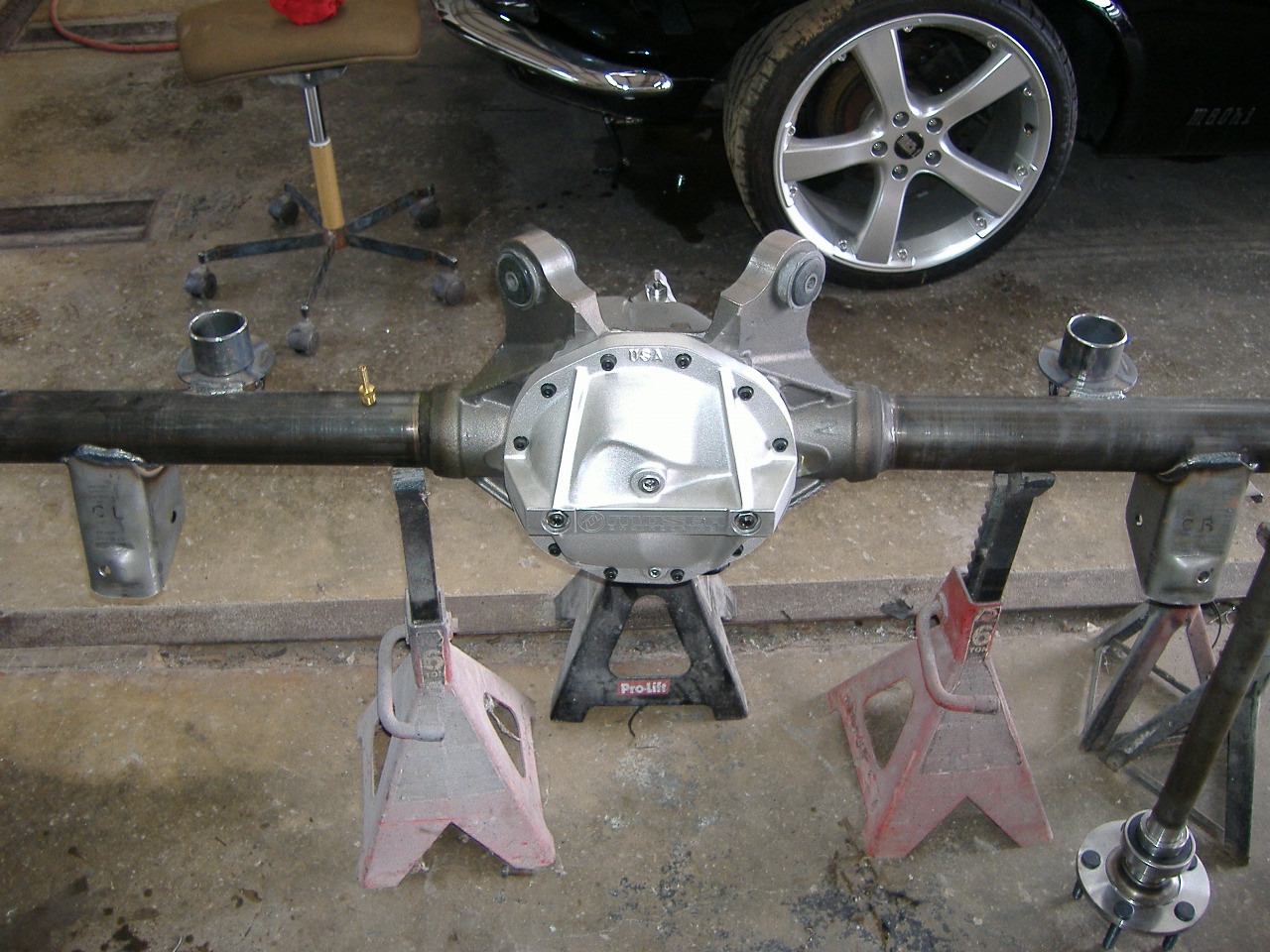

New 12 Bolt from Moser Engineeering
|
|
|
|

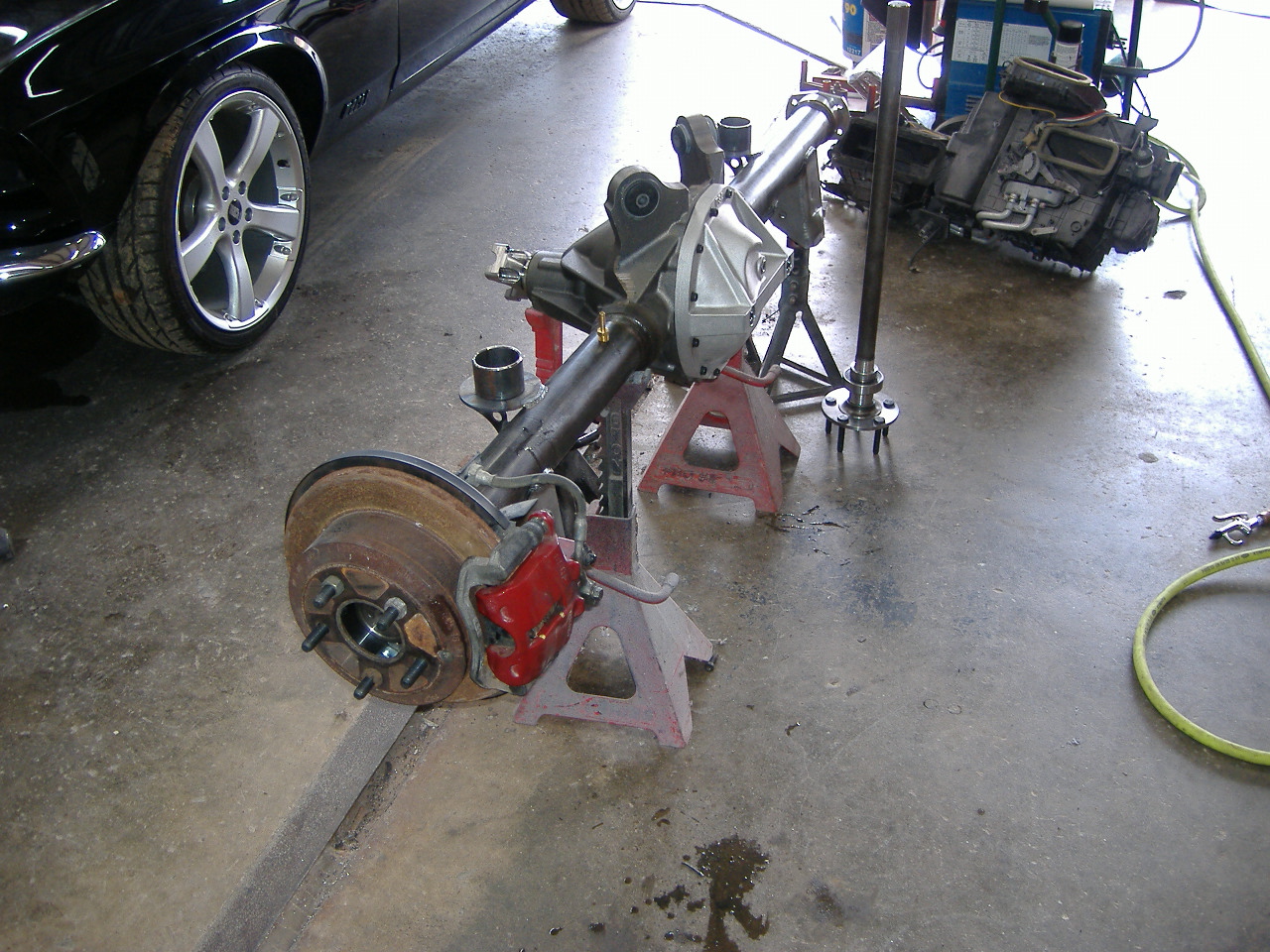

Mocking up the parts
|
|
|
|
|
|
|
|

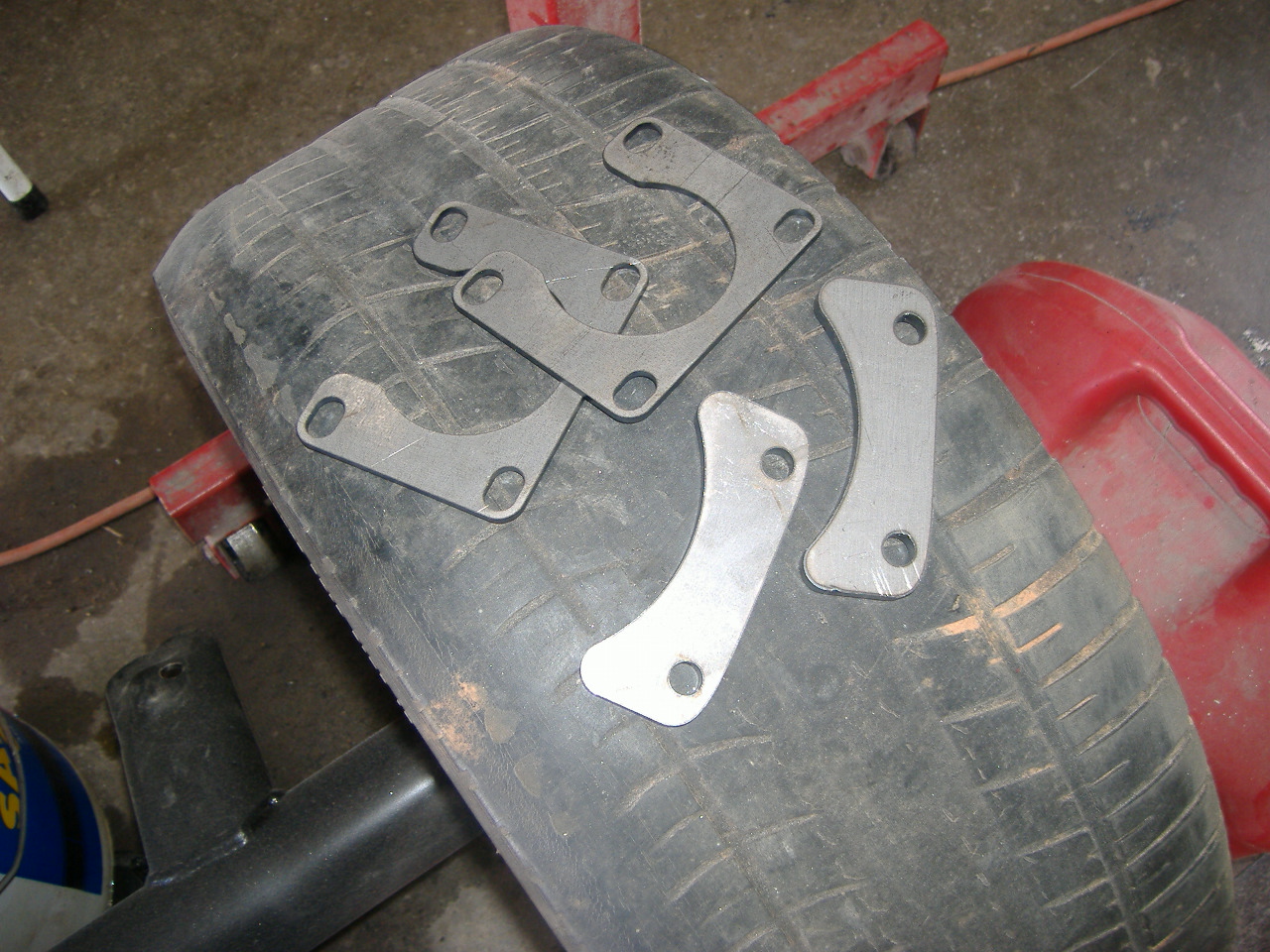

Laser cut plates to make it all work
|
|
|
|
|
|
|
|
|
|
|

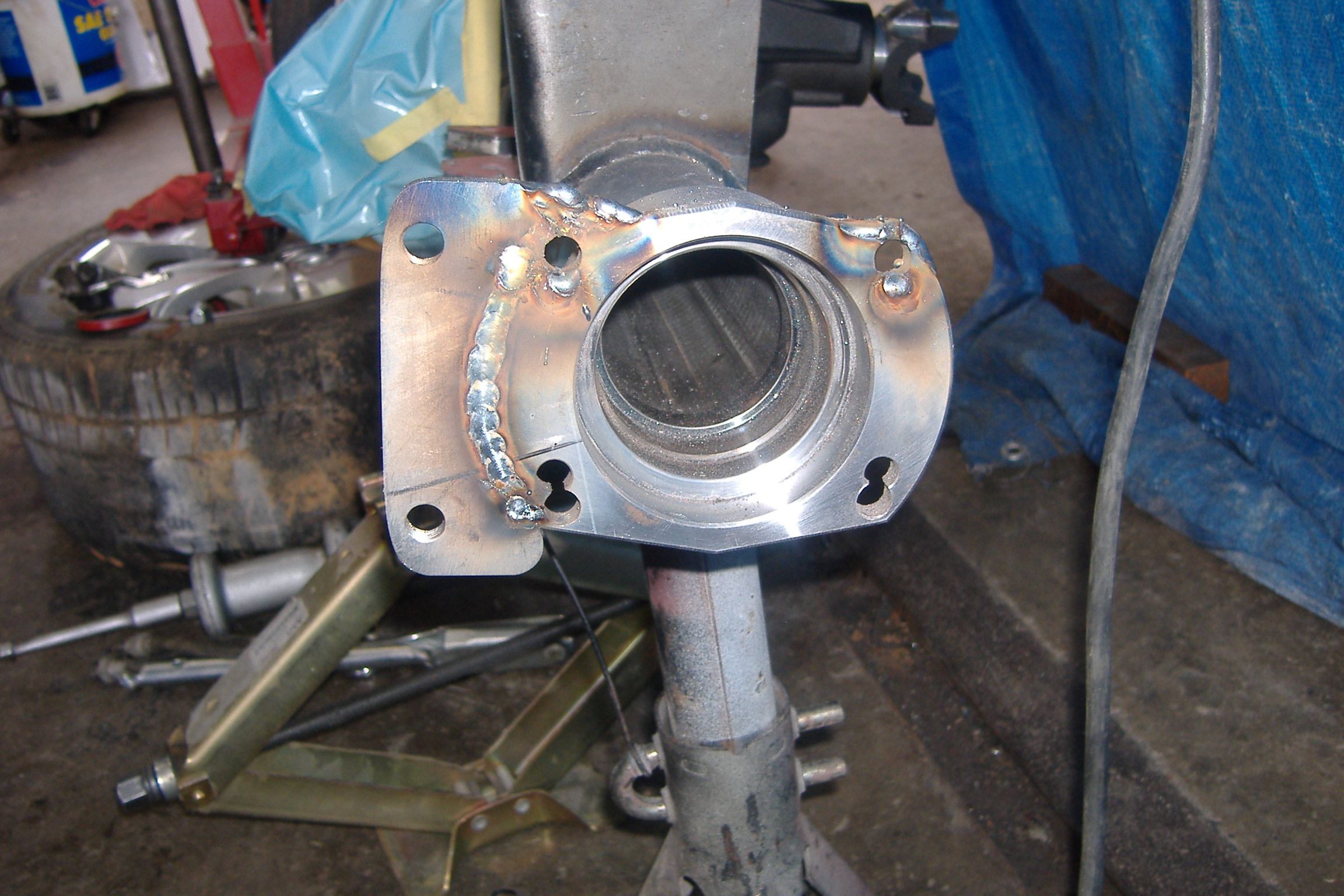

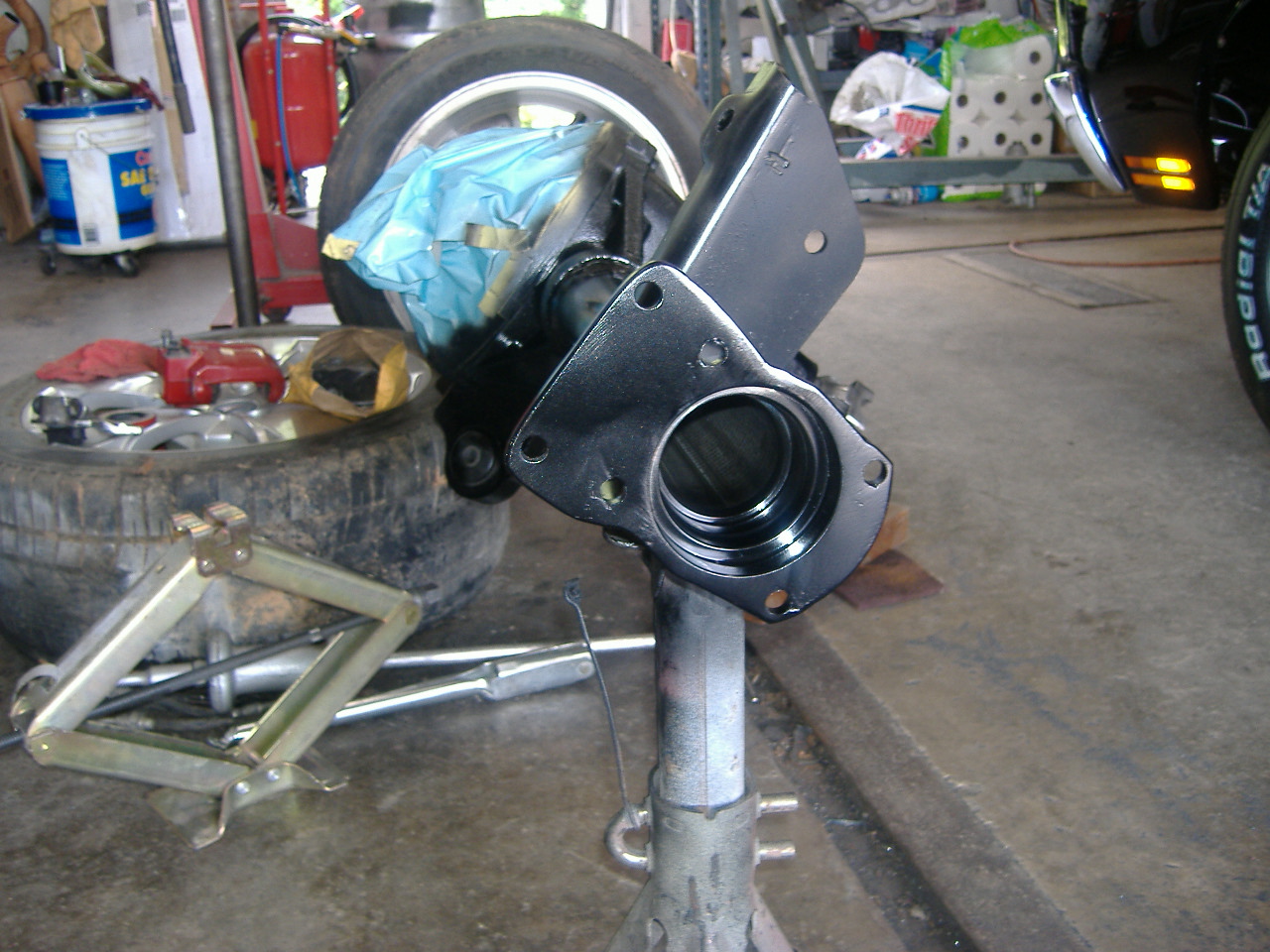

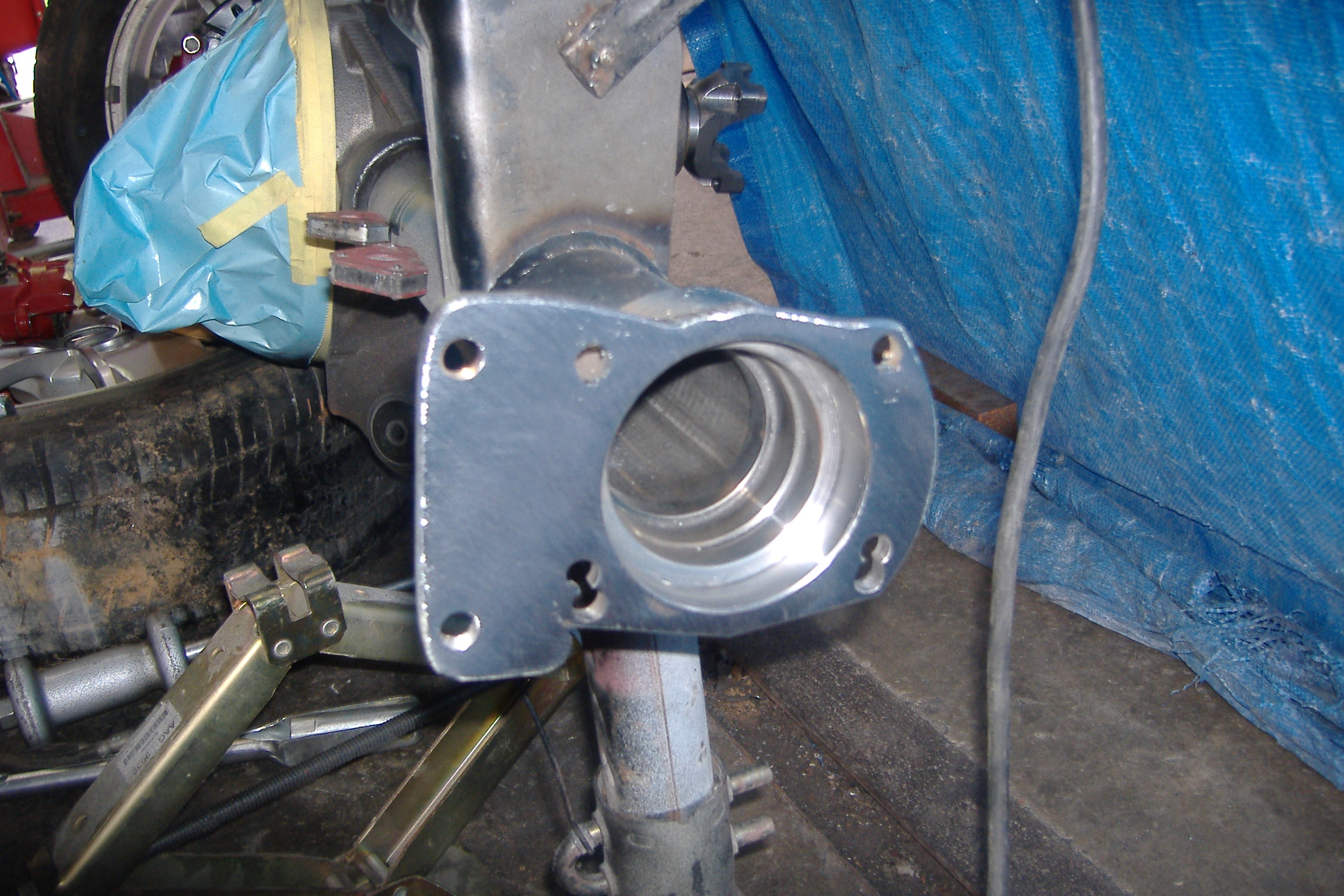

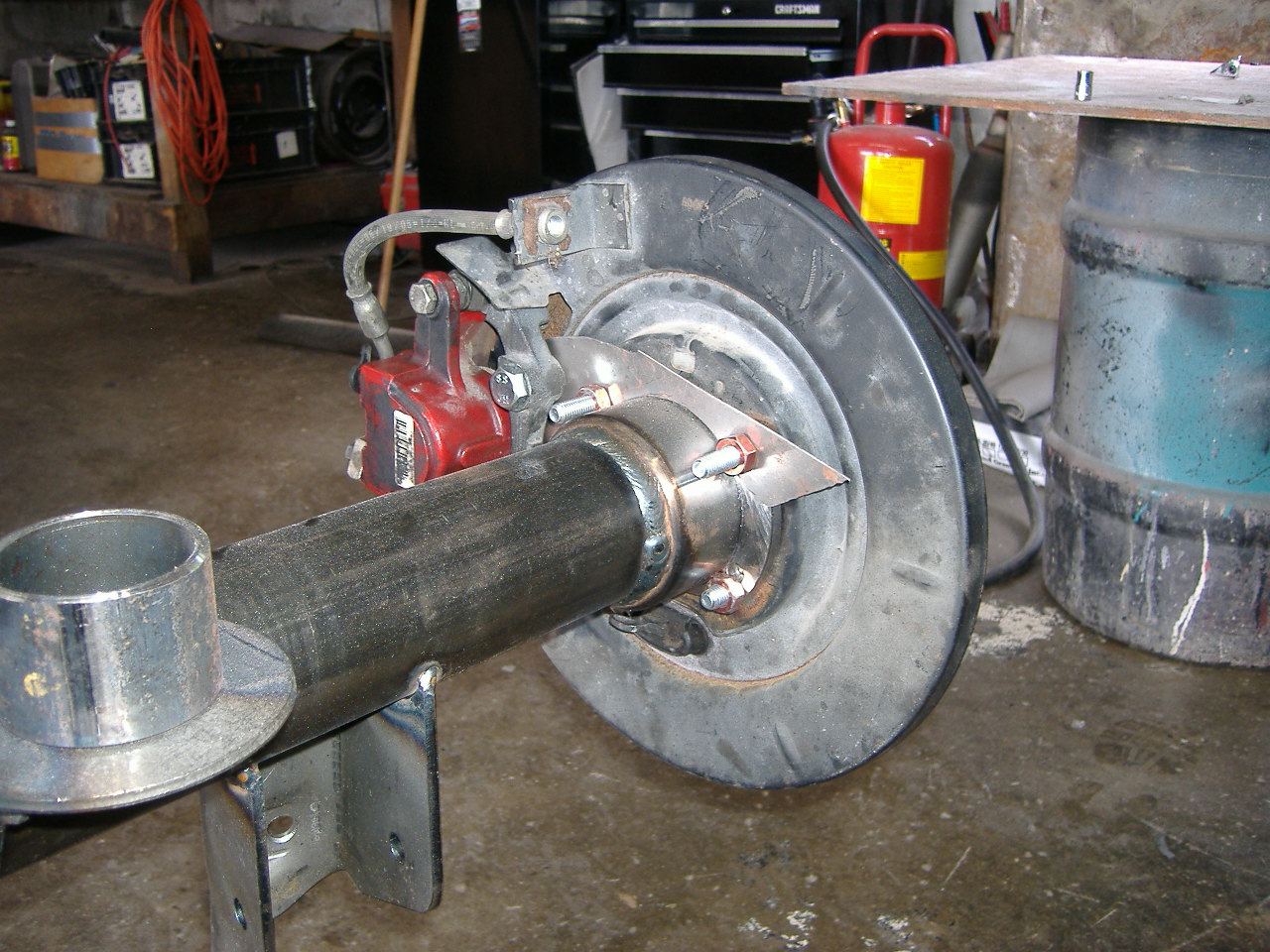

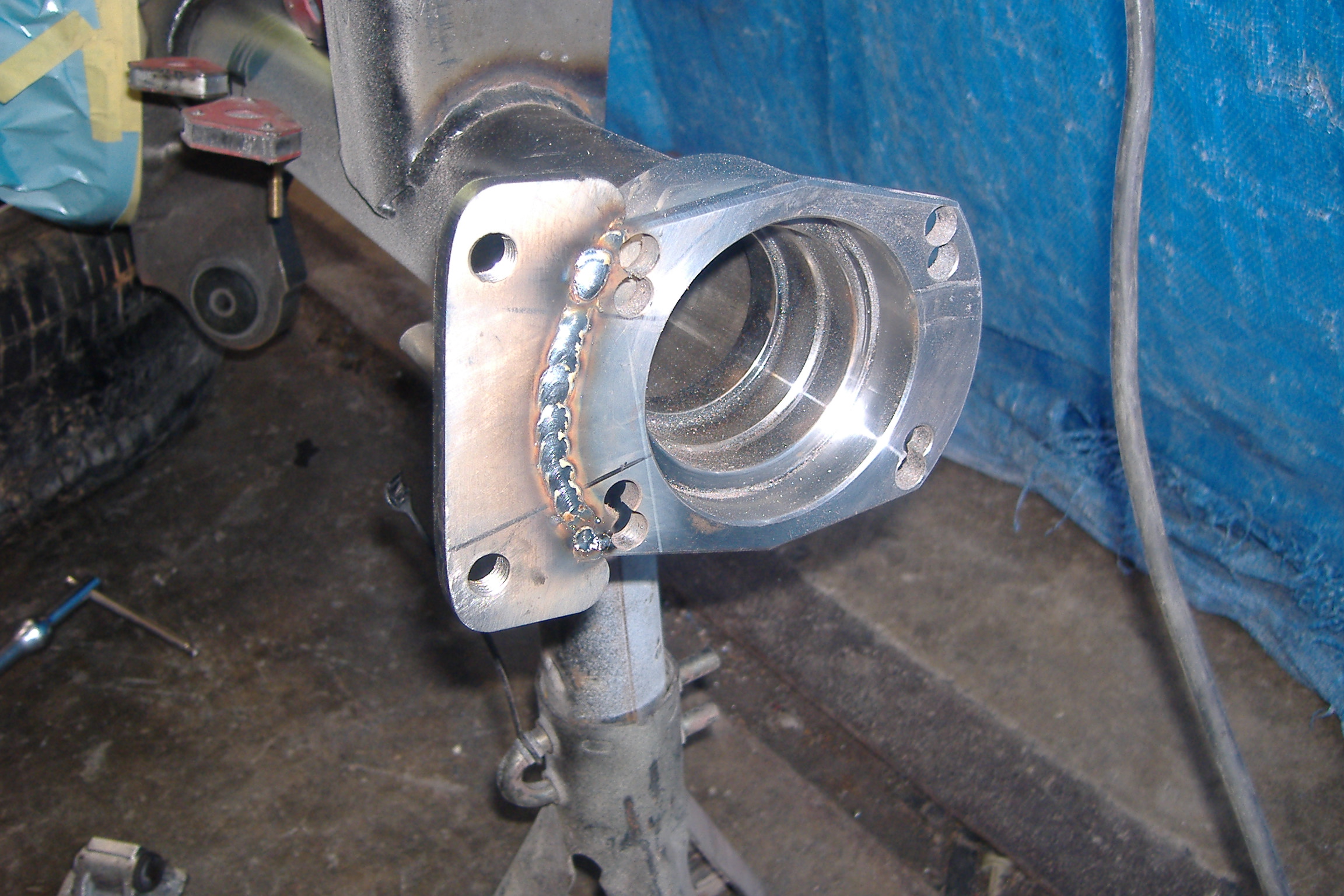

Mounting plate welded on and new holes drilled to match 06 backing plate
|
|
|
|
|
|
|
welding up the old holes
|
|
|
|

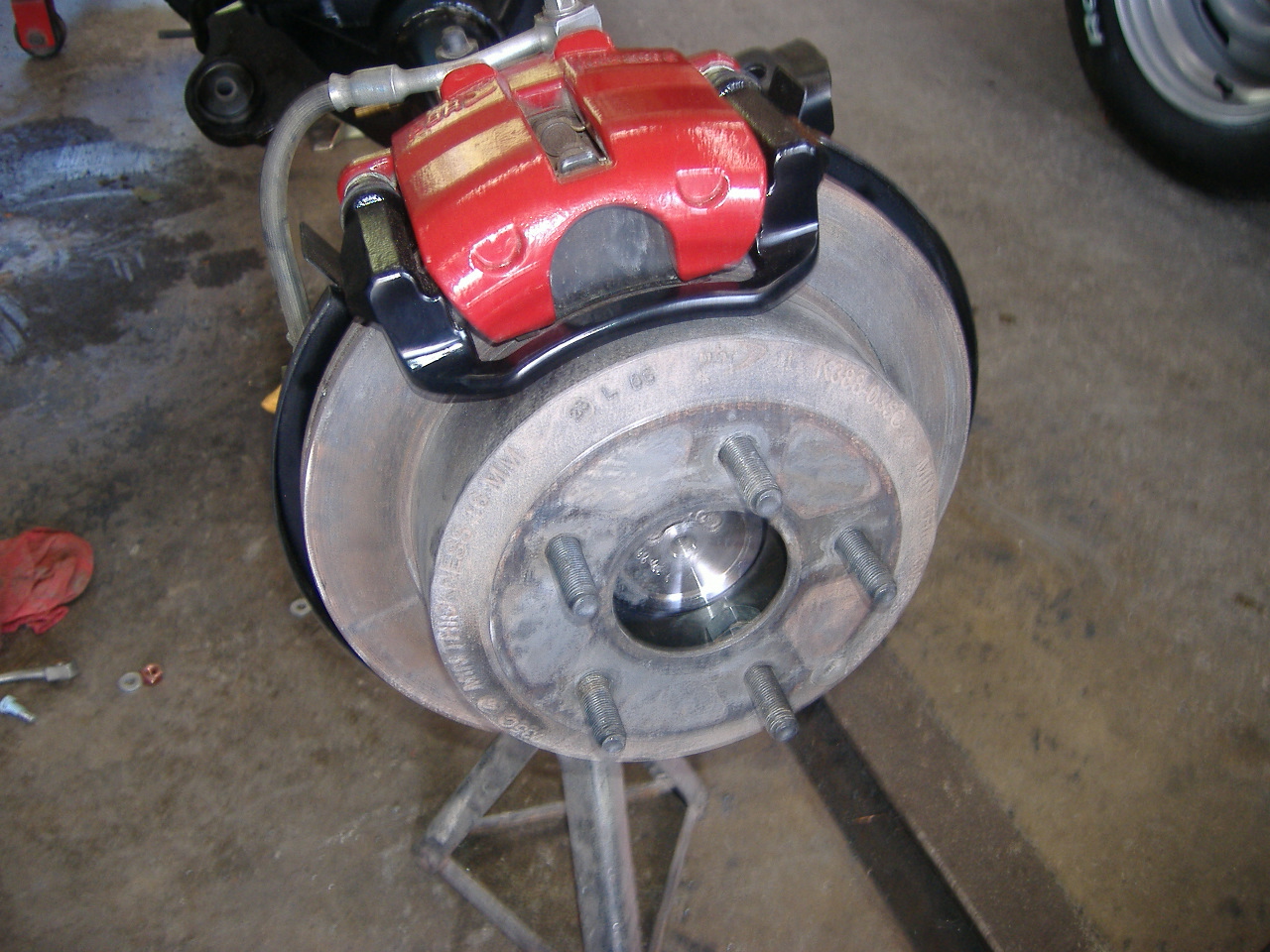

welds ground and painted
|
|
|
|
|

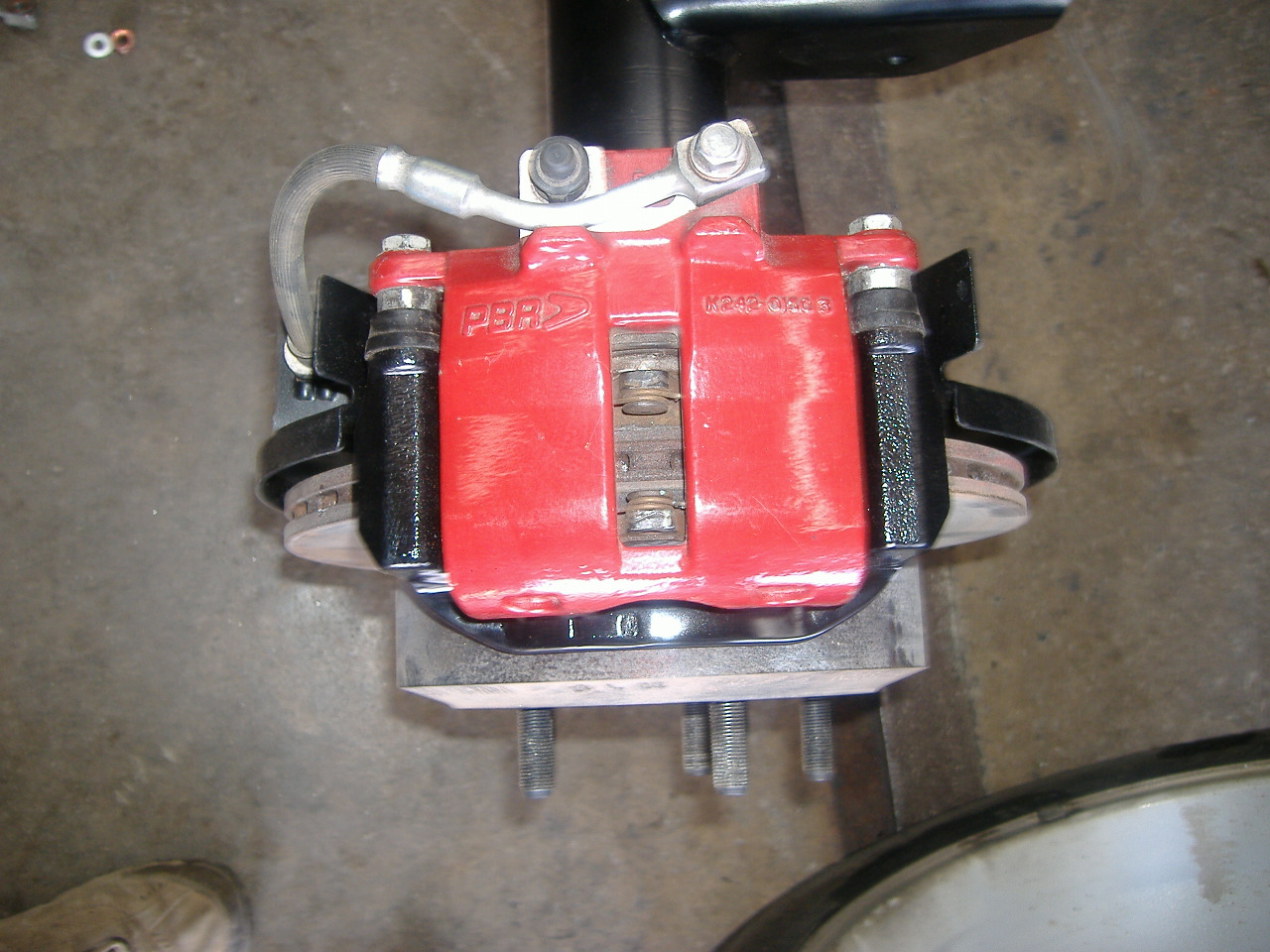

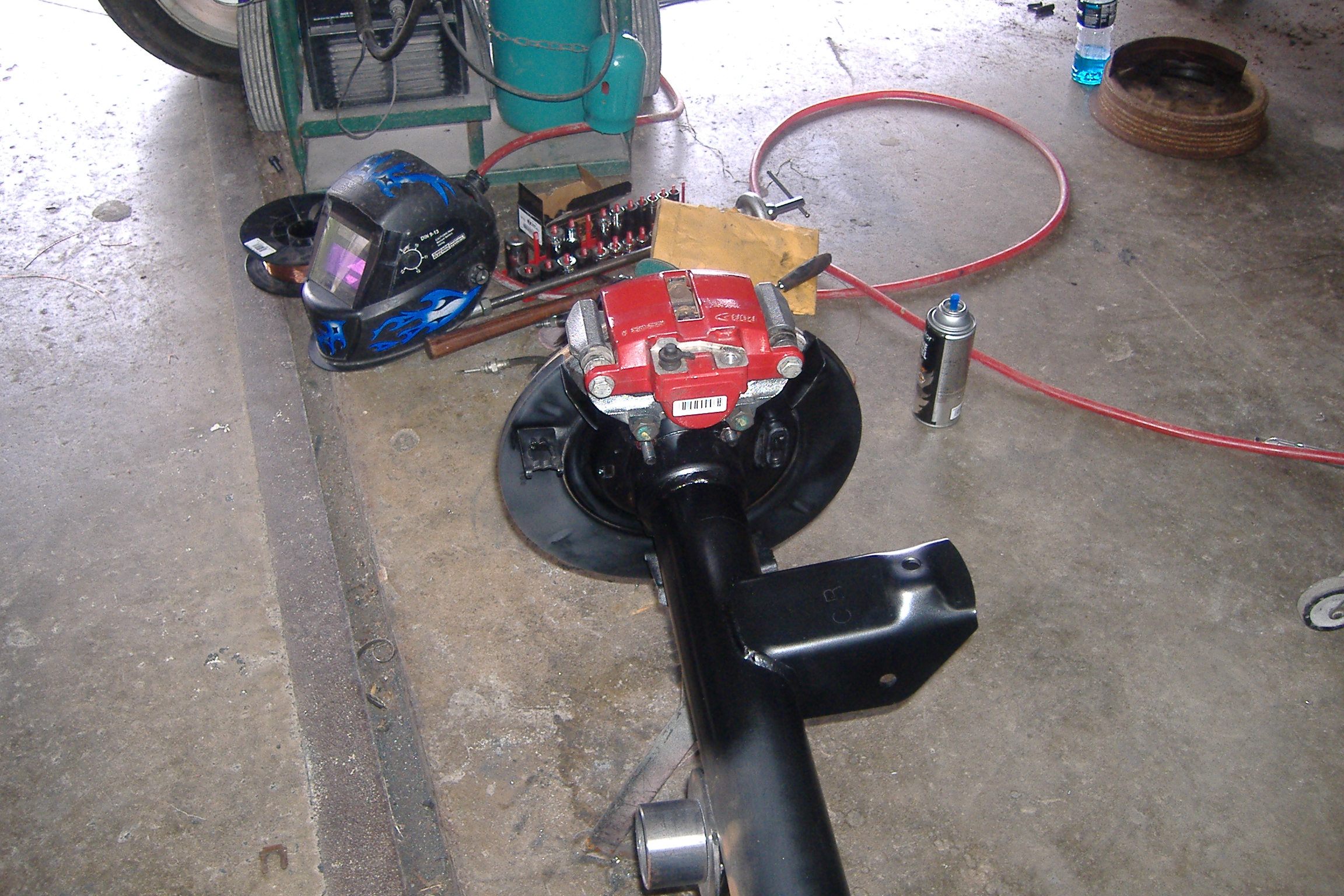

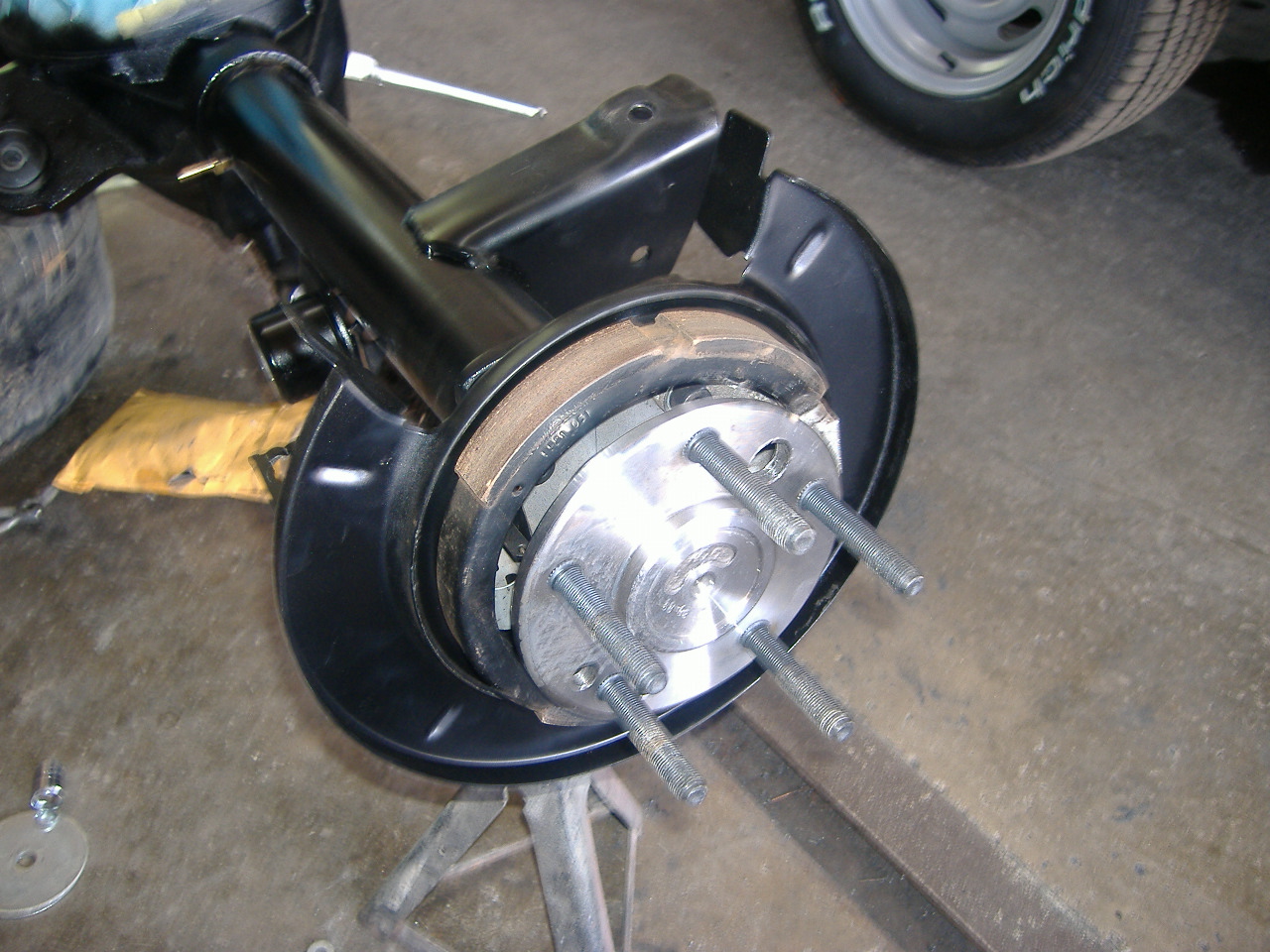

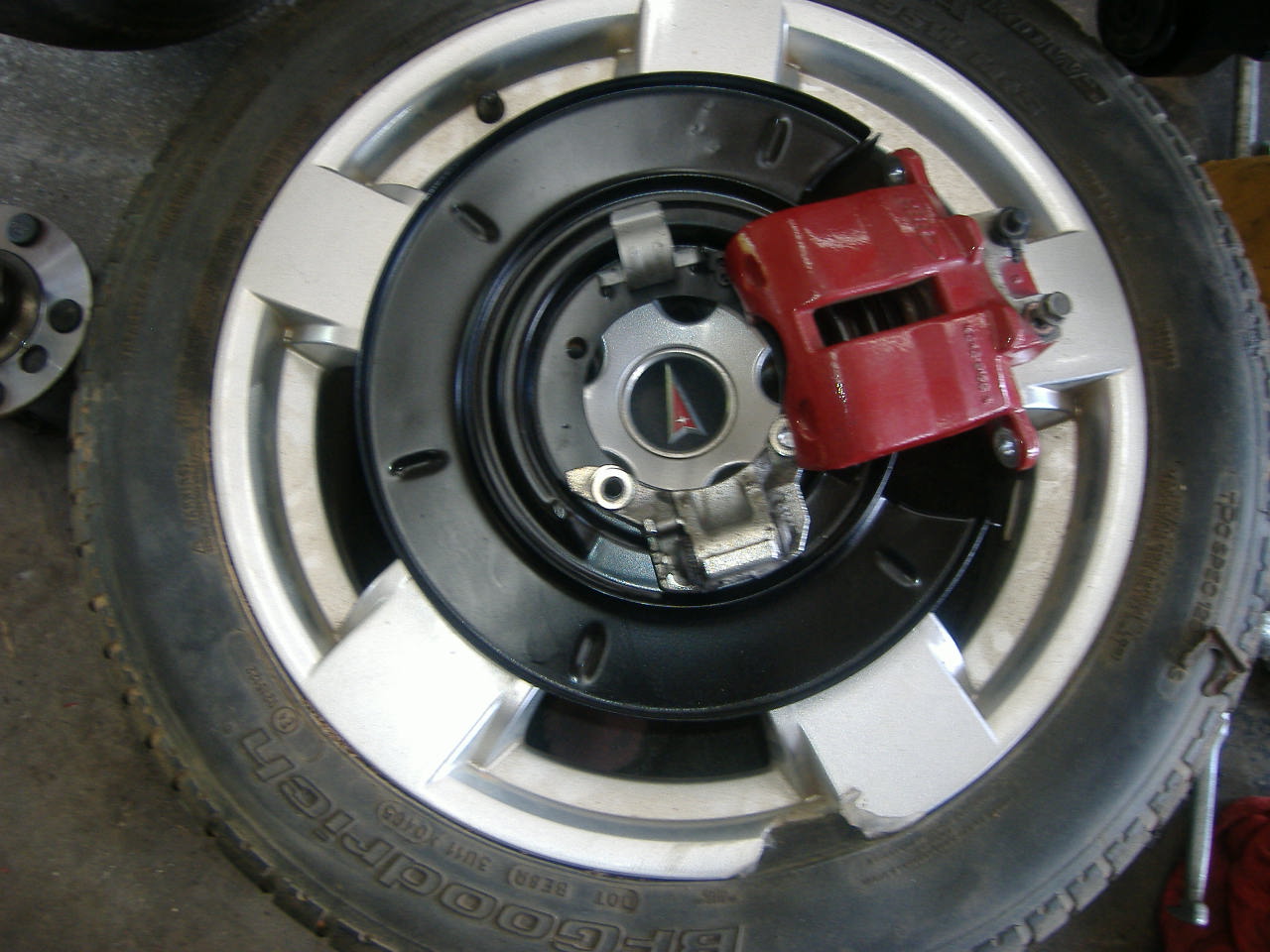

06 GTO park brake
|
|
|
|
|
|
|
|
